General characteristics
| Grinding belt dimensions | 100 x 2.000 mm |
| Tube diameter | 20 - 76,1 |
| Hand lever adjustment | 1 |
| Motor power | 3 kW |
Dimensions and weight
| Weight | 190 kg |
Description
Demo machine / mint condition

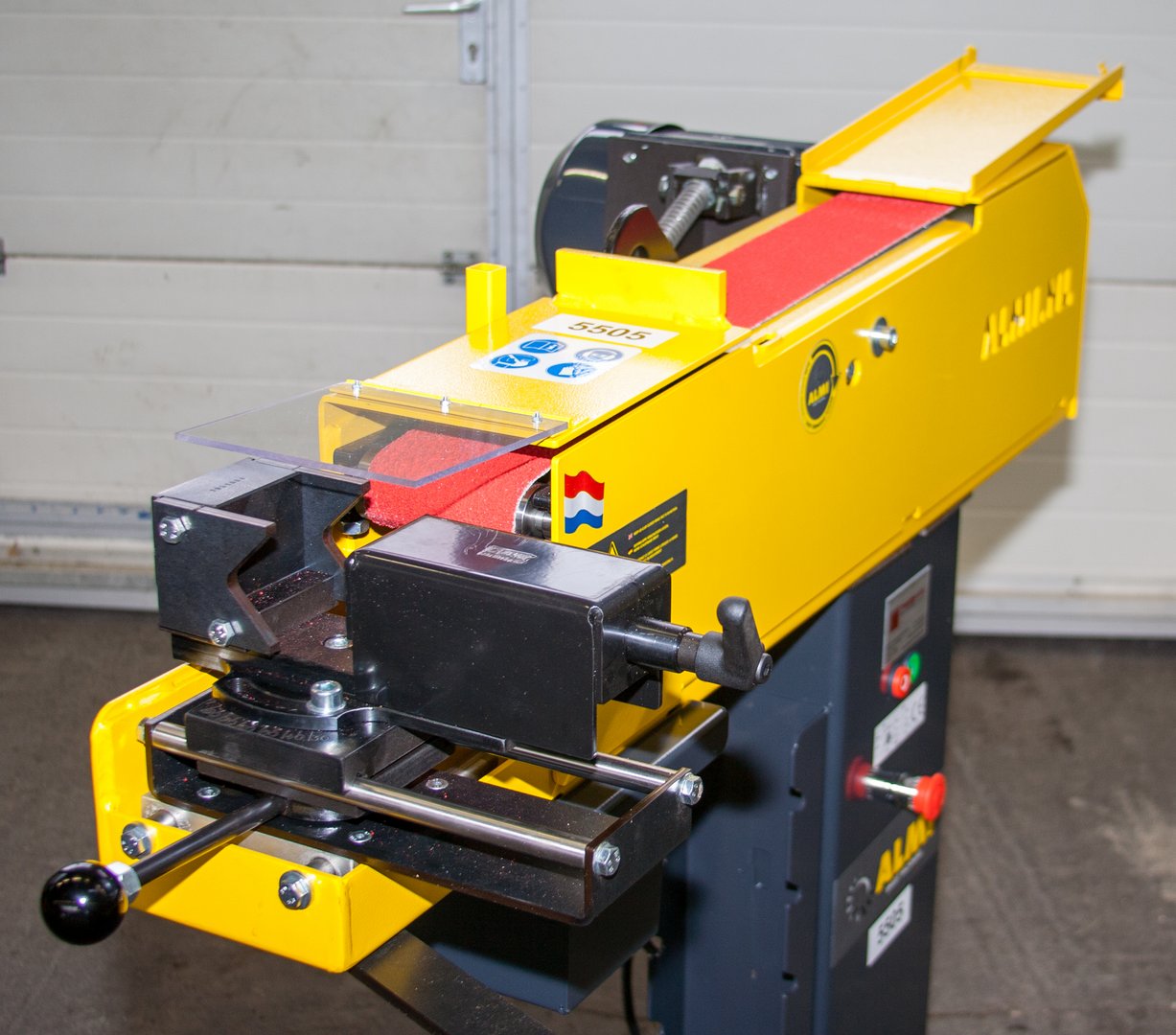

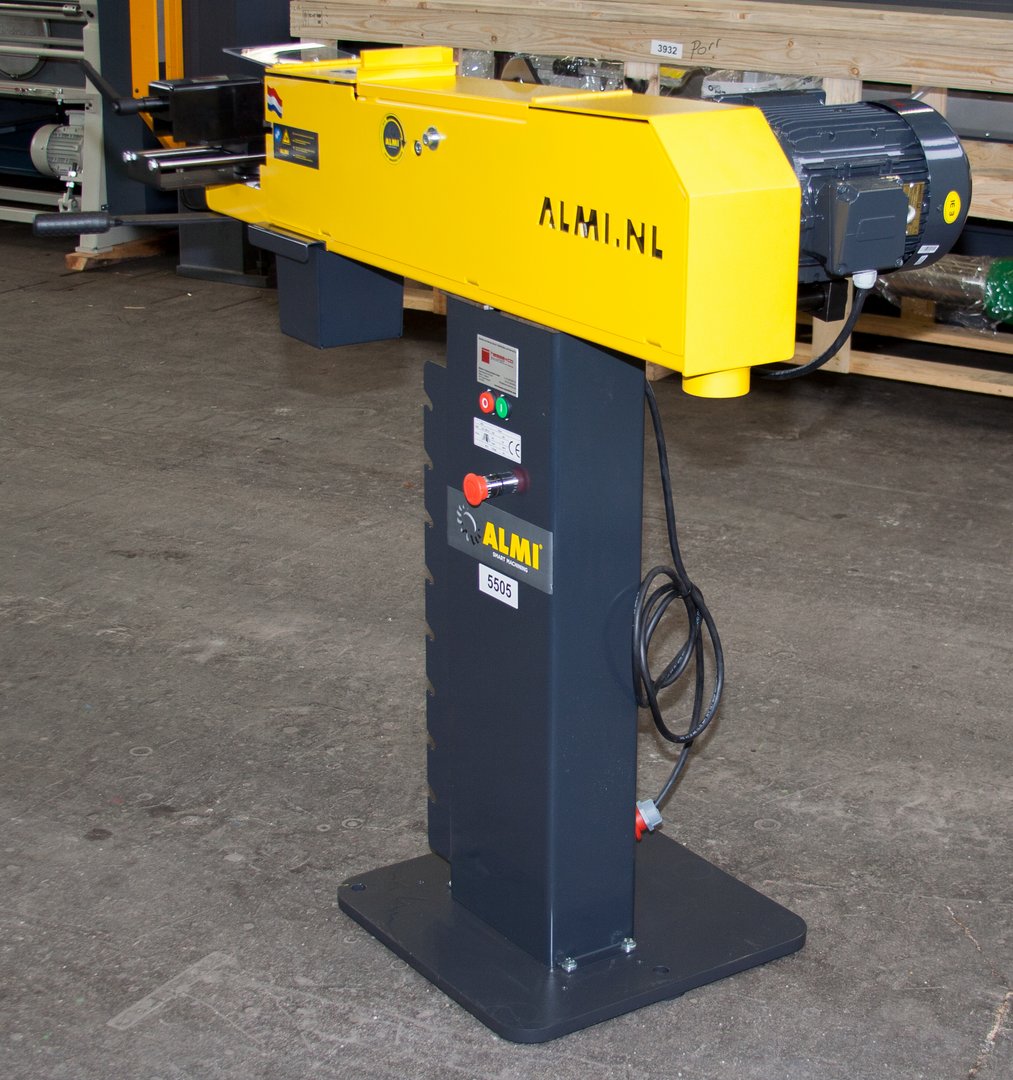

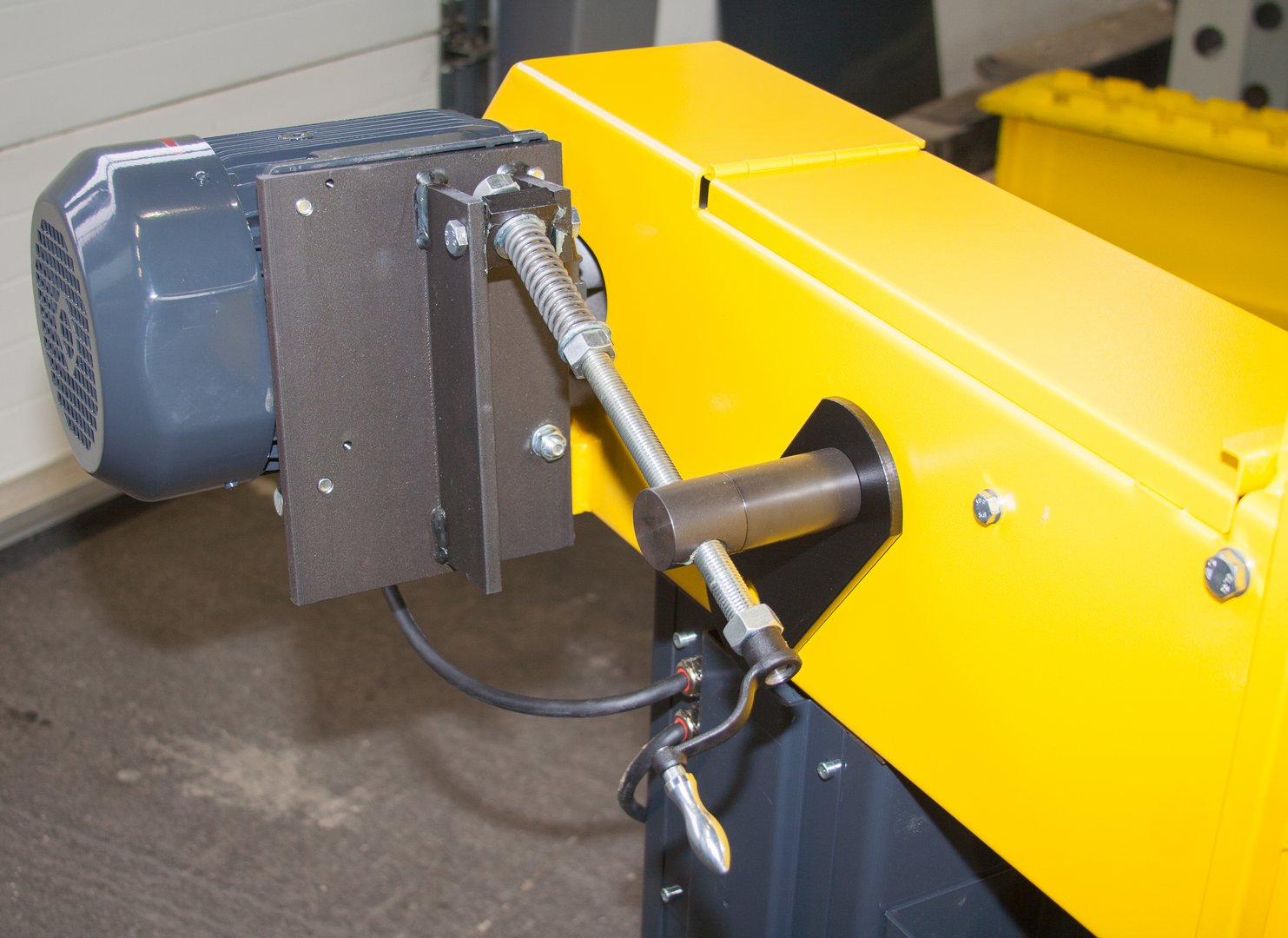

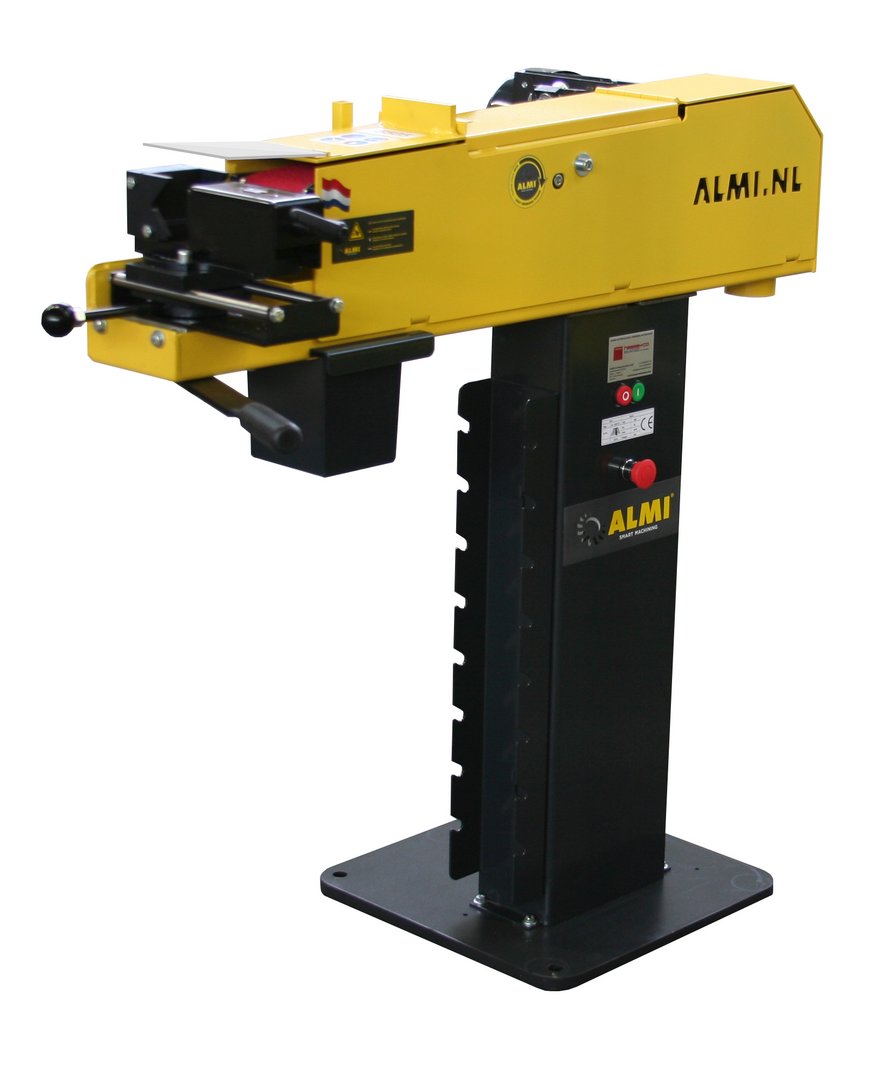

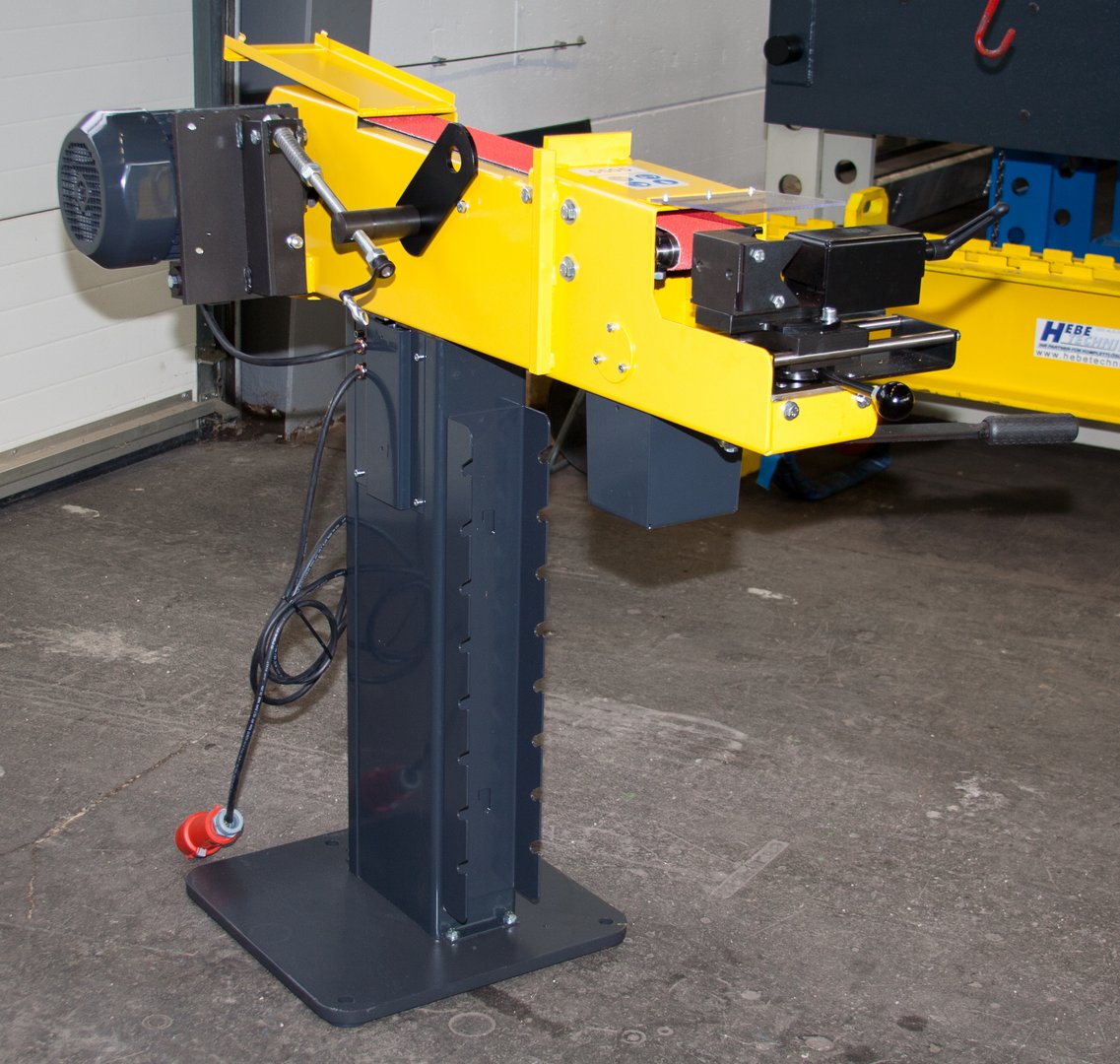

The lever operated AL100U-01 can grind material from Ø 20 mm to Ø 76.1 mm. Its compound slide and carriage with rotatable clamp are continually adjustable allowing the machine to grind all pipe sections at any angle between 30° and 90°. The ALMI AL100U-01 can be used to grind square, rectangular and round pipes with a range of wall thicknesses and is suitable for all customary types of materials. ALMI’s belt tensioning system simplifies tensioning the grinding belt. The belt is tensioned using the hexagonal spanner supplied with the machine. The grinding belt can be tensioned quickly and the grinding rollers can be changed in seconds. All pipe grinders are equipped with a deburring table.
Incl. 5 pcs. grinding belts, 1 pce. grinding roll Ø. 42,4 mm
Further information
Product video
Pipe grinders AL100U-01
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
