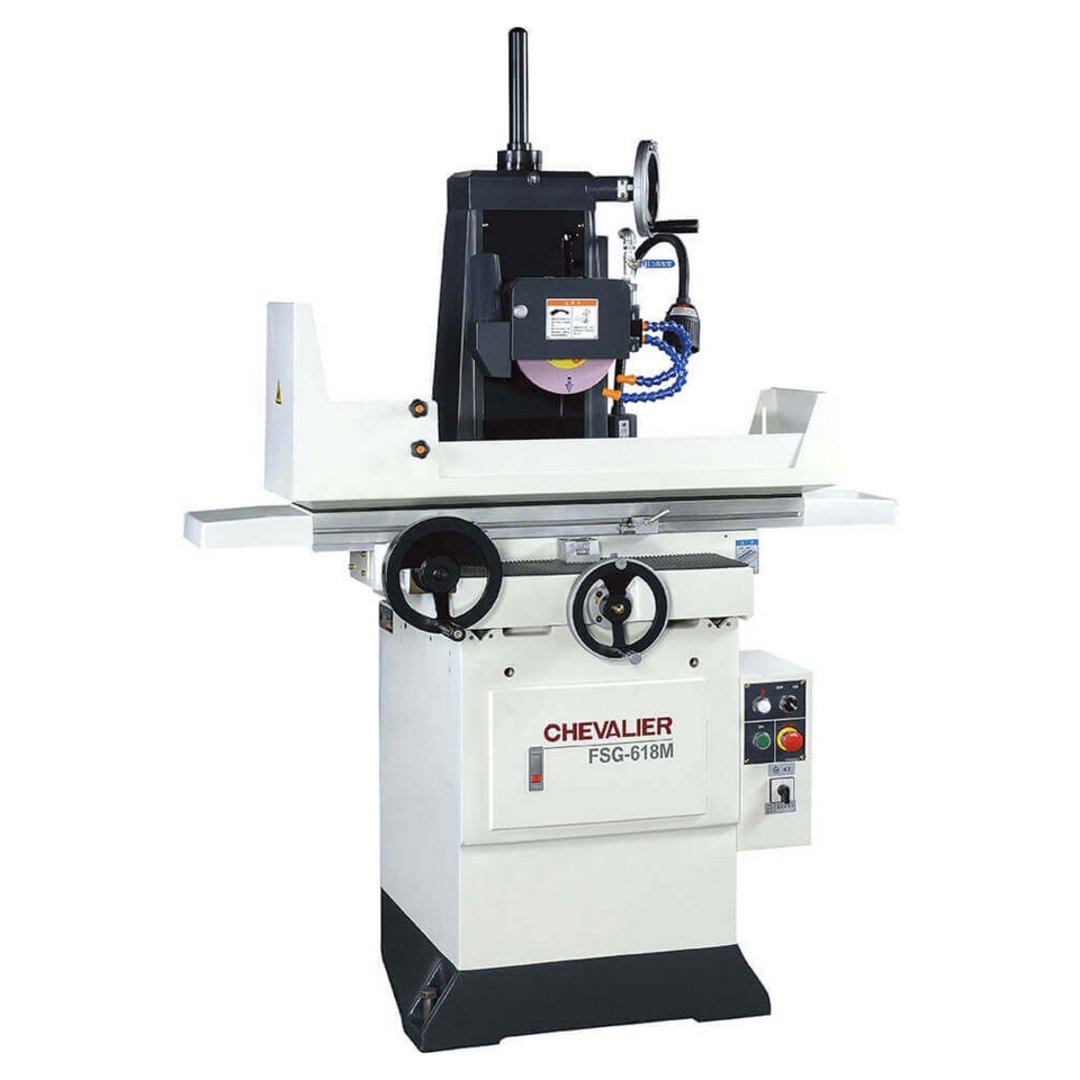

General characteristics
| Table | 146 x 460 mm |
| Grinding area | 457 x 152 x 450 mm |
| Grinding lenght | 457 mm |
| Magnetic table | 150 x 450 mm |
| Table movement manual | 482 mm |
| Max. cross feed | 180 mm |
| Grinding wheel dimensions | 208 x 12,7 x 31,75 mm |
| Spindle motor | 1 kW |
| Crossfeed per handwheel revolution | 3 mm |
Dimensions and weight
| Length | 1900 mm |
| Width | 1400 mm |
| Height | 2130 mm |
| Weight | 680 kg |
Description
man. vertical feed
grinding wheel spindle on 4 high precision angular contact bearings
electro-magnetic chuck 150x450 mm
coolant equiptment with filter
manual dresser with diamond
grinding wheel
grinding wheel flange
grinding wheel balancing scale
balance arbor
LED machine lamp
machine and equipment according to the CE-regulations
user manual in GERMAN and ENGLISH
