General characteristics
| Revs | 65 - 2600 r.p.m. |
| Taper | ISO 40 |
| Working area | 420 x 220 x 380 mm |
| Table | 840 x 390 mm |
| Motor | 2.2 kW |
| Working table clamping surface | 840 x 390 mm |
| Rapid feed in all 3 axes | 1000 mm/min |
| Clamping slots | 5 |
| Width x Distance | 14 x 63 mm |
| Maximal table load | 200 kg |
| Travel longitudinal | 420 mm |
| Travel cross | 220 mm |
| Travel vertical | 380 mm |
| Feeds stepless X,Y range | 0 - 600 mm/min. |
| Feeds stepless Z range | 0 - 600 mm/min. |
| Horizontal spindle number of rates | 65 - 2600 |
| Distance of spindle axis from frame guide ways | 90 - 310 mm |
| Vertical spindle number of rates | 65 - 2600 |
| Spindle swivelling | +/- 90° ° |
| Quill travel | 100 mm |
| Clamping of tools | manuell |
| Spindle motor | 2 kW |
| vertical table | 950 x 250 mm |
| Distance vertical milling spindle - milling table | 90 - 310 mm |
| Distance horizontal milling spindle - milling table | 100 - 480 mm |
Dimensions and weight
| Length | 1600 mm |
| Width | 1700 mm |
| Height | 2000 mm |
| Weight | 1145 kg |
Description
demo machine / mint condition
net price (price for new machine € 39.600,00)
swiveling operating panel

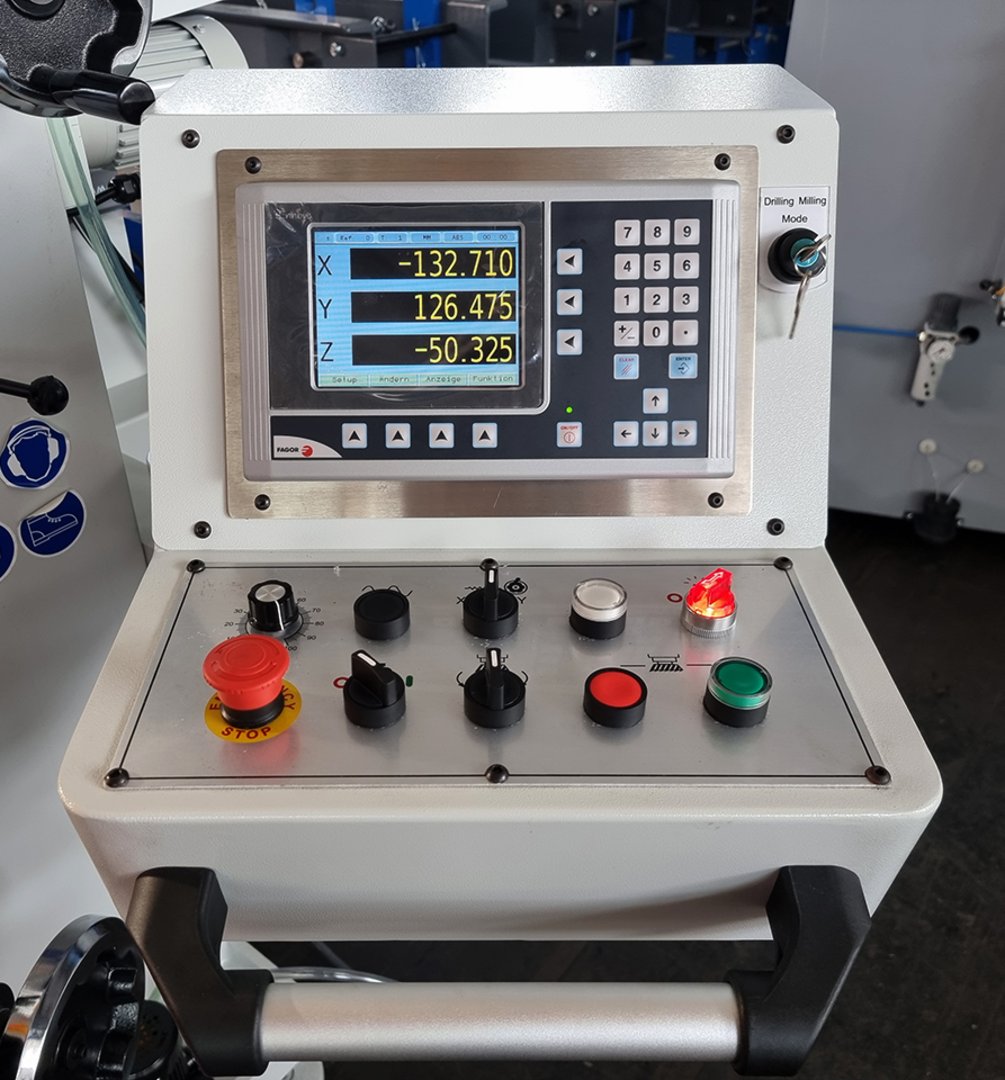

3 axes digital read out Fagor 40i Innova
motor for horizontal- and vertical spindle: 2,2 kW

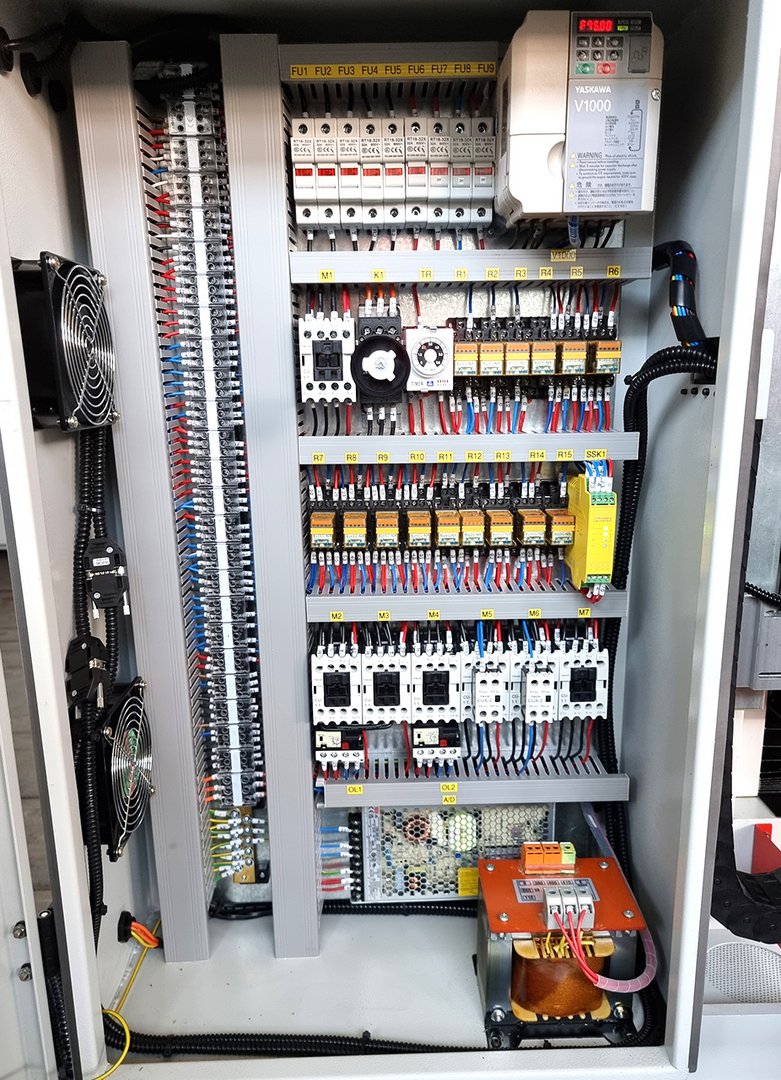

feed motors with inverter for X/Y/Z: 0,35 / 0,35 / 0,75 kW
ball screw spindles for X/Y/Z axes

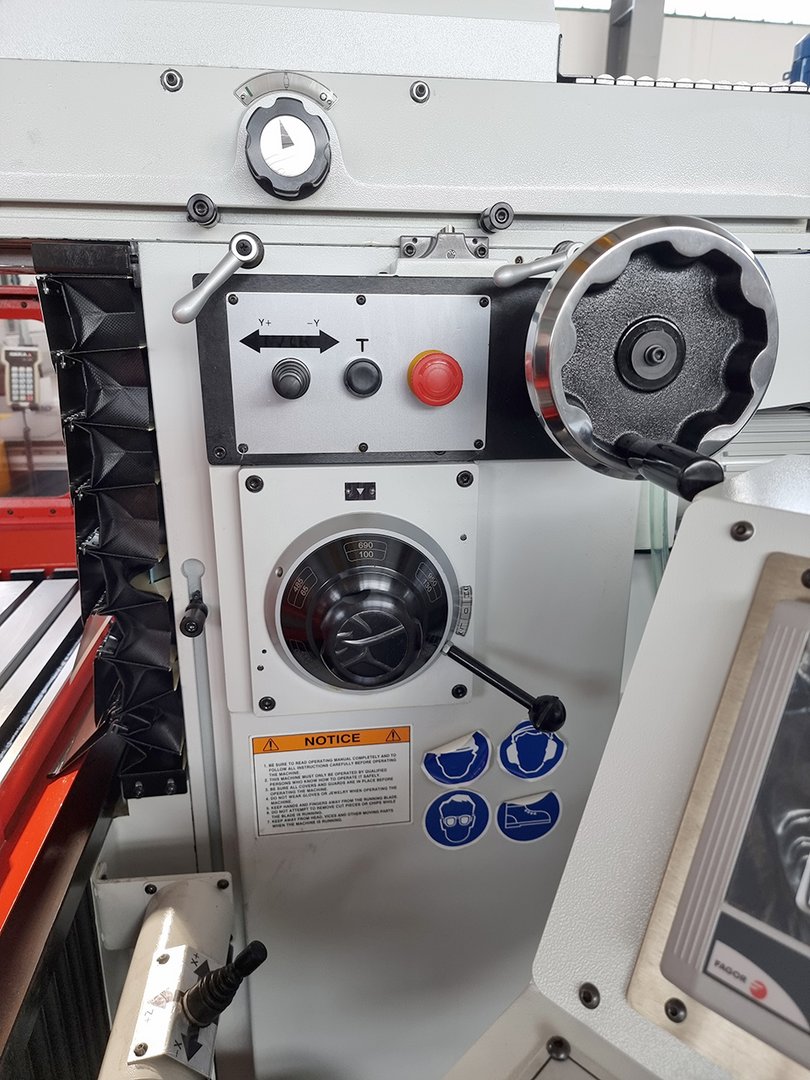

manual gear box for spindle speeds
1 pc. long milling arbor 27 mm
3 pcs. recustion sleeves (MK1, MK2, MK3)
1 pc. drawing bar ISO40 for horizontal or vertical spindle
spindle protection with switch

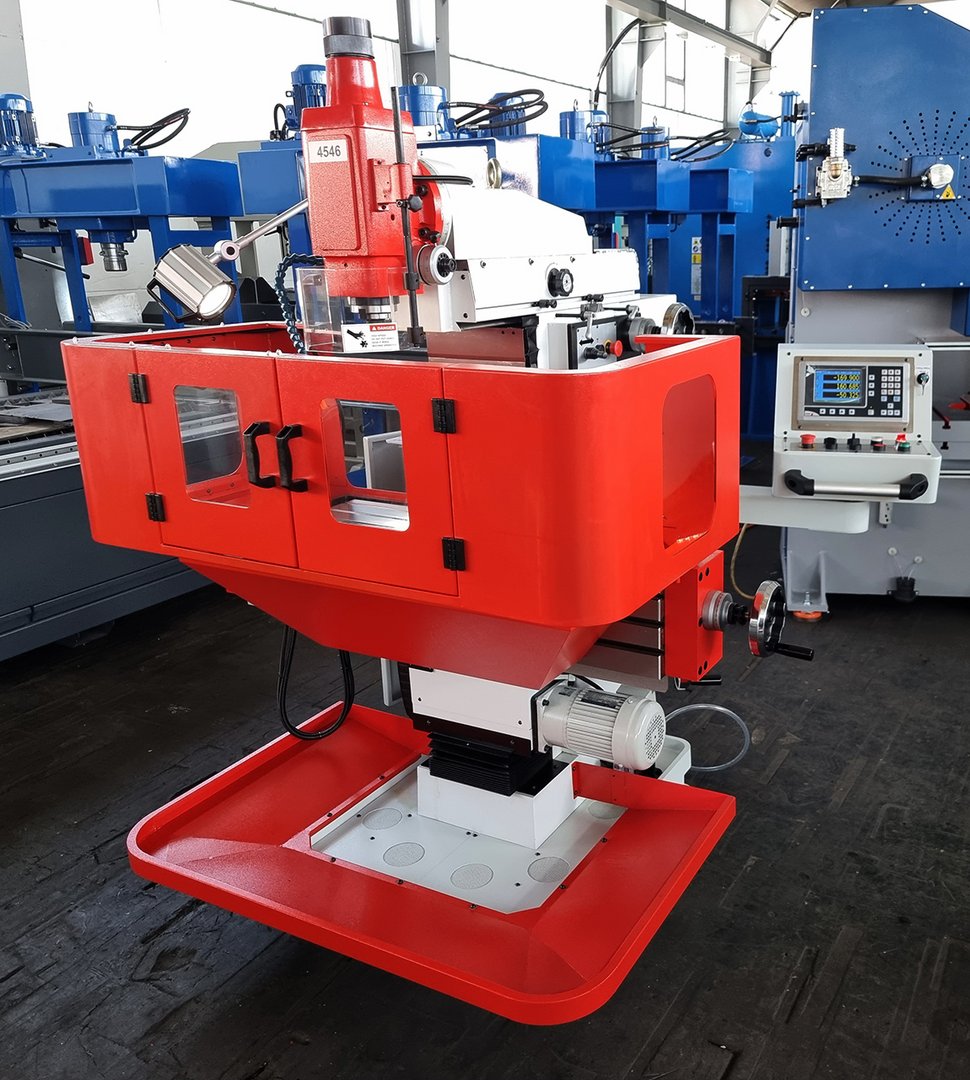

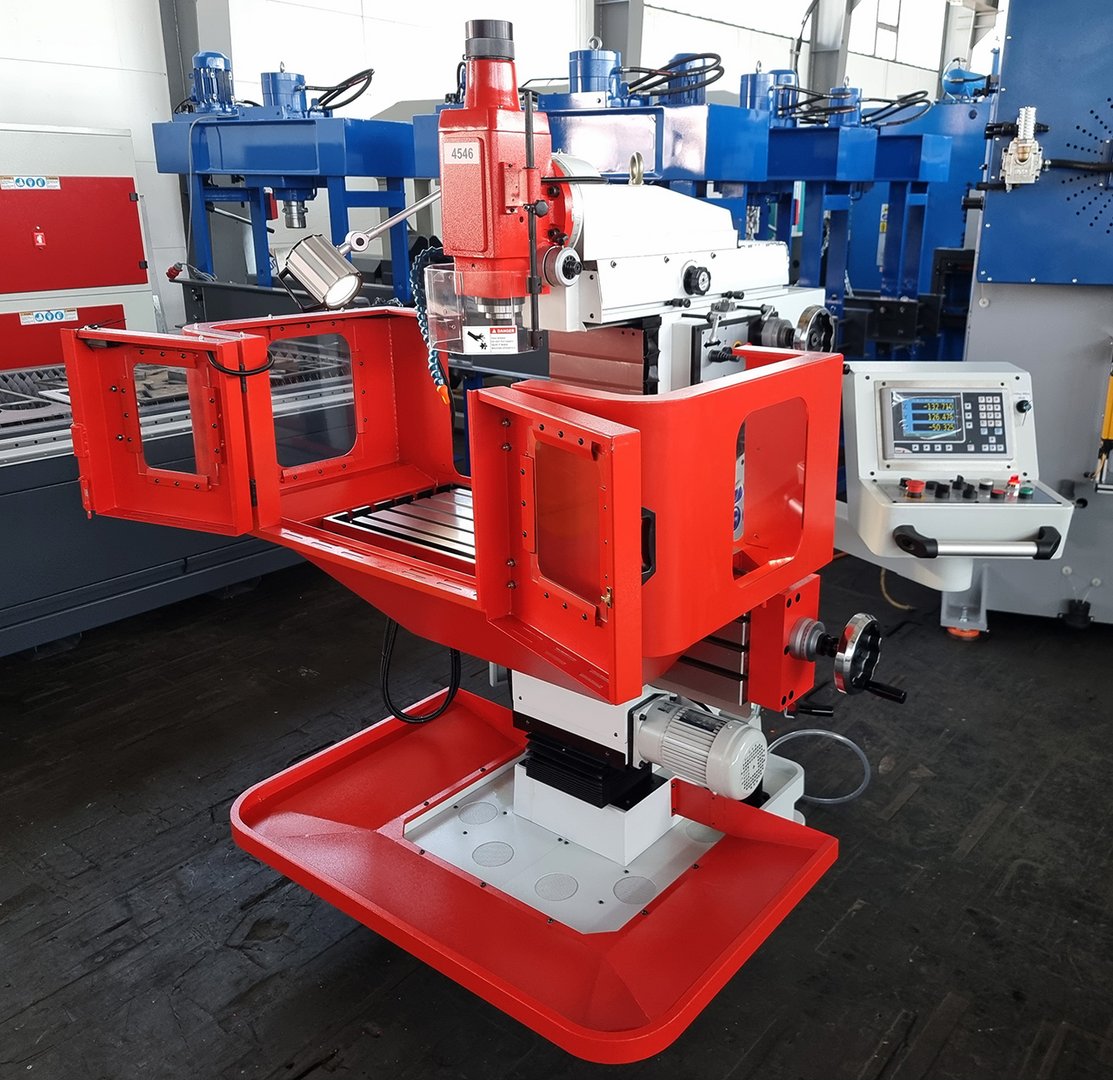

table safety guard with doors with switches
outer arbor support for horizontal spindle
LED work lamp
automatic lubrication for X/X/Z guidways
safety hand wheels for X/Y/Z axes
coolant equipment with chip tray
covers for X/Z axes
level pads and bolts
tool box with tools
operating manual in English or German
according to CE rules
