General characteristics
| Revs | 63 - 3150 (18) r.p.m. |
| Working area | 700 x 500 x 500 mm |
| Table | 900 x 500 mm |
| Motor | 6.6 kW |
| Maximal table load | 500 kg |
| Quill travel | 100 mm |
Dimensions and weight
| Length | 2150 mm |
| Width | 2220 mm |
| Height | 2120 mm |
| Weight | 2550 kg |
Description

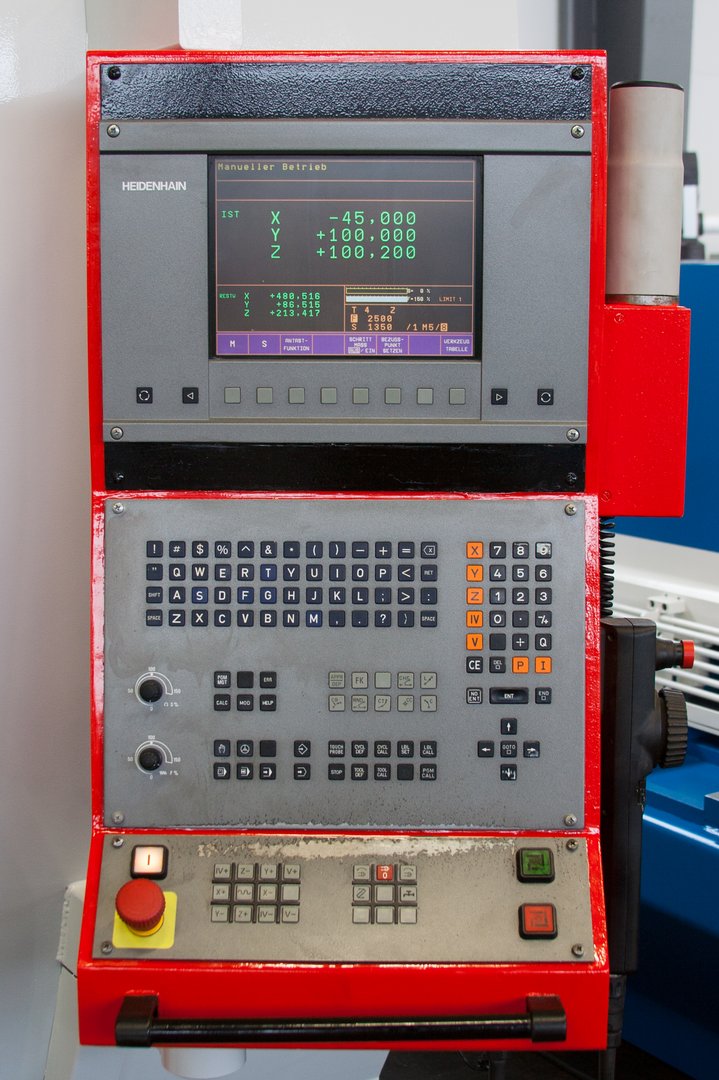

CNC Heidenhain TNC 410
18. mech. feeds with rapid travel in X,Y,Z axes
ball screw spindles
toolmaker accuracy DIN 8615
hyd. tool clamping with holders SK40 vertical und horizontal

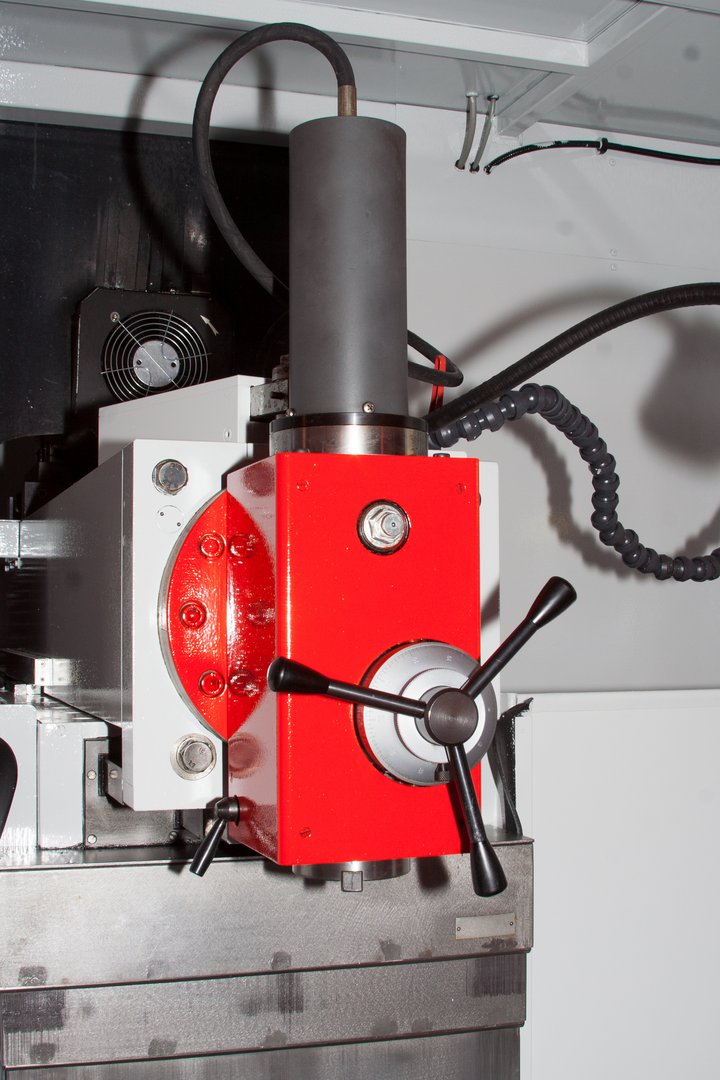

vertical spindle +/- 30° swiveling
swing out device
digital 3D edge finder
work area protection
coolant equiptment
aut. central lubrication
fixed angle table with 10 t-slots
chip collecting tray
machine lamp
users manual in GERMAN + CE
Complies with the current industrial safety regulations (AMVO & UVV)
Further information
Product video

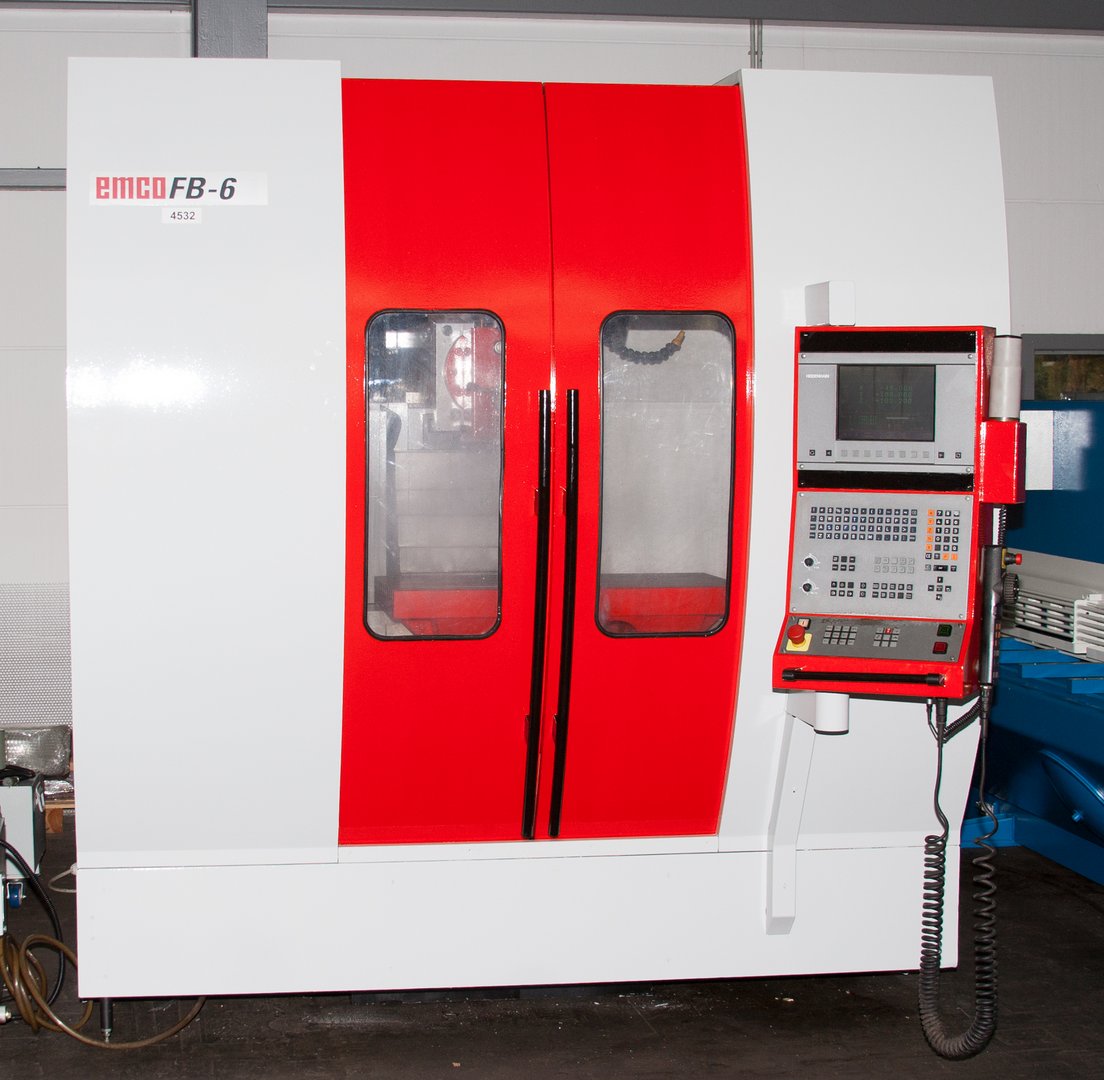

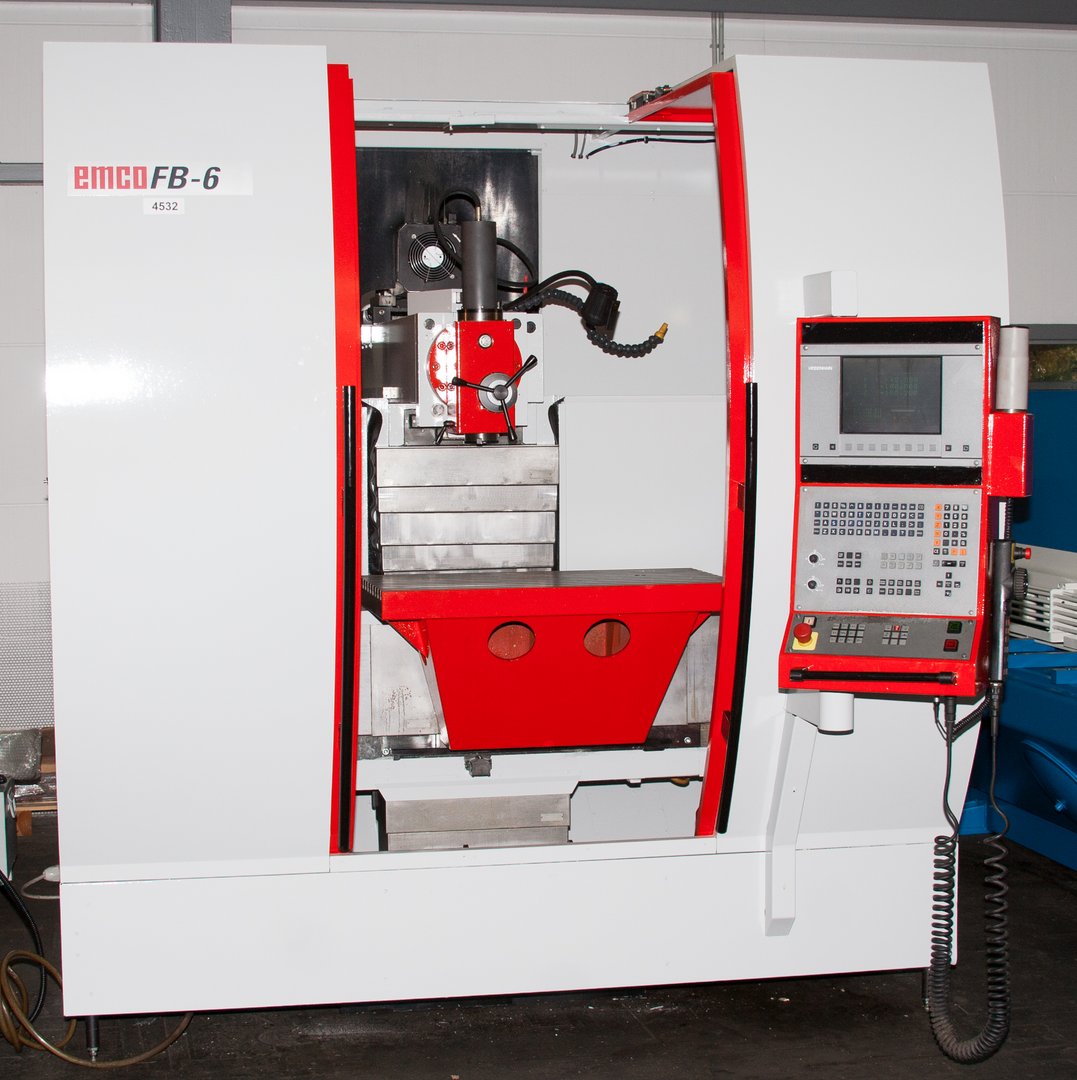

CNC milling machine EMCO FB 6
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
