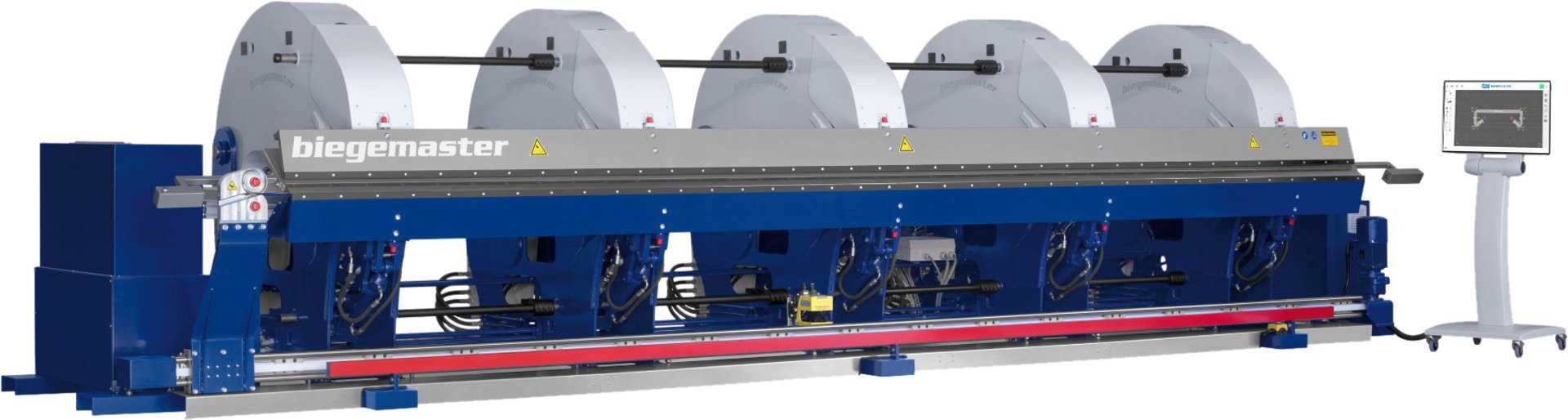

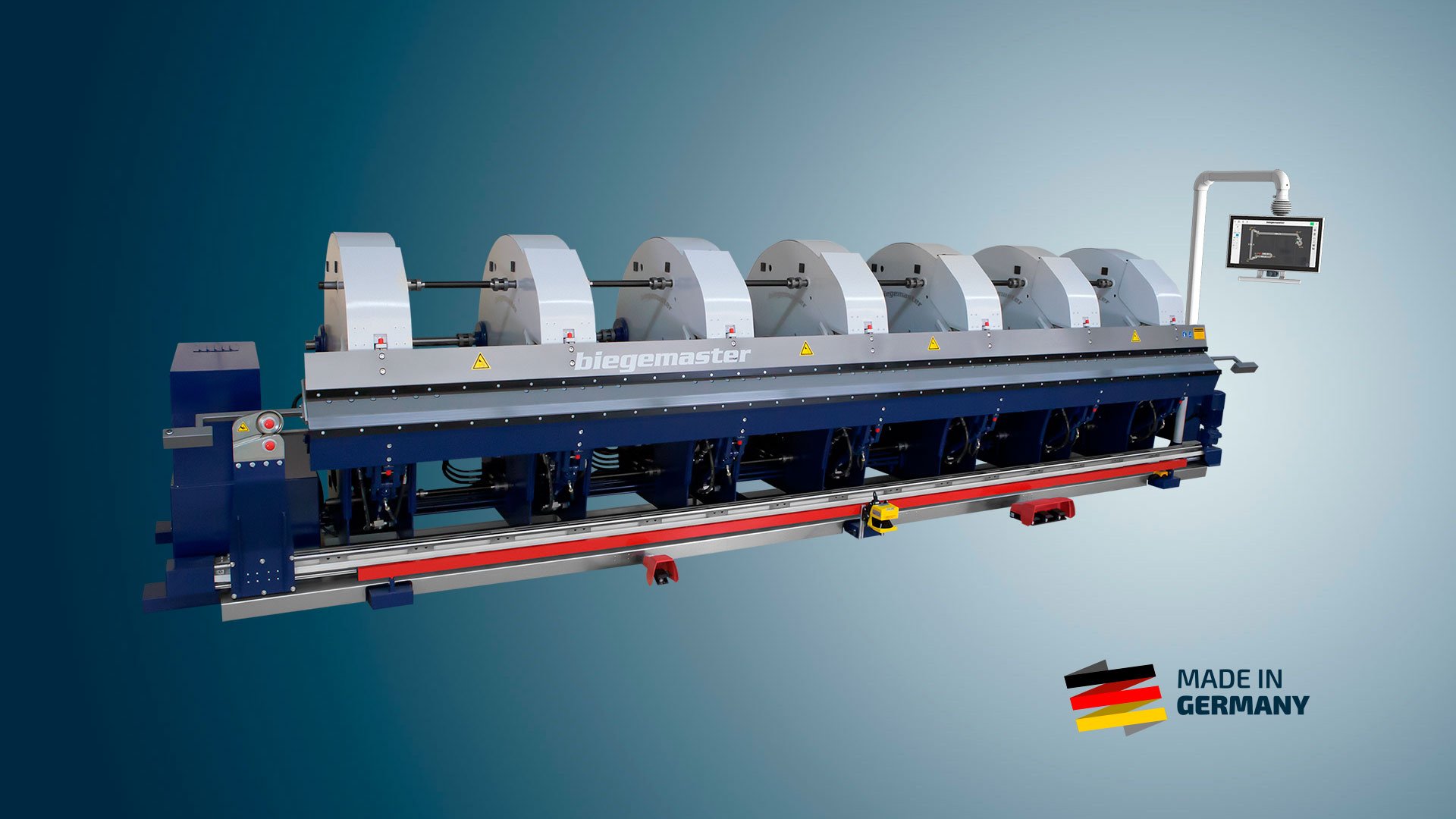

Hydraulic long folding machine double bender BIEGEMASTER XBEND 6.1,50
| Model | XBEND 6.1,50 |
| Brand | BIEGEMASTER |
| Condition | new |
| Bending length | 6400 mm |
| Bending capacity steel 400 N/mm² | 1.5 mm |
| Origin | Germany |
General characteristics
| Bending length | 6400 mm |
| Bending capacity steel 400 N/mm² | 1.5 mm |
| Bending capacity Alu 190 N/mm² | 2 mm |
| Cutting capacity electrical shear | 1.5 - 2 mm |
| No. of stand and tension arm units | 5 |
| No. of driven linkage assemblies | 5 |
| Sheet insertion depth | 1000 mm |
Dimensions and weight
Description
fully automatic bending in two ways without the need to rotate the sheet
hydraulic drive

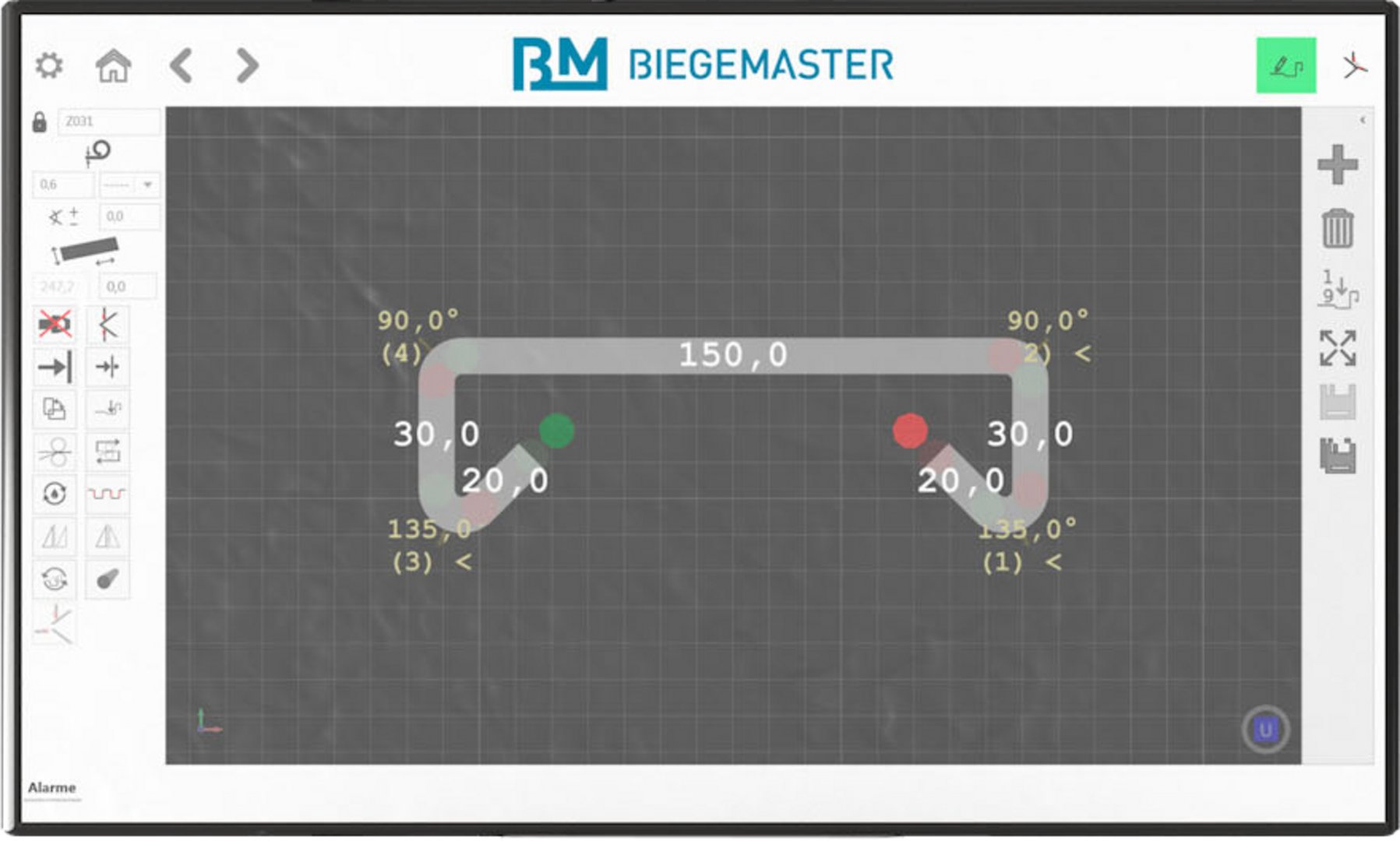

BMS MULTI-Touch with automatic depth stop
powered rotary shear
additional rail on the bending beam
material support
2x foot pedal
safety equipment accoring to the control rules BG Germany
3 year warranty on stands and tension arms.
Quality Made in Germany.
Further models from 3 up to 12 m length and from 1,25 mm up to 2,00 mm bending capacity on request.
Options:
| Preserving material support made out of synthetics | price on request |
| Hydraulic radius adjustment (air gap adjustment) the bending capacitiy of aluminium rises up to 2,5mm |
price on request |
| Extended depth 20 - 1.250 mm | price on request |
| Conical depth stop to bend conical profiles and narrow/wide bendings for easy intermateing |
price on request |
| Fully automatic gripper system with 4 gripper units | price on request |
Prices ex works Germany.
Transport and commissioning at customers place on request.
