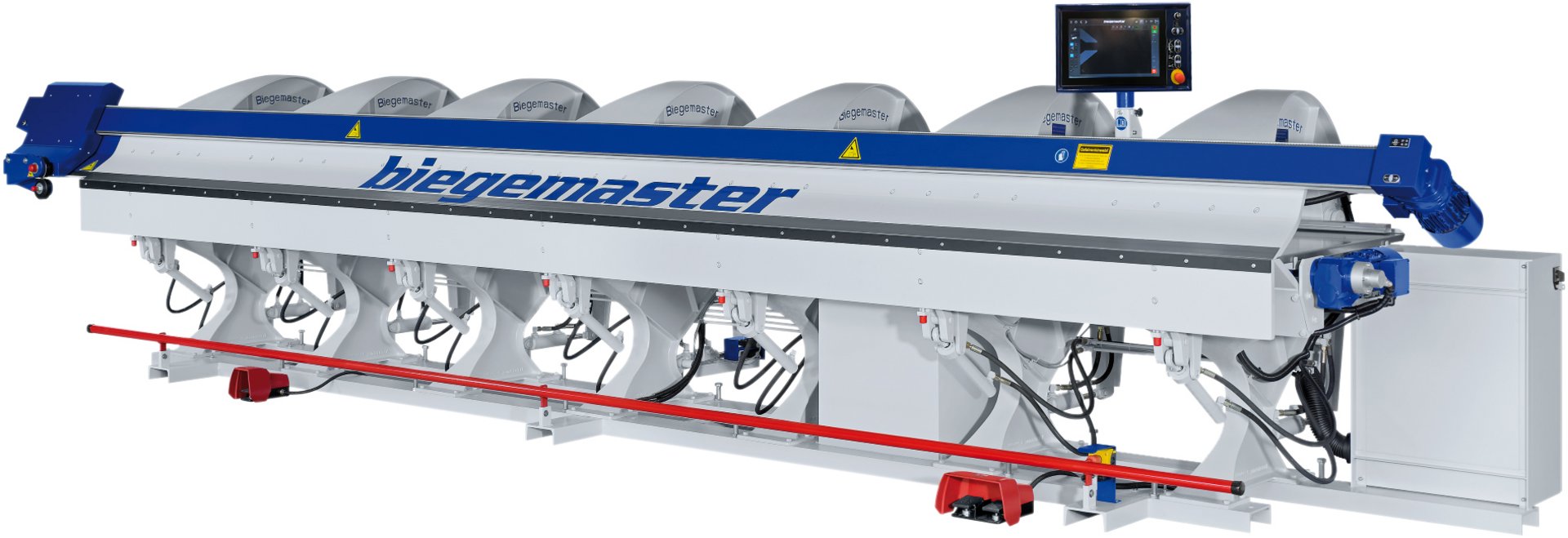

Hydraulic long folding machine BIEGEMASTER DURA 6.1,25
| Model | DURA 6.1,25 |
| Brand | BIEGEMASTER |
| Condition | new |
| Bending length | 6200 mm |
| Bending capacity steel 400 N/mm² | 1.25 mm |
| Origin | Germany |
General characteristics
| Bending length | 6200 mm |
| Bending capacity steel 400 N/mm² | 1.25 mm |
| Bending capacity Alu 190 N/mm² | 2 mm |
| No. of stand and tension arm units | 5 |
| No. of driven linkage assemblies | 5 |
| Sheet insertion depth | 1130 mm |
| Opening of upper beam | 180 mm |
| Working height | 915 mm |
| Motor | 3 kW |
Dimensions and weight
| Length with hand shear | 6730 mm |
| Length with electrical shear | 7380 mm |
| Width | 1435 mm |
| Height | 1460 mm |
| Weight | 3200 kg |
Description
hydraulic drive

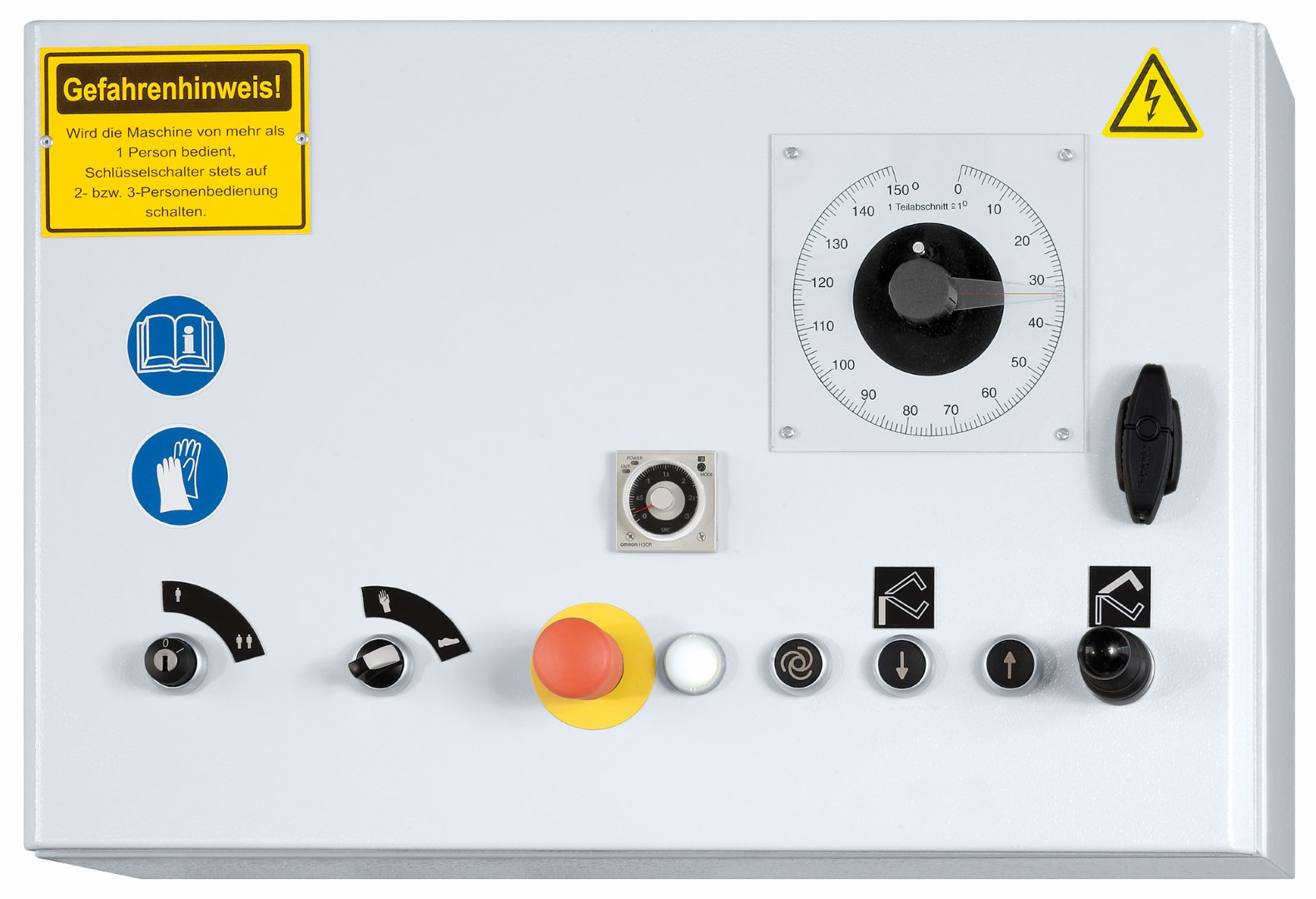

standard control
additional rail on the bending beam
2x foot pedal
removeable material support
safety equipment accoring to the control rules BG Germany
Stands and tension arms are made of high quality ductile cast iron eliminating any possibility of cracking, breaking, twisting, warping or other distortions.
3 year warranty on stands and tension arms.
Quality Made in Germany.
Further models from 3 up to 12 m length and from 1,25 mm up to 3,00 mm bending capacity on request.
optional equipment:
| manual rotary shear | price on request |

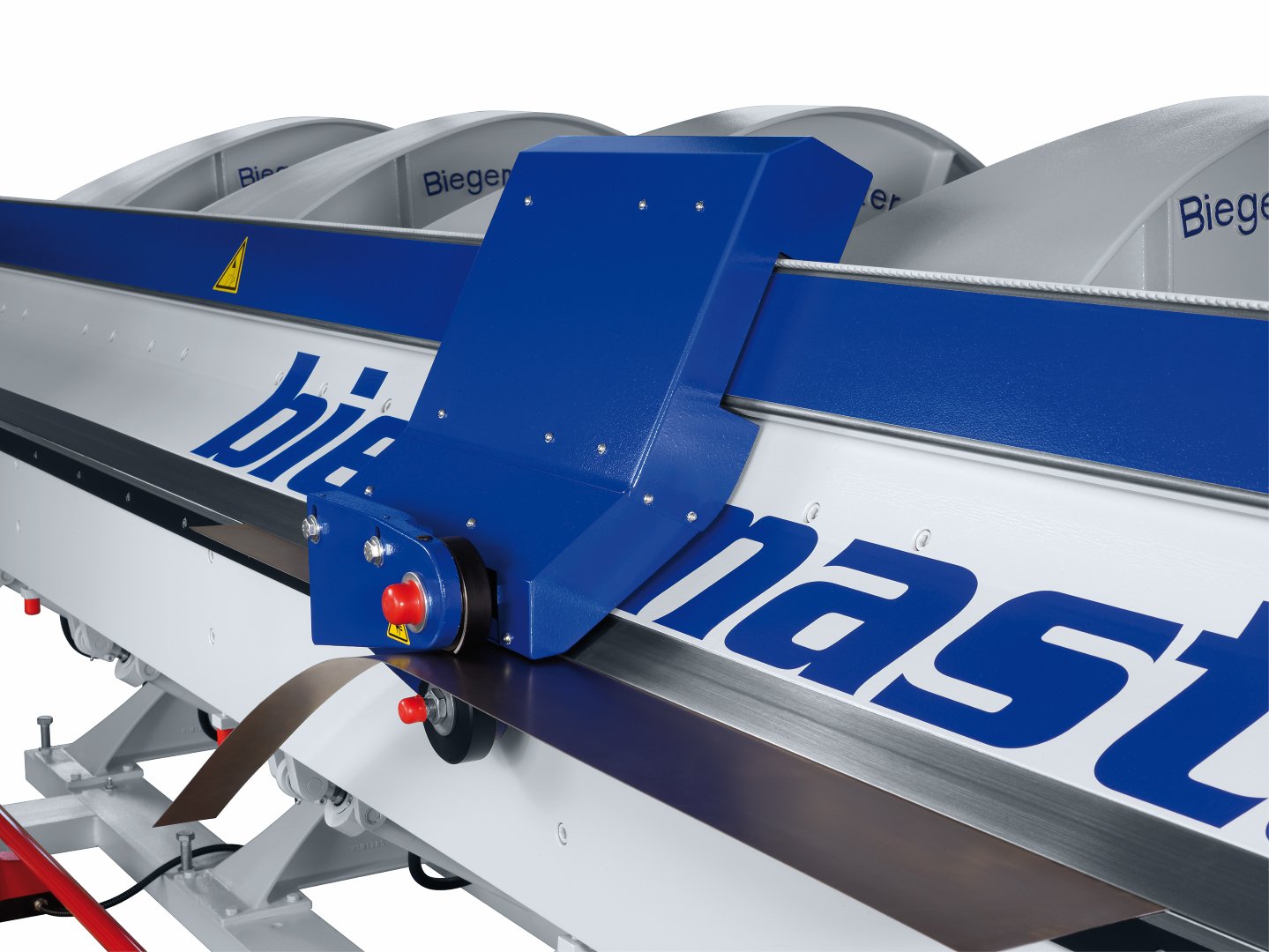

| powered rotary shear St/Al 1,25/1,5 mm | price on request |
| powered rotary shear with cutting head "S" St/Al 1,5/2,0 mm | price on request |
Control BM 10
| 7-inch display, presetting of up to 10 different angles | price on request |
Control BMS 100
| 10-inch display control | price on request |
Control BMS 150

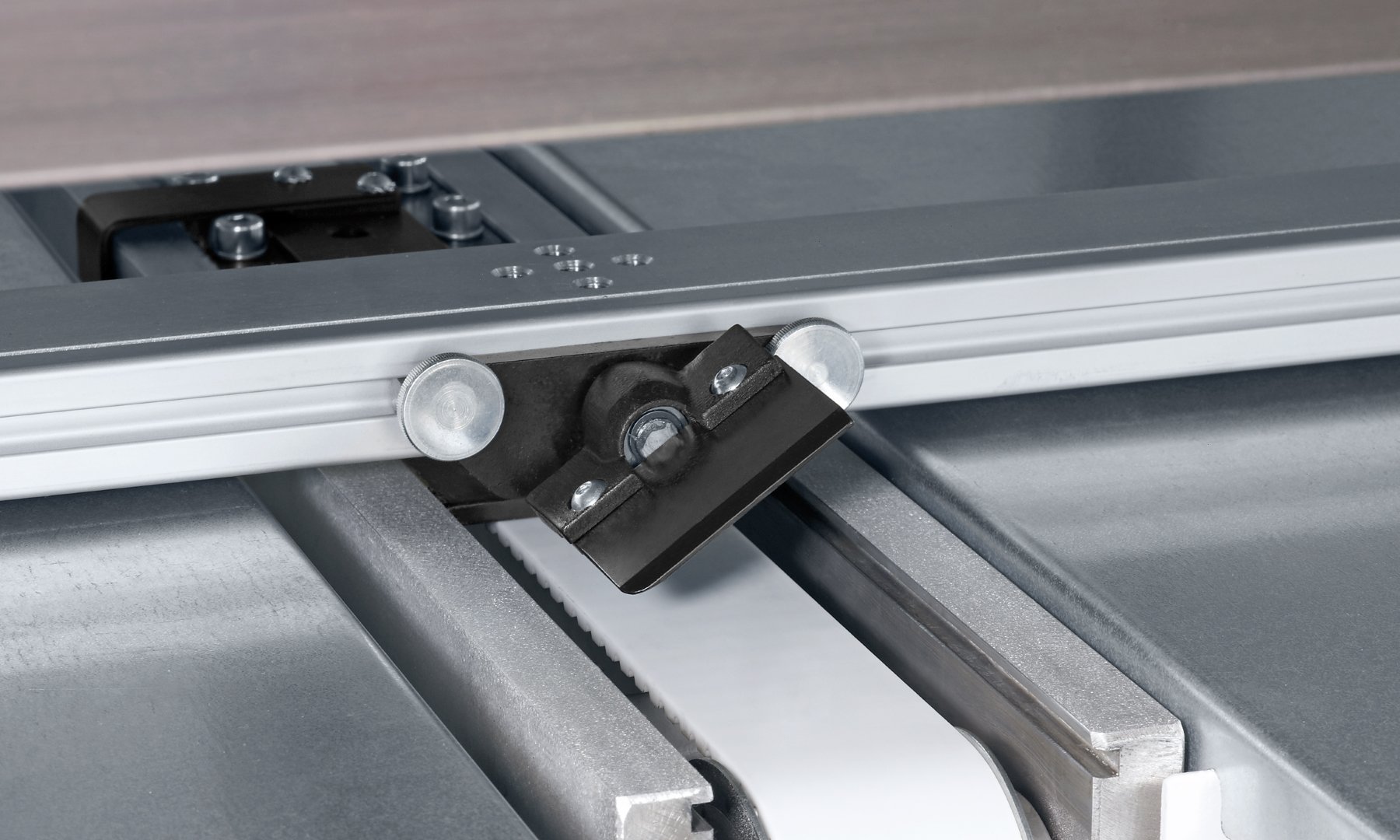

| 10-inch display control with powered back gauge TAZ 1000 with 3 adjustable gauge fingers, area 22 - 985 mm |
price on request |

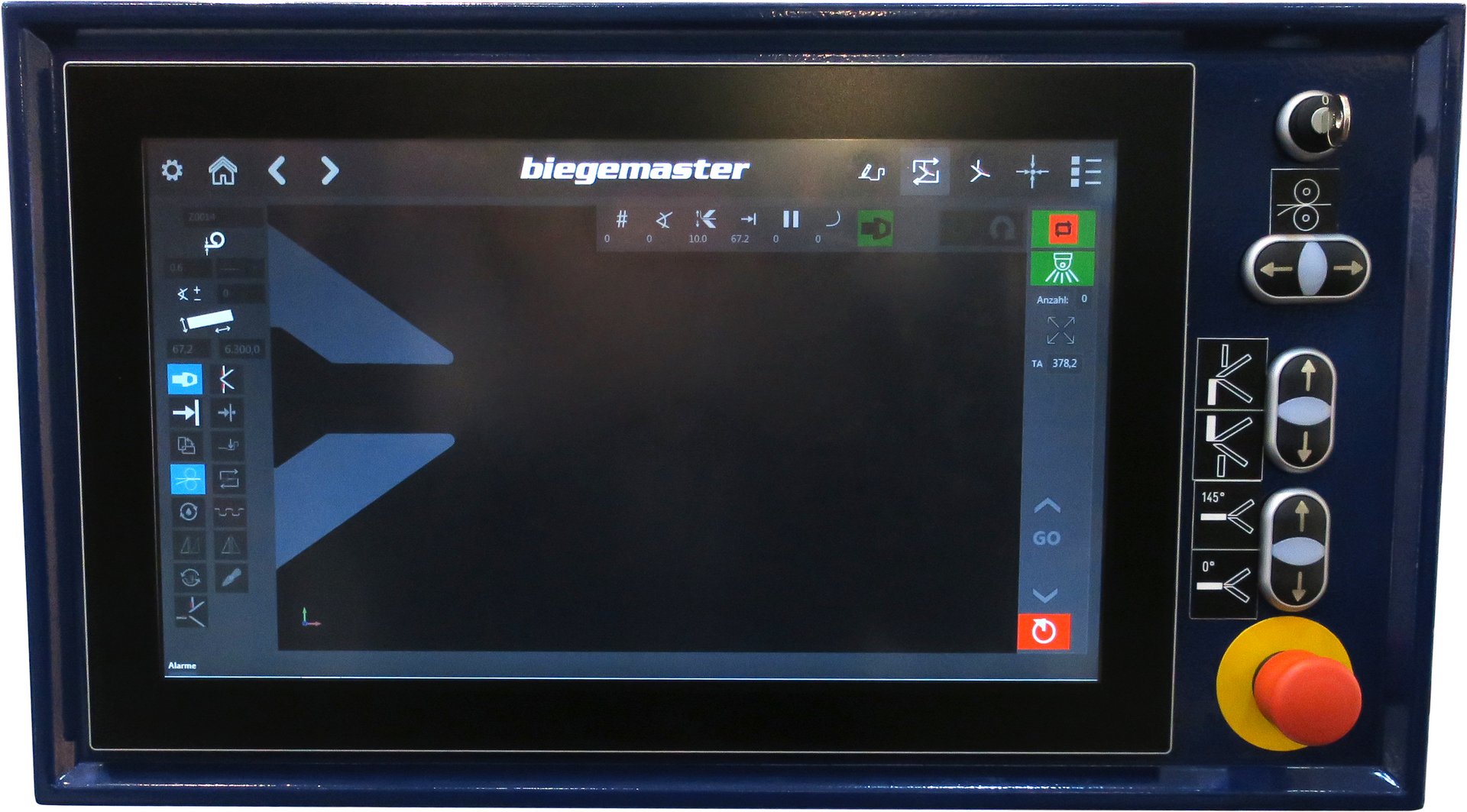

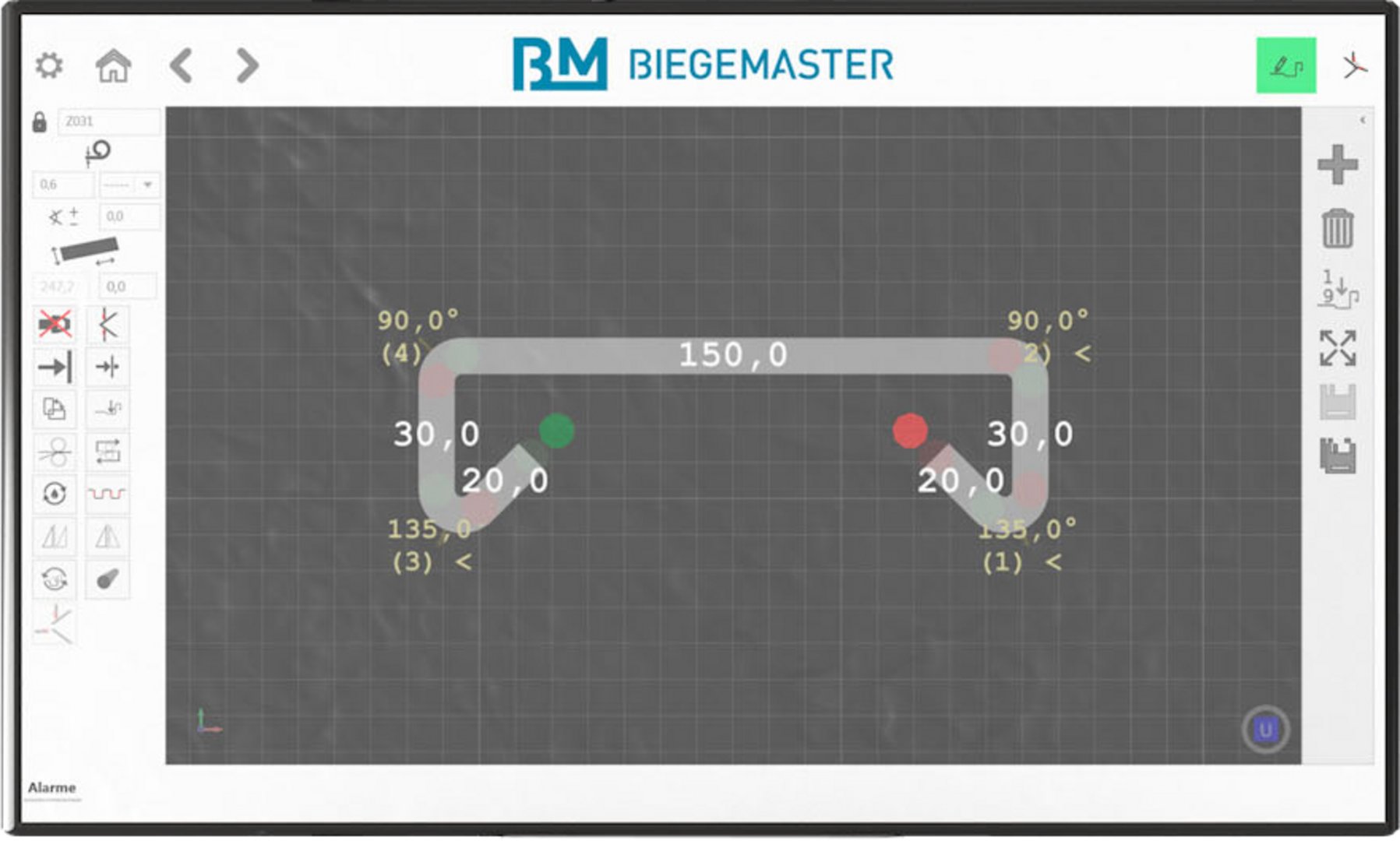

Control BMS MULTI-Touch
| graphic touch control with powered back gauge TAZ 1000 with 3 adjustable gauge fingers, area 22 - 985 mm |
price on request |
| additional fingers for back gauge TAZ1000 | price on request |
| PC-software "BMS Touch" | price on request |
Konical back gauge TAZK 1000
| seperate gauge finger, driven independant from the back gauge controlled by control BMS Touch, area 22 - 985 mm |
price on request |
| manual back gauge, area 70 - 1000 mm | price on request |
Clamping beam adjustment
| manual clamping beam adjustment | price on request |
| hydraulic clamping beam adjustment (incl. manual clamping beam adjustment) | price on request |
Prices ex works Germany.
Transport and commissioning at customers place on request.
Further information
Brochures
Product video
Hydraulic long folding machine DURA 6.1,25
