General characteristics
| Swing over bed | 600 mm |
| Distance between centers | 1500 mm |
| Centre height | 300 mm |
| Spindle bore | 80 mm |
| swing over cross slide | 400 mm |
| Width of bed | 400 mm |
| Spindle nose / DIN55027 | 8 |
| Spindle taper | 90 M |
| Revs continuous variable in gear steps | 3 |
| Revs continuous variable | 20 - 100, 80 - 400, 400 - 2000 rpm |
| Longitudinal feed range | max. 8 m/min |
| Cross feed range | max. 8 m/min |
| Cross slide travel | 290 mm |
| Tailstock quill diameter | 90 mm |
| Tailstock quill taper | 5 MK |
| Tailstock travel | 225 mm |
| Motor power | 11 kW |
| Z-axis servo drive | 3,5 / 22 kW/Nm |
| X-axis servo drive | 1,75 / 11 kW/Nm |
| Spindle max. torque | 120 Nm |
| Tow strength Z-axis | 1250 daN |
| Tow strength X-axis | 1050 daN |
Dimensions and weight
Description
Fast and simple communication between the operator and the lathe.
Simple workpieces are machined in the same way as on the universal lathe, but more efficient.
Complicated workpieces are machined in the same way as on the universal lathe, but faster.
Complicated workpieces are machined in the same way as on the CNC lathe, but easier.
Based on the controller Schneider Magelis the intelligent, self-developed ZMM Sliven software
leads the operator also without programming skills simple and fast to the finished workpiece.

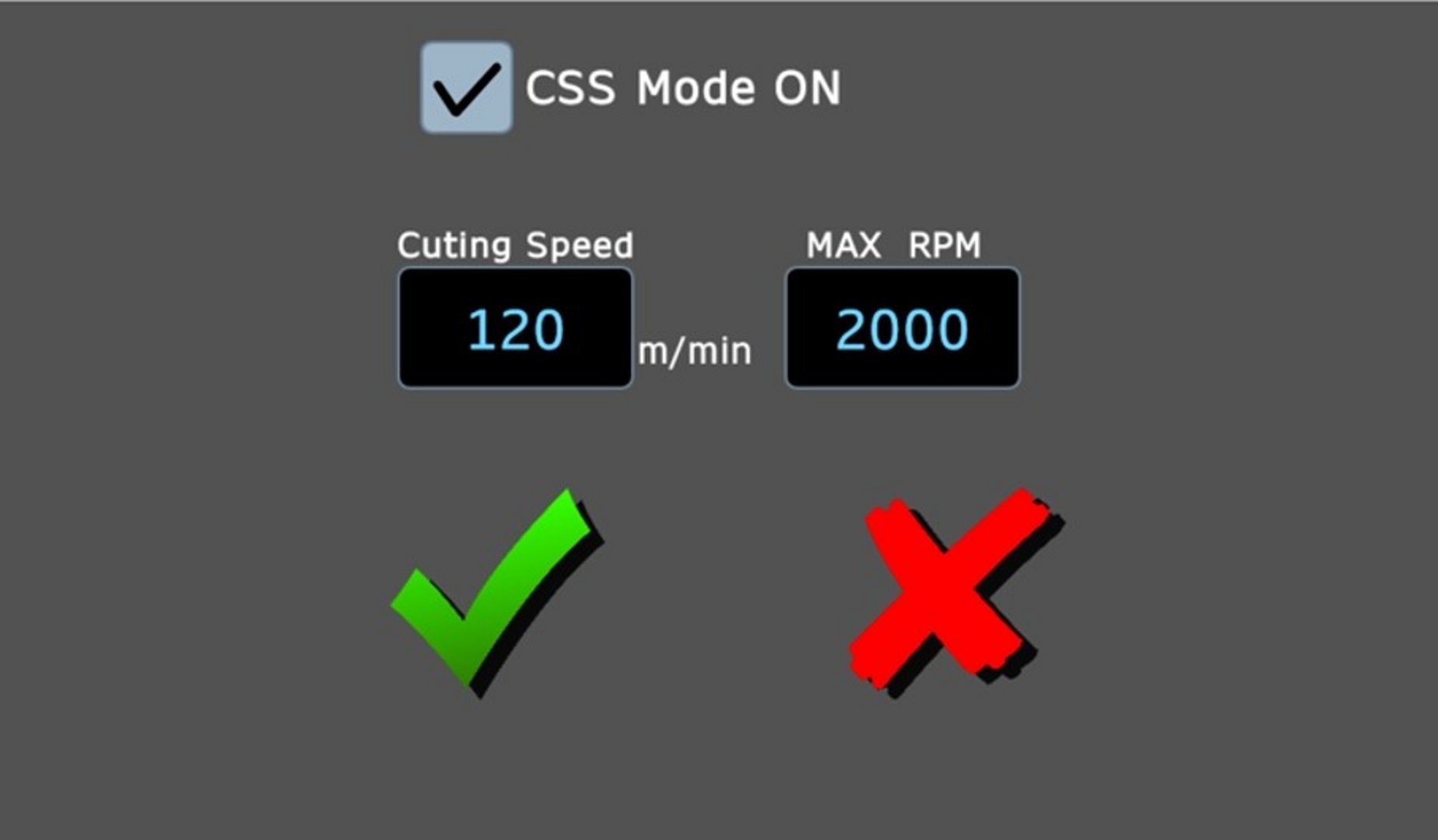

The interface is simple and with large icons, which is convenient in a specific work environment.
The intuitive menu facilitates the transition to next screens and operations.

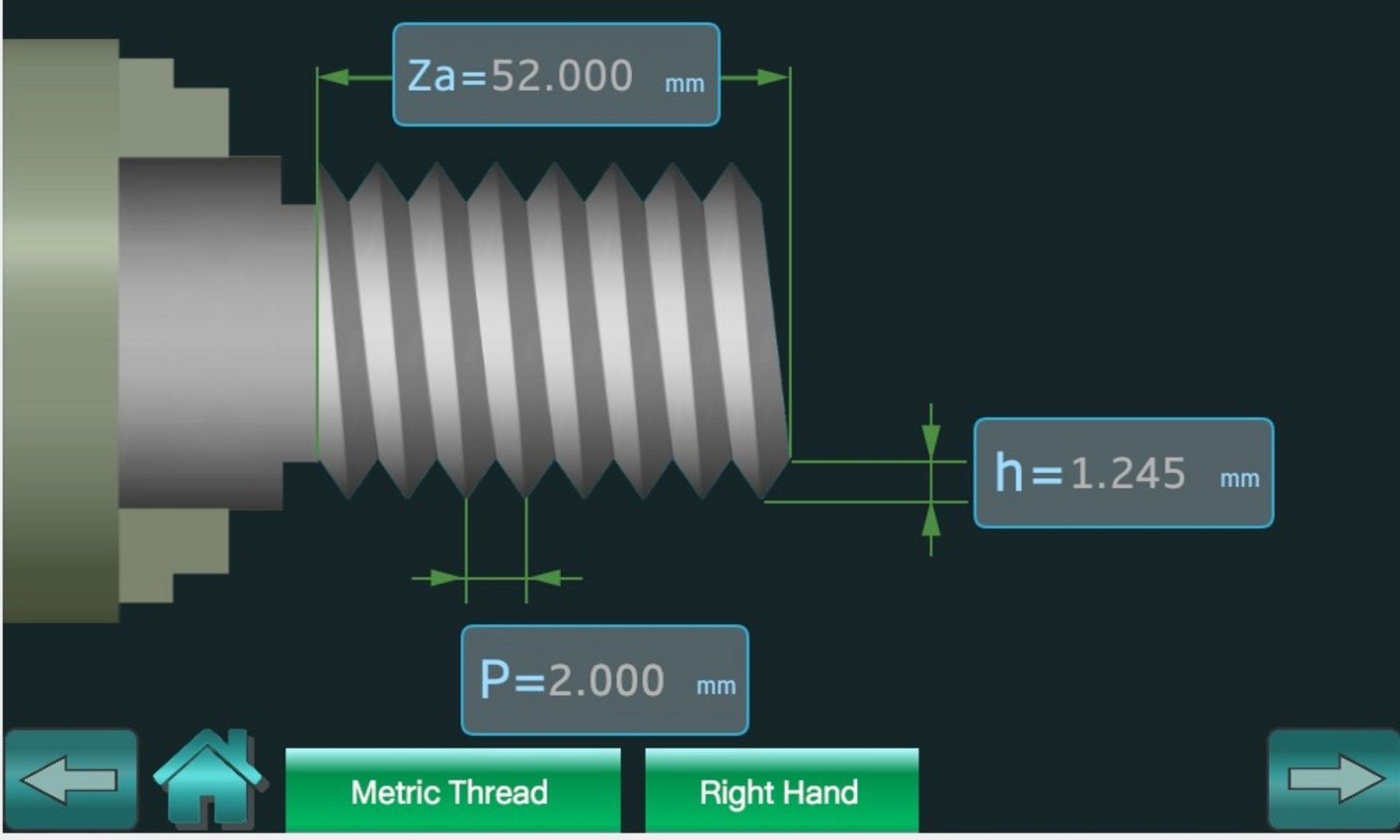

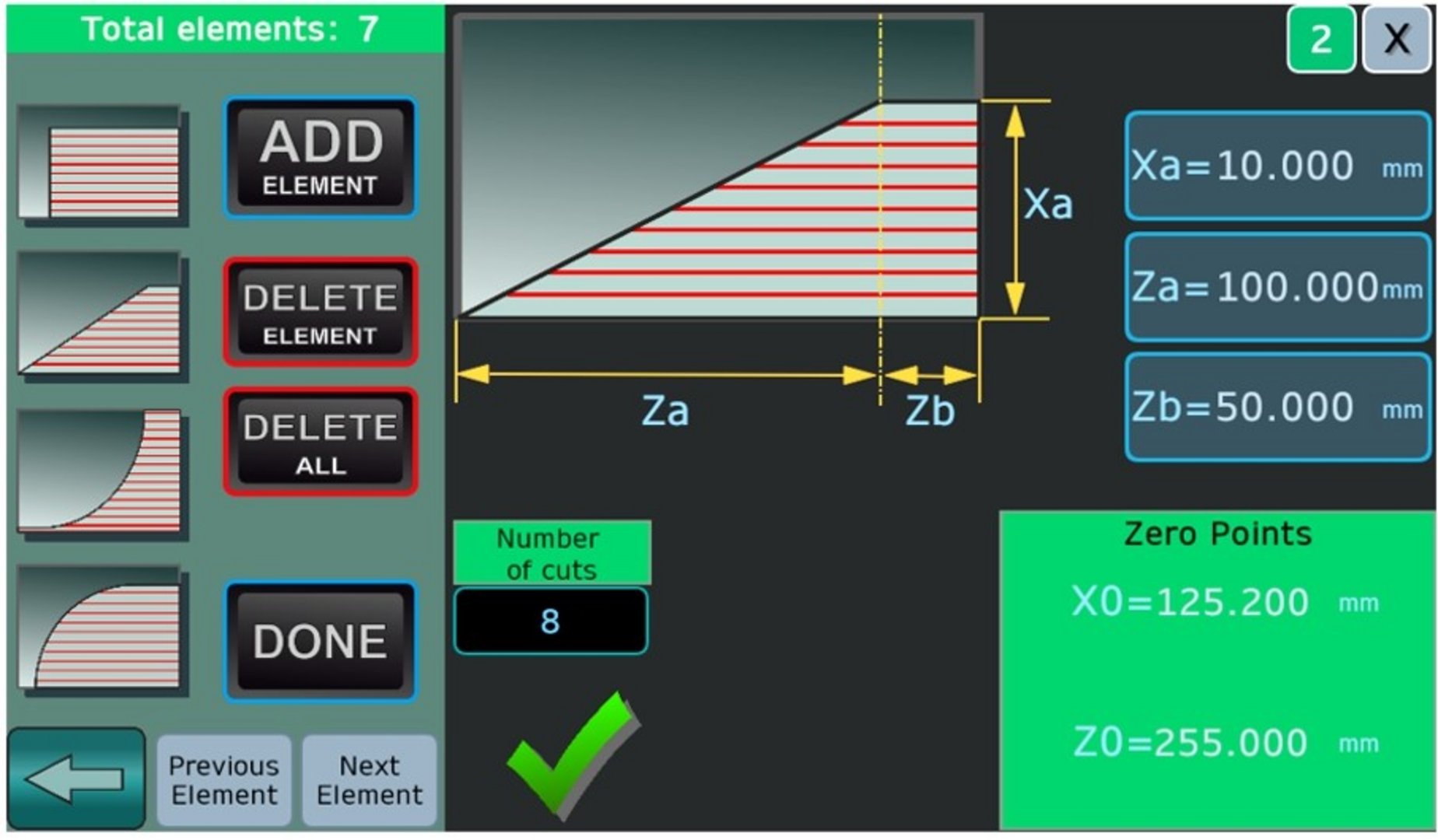

Well visualized and structured cyclic operations, threads and steps.
Possibility to set up the feeds, threads, etc. both mechanically and digitally (via the display).
The manual, automatic and combined mode allows more precise operation compared to universal lathe.
Easy transition from manual to automatic operation mode.
Accessories:
Siemens motor with Siemens Inverter (3 gear steps)
CNC control Schneider Magelis
Quick change tool post Amestra Multifix Typ C inkl. 4 Halter (3x Rechteck, 1 Rund)
3-jaw chuck Bison 3204/DIN6350, Ø 250 mm, max. 2500 r/min
Spindle dead center
Ball screw spindles for longitudinal and cross axes
Coolant equipment
Full length rear splash guard
Spindle protection
Splash guard for the chuck
Levelling bols and shims
Quick release tailstock
Machine lamp
Operating manual
Machine according to "CE“
Further turning lengths:
| 1000 mm | € | 69.800,00 |
| 2000 mm | € | 72.600,00 |
| 3000 mm | € | 75.400,00 |
| 4000 mm | € | 78.400,00 |
| 5000 mm | € | 81.300,00 |
Further information
Brochures
Product video

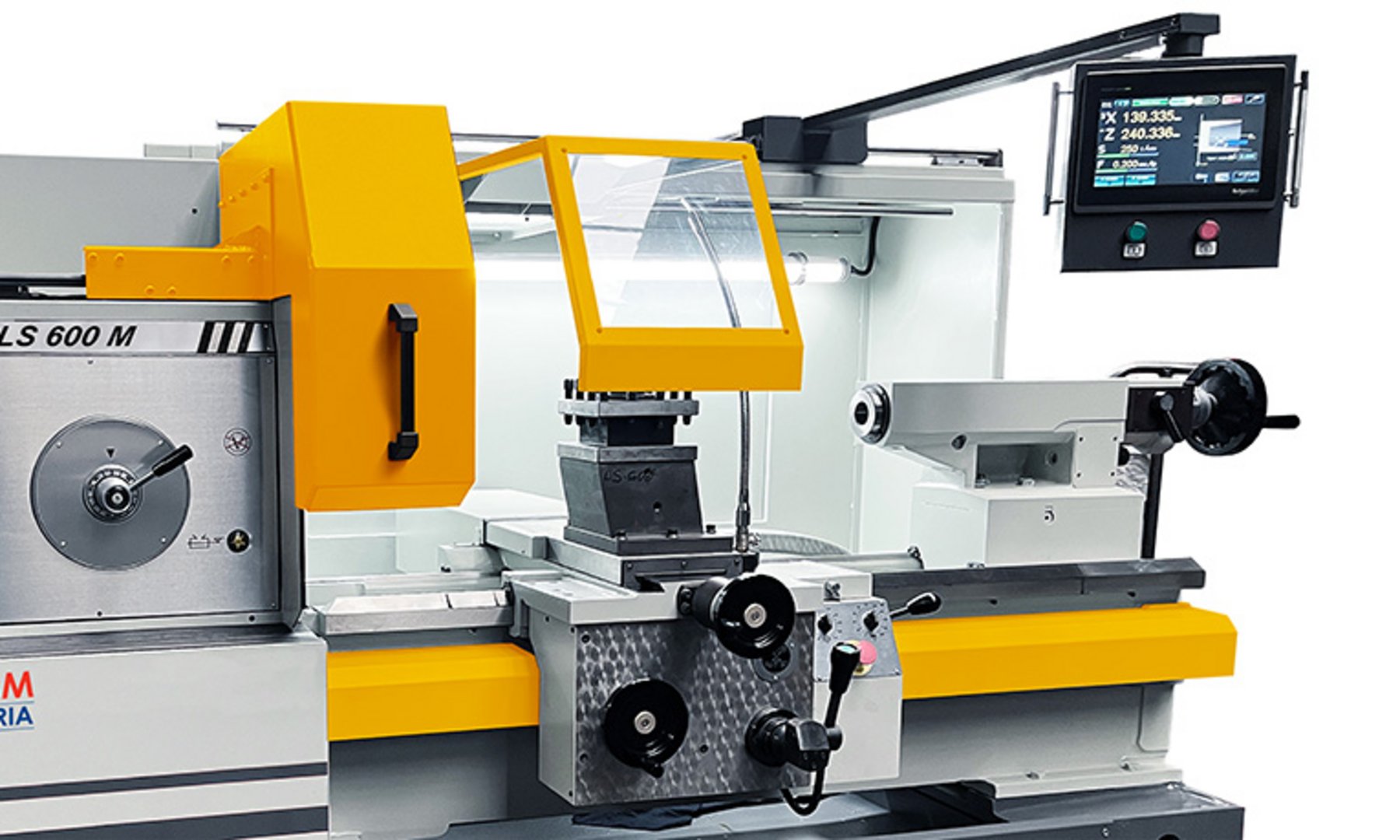

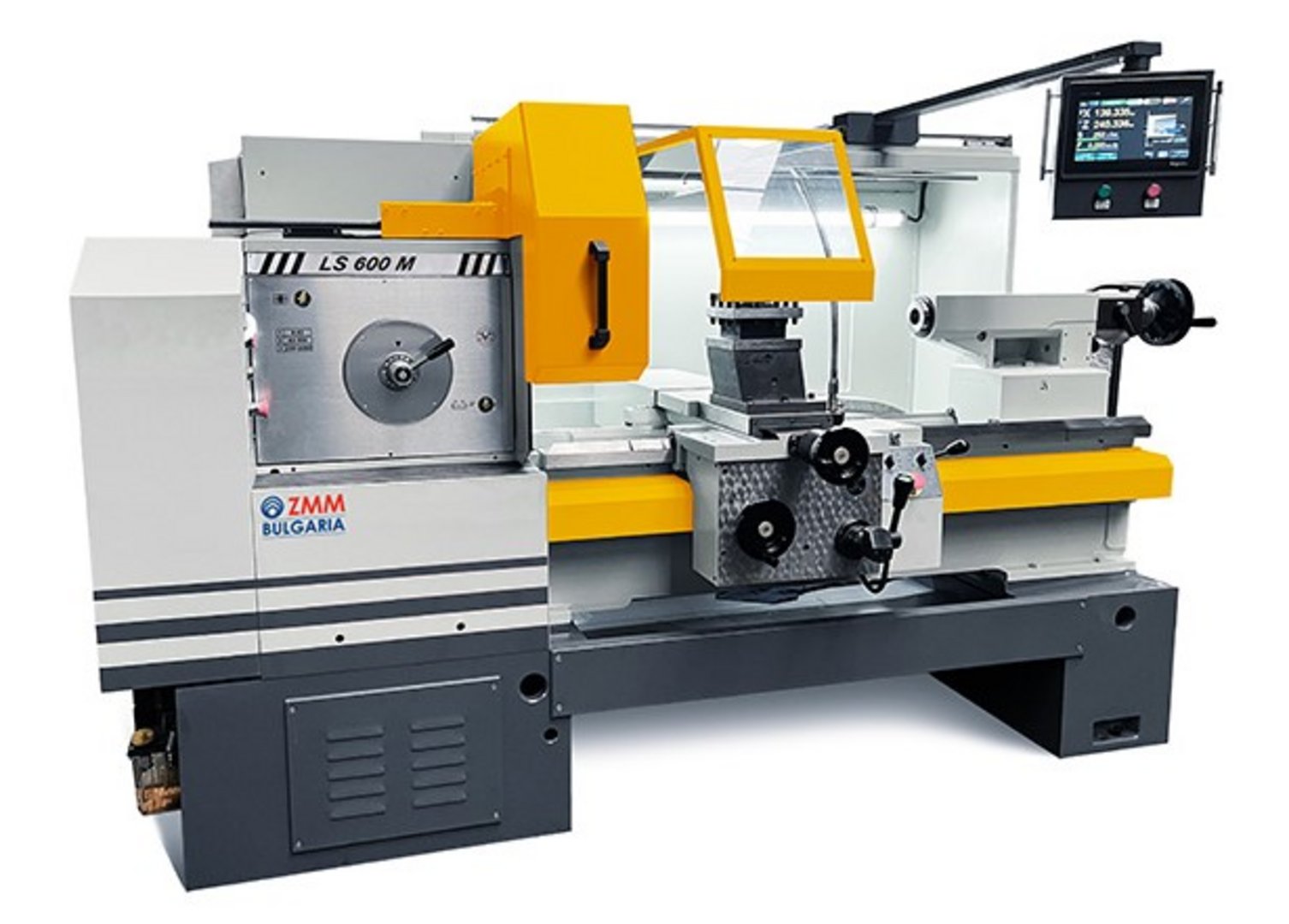

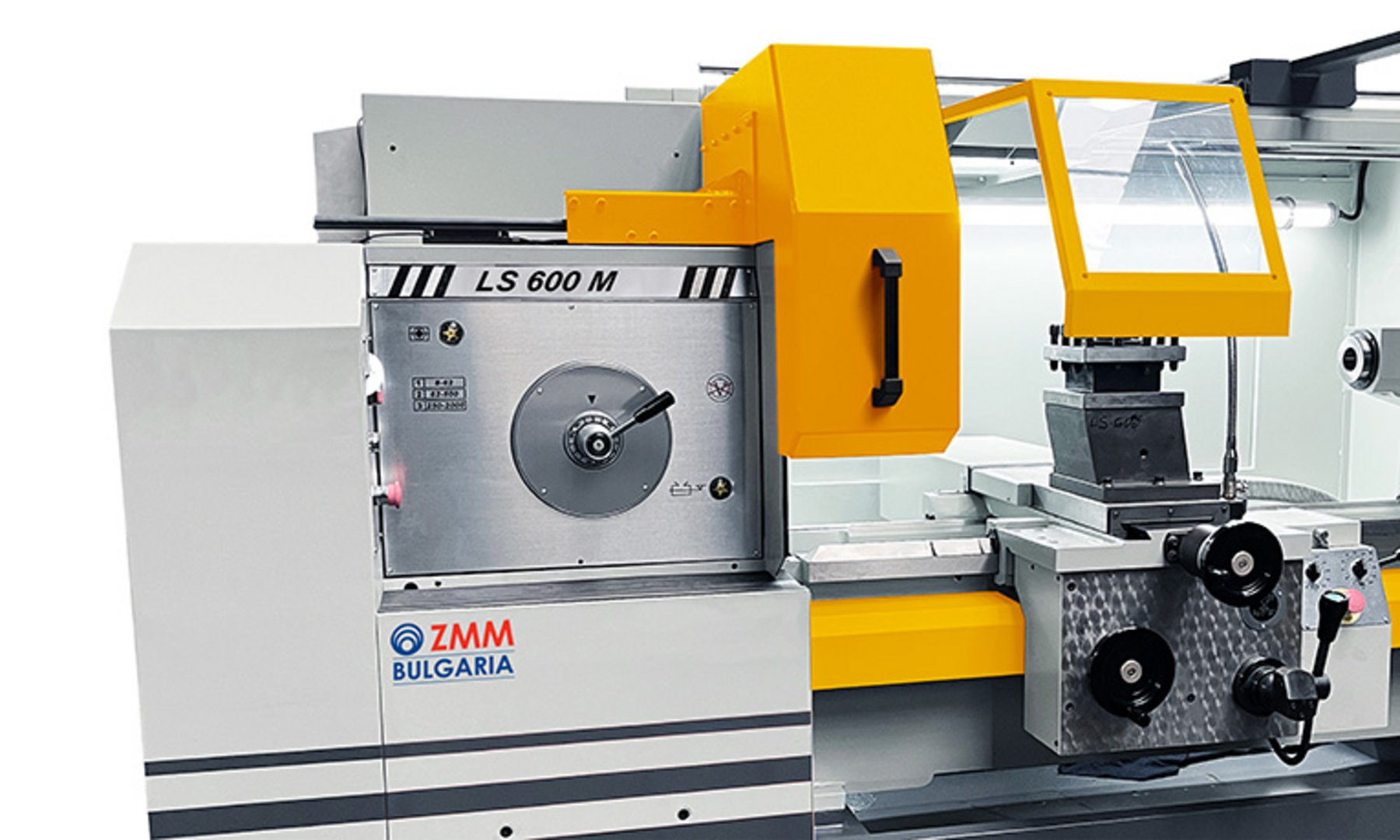

Cycle lathe LS 600 M
