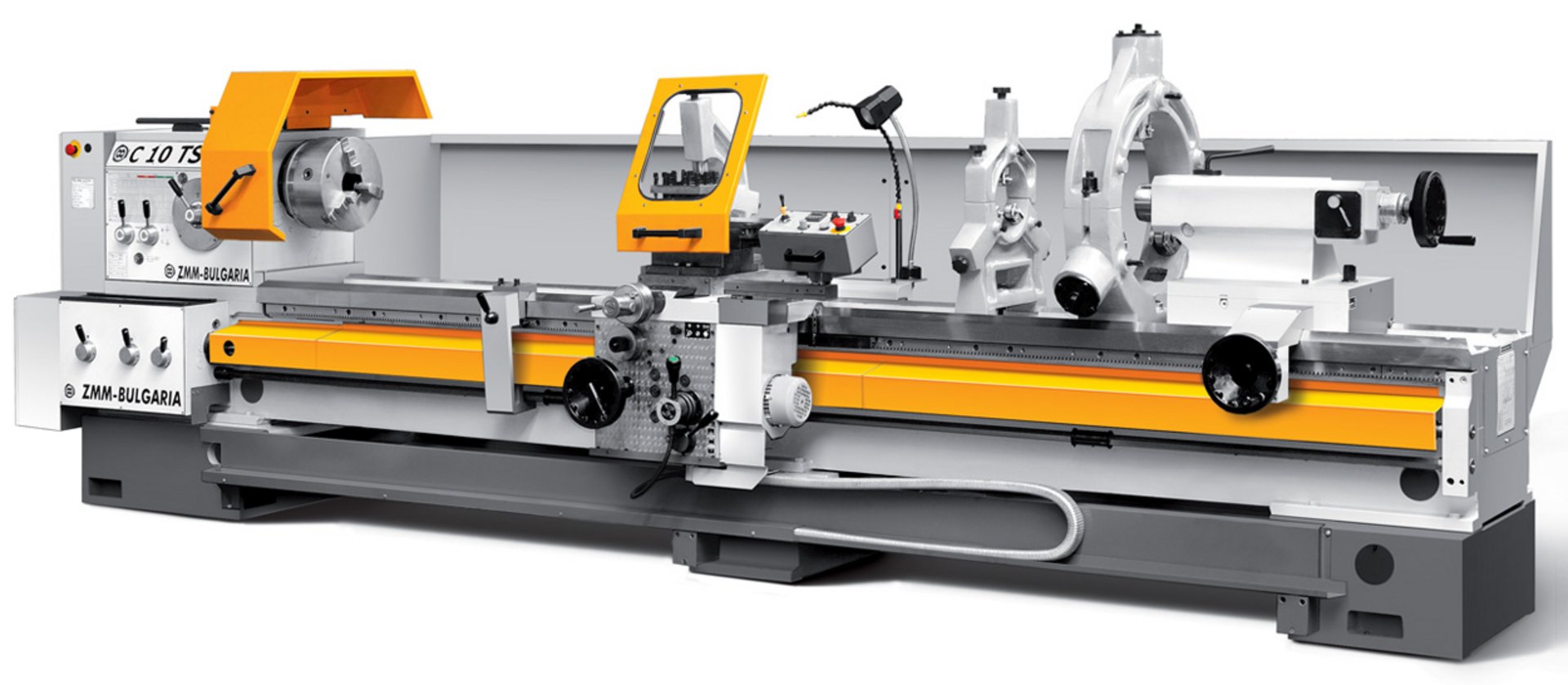

Centre lathe ZMM C 10 THS
| Model | C 10 THS |
| Brand | ZMM |
| Condition | new |
| Swing over bed | 860 mm |
| Distance between centers | 3000 mm |
| Origin | Bulgaria |
General characteristics
| Swing over bed | 860 mm |
| Distance between centers | 3000 mm |
| Centre height | 430 mm |
| Spindle bore | 135 mm |
| swing over cross slide | 620 mm |
| Width of bed | 560 mm |
| Spindle nose / DIN55027 | 11 |
| Spindle taper | 140 M |
| Revs continuous variable | 7 - 42; 28 - 170; 165 - 1.015 rpm |
| Number of feeds | 150 |
| Longitudinal feed range | 0.039 - 18 mm/r |
| Cross feed range | 0.02 - 9 mm/r |
| Metric thread range | 0.5 - 180 mm |
| Inch thread range | 60 - 1/6 Tpi |
| Module thread range | 0.125 - 45 |
| DP thread range | 240 |
| Cross slide travel | 435 mm |
| Top slide travel | 150 mm |
| Tailstock quill diameter | 105 mm |
| Tailstock quill taper | 6 MK |
| Tailstock travel | 225 mm |
| Motor power | 15 kW |
Dimensions and weight
| Weight | 4650 kg |
Description
driven by variable speed control (3 steps)
3-axes digital readout FAGOR with CSS (constant surface speed)
quick change toolpost Amestra type Multifix with 4 holders (3 square, 1 round)
3-jaw chuck Bison 3295/DIN6350, Ø 400 mm
spindle dead center
main motor with frequency invertor
four way rapid traverse device
foot pedal brake
longitudinal stop for 1 position
coolant equipment
full length rear splash guard
leadscrew and shaft protection
safety guard for the chuck
toolholder guard
levelling bolts and plates
quick release tailstock
tailstock quill reducer
mechanized movement of tailstock
low voltage machine lamp
operating manual
machine according to "CE"
Further turning lengths:
| turning length 1.500 mm | € 74.310,- |
| turning length 2.000 mm | € 77.120,- |
| turning length 4.000 mm | € 93.910,- |
| turning length 5.000 mm | € 106.120,- |
| turning length 6.000 mm | € 119.460,- |
