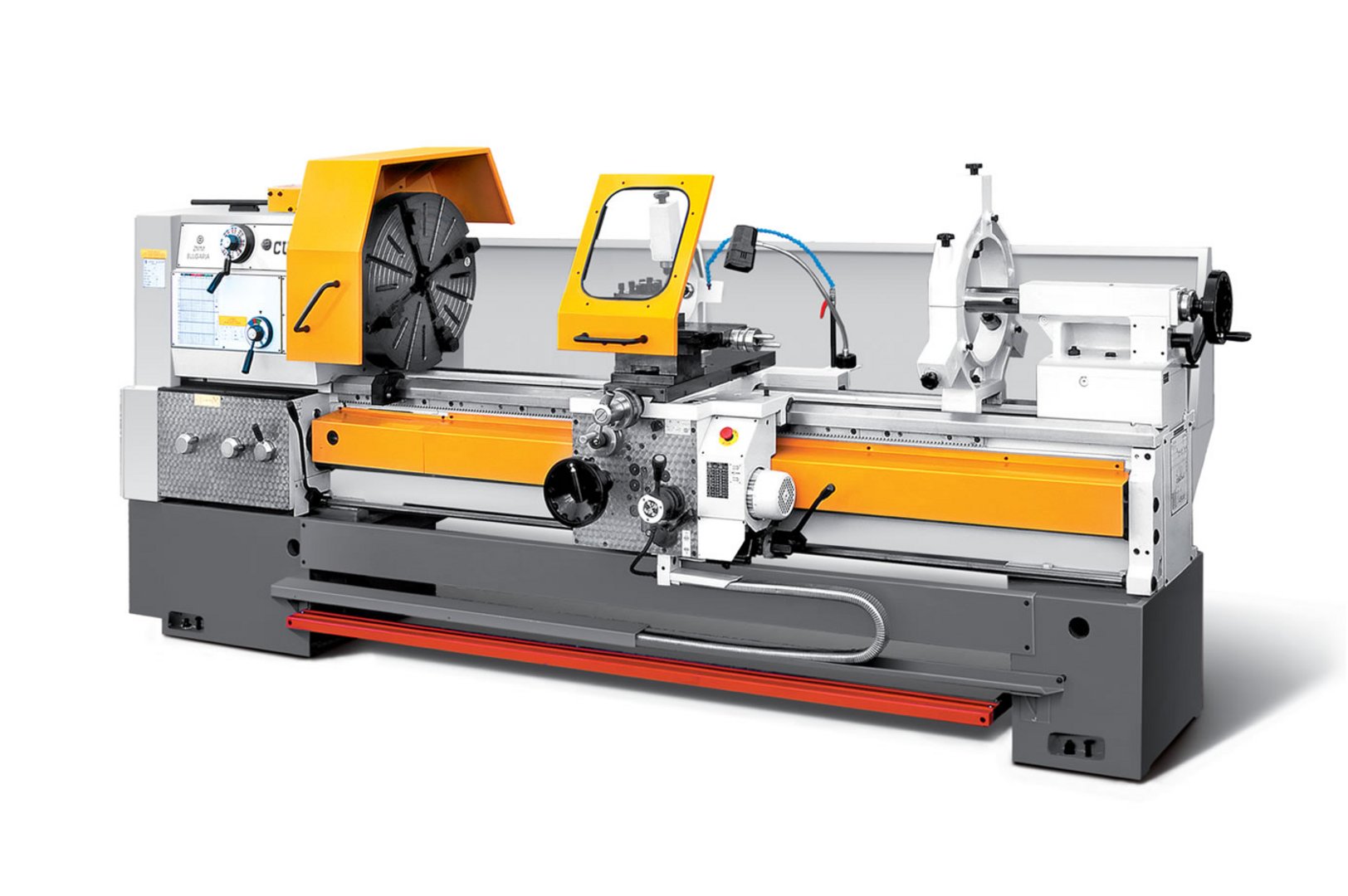

Centre lathe ZMM CU 630
| Model | CU 630 |
| Brand | ZMM |
| Condition | new |
| Swing over bed | 630 mm |
| Distance between centers | 2000 mm |
| Origin | Bulgaria |
General characteristics
| Swing over bed | 630 mm |
| Distance between centers | 2000 mm |
| Centre height | 315 mm |
| Spindle bore | 103 mm |
| swing over cross slide | 430 mm |
| Width of bed | 400 mm |
| Spindle nose / DIN55027 | 11 |
| Spindle taper | 120 M |
| Spindle speed steps | 21 |
| Spindle revs | Array rpm |
| Number of feeds | 120 |
| Longitudinal feed range | 0.04 - 12 mm/r |
| Cross feed range | 0.02 - 6 mm/r |
| Metric thread range | 0.5 - 120 mm |
| Inch thread range | 60 - 1/4 Tpi |
| Module thread range | 0.125 - 30 |
| DP thread range | Array |
| Cross slide travel | 315 mm |
| Top slide travel | 90 mm |
| Tailstock quill diameter | 90 mm |
| Tailstock quill taper | 5 MK |
| Tailstock travel | 230 mm |
| Motor power | 11 kW |
Dimensions and weight
| Weight | 3310 kg |
Description
driven by manual transmission
3-axes digital readout
quick change toolpost Amestra with 4 holders (3 square, 1 round)
3-jaw chuck Bison 3204/DIN6350, Ø 315 mm
spindle dead center
longitudinal stop for 1 position
coolant equipment
full length rear splash guard
leadscrew and shaft protection
safety guard for the chuck
toolholder guard
levelling bolts and plates
quick release tailstock
low voltage machine lamp
operating manual
machine according to "CE"
Further turning lengths:
| turning length 1.000 mm | € 48.790,- |
| turning length 1.500 mm | € 49.770,- |
| turning length 3.000 mm | € 55.910,- |
| turning length 4.000 mm | € 61.300,- |
| turning length 5.000 mm | € 75.670,- |
Further information
Brochures
Product video
Centre lathe CU 630
