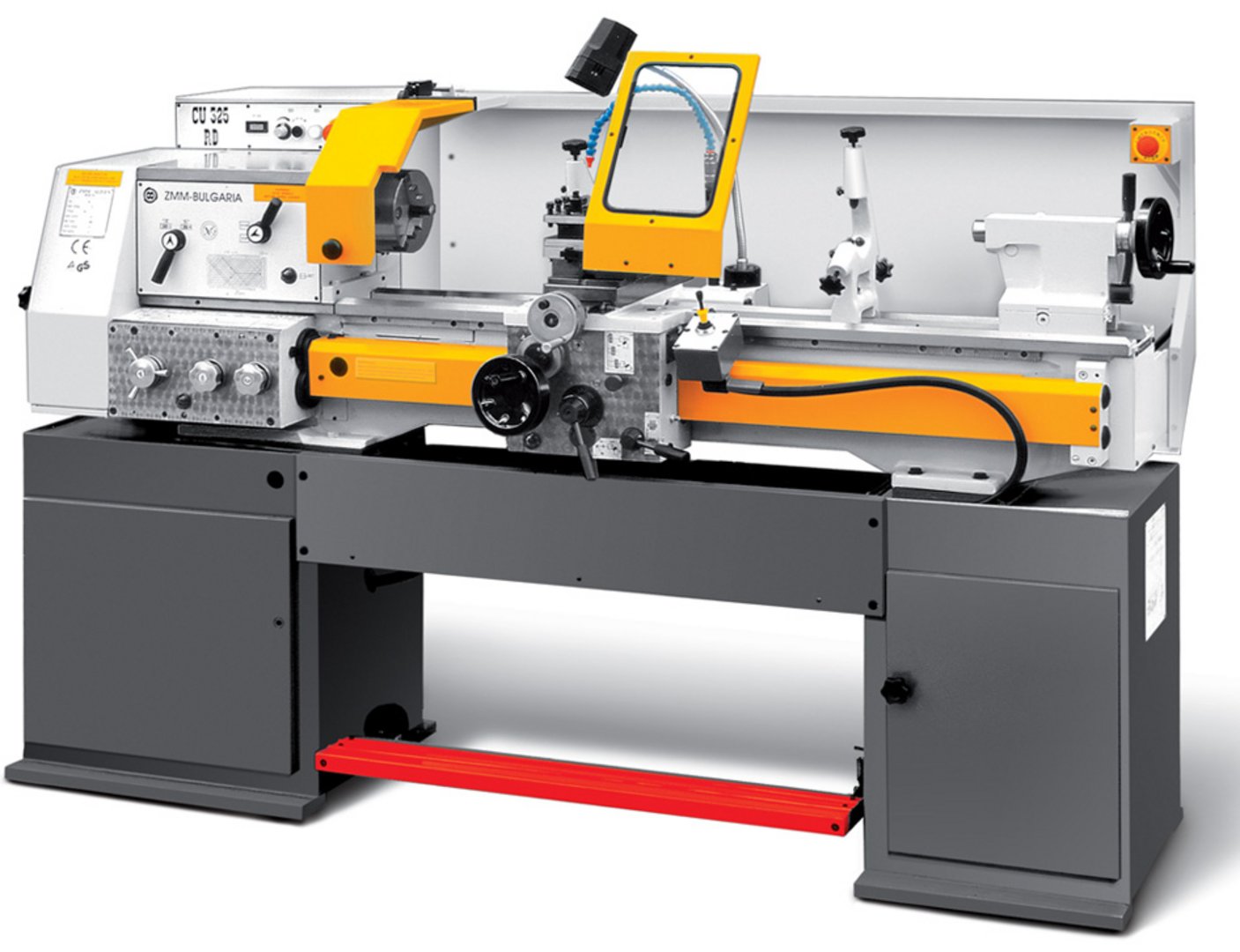

Centre lathe ZMM CU 325 RD
| Model | CU 325 RD |
| Brand | ZMM |
| Condition | new |
| Swing over bed | 325 mm |
| Distance between centers | 750 mm |
| Origin | Bulgaria |
General characteristics
| Swing over bed | 325 mm |
| Distance between centers | 750 mm |
| Centre height | 165 mm |
| Spindle bore | 32 mm |
| swing over cross slide | 190 mm |
| Width of bed | 200 mm |
| Spindle nose / DIN55027 | 5 |
| Spindle taper | 4 M |
| Revs continuous variable in gear steps | 2 |
| Revs continuous variable | 85-405; 470-2200 rpm |
| Number of feeds | 48 |
| Longitudinal feed range | 0.006 - 1.77 mm/r |
| Cross feed range | 0.003 - 0.885 mm/r |
| Metric thread range | 0.1 - 28 mm |
| Inch thread range | Array Tpi |
| Module thread range | 0.1 - 1.75 |
| DP thread range | Array |
| Cross slide travel | 150 mm |
| Top slide travel | 95 mm |
| Tailstock quill diameter | 40 mm |
| Tailstock quill taper | 3 MK |
| Tailstock travel | 100 mm |
| Motor power | 2.2 kW |
Dimensions and weight
| Weight | 770 kg |
Description
driven by variable speed control (2 steps)
3-axes digital readout FAGOR with CSS (constant surface speed)
quick change toolpost Amestra with 4 holders (3 square, 1 round)
3-jaw chuck Bison 3204/DIN6350, Ø 160 mm
spindle dead center
coolant equipment
full length rear splash guard
leadscrew and shaft protection
safety guard for the chuck
toolholder guard
levelling bolts and plates
quick release tailstock
low voltage machine lamp
operating manual
machine according to "CE"
Further turning lengths:
| turning length 1.000 mm | € 24.490,- |
