General characteristics
| Swing over bed | 325 mm |
| Distance between centers | 1000 mm |
| Centre height | 165 mm |
| Spindle bore | 32 mm |
| swing over cross slide | 190 mm |
| Width of bed | 200 mm |
| Spindle nose / DIN55027 | 5 |
| Spindle taper | 4 M |
| Spindle speed steps | 12 |
| Spindle revs | Array rpm |
| Number of feeds | 48 |
| Longitudinal feed range | 0.006 - 1.77 mm/r |
| Cross feed range | 0.003 - 0.885 mm/r |
| Metric thread range | 0.1 - 28 mm |
| Inch thread range | Array Tpi |
| Module thread range | 0.1 - 1.75 |
| DP thread range | Array |
| Cross slide travel | 150 mm |
| Top slide travel | 95 mm |
| Tailstock quill diameter | 40 mm |
| Tailstock quill taper | 3 MK |
| Tailstock travel | 100 mm |
| Motor power | 2.2 kW |
Dimensions and weight
| Length | 2150 mm |
| Width | 950 mm |
| Height | 1350 mm |
| Weight | 770 kg |
Description
demo machine / mint condition
net price (price for new machine € 21.690,00)
driven by manual transmission
3-axes digital readout Fagor 40i

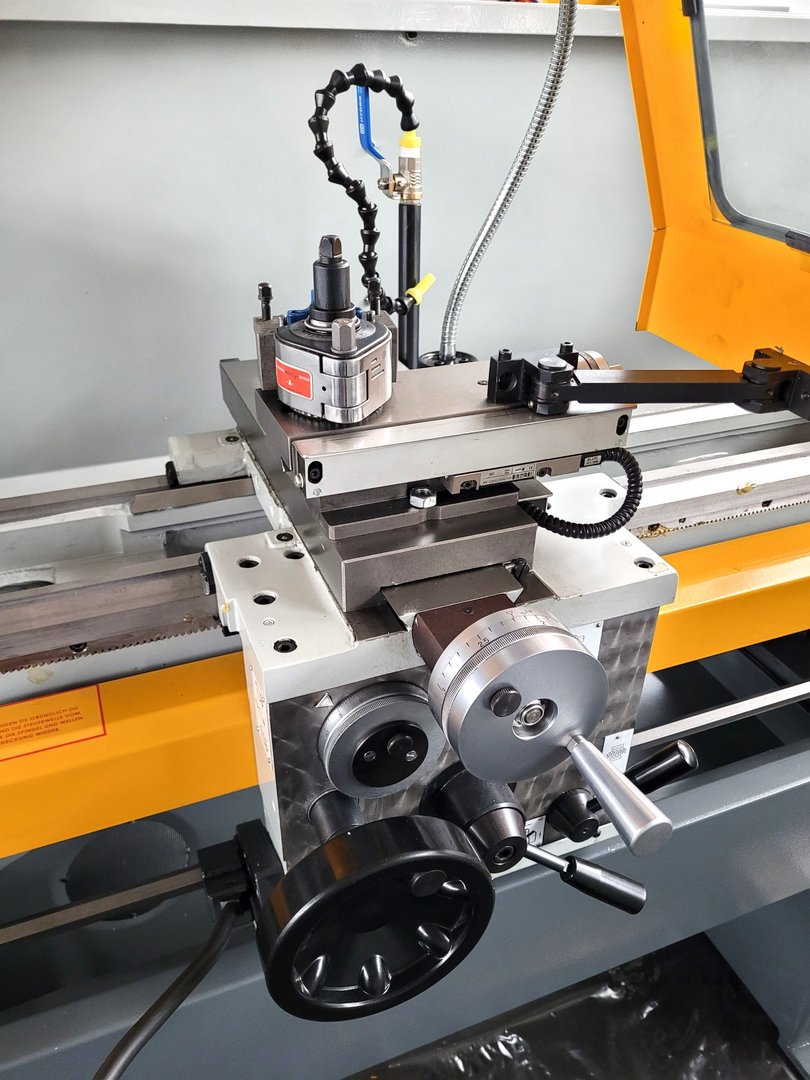

quick change toolpost Amestra with 4 holders (3 square, 1 round)

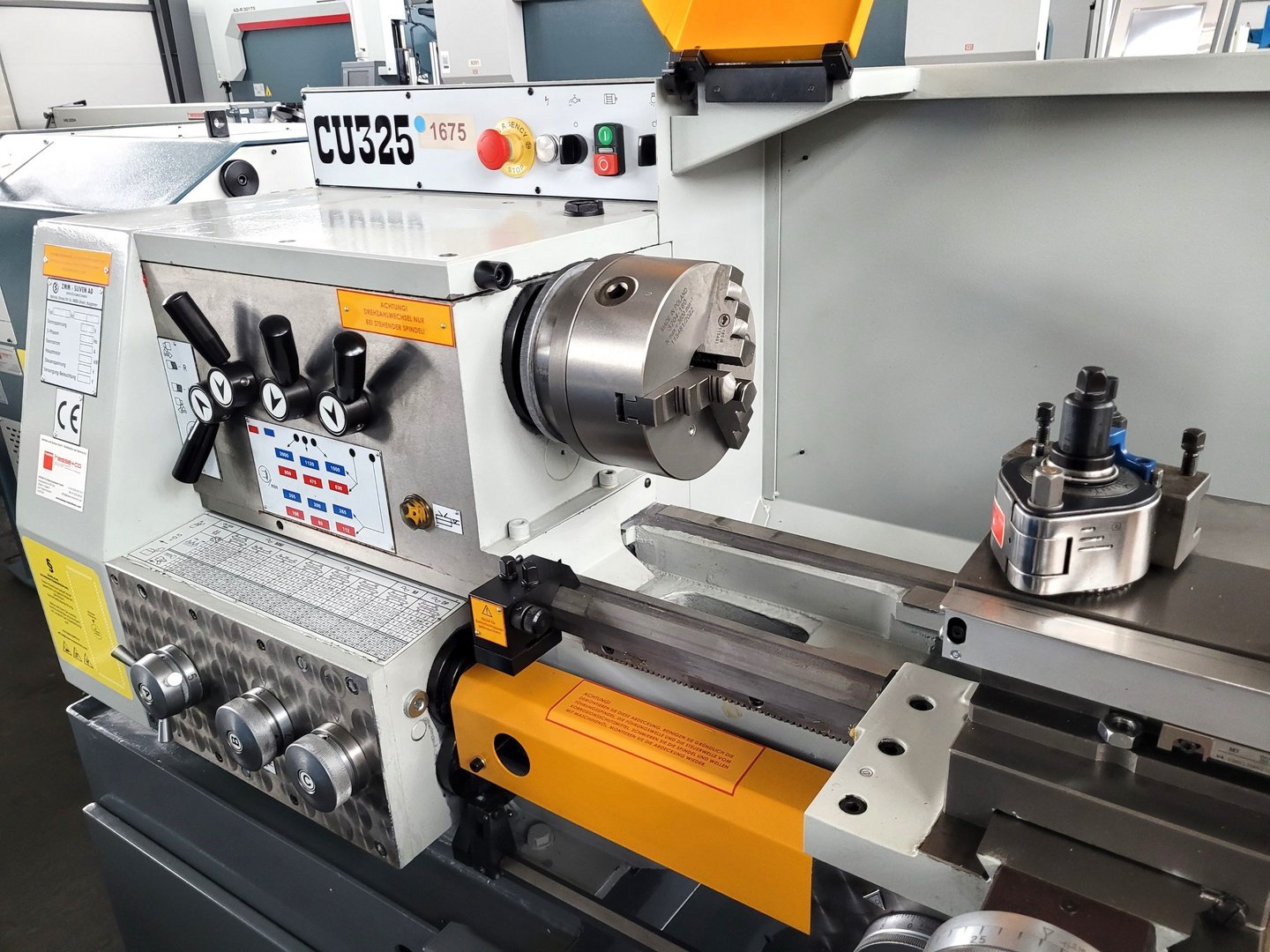

3-jaw chuck Bison 3204/DIN6350, Ø 160 mm
spindle dead center
coolant equipment
full length rear splash guard
leadscrew and shaft protection
safety guard for the chuck
toolholder guard
levelling bolts and plates

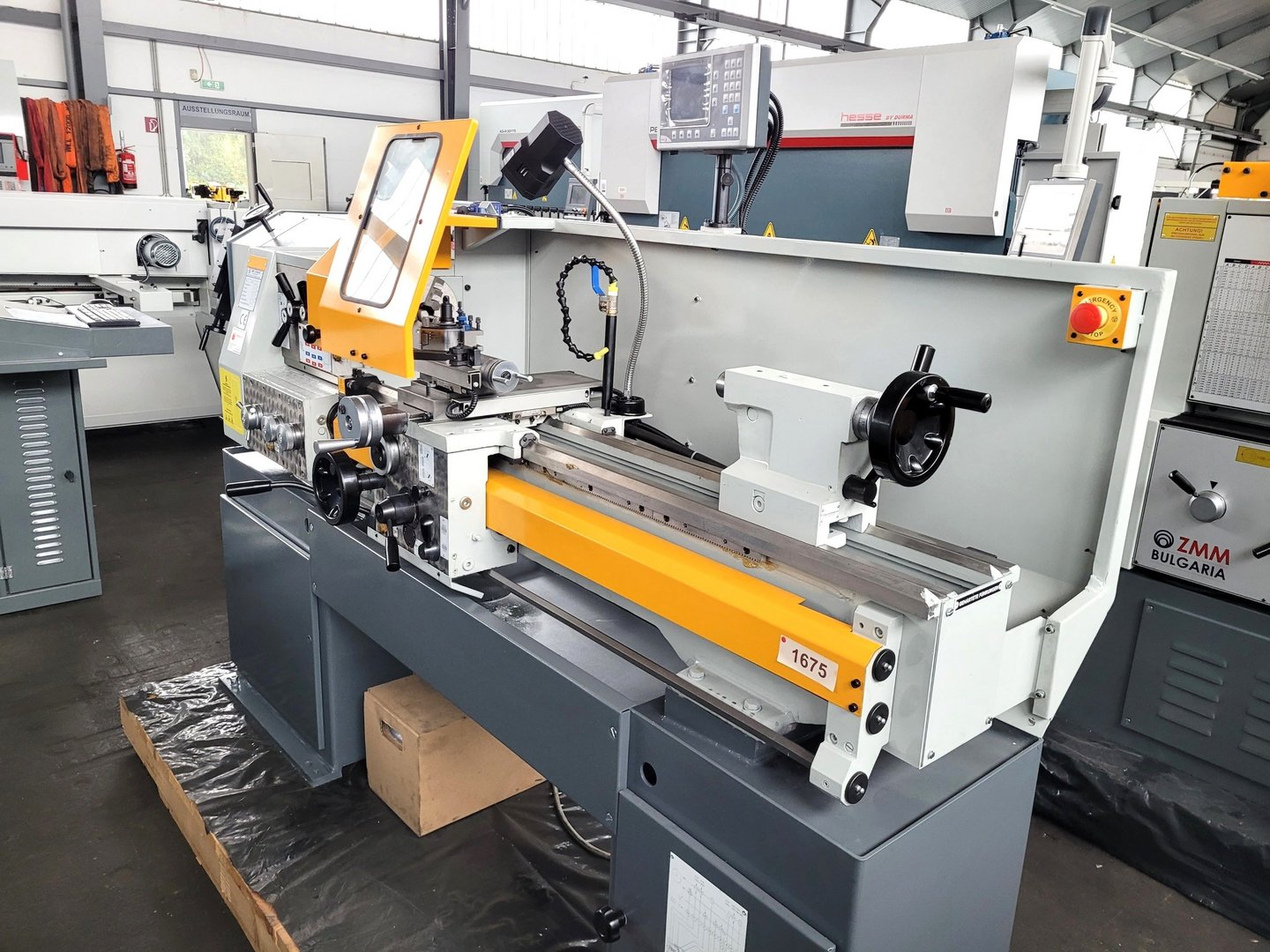

quick release tailstock
low voltage machine lamp
operating manual
machine according to "CE"
incl. following optional equipment:
1 lenght stop
Further turning lengths on request
Further information
Brochures
Product video

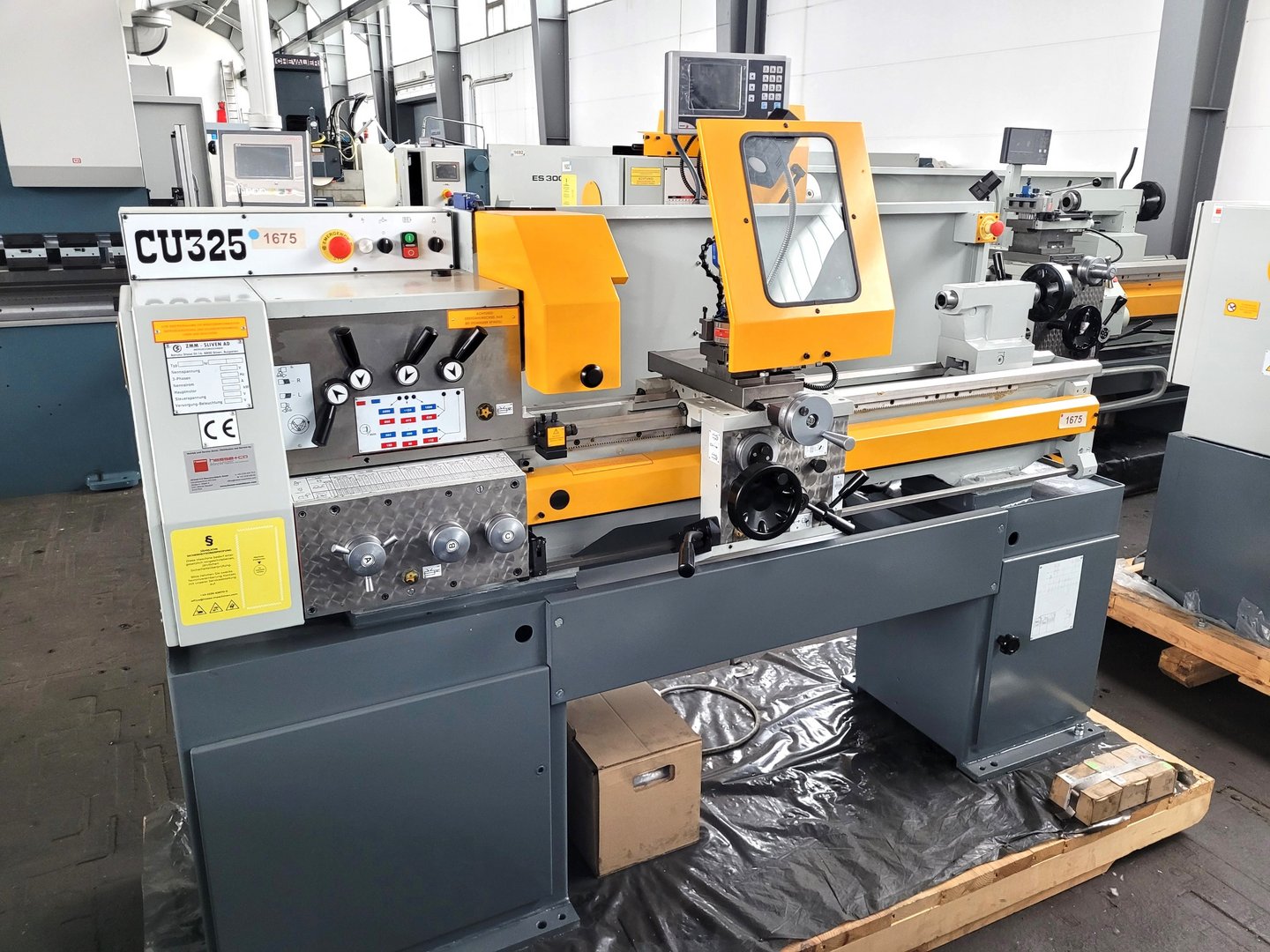

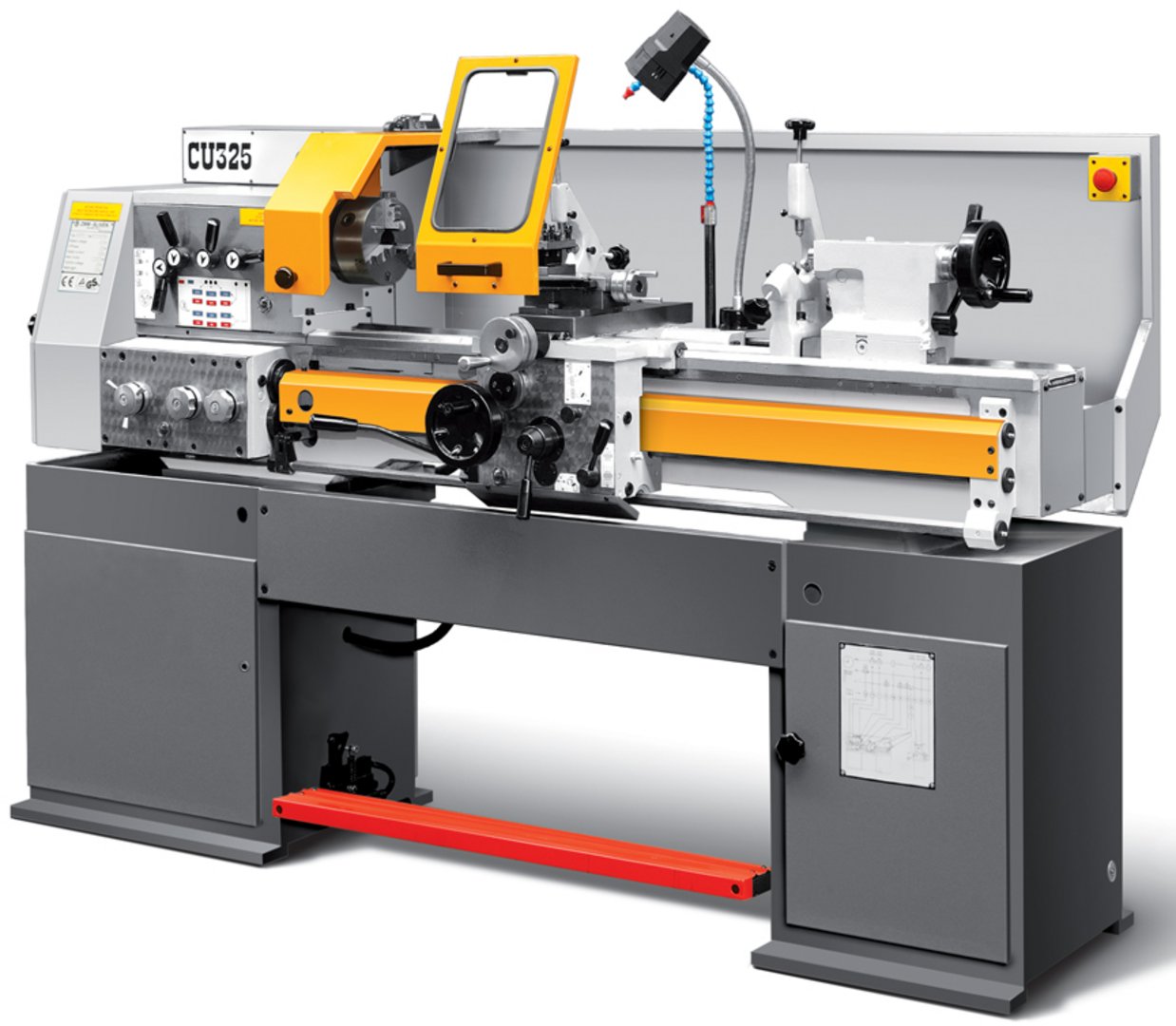

Centre lathe CU 325
