General characteristics
| Swing over bed | 330 mm |
| Distance between centers | 1000 mm |
| Centre height | 167 mm |
| Spindle bore | 38 mm |
| swing over cross slide | 210 mm |
| Spindle speed steps | 12 |
| Spindle revs | 40 - 2500 rpm |
| Number of feeds | 16 |
| Longitudinal feed range | 0.03 - 1 mm/r |
| Metric thread range | 0.2 - 14 mm |
| Inch thread range | 2 - 56 TPI Tpi |
| Cross slide travel | 190 mm |
| Top slide travel | 92 mm |
| Tailstock quill diameter | 42 mm |
| Tailstock quill taper | 3 MK |
| Tailstock travel | 110 mm |
| Motor power | 2 kW |
Dimensions and weight
| Length | 1940 mm |
| Width | 1000 mm |
| Height | 1550 mm |
| Weight | 685 kg |
Description

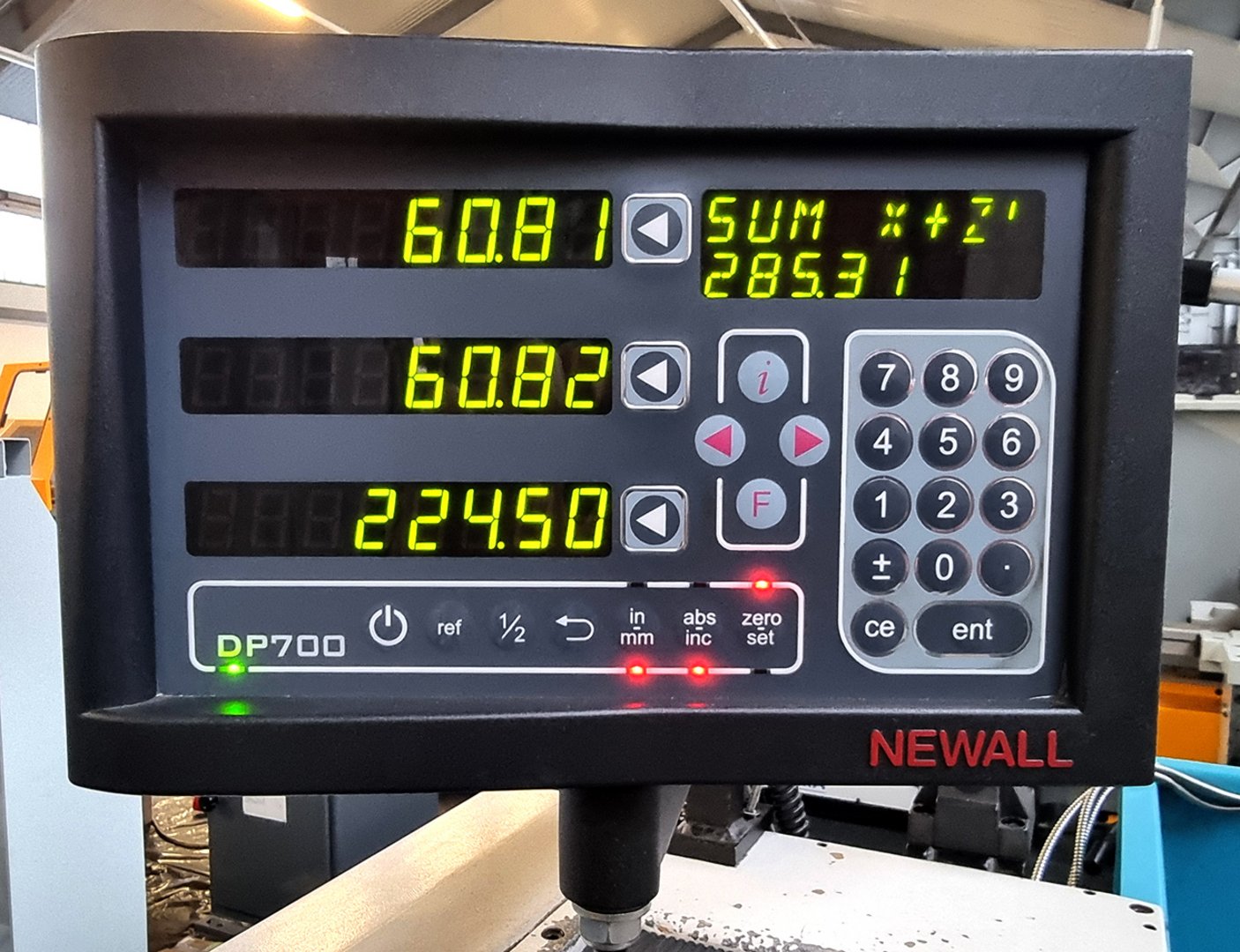

3-axis digital read out Newall
4-jaw chuck Bison diameter 160mm with inside and outside jaws

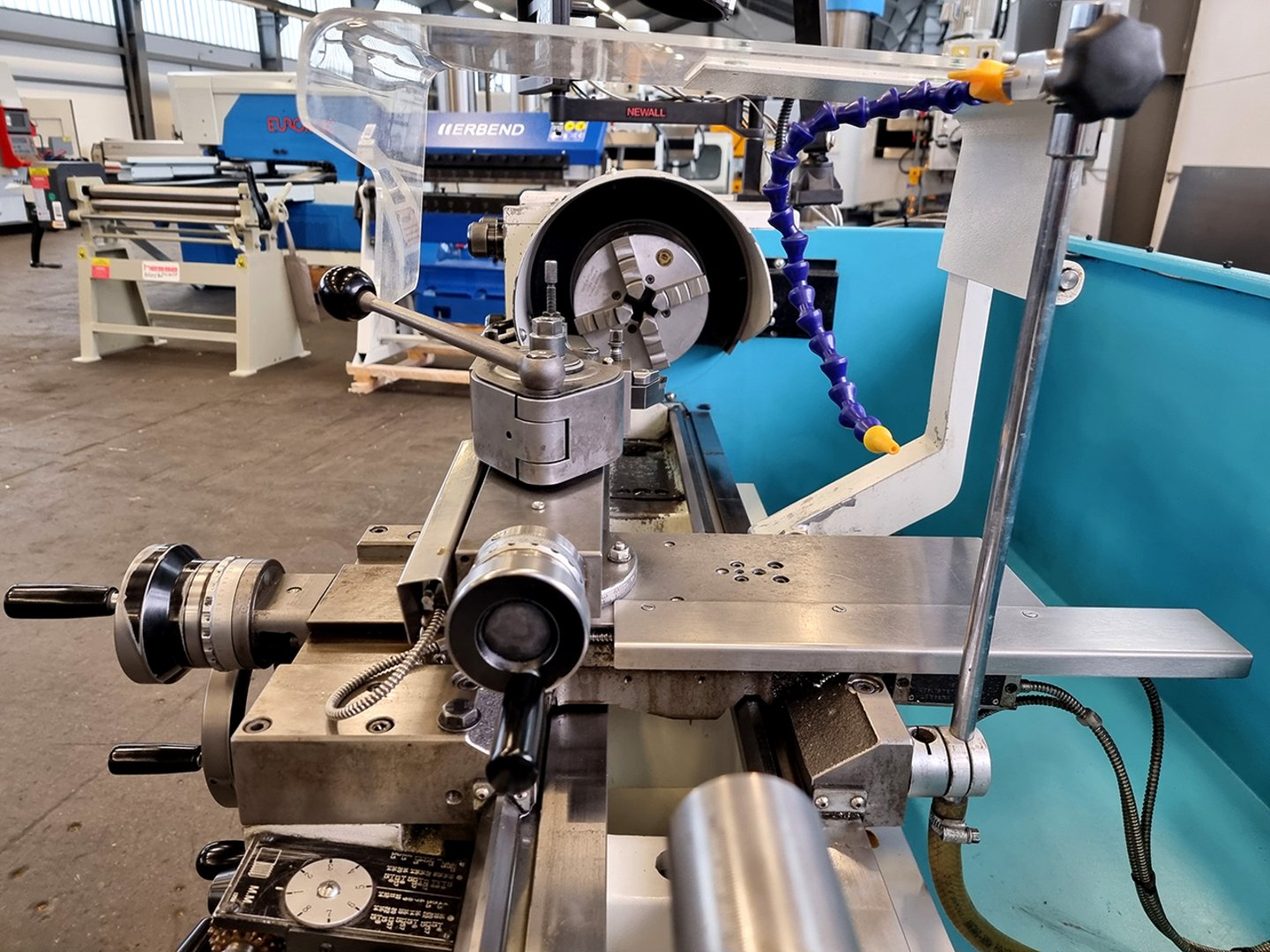

Quick-change tool post with 1 hold
Coolant device
Chuck protection
Steel holder protection
Lead screw cover
Machine light
Manual brake
Operating manual in German with EC declaration of conformity
