General characteristics
| Swing over bed | 400 mm |
| Distance between centers | 1000 mm |
| Centre height | 200 mm |
| Spindle bore | 52 mm |
| swing over cross slide | 235 mm |
| Width of bed | 320 mm |
| Spindle nose / DIN55027 | 6 |
| Spindle taper | 6 M |
| Spindle speed steps | 12 |
| Spindle revs | 50–2.240 rpm |
| Number of feeds | 80 |
| Longitudinal feed range | 0.015 - 0.6 mm/r |
| Cross feed range | 0.0075 - 0.3 mm/r |
| Number of threads | 40 |
| Metric thread range | 0.25 - 7.5 mm |
| Inch thread range | 120 - 4 Tpi |
| Module thread range | 0.0625 - 1.875 |
| DP thread range | Array |
| Cross slide travel | 235 mm |
| Top slide travel | 110 mm |
| Tailstock quill diameter | 50 mm |
| Tailstock quill taper | 4 MK |
| Tailstock travel | 100 mm |
| Motor power | 4 kW |
Dimensions and weight
| Length | 2750 mm |
| Width | 1100 mm |
| Height | 1600 mm |
| Weight | 1540 kg |
Description
driven by manual transmission

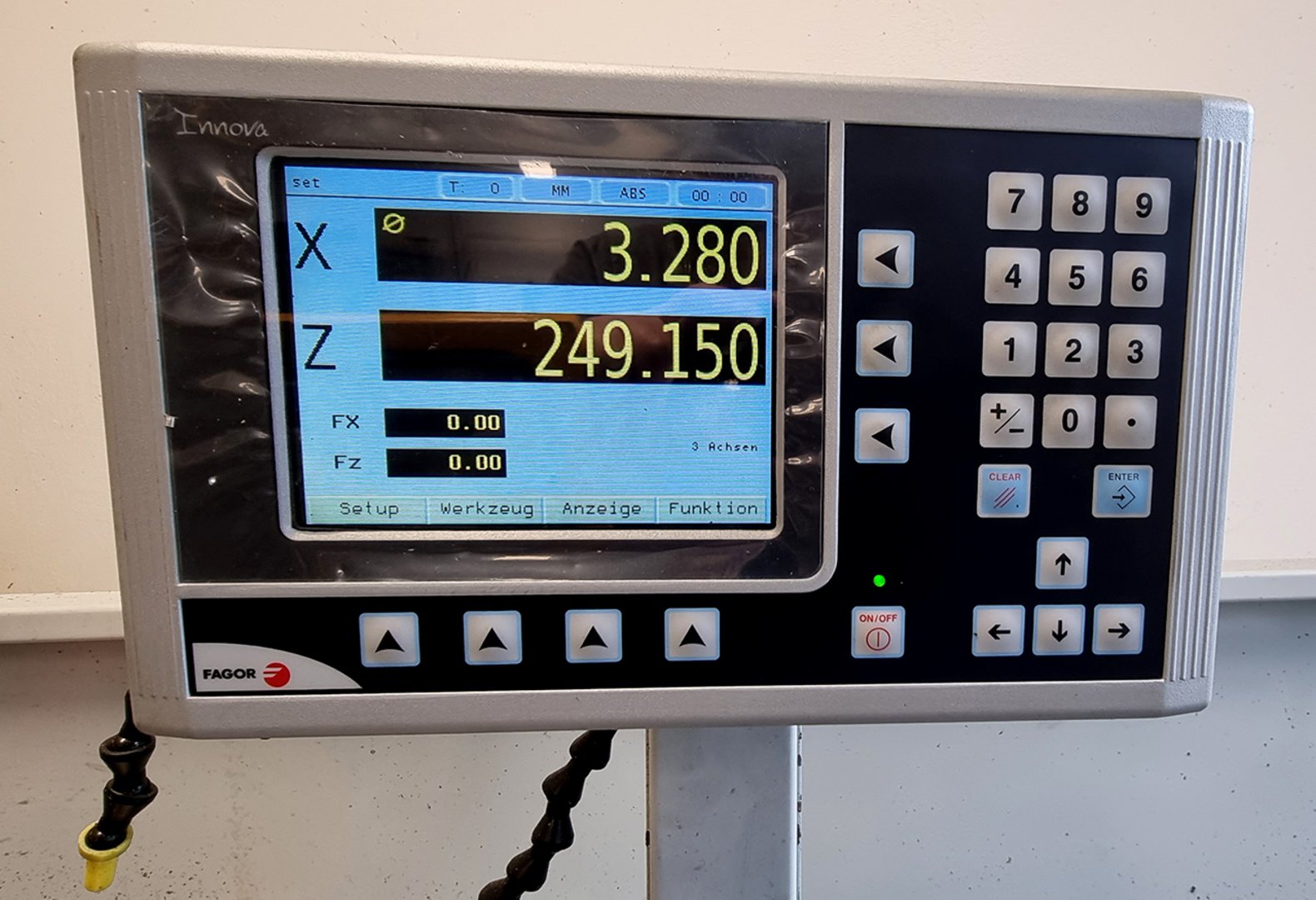

3-axes digital readout Fagor 40i

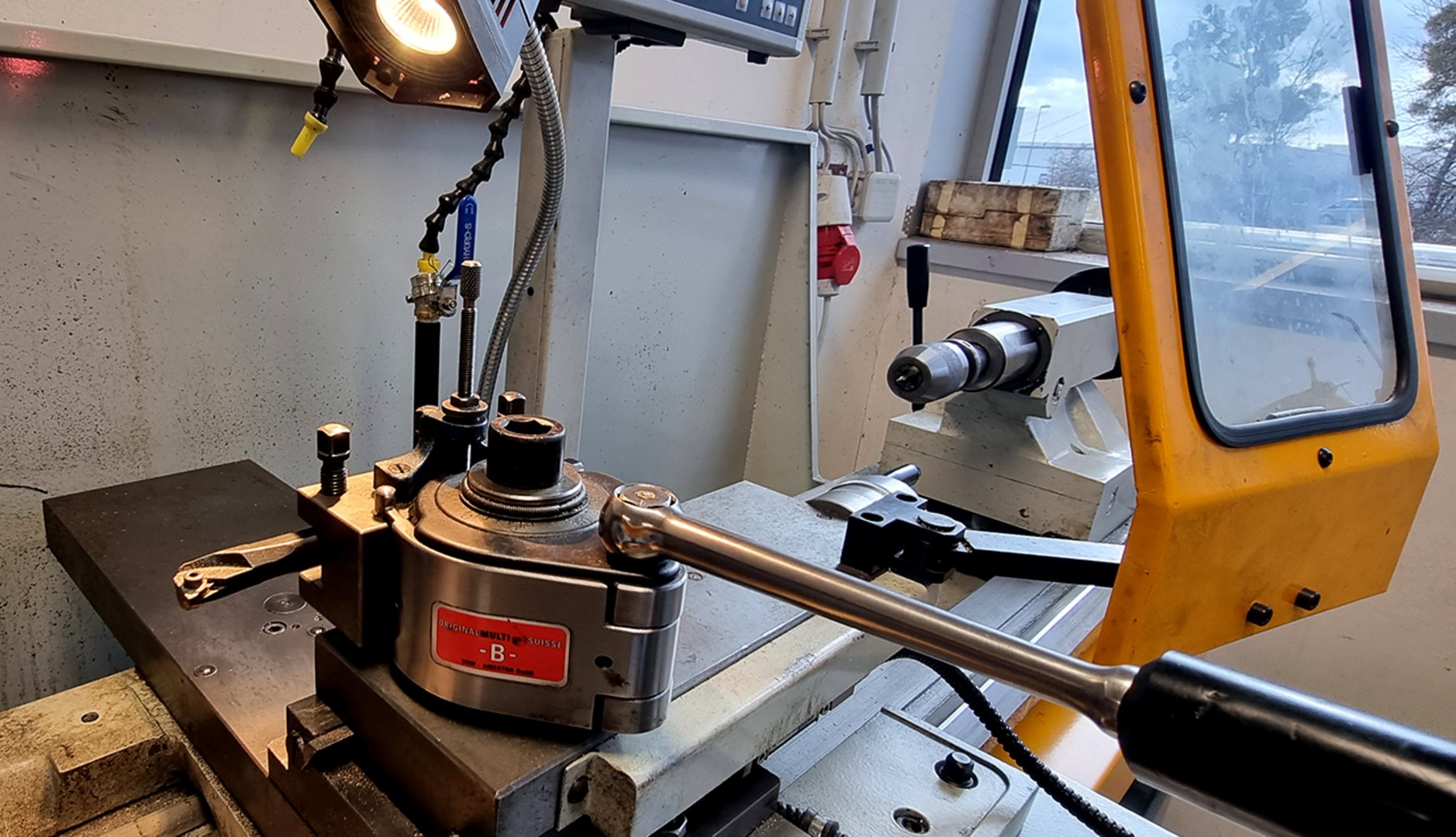

quick change toolpost Multifix Type B with 4 holders (3 square, 1 round)

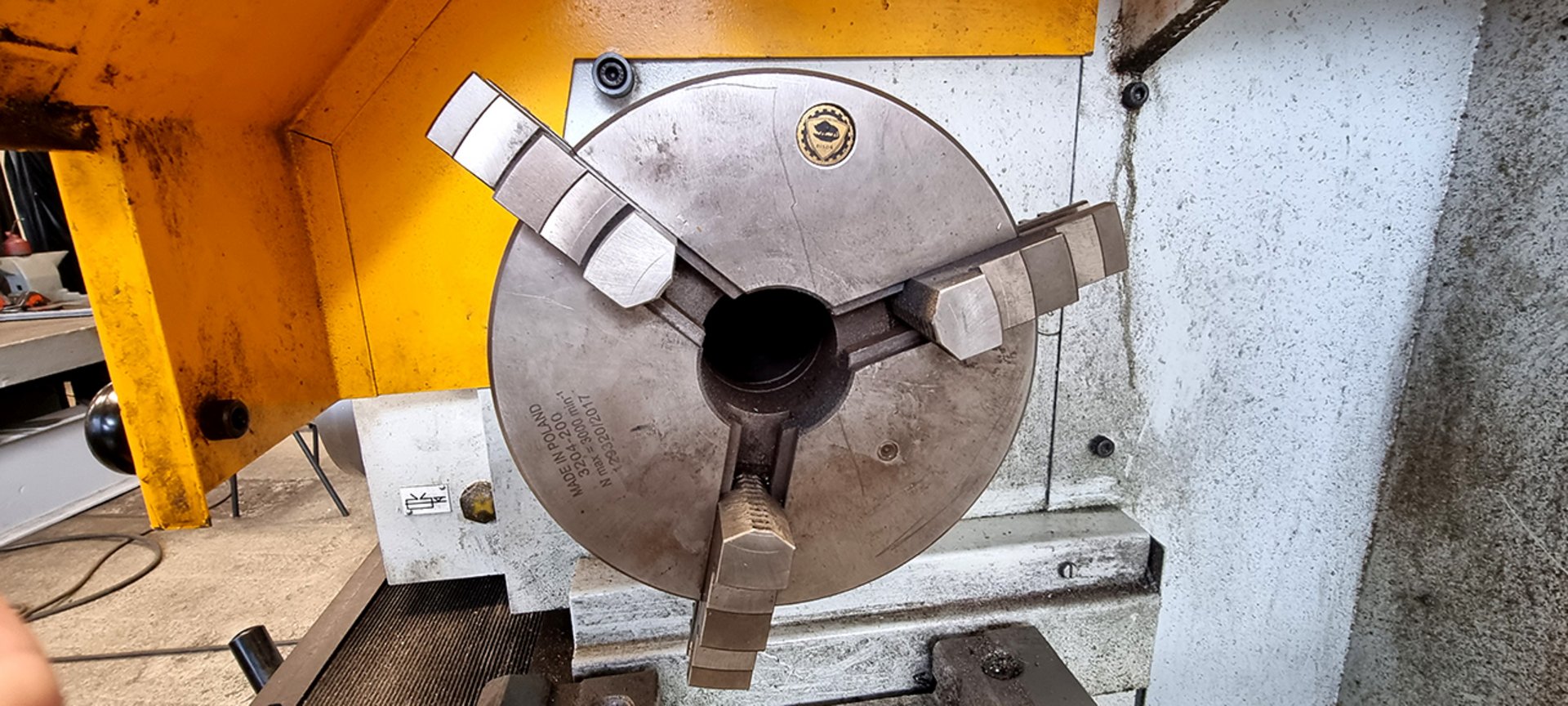

3-jaw chuck Bison 3204/DIN6350, Ø 200 mm
spindle nose Nr. 6 DIN 55027
four way rapid traverse device
spindle dead center
coolant equipment
1 pce. flange plate for lathe chuck Ø 200 mm
1 adapter sleeve
full length rear splash guard
leadscrew and shaft protection
safety guard for the chuck
toolholder guard
levelling bolts and plates

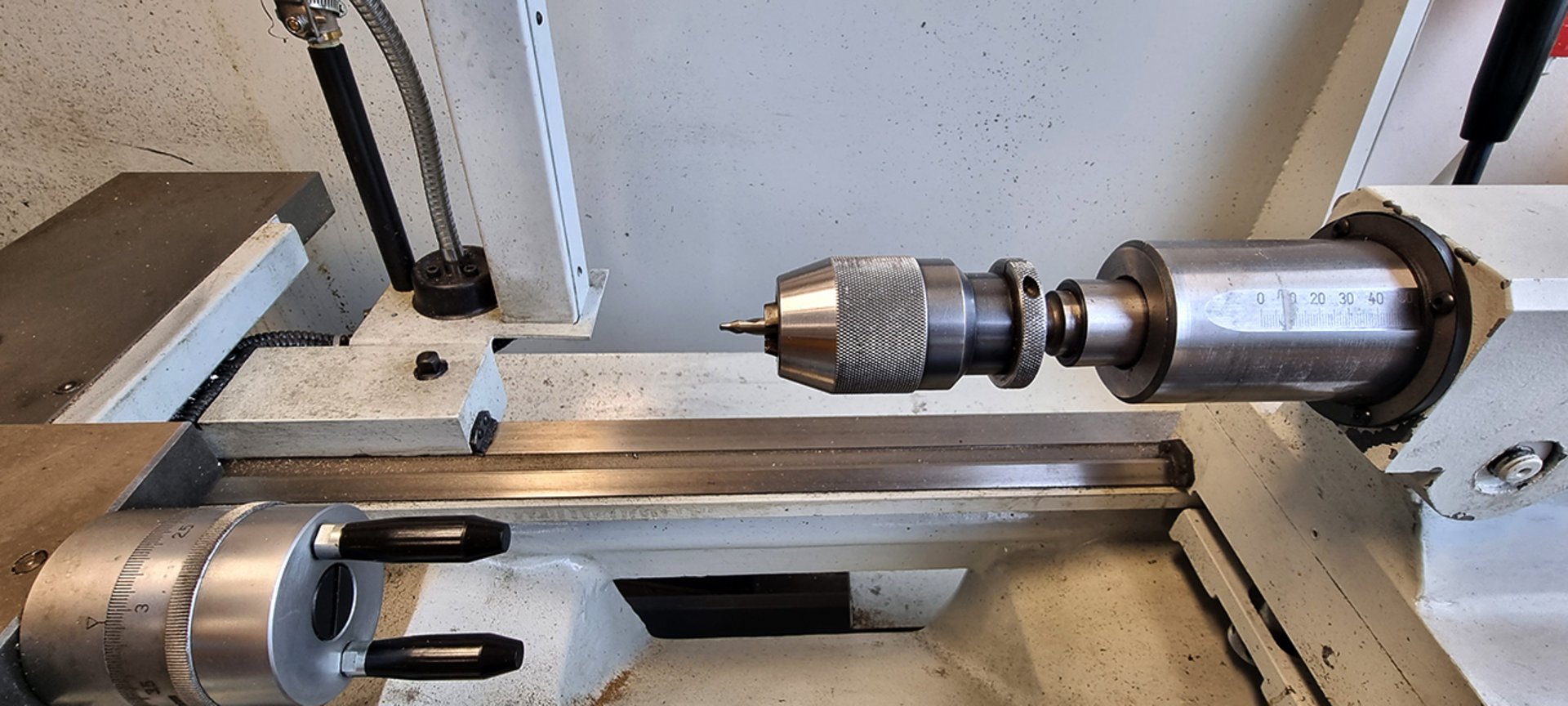

quick release tailstock
low voltage machine lamp
operating manual
machine according to "CE"
Further information
Product video

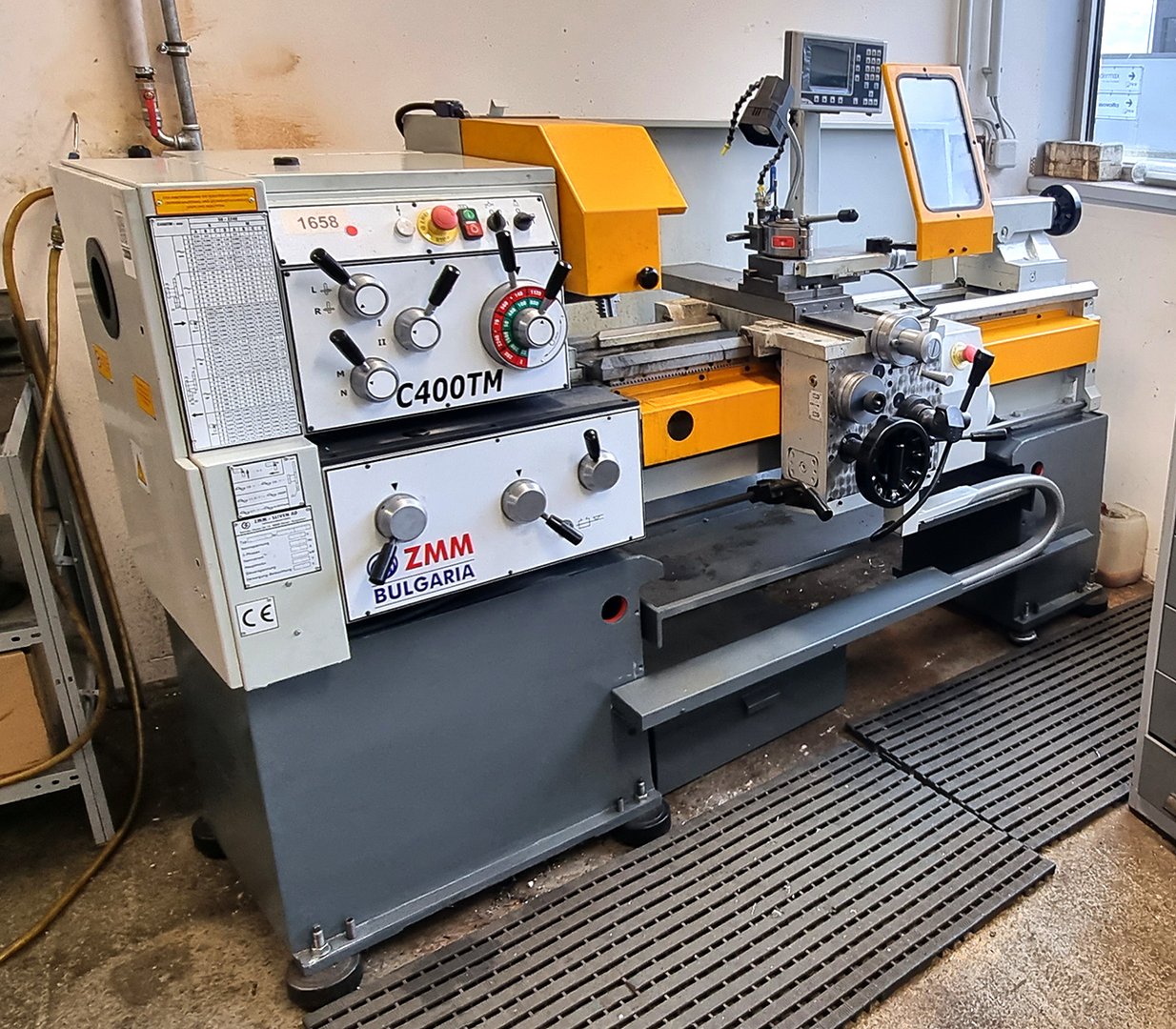

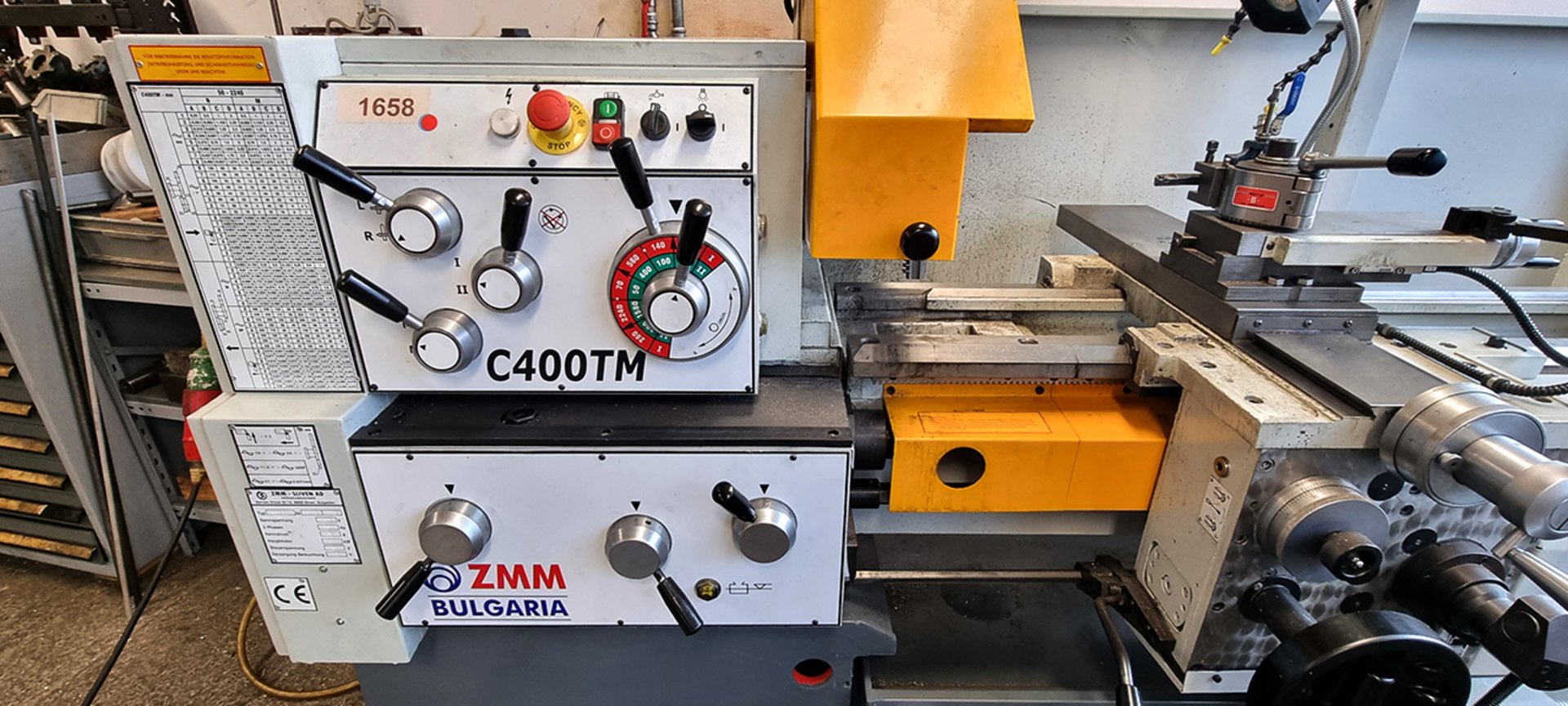

Centre lathe C 400 TM
