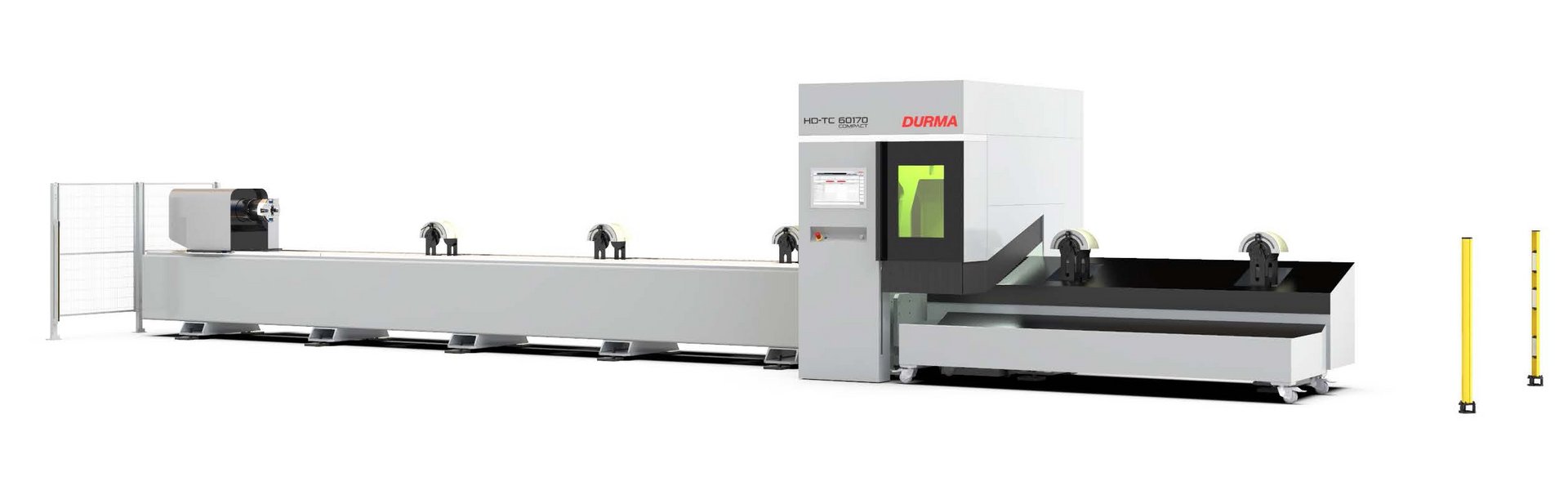

Section and tube laser cutting machine HESSE by DURMA HD-TC compact 60250 - 3 kW
| Model | HD-TC compact 60250 - 3 kW |
| Brand | HESSE by DURMA |
| Condition | new |
| Max tube Ø | 250 mm |
| Laser power | 3 kW |
| Origin | Türkiye |
General characteristics
| Laser power | 3 kW |
| Manual table / shuttle table | - |
| Max. thickness - mild steel | 12 mm |
| Max. thickness - stainless steel | 6 mm |
| Max. thickness - aluminium | 6 mm |
| Max. Application Range - Copper | 3 mm |
| Max. Application Range - Brass | 6 mm |
| Total power | 26 kW |
| Max tube Ø | 250 mm |
| Min. tube Ø | 16 mm |
| Max. square Tube Dimension | 160 x 160 mm |
| Max. rectangular tube dimension | 200 x 150 mm |
| Max. tube lenght | 6000 mm |
| Max. tube weight | 58 kg/m |
| Last cut tube lenght | 65 mm |
| Positioning accuracy | +/- 0,2 mm |
| Repeat accuracy | +/- 0,05 mm |
| Tube types | round, square, rectangular, elliptic I, C, L |
| Max speed x-axes | 40 m/min |
| Max speed y-axes | 94 m/min |
| Max. speed Z axis | 30 m/min |
| Max. speed A-axix | 510 °/s |
Description
The machine consists of the following components:
- Encapsulated cutting room with protective glazing
- CNC graphic control with touchscreen
- Laser source Brilase 3 kW Premium incl. chiller
- Cutting head with automatic focus adjustment
- manual loading
- manual unloading table 3 m
- Positioning laser
- Central lubrication
- slug car
- CAD/CAM software with autonesting
- Work area lighting
Price FCA Türkiye
Options:
Suction unit with filters
Semi-automatic loading system
Manual unloading table 6 m with conveyer
Durma cloud license
Lasersources with 4 or 6 kW on request
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
