Fiber laser HESSE by DURMA HD-FO 3kW - WT
| Model | HD-FO 3kW - WT |
| Brand | HESSE by DURMA |
| Condition | new |
| Cutting area | 3.048 x 1.530 mm |
| Laser power | 3 kW |
| Origin | Türkiye |
General characteristics
| Laser power | 3 kW |
| Manual table / shuttle table | Shuttle table |
| Max. thickness - mild steel | 16 mm |
| Max. thickness - stainless steel | 8 mm |
| Max. thickness - aluminium | 8 mm |
| Max. Application Range - Copper | 5 mm |
| Max. Application Range - Brass | 8 mm |
| Cutting area | 3.048 x 1.530 mm |
| X-axis | 3048 mm |
| Y-axis | 1530 mm |
| Z-Axis | 125 mm |
| Max. Sheet size | 3.048 x 1.524 mm |
| Max speed x-axes | 90 m/min |
| Max speed y-axes | 90 m/min |
| Max. speed simultaneous | 127 m/min |
| Max. acceleration | 14 m/s² |
| Positioning accuracy | +/- 0,05 mm |
| Repeat accuracy | +/- 0,05 mm |
Dimensions and weight
Description

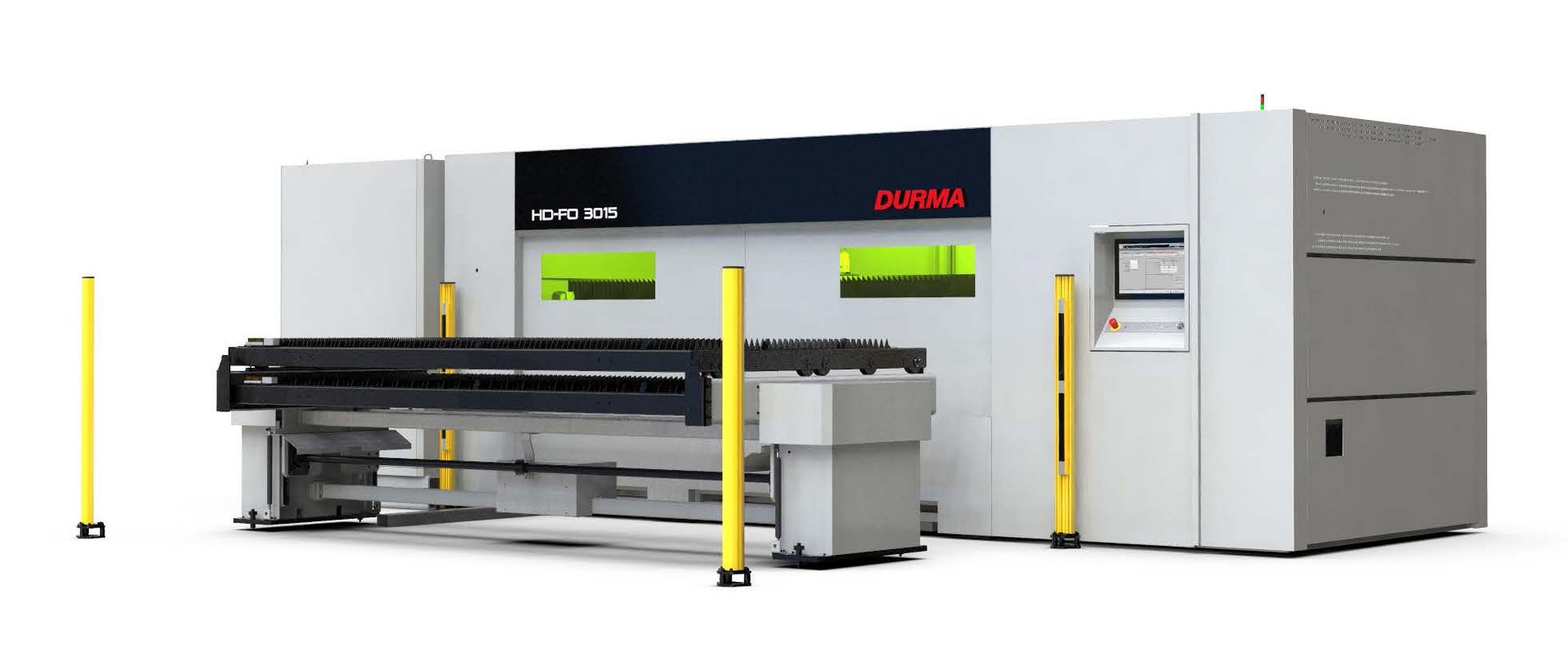

Fiber laser HESSE HD-FO made by DURMA
The HD-FO is our compact entry-level model. Control, laser source and cooling are integrated into the system to keep the overall dimensions as small as possible.
The shuttle table is positioned at the front, making this system ideal for customers who do not have sufficient space for classic longitudinal positioning.
Optionally, the HD-FO can also be equipped with a manually extendable table.
The cutting head has automatic focus adjustment.
This makes the system a particularly economical, fast and very easy to operate production machine.
The system consists of the following components:
Manual loading and unloading table
Encapsulated cutting room with protective glazing
CNC graphic control with touchscreen
Laser source Brilase Premium DRM-8 F150

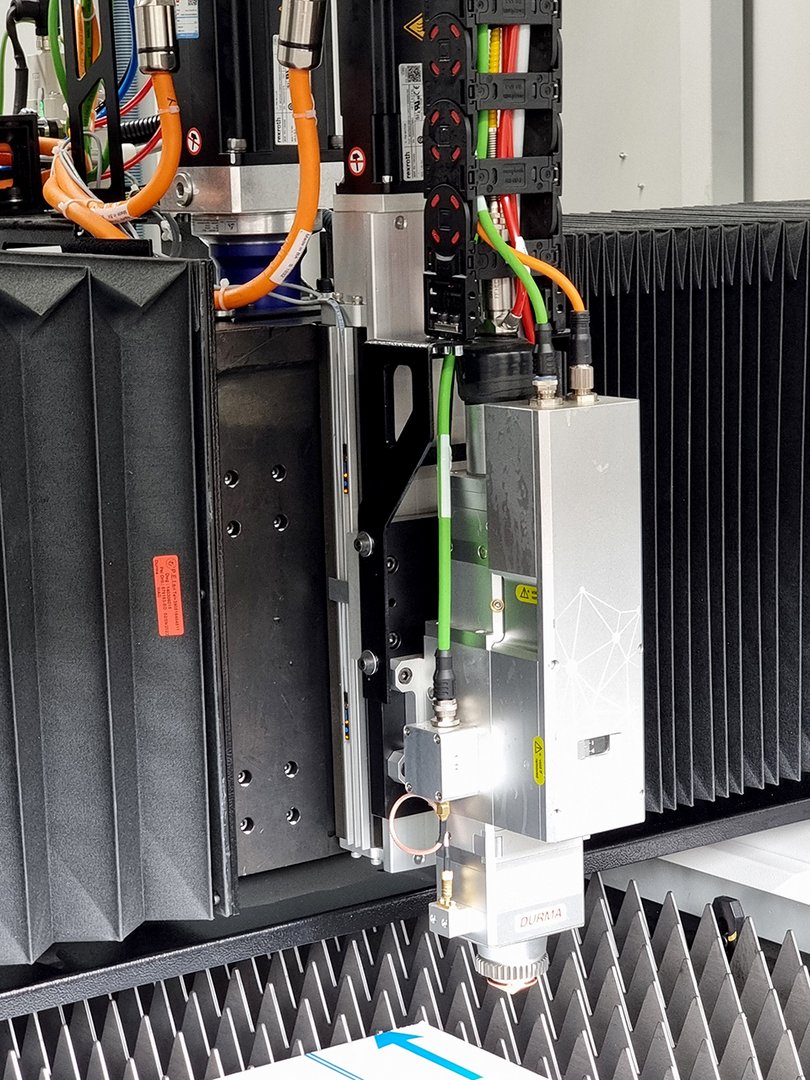

Cutting head with automatic focus adjustment
Integrated cooling unit for cutting head and laser source
CAD/CAM software for programming including autonesting
Positioning laser
Sheet check system (automatic detection of sheet position and dimensions)
Automatic nozzle cleaning
Slug box
Working area lighting
Multi-chamber suction system
Remote maintenance access
Equipped according to CE guidelines
Option:

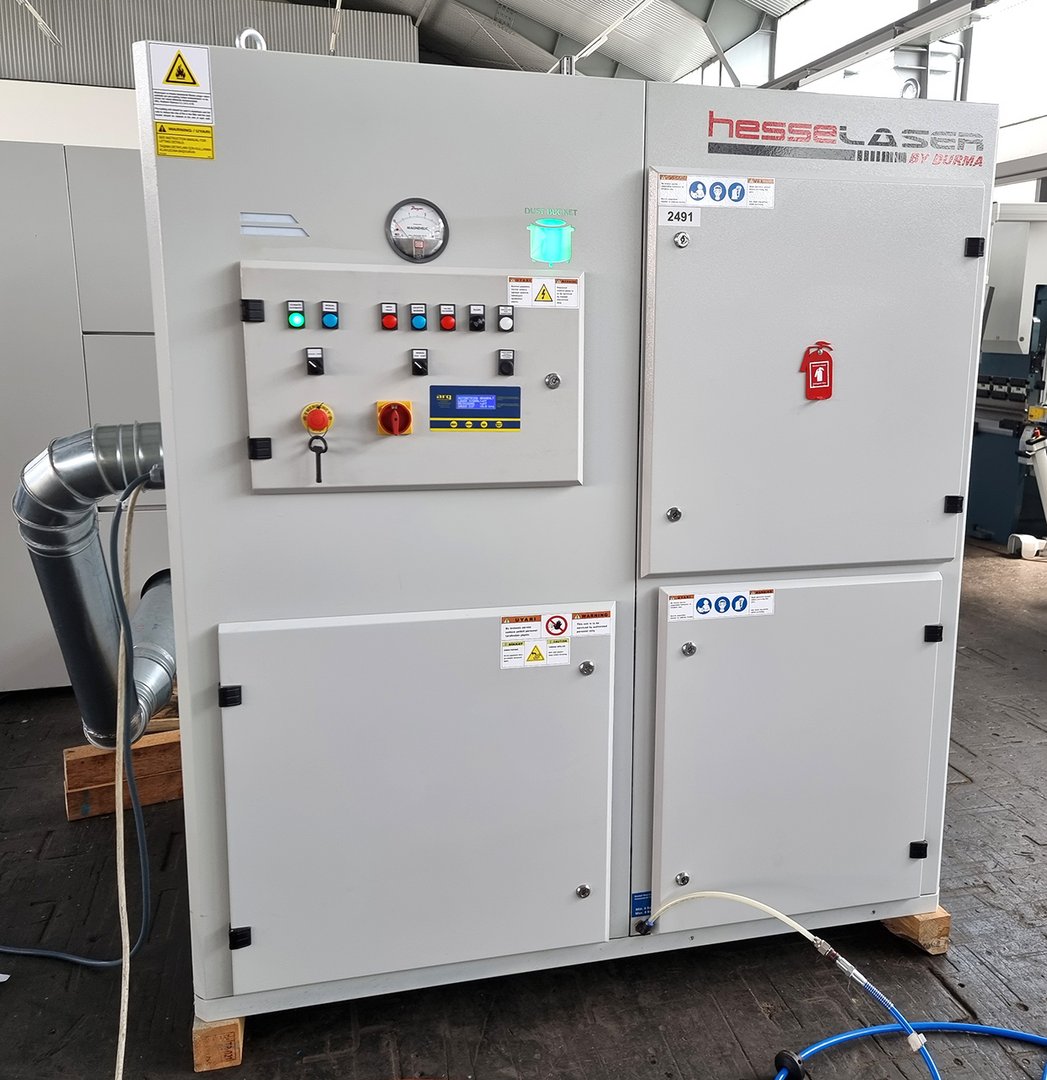

suction unit with filter
manually extendable table
Further options as Durma cloud on request.
