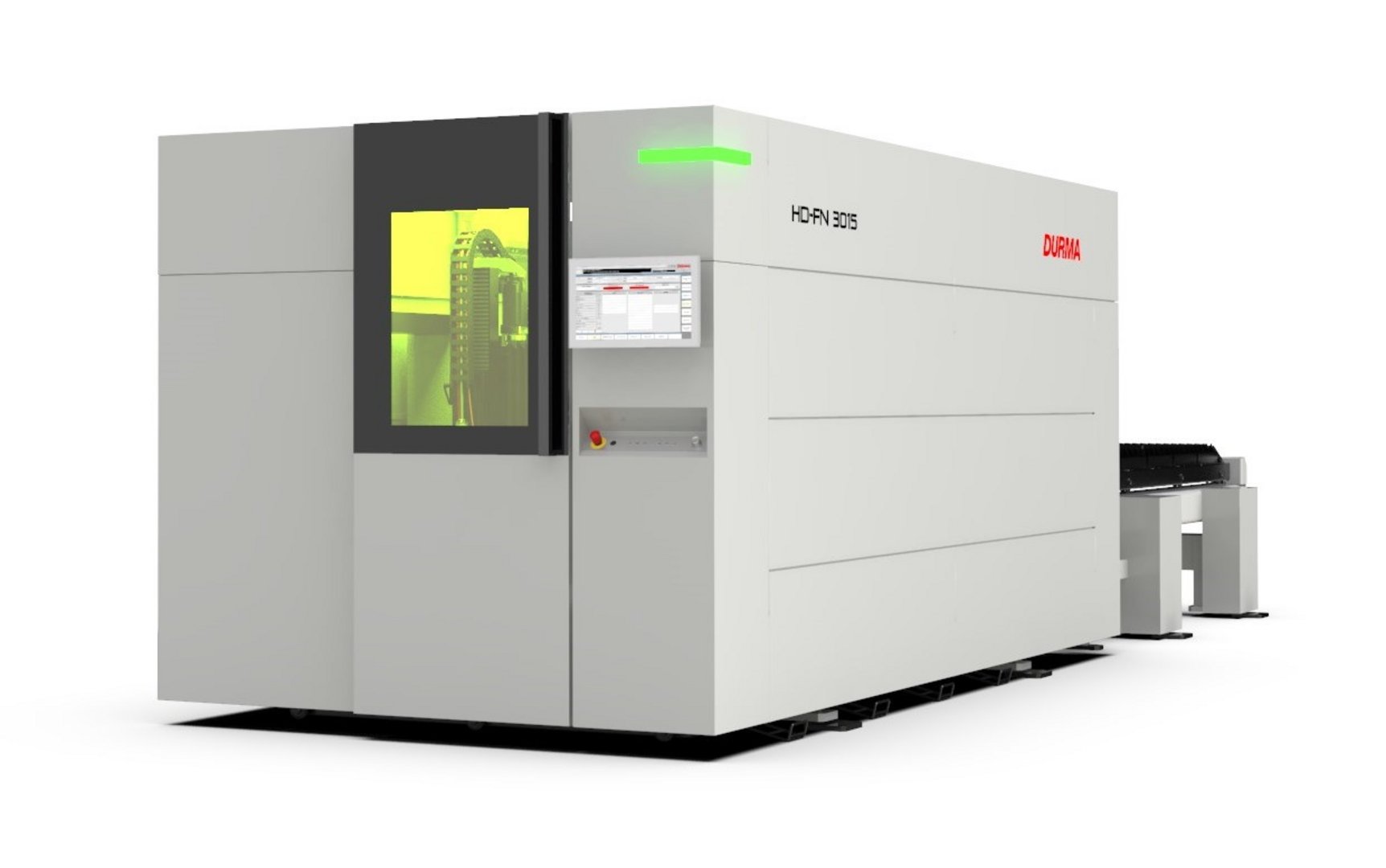

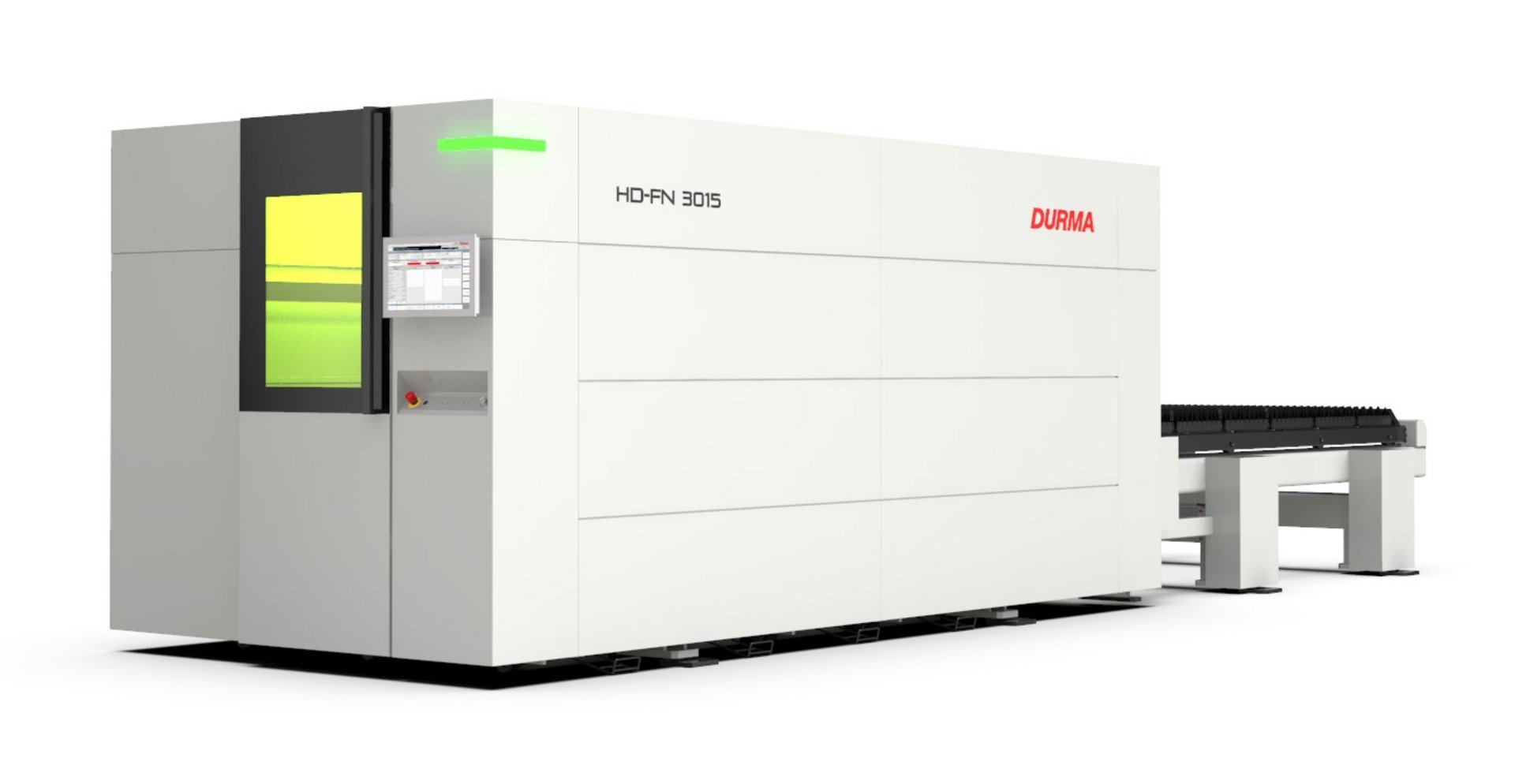

Fiber laser HESSE by DURMA HD-FN 6 kW
| Model | HD-FN 6 kW |
| Brand | HESSE by DURMA |
| Condition | new |
| Cutting area | 3060 x 1525 mm |
| Laser power | 6 kW |
| Origin | Türkiye |
General characteristics
| Laser power | 6 kW |
| Manual table / shuttle table | Shuttle table |
| Max. thickness - mild steel | 25 mm |
| Max. thickness - stainless steel | 15 mm |
| Max. thickness - aluminium | 20 mm |
| Max. Application Range - Copper | 10 mm |
| Max. Application Range - Brass | 12 mm |
| Total power | 28 kW |
| Cutting area | 3060 x 1525 mm |
| X-axis | 3060 mm |
| Y-axis | 1525 mm |
| Z-Axis | 125 (300) mm |
| Max. Sheet size | 3084 x 1524 mm |
| Max. sheet weight | 390 kg/m² |
| Max. total weight for double table | 920 kg |
| Max speed x-axes | 90 m/min |
| Max speed y-axes | 90 m/min |
| Max. speed simultaneous | 127 m/min |
| Max. acceleration | 14 m/s² |
| Positioning accuracy | +/- 0,05 mm |
| Repeat accuracy | +/- 0,05 mm |
| Table change time | 13 s |
| Average power consumption | 20 kWh |
Dimensions and weight
Description
Fiber laser HESSE HD-FN made by DURMA
The HD-FN has two tables which are automatically switched alternately to enable simultaneous cutting and loading/unloading.
The shuttle table is positioned longitudinally, which results in the best possible accessibility for optional loading and unloading systems.
Control, laser source and cooling are integrated into the machine. The cutting head has automatic focus adjustment.
The system consists of the following components:
Shuttle table (positioned longitudinally for best possible accessibility for optional loading and unloading systems)
Encapsulated cutting room with protective glazing
CNC graphic control with touchscreen
Laser source Brilase Premium DRM-8 F150
Cutting head with automatic focus adjustment
Integrated cooling unit for cutting head and laser source
CAD/CAM software for programming including autonesting
Positioning laser
Sheet check system (automatic detection of sheet position and dimensions)
Automatic nozzle cleaning
Central lubrication
Slug box
Working area lighting
Multi-chamber suction system
Light barrier protection for the changing table
Remote maintenance access
Equipped according to CE guidelines
Option:
Extraction with filter unit
Further information
Brochures
Product video
Fiber laser HD-FN 6 kW
