Fiber laser HESSE by DURMA HD-FO 4kW
| Model | HD-FO 4kW |
| Brand | HESSE by DURMA |
| Condition | new |
| Cutting area | 3.048 x 1.530 mm |
| Laser power | 4 kW |
| Origin | Türkiye |
General characteristics
| Laser power | 4 kW |
| Manual table / shuttle table | Manual table |
| Max. thickness - mild steel | 20 mm |
| Max. thickness - stainless steel | 10 mm |
| Max. thickness - aluminium | 12 mm |
| Max. Application Range - Copper | 6 mm |
| Max. Application Range - Brass | 10 mm |
| Cutting area | 3.048 x 1.530 mm |
| X-axis | 3048 mm |
| Y-axis | 1530 mm |
| Z-Axis | 125 mm |
| Max. Sheet size | 3.048 x 1.524 mm |
| Max. sheet weight | 127 kg/m² |
| Max speed x-axes | 90 m/min |
| Max speed y-axes | 90 m/min |
| Max. speed simultaneous | 127 m/min |
| Max. acceleration | 14 m/s² |
| Positioning accuracy | +/- 0,05 mm |
| Repeat accuracy | +/- 0,05 mm |
| Total space length U | 5310 mm |
| Total space width G | 2810 mm |
| Height | 1860 mm |
Dimensions and weight
| Weight | 6600 kg |
Description

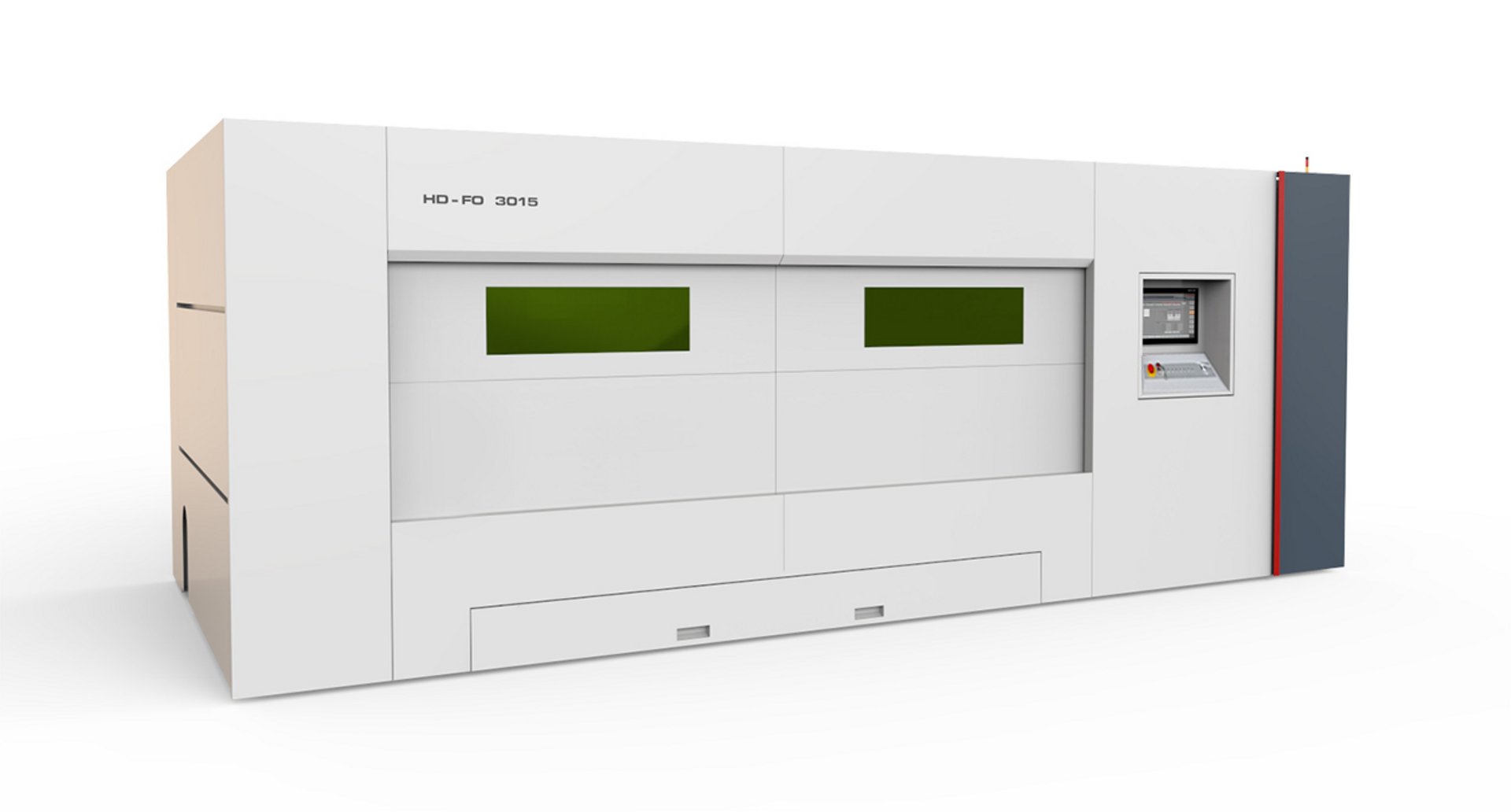

Fiber laser HESSE HD-FO made by DURMA

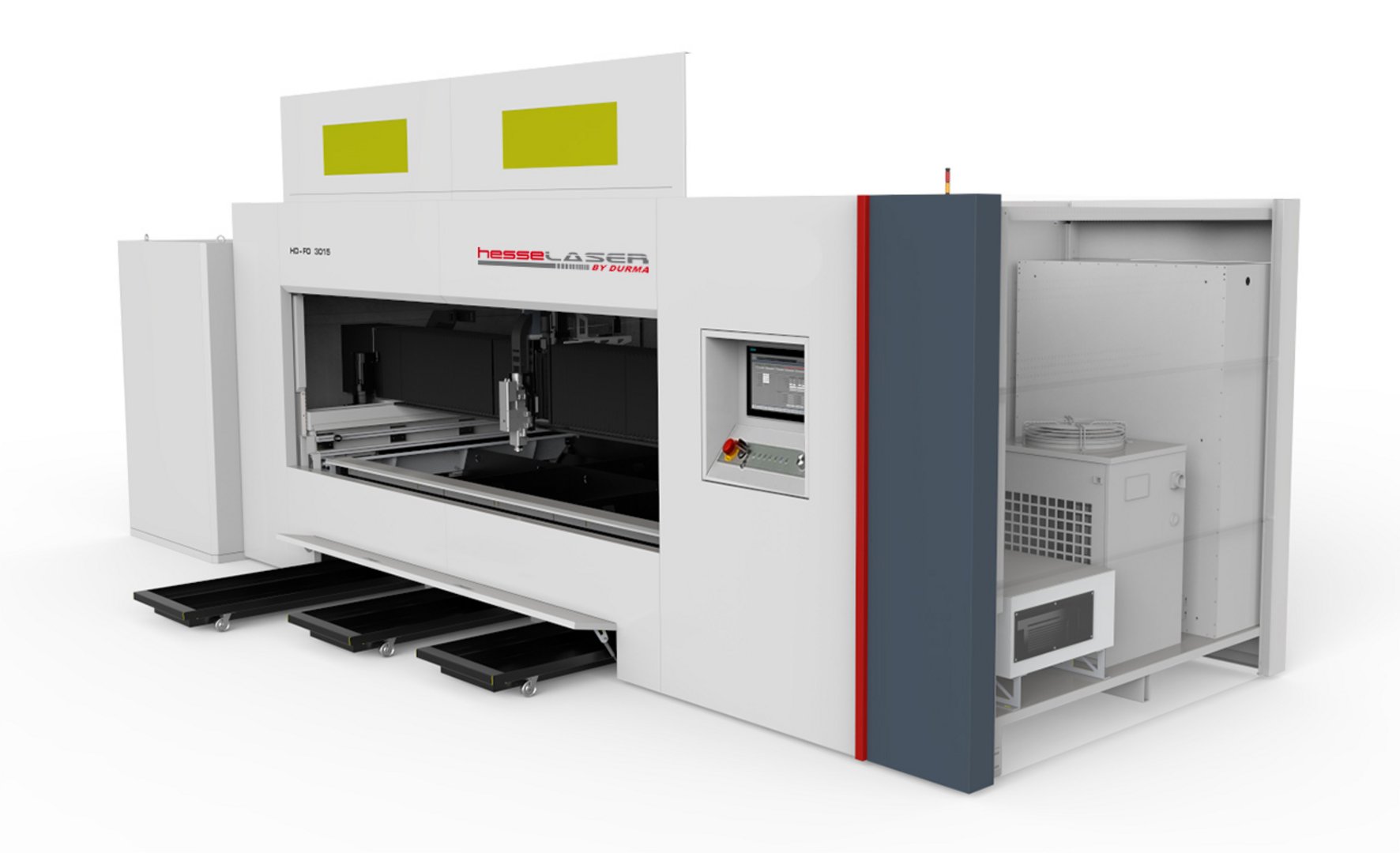

The HD-FO is our compact entry-level model. Control, laser source and cooling are integrated into the system to keep the overall dimensions as small as possible.
The manually extendable table is moved out of the side of the machine for loading and unloading.
The cutting head has automatic focus adjustment.
This makes the system a particularly economical, fast and very easy to operate production machine.
The system consists of the following components:
Manual loading and unloading table
Encapsulated cutting room with protective glazing

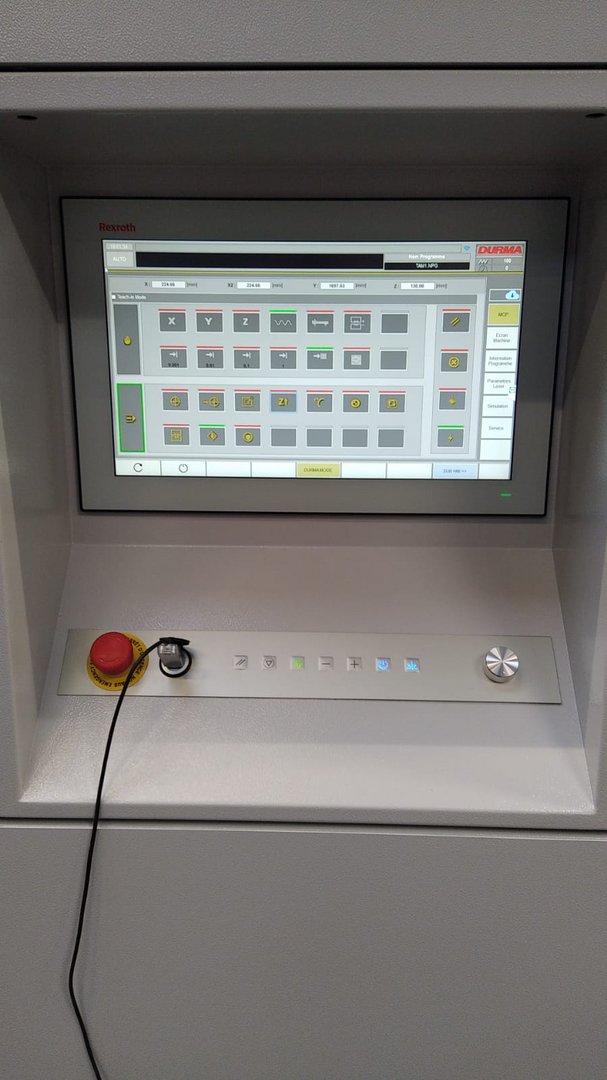

CNC graphic control with touchscreen
Laser source Brilase Premium DRM-8 F150
Cutting head with automatic focus adjustment
Integrated cooling unit for cutting head and laser source
CAD/CAM software LANTEK for programming including autonesting
Positioning laser
Sheet check system (automatic detection of sheet position and dimensions)
Automatic nozzle cleaning
Slug box
Working area lighting
Multi-chamber suction system
Remote maintenance access
Equipped according to CE guidelines
Dimensions:
| Lenght of Guiding Machine: | 5.600 mm |
| Width of Guiding Machine: | 2.700 mm |
| Height of Guiding Machine: | 2.130 mm |
| Height of Guiding Machine when loading door are open: | 2.725 mm |
| Length of exhausting unit: | 2.500 mm |
| Width of exhausting unit: | 1.400 mm |

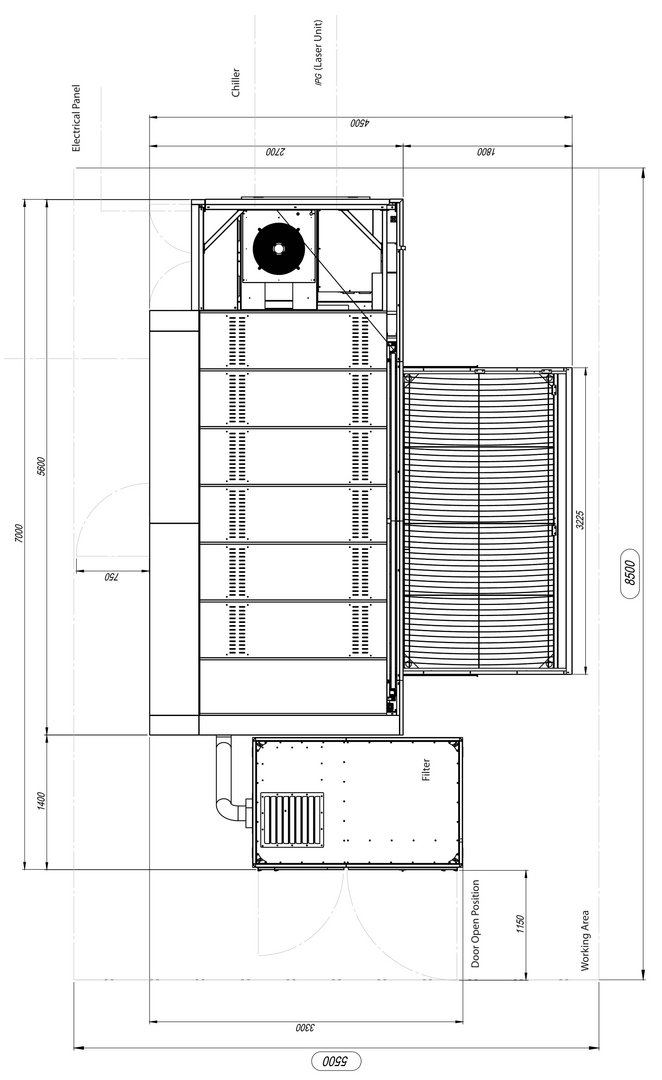

| Dimensions according to layout plan | 8.500 x 5.500 mm |
Option:
exhaust unit with filters
shuttle table for simultaneous loading/unloading and cutting to reduce the secondary processing time
Further options as Durma cloud on request.
