General characteristics
| Manual table / shuttle table | Shuttle table |
| dynamic and precision |
Dynamik und Genauigkeit:
|
| Measurements |
Abmessungen:
|
Dimensions and weight
Description
Laser sources from 3 - 30 kW
Table dimensions: 3 x 1,5 / 4 x 2 / 6 x 2 / 6 x 2,5 m

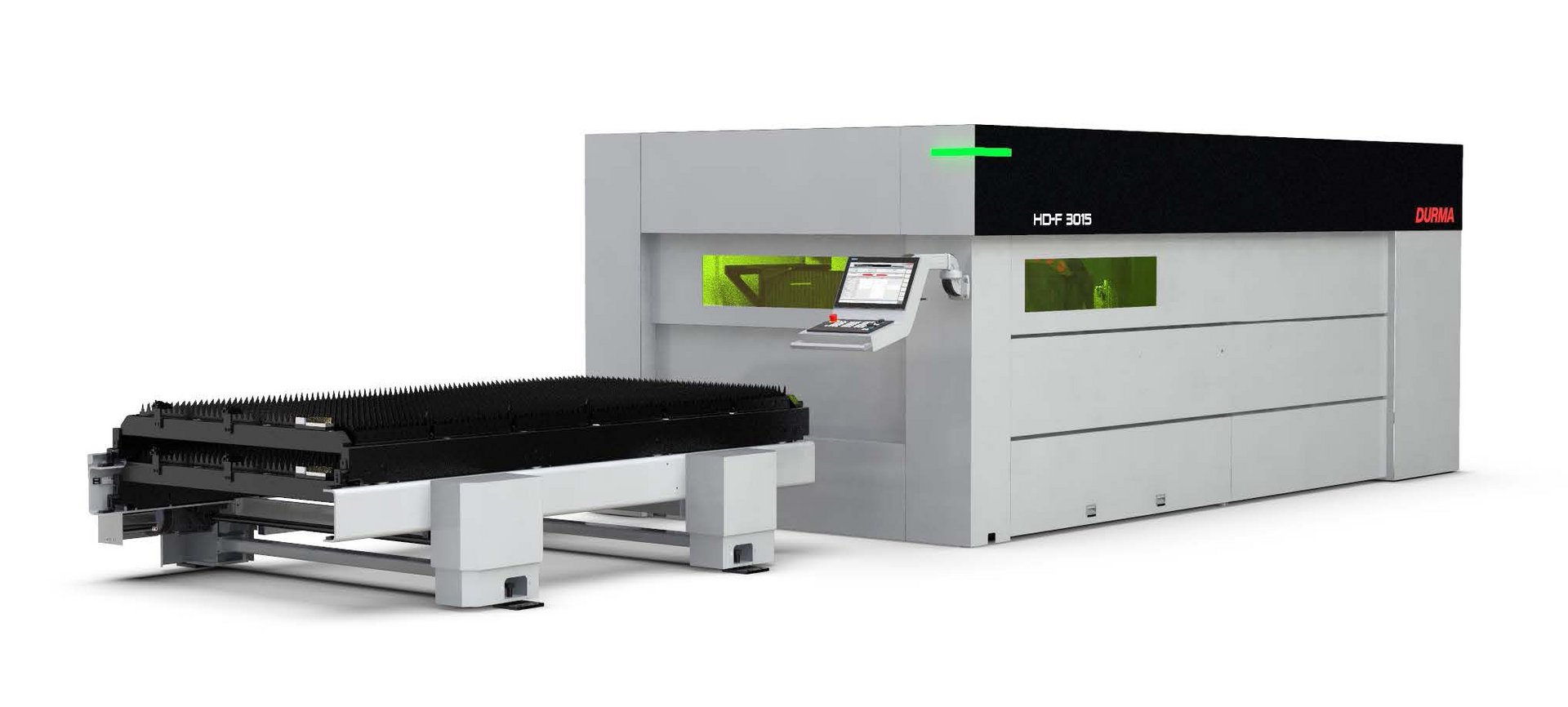

The shuttle table is positioned longitudinally, which results in the best possible accessibility for optional loading and unloading systems.
The system consists of the following components:

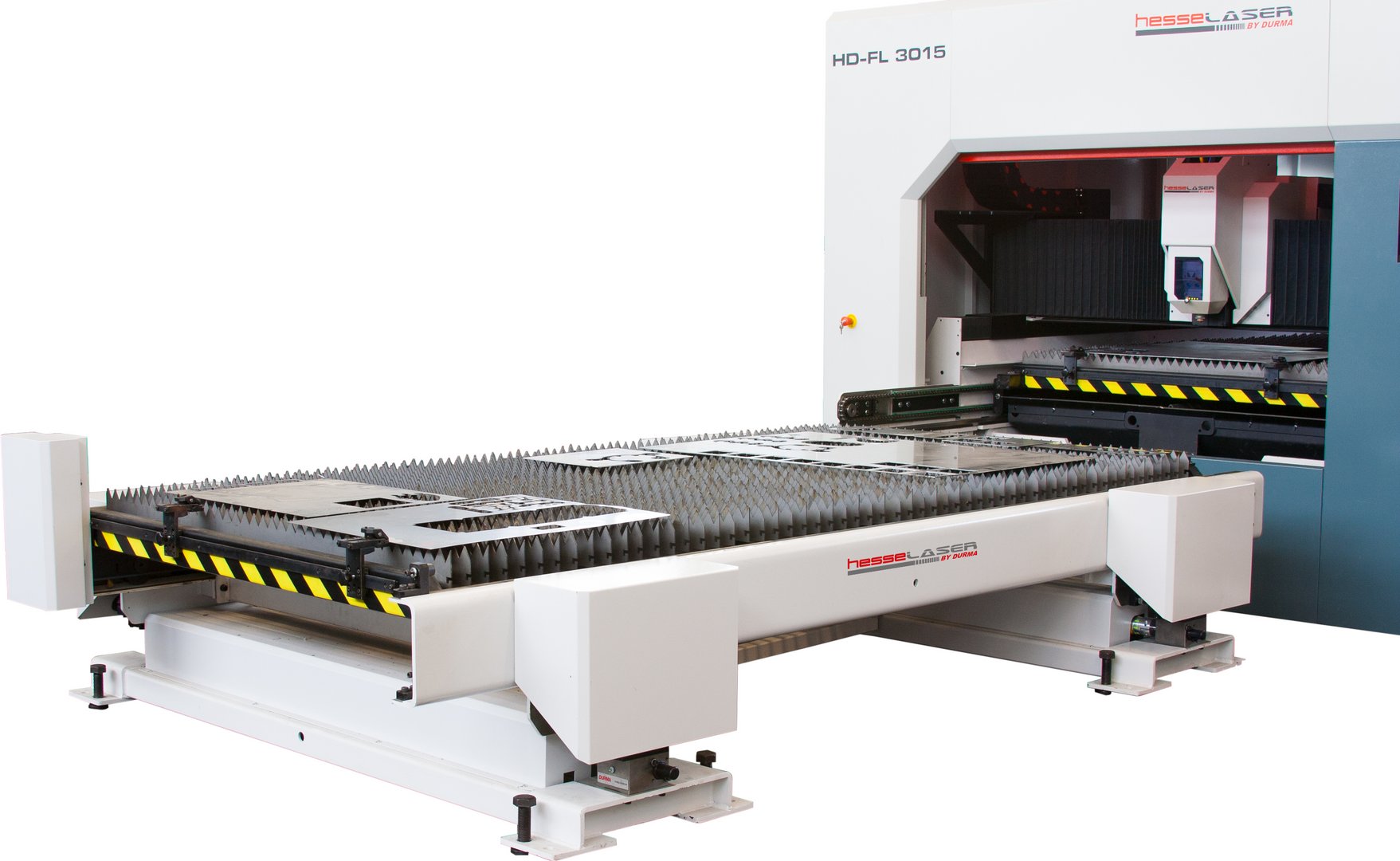

Shuttle table system in longitudinal direction for simultaneous loading/unloading and cutting to reduce non-productive production times
Encapsulated cutting room with protective glazing

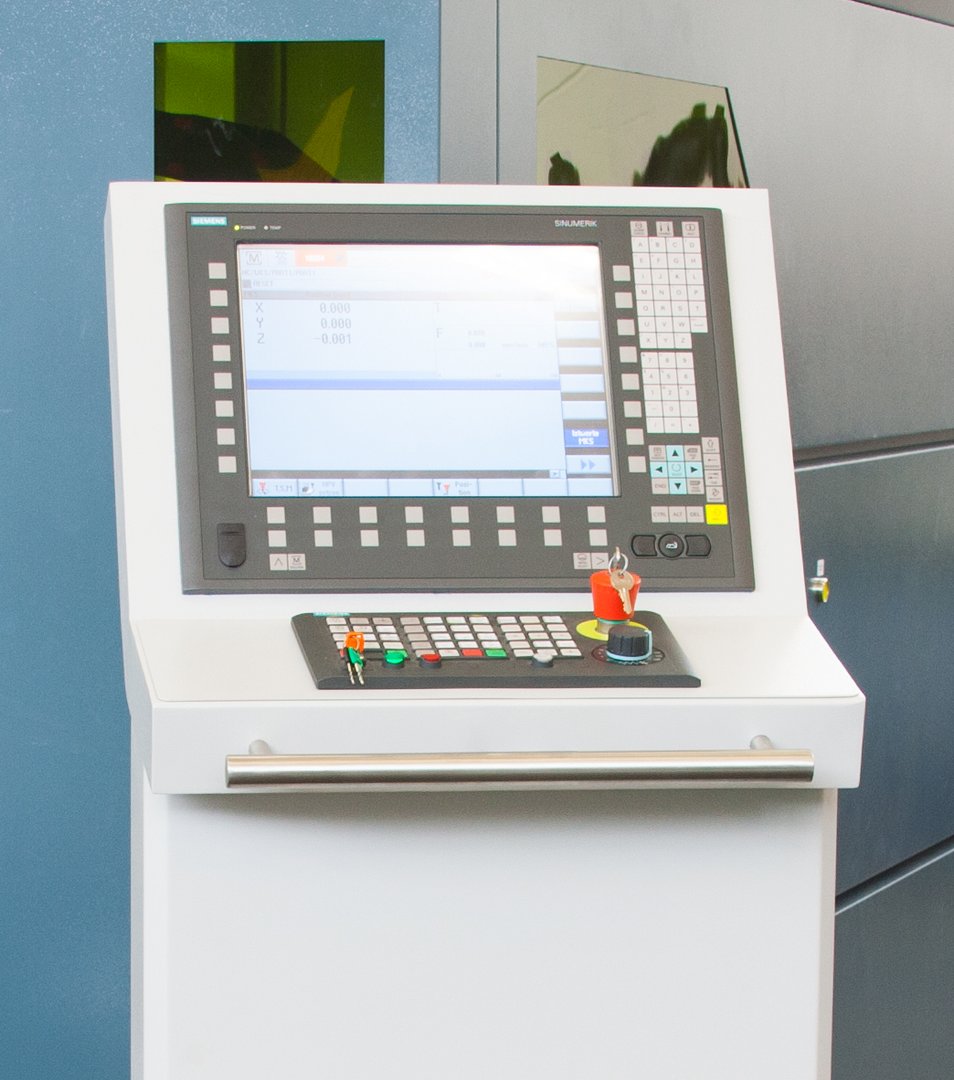

CNC graphics control Siemens Sinumerik 840D
Laser source Brilase or IPG

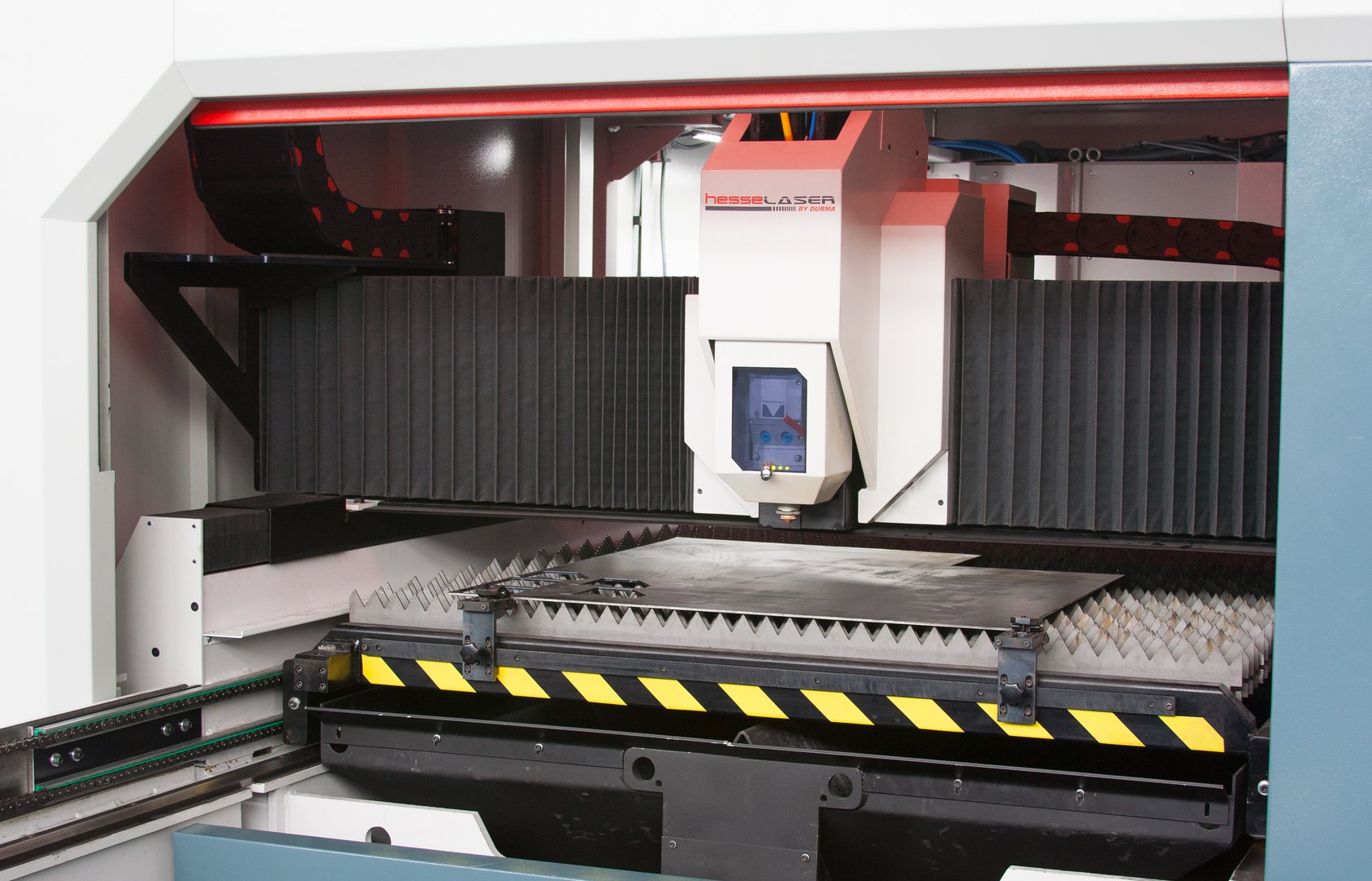

Cutting head with automatic focus adjustment, Durma or Precitec
Cooling unit for cutting head and laser source
CAD/CAM software LANTEK for programming including autonesting
Positioning laser
Sheet check system (automatic detection of sheet position and dimensions)
Automatic nozzle cleaning
Central lubrication
Slug box
Working area lighting
Multi-chamber suction system
Light barrier protection for the changing table
Remote maintenance access
Equipment according to CE guidelines
Options:
Extraction unit with filters, material conveyor belt for small parts and slug, laser cutting monitoring, Durma Cloud, automatic nozzle change, 3D cutting head, pipe cutting device, loading and unloading systems with or without sheet metal tower on request.
