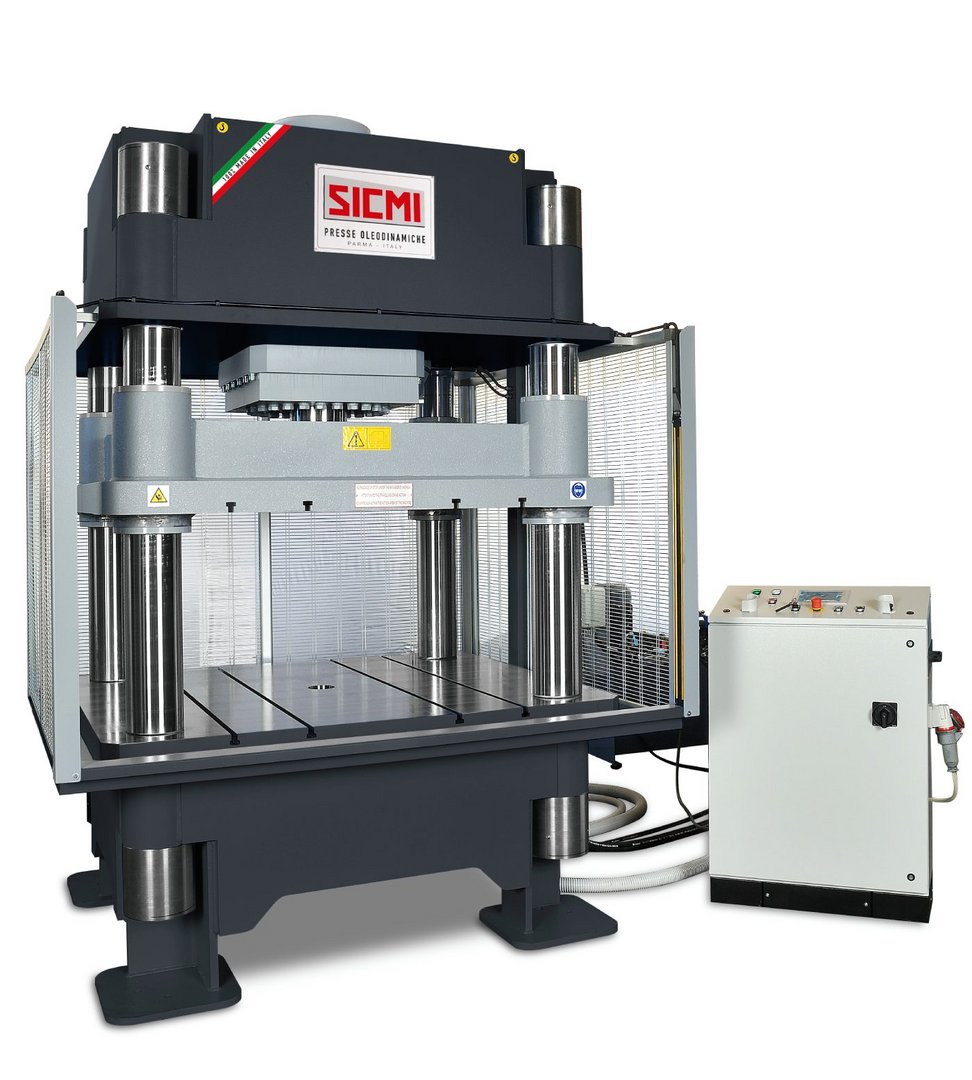

Hydraulic 4-column press SICMI PSQ 100 A
| Model | PSQ 100 A |
| Brand | SICMI |
| Condition | new |
| pressing capacity | 100 to |
| Table | 1000x800 mm |
| Origin | Italy |
General characteristics
| pressing capacity | 100 to |
| Stroke | 500 mm |
| Table | 1000x800 mm |
| Space between columns | 1000x800 mm |
| Daylight | 600 mm |
| Rapid speed | 26 mm/s |
| Working speed | 5 mm/s |
| Motor | 4 kW |
Dimensions and weight
| Length | 1260 mm |
| Width | 1060 mm |
| Height | 2400 mm |
Description
4-pillar guide
ram guide round
table and ram with T-slots
2 hand operation
Siemens PLC
manometer
users manual
| Light barrier | € | on Request |
|
Siemens touchscreen-control, 50 programs storeable, for programming: • Upstroke and downstroke quota |
€ | on Request |
| Working hour counter | € | on Request |
| Stroke counter | € | on Request |
| Decompression valve | € | on Request |
| Oil cooler with decompreission valve | € | on Request |
| Pressur switch | € | on Request |
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
