General characteristics
| Bending length | 2040 mm |
| Sheet thickness (420 N/mm²) | 3 mm |
| Max. thickness - stainless steel | 2 mm |
| Max. thickness - aluminium | 4.5 mm |
| Antrieb | Motorized |
| Motor bending beam | 1.5 kW |
| Upper beam motor | 1.1 kW |
| Back gauge | 750 mm |
| Opening of upper beam | 140 mm |
| Bending speed | 50 °/sek |
Dimensions and weight
| Length | 3060 mm |
| Width | 1650 mm |
| Height | 1500 mm |
| Weight | 2730 kg |
Description

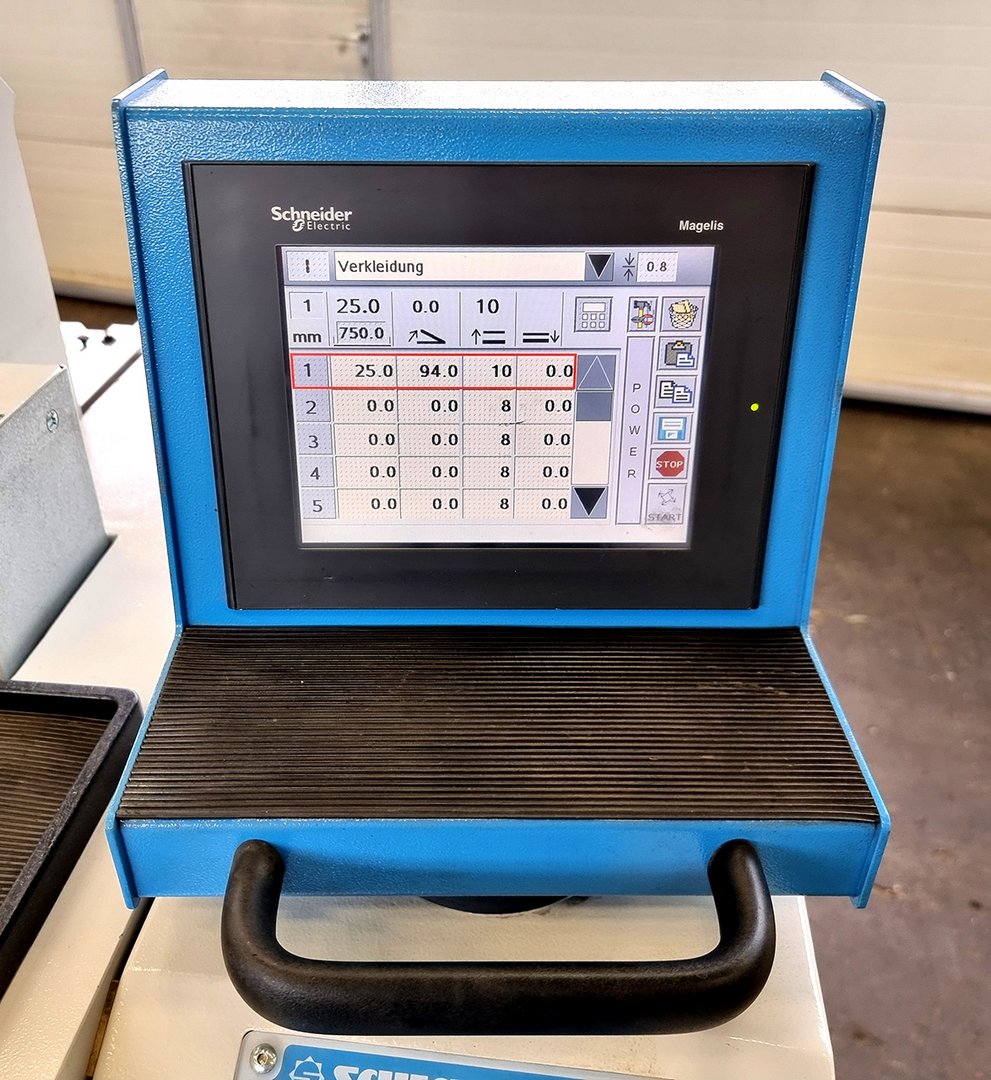

CNC control ECT (Schneider Magelis)
- Input of bending angle, depth stop dimension, lifting height, folding, precut
- max. 36 bending angles can be saved per set
- max. 510 sets can be saved
- comfortable 7.5" color touch TFT monitor
- Power mode for material-friendly operation
- Soft start of the bending beam and the depth stop
- Visual user guidance in the event of faults (diagnosis center)
- Selection of different languages such as German, English ...

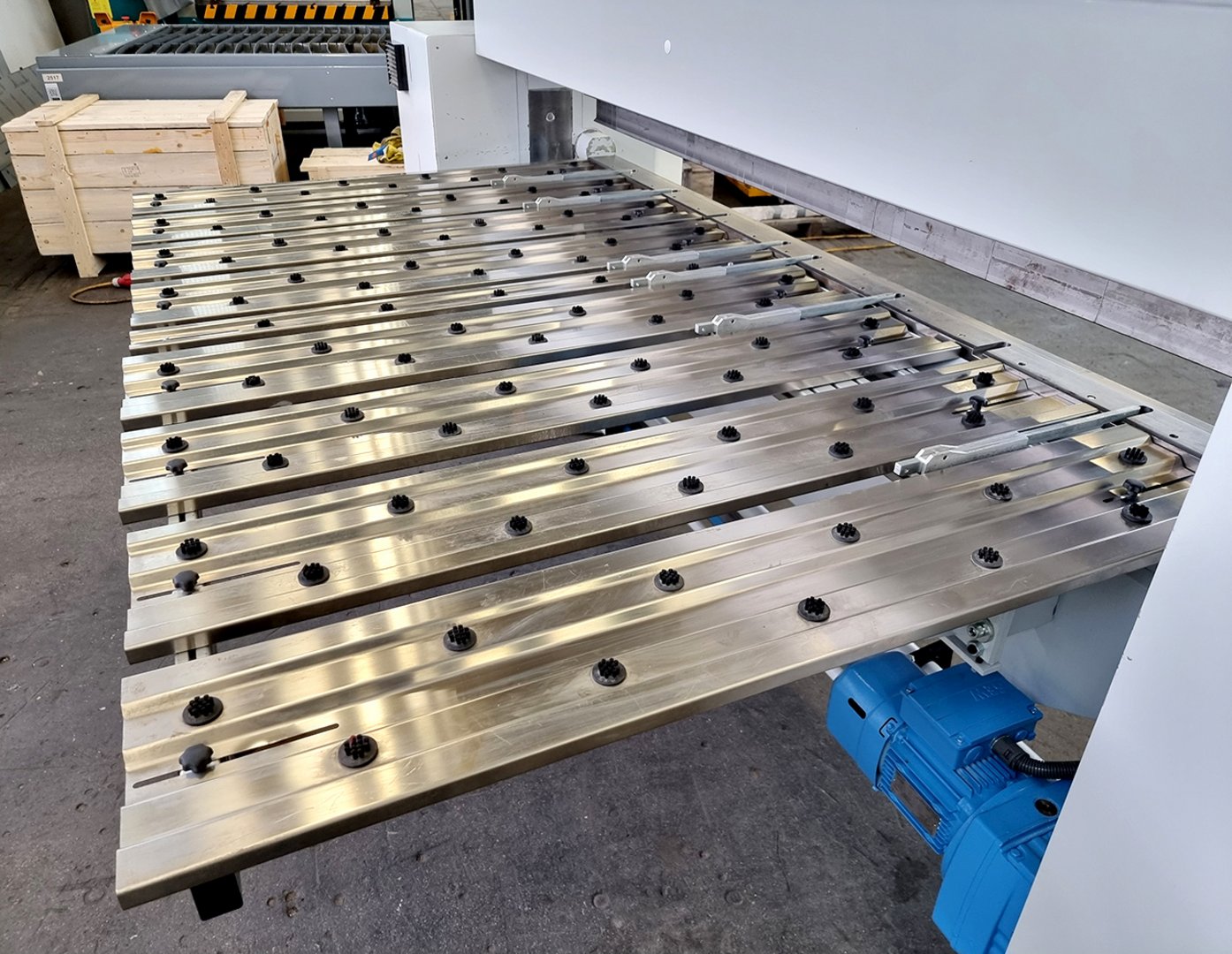

CNC back gauge
- Back gauge range 6 - 750 mm
- Drive via belt
- 6 stop fingers
- support plates with brushes

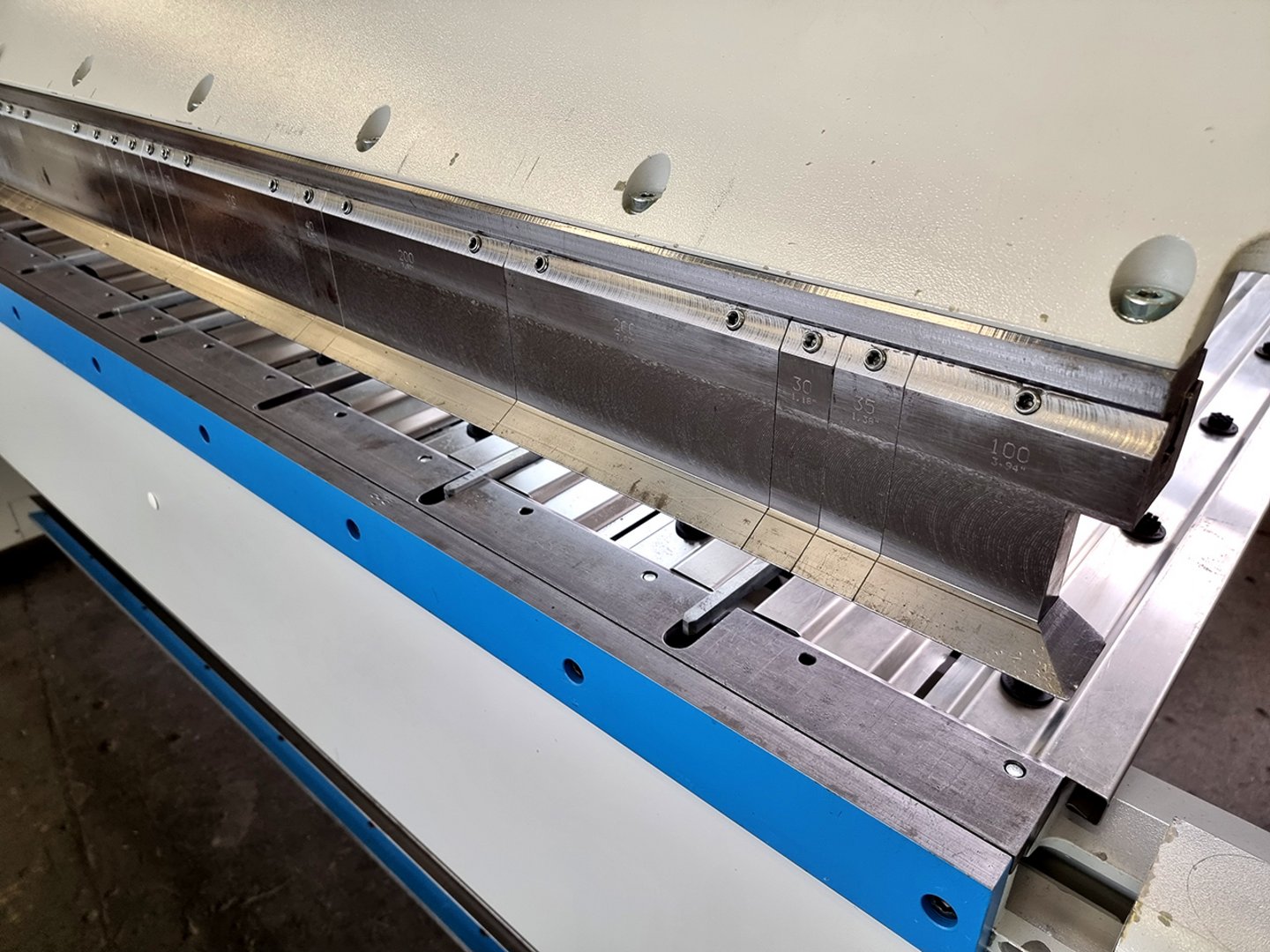

Sectioned goose neck rail height 75 mm

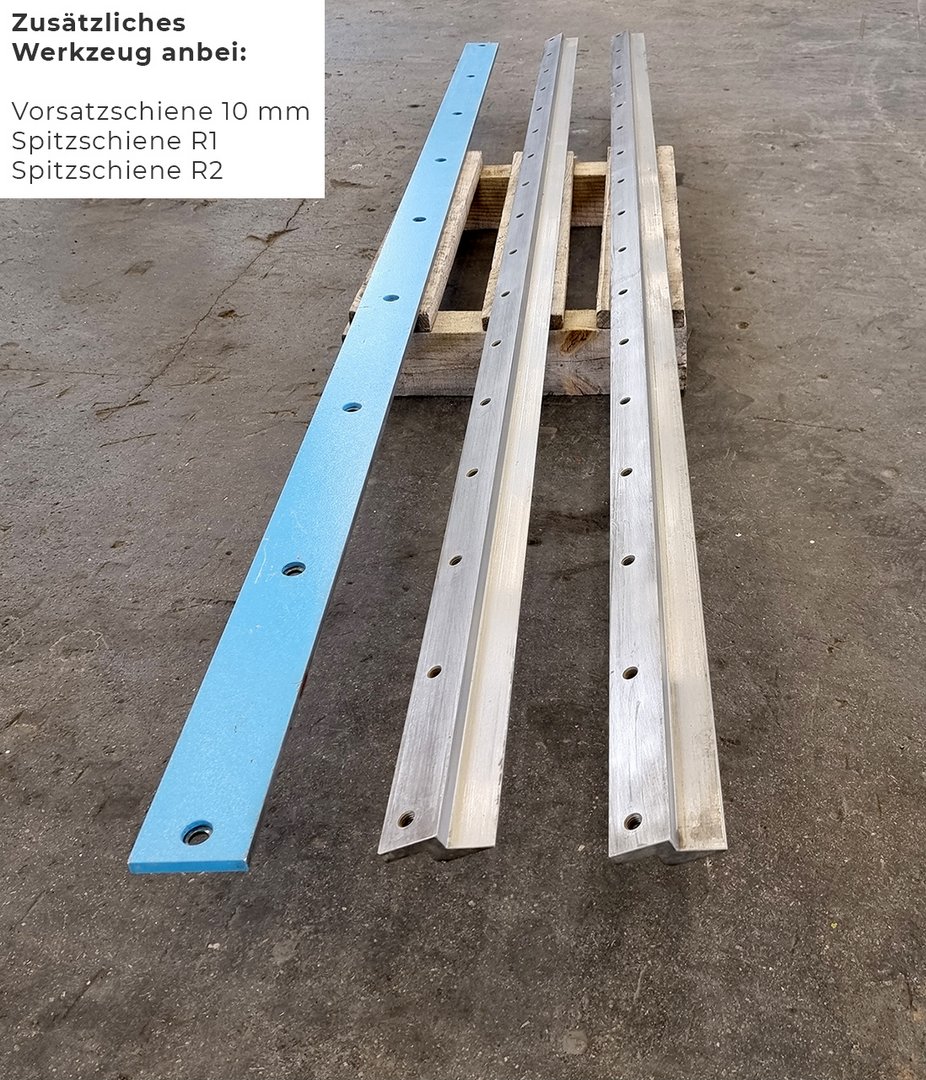

Additional 10 mm rail on the bening beam
Flat rail R 1 mm
Flat rail R 2 mm
Mechanical drive via gear brake motor
Upper beam drive via double eccentric
Foot pedal
Operating instructions in German with CE declaration of conformity
Further information
Product video

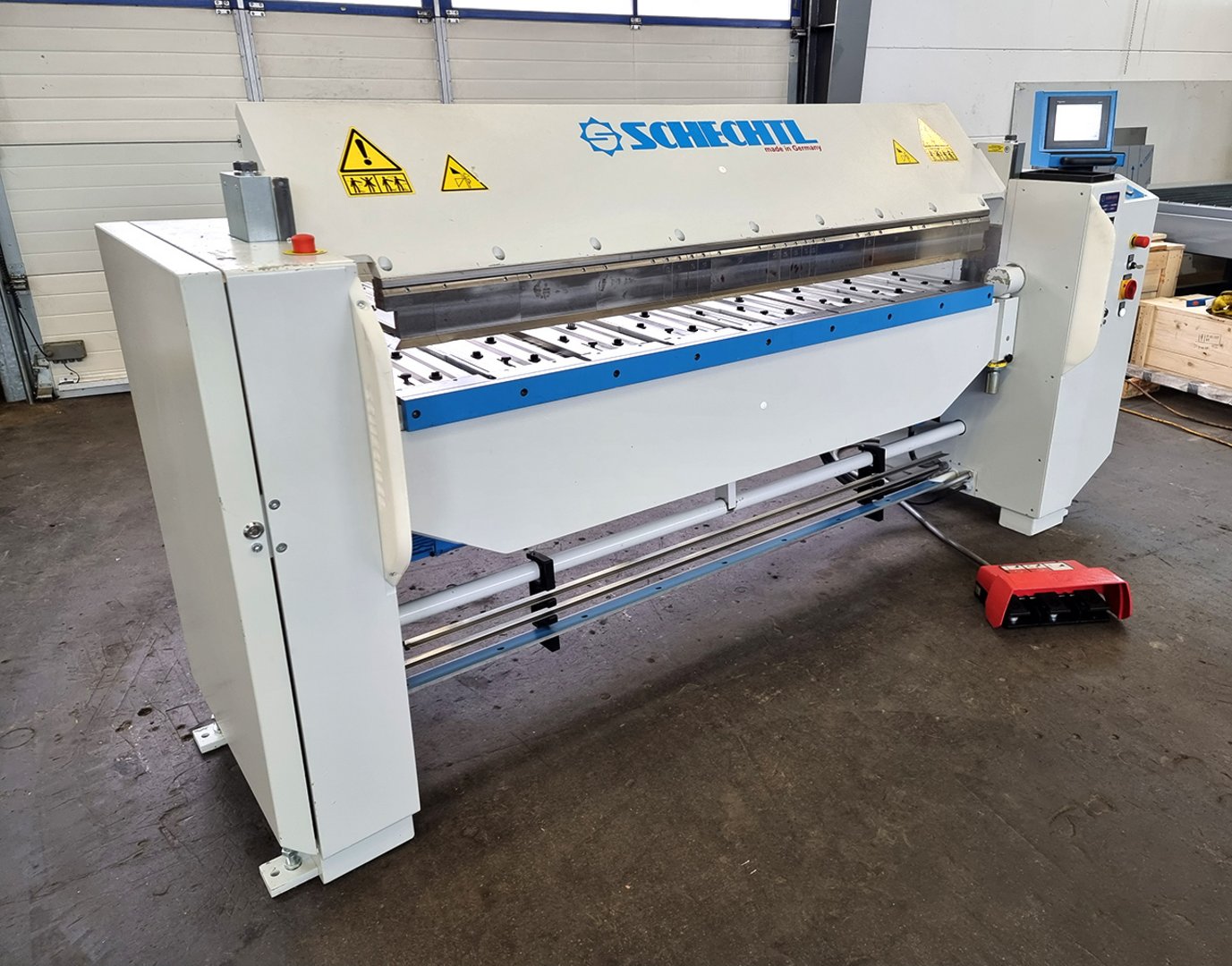

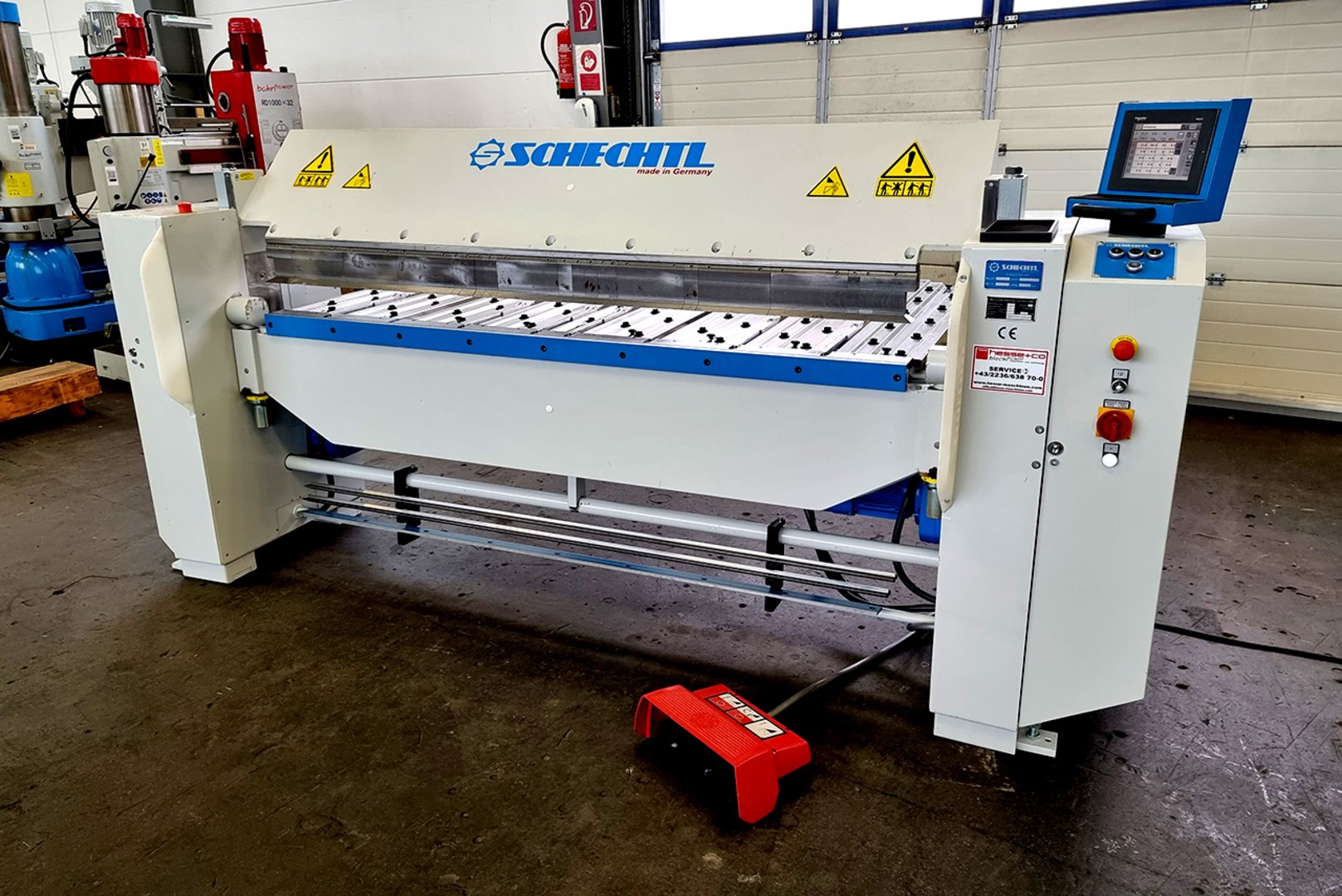

Motorized folding machine SCHECHTL MAB 200/ECT
