General characteristics
| Bending length | 3200 mm |
| Sheet thickness (420 N/mm²) | 1 mm |
| Max. thickness - stainless steel | 0.6 mm |
| Max. thickness - aluminium | 15 mm |
| Antrieb | Motorized |
| Max. bending angle | 155 ° |
| Max. opening | 110 mm |
| Back gauge | 750 mm |
| Back gauge speed | 300 mm/s |
| Back gauge accuracy | 0.1 +/- mm |
| adjustment range of the bending flange max. | 20 mm |
| Bending speed | 100 °/sek |
| Max. clamping speed | 90 mm/s |

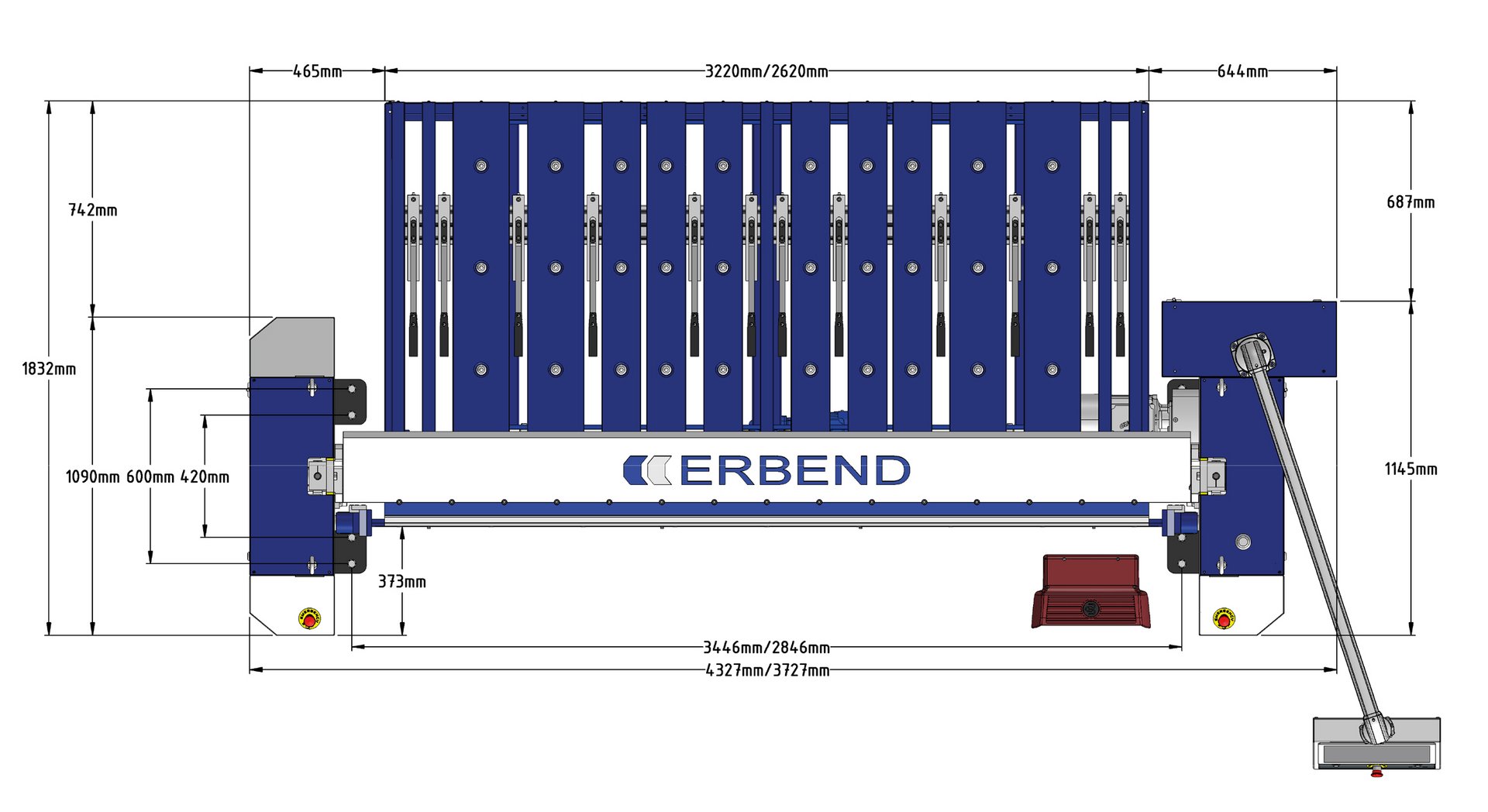

Dimensions and weight
| Length | 4500 mm |
| Width | 2100 mm |
| Height | 1650 mm |
| Weight | 2900 kg |
Description
CNC control with tabular programming
- 15,6" touchscreen controller on swivel arm
- tabular programming by entering the axes values
- open or drop hemming function
- multi radius bending function as by pressing or by bending
- programming of material quality, thickness, spring back, bending correction
and creating a data base for every type of material, thickness and length
- piece counter
- autorisiation with password
- 128GB HDD allows almost unlimited data storage
- remote service connection via WLAN
- detailled alarm, tool and paramter page

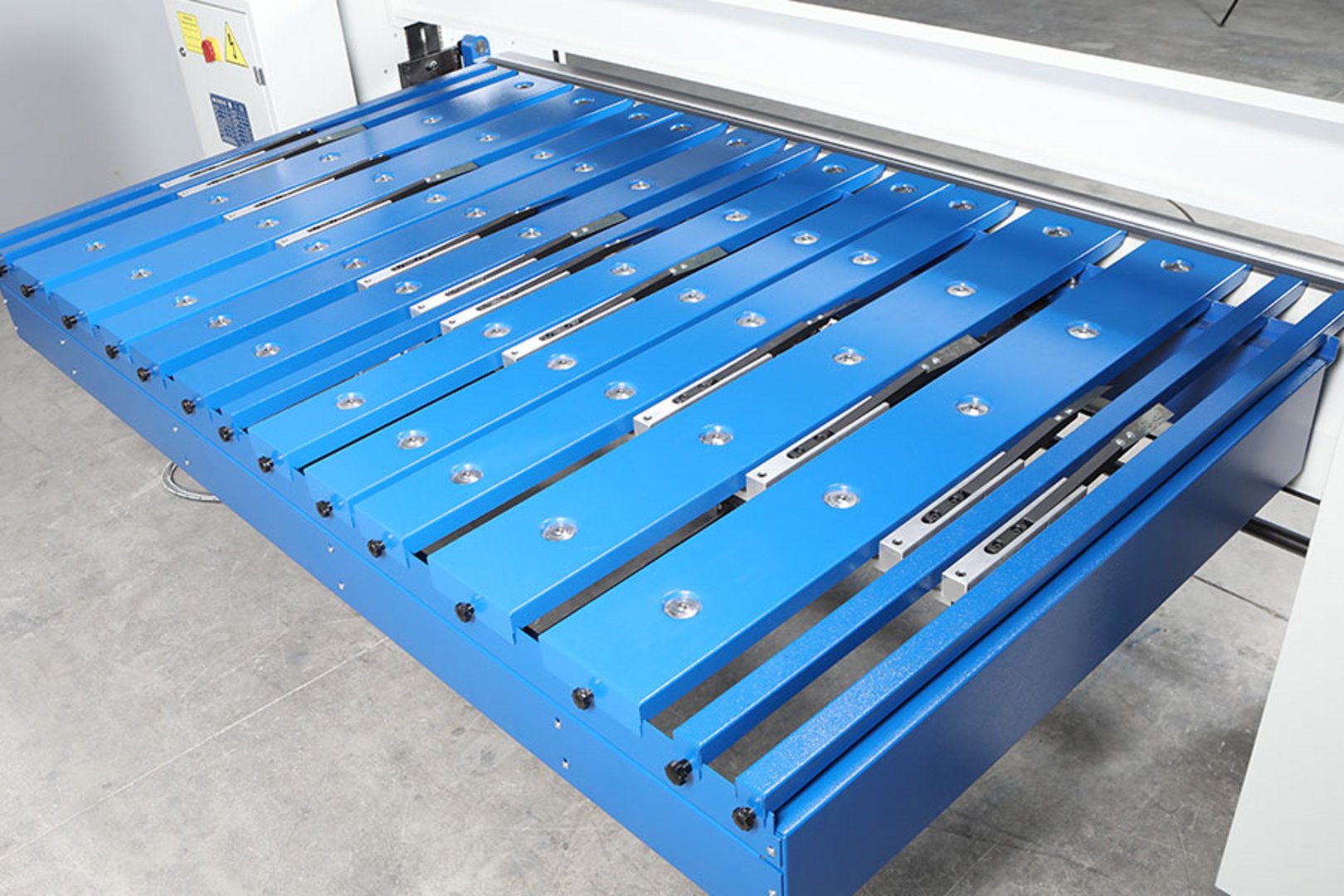

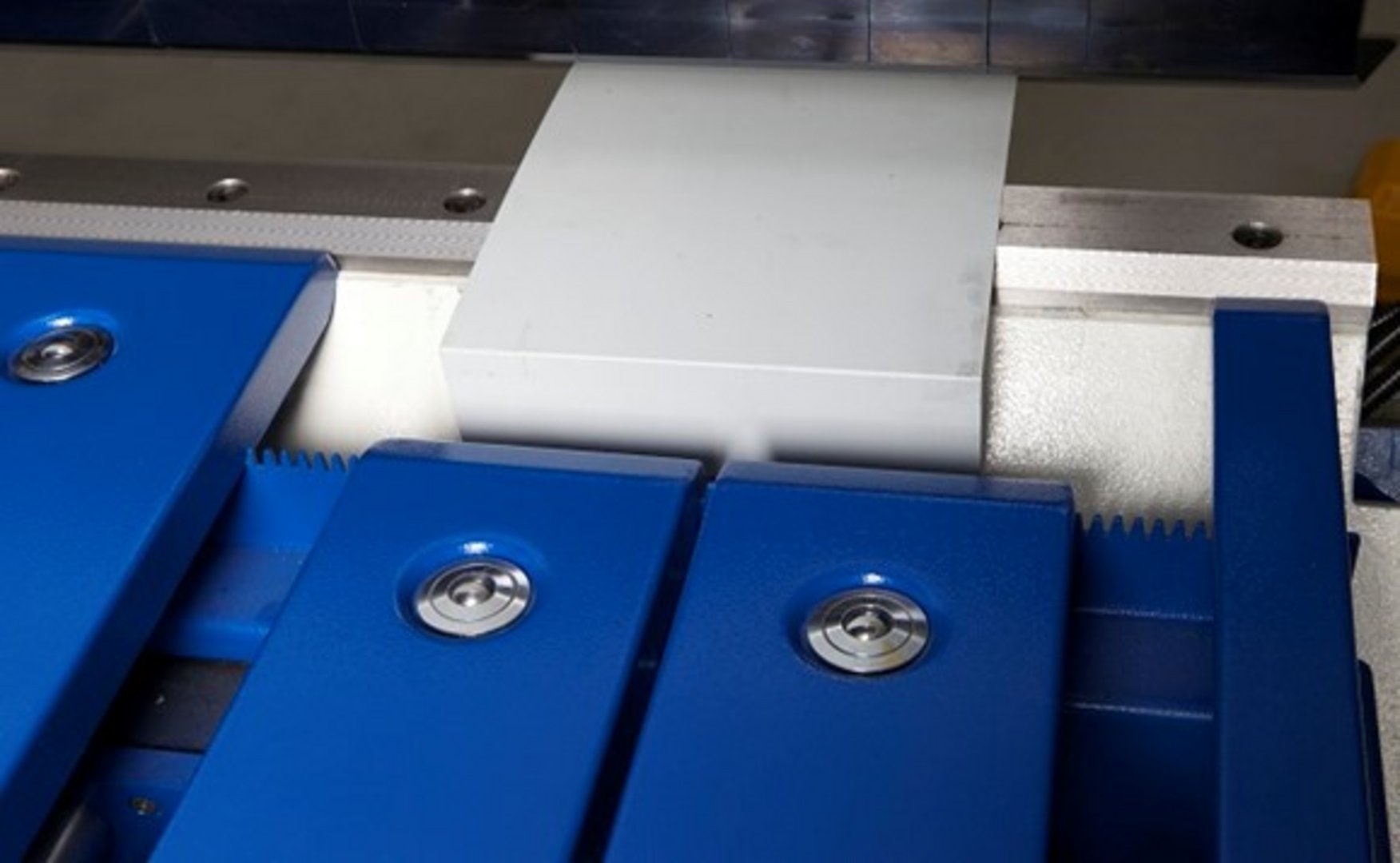

back gauge 750 mm with servo drive, pull back sliders to create space for down flanges at the back of the bottom tool, ball casters

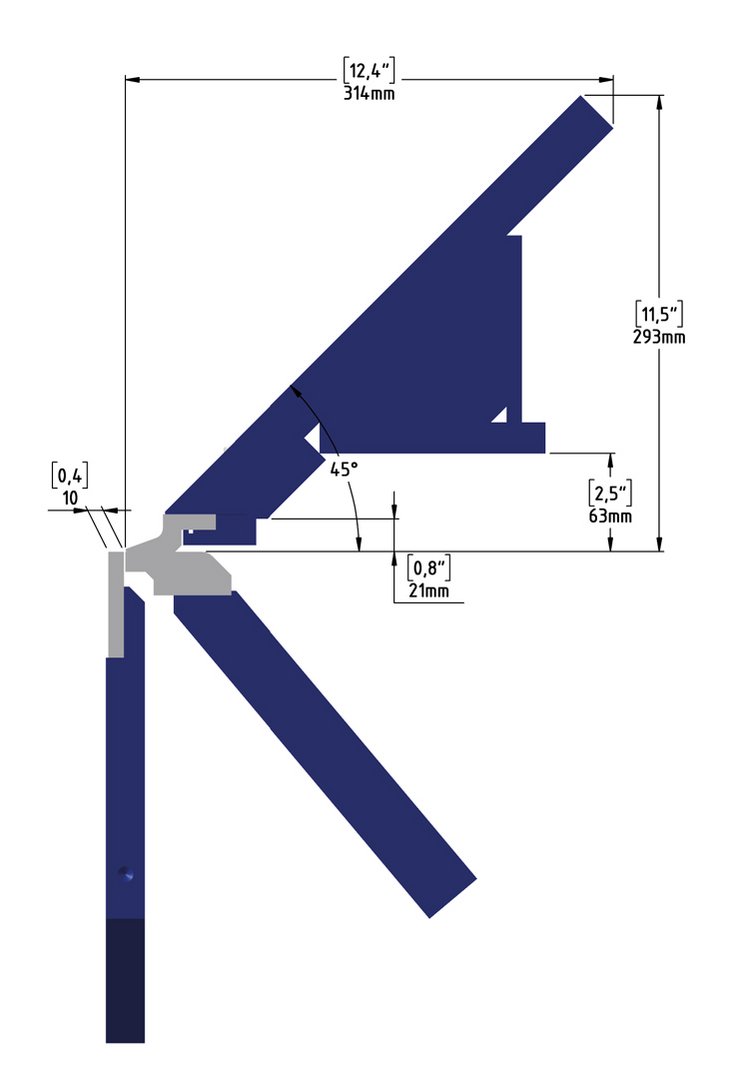

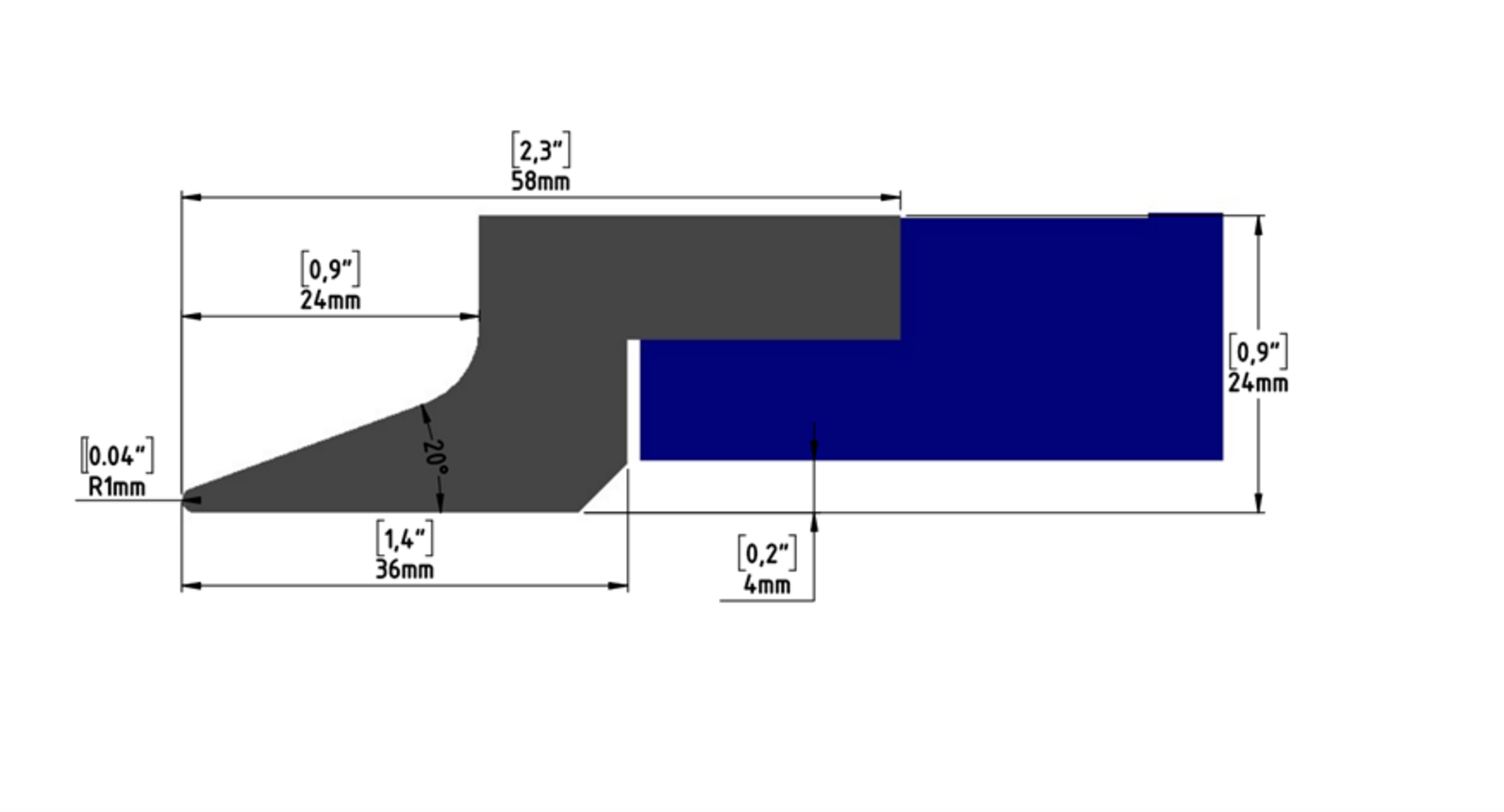

upper tool in one pice, 20°
manual height adjustment of bending beam
foot pedal with 3 switches
ligtht barrier on the front side
Options:
Grafic control 2D € 5.150,-
- 15,6" touchscreen controller on swivel arm
- LBL editor: adjustment of bending steps line in line by entering the axes values

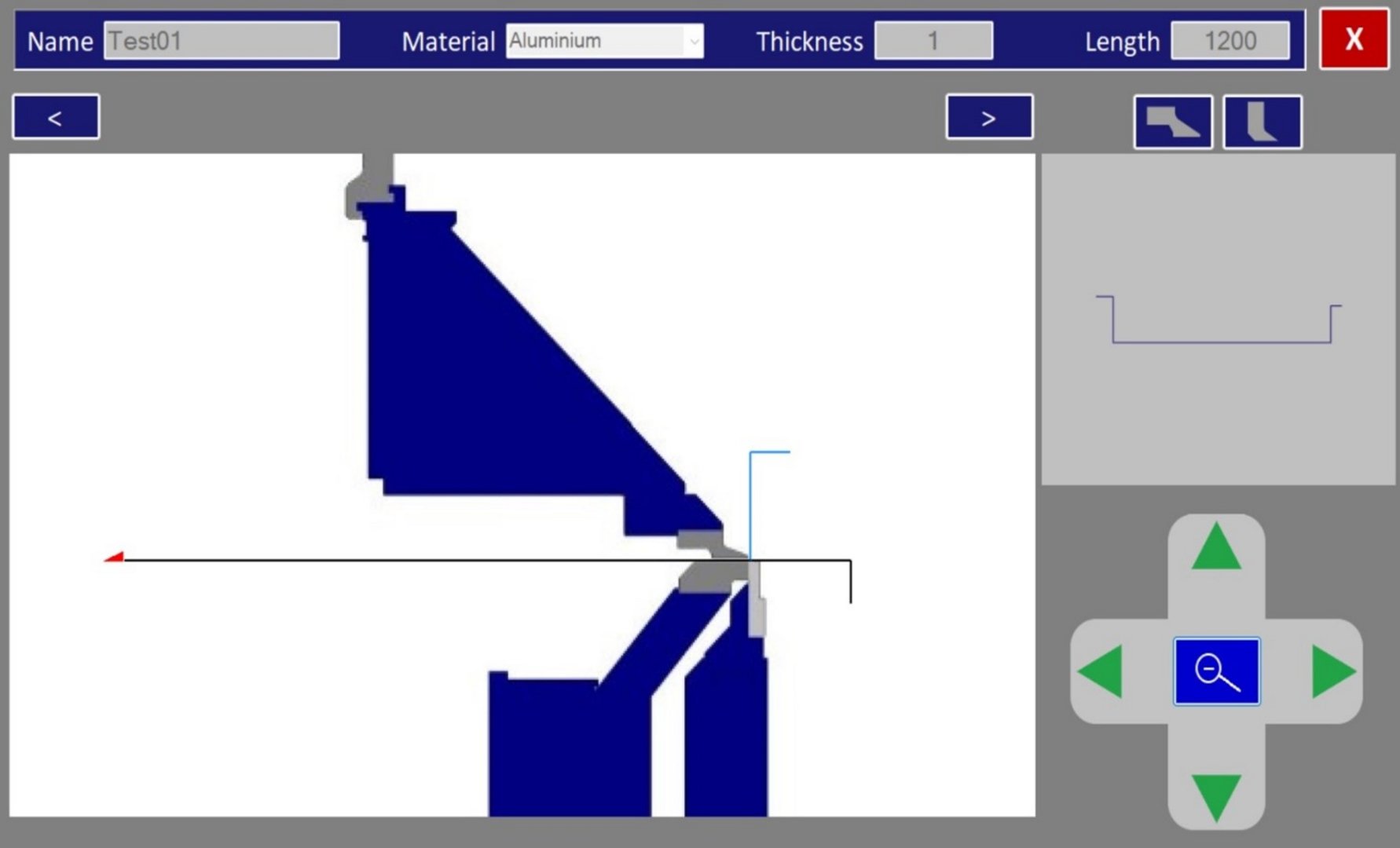

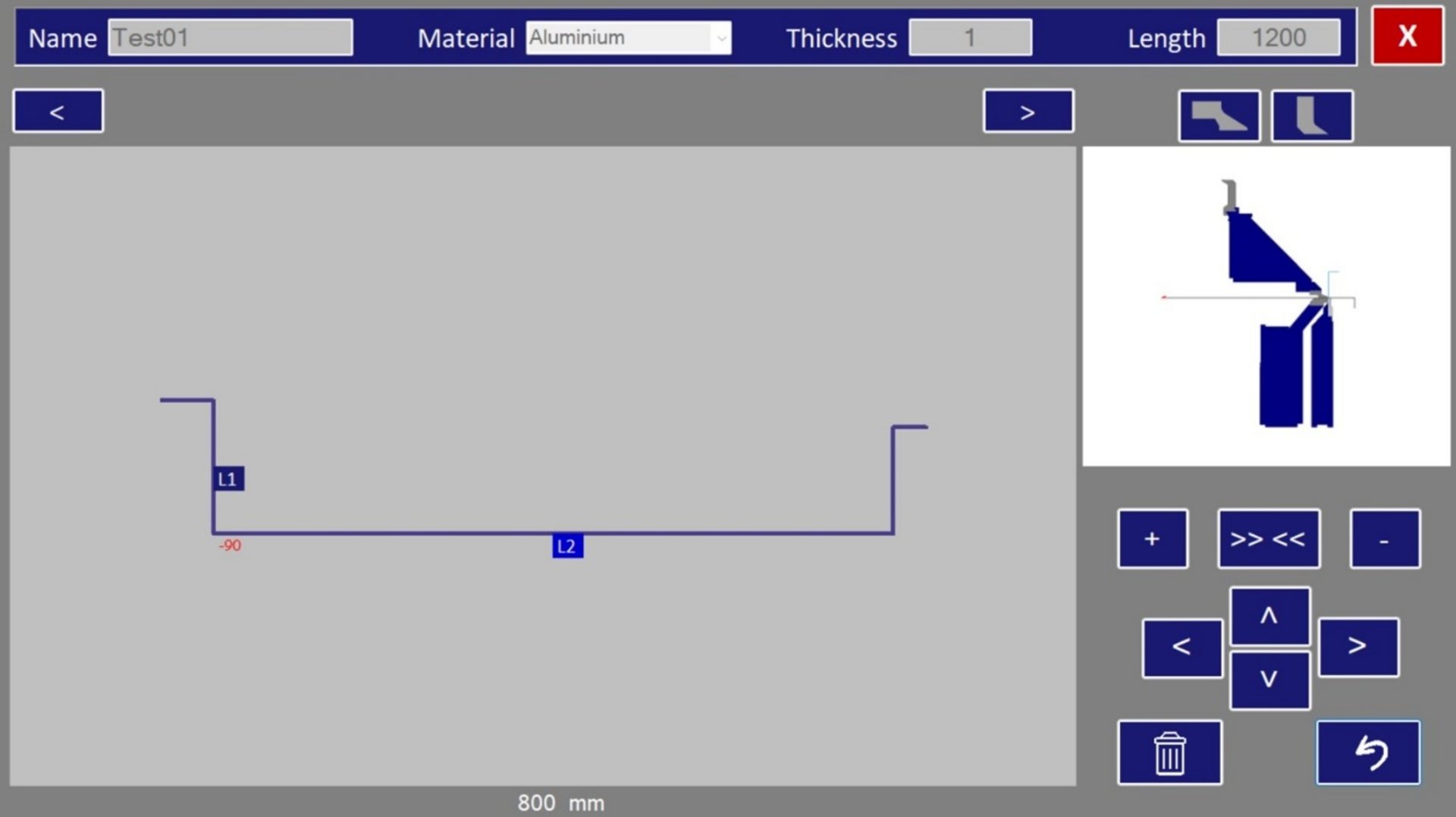

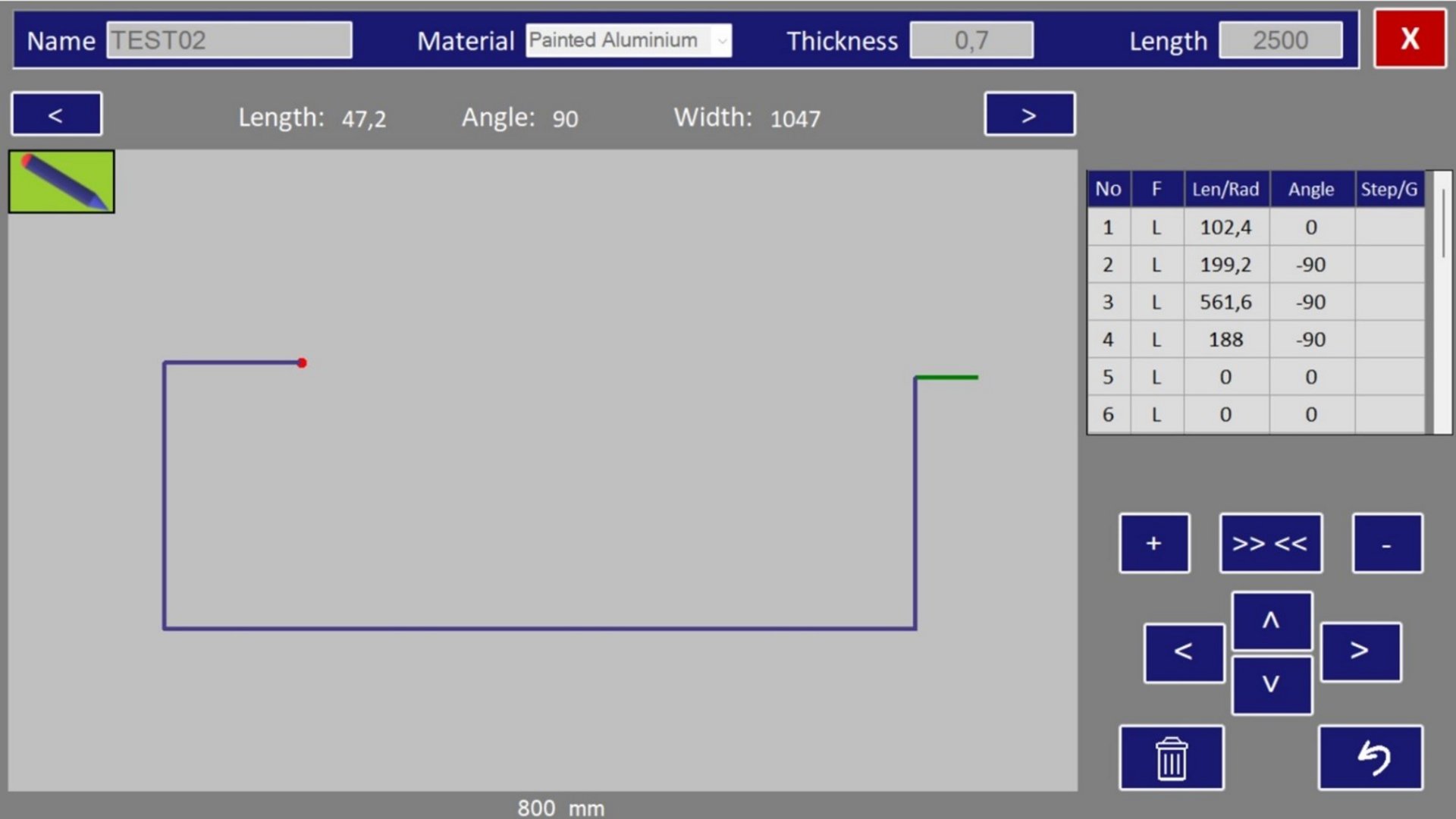

- 2D part editor: programming by drawing in graphic mode and 2D visualisation
- programming of material quality, thickness, spring back, bending correction
and creating a data base for every type of material, thickness and length
- autorisiation with password
- 128GB HDD allows almost unlimited data storage
- detailled alarm, tool and paramter page
back gauge 1000 mm € 4.120,-
Further information
Brochures
Product video

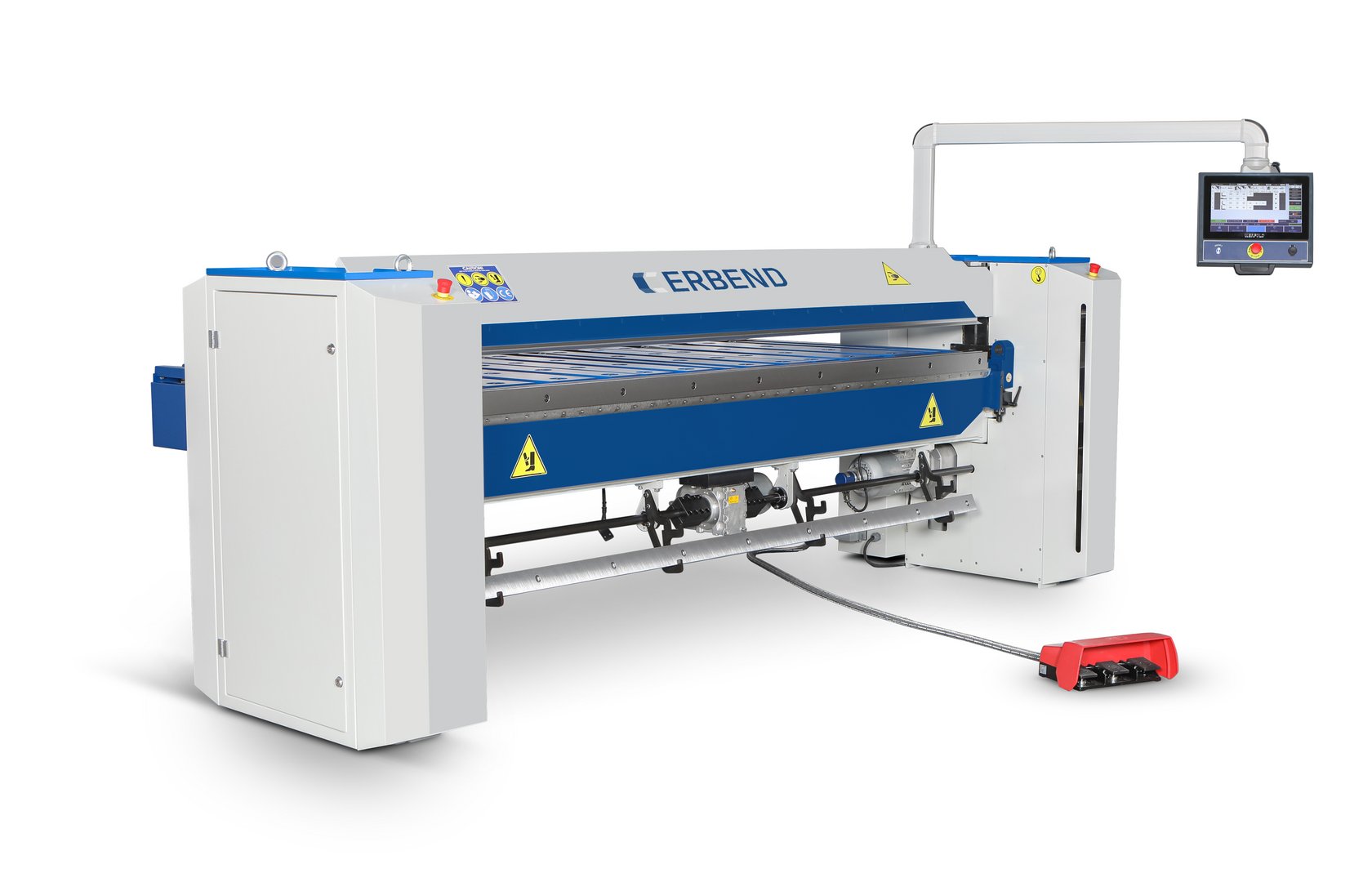

Motorized folding machine MFG 3210
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
