General characteristics
| Bending length | 2550 mm |
| Sheet thickness (420 N/mm²) | 1.5 mm |
| Max. thickness - stainless steel | 1 mm |
| Max. thickness - aluminium | 2 mm |
| Antrieb | Motorized |
| Max. bending angle | 155 ° |
| Max. opening | 110 mm |
| Back gauge | 1000 mm |
| Back gauge speed | 300 mm/s |
| Back gauge accuracy | 0.1 +/- mm |
| adjustment range of the bending flange max. | 0-20 mm |
| Bending speed | 100 °/sek |
| Max. clamping speed | 90 mm/s |
Dimensions and weight
| Length | 3800 mm |
| Width | 2350 mm |
| Height | 1650 mm |
| Weight | 2500 kg |
Description

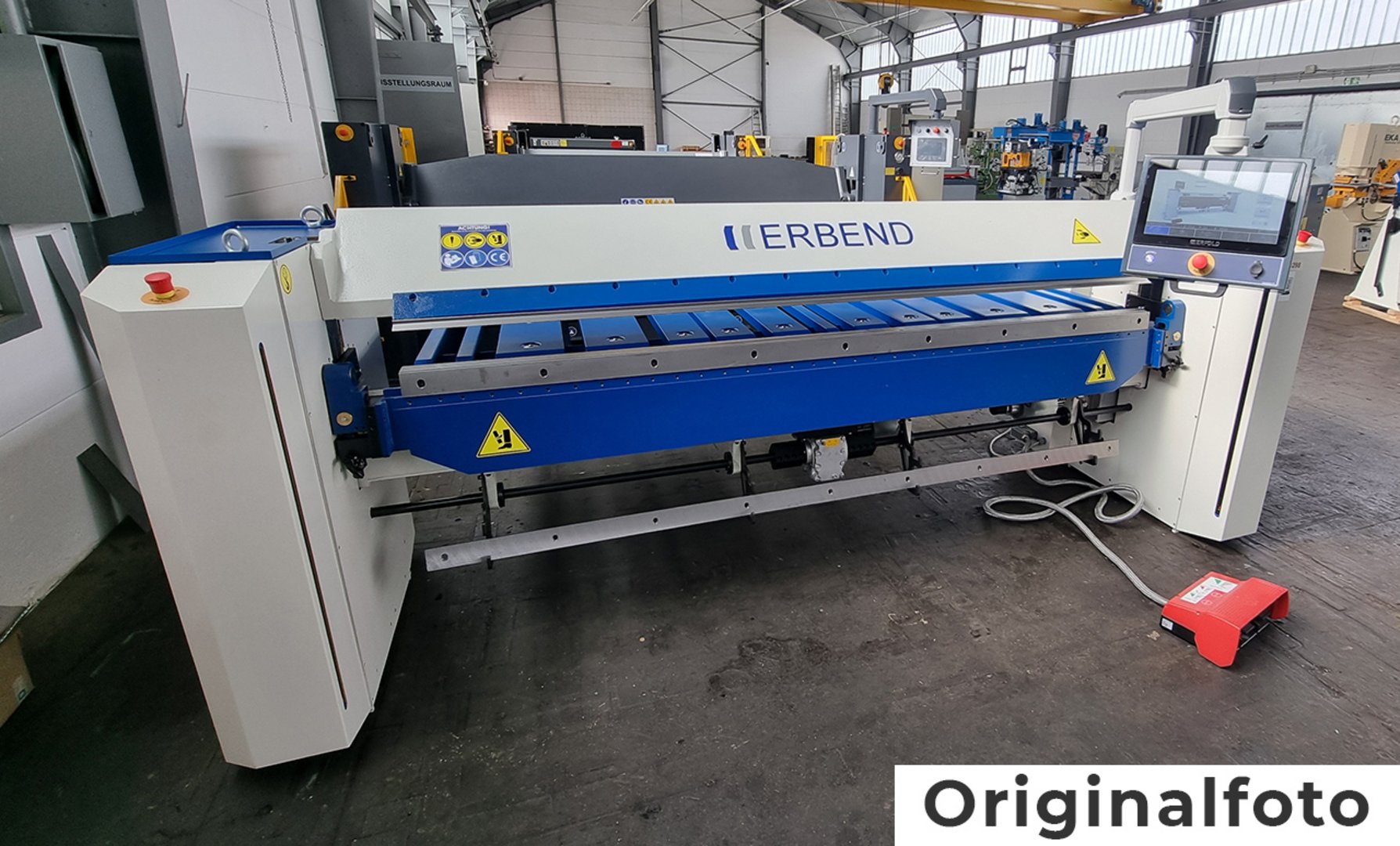

Demo machine / mint condition
net price (price for new machine € 42.730,00)
Grafic control 2D

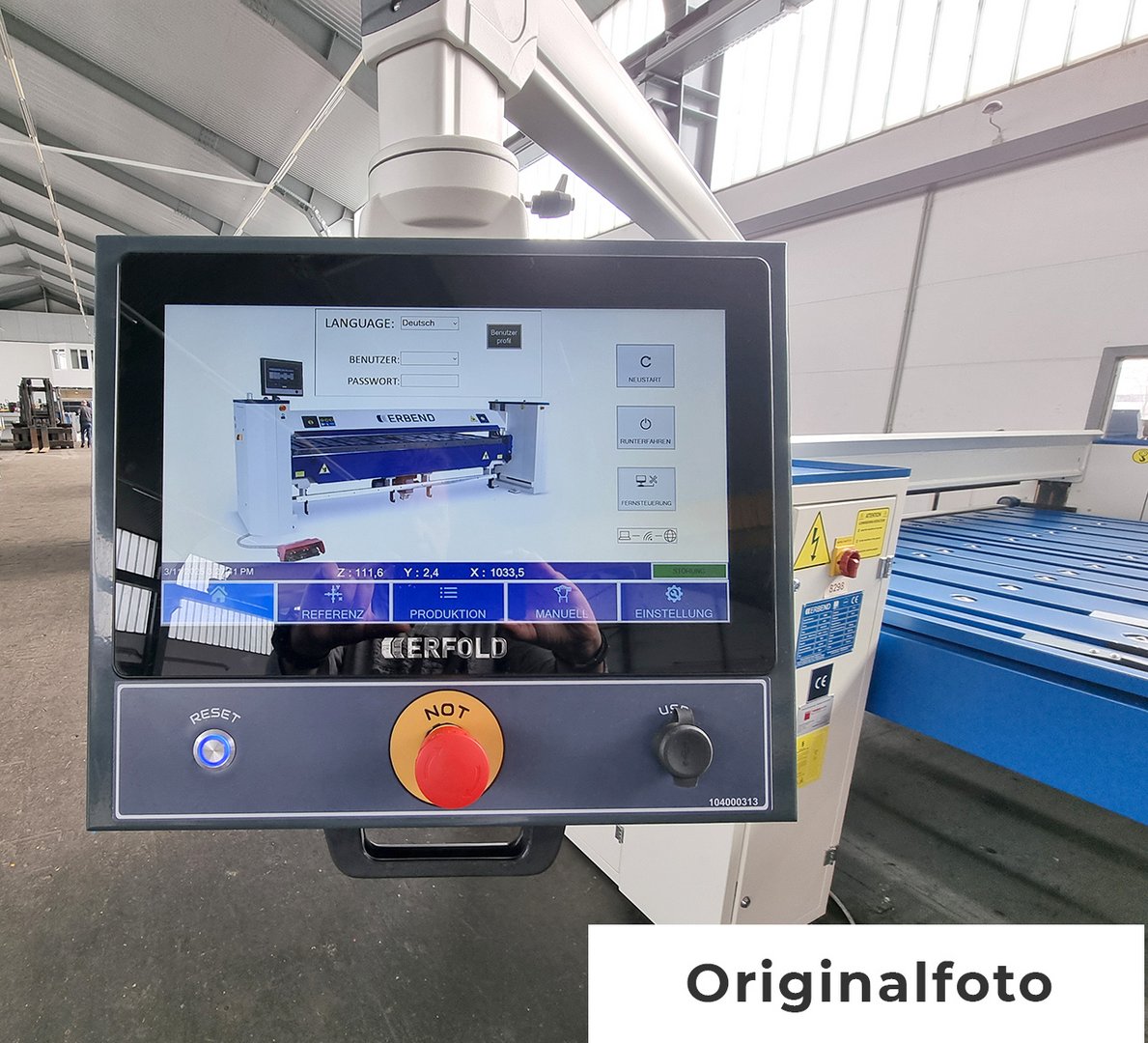

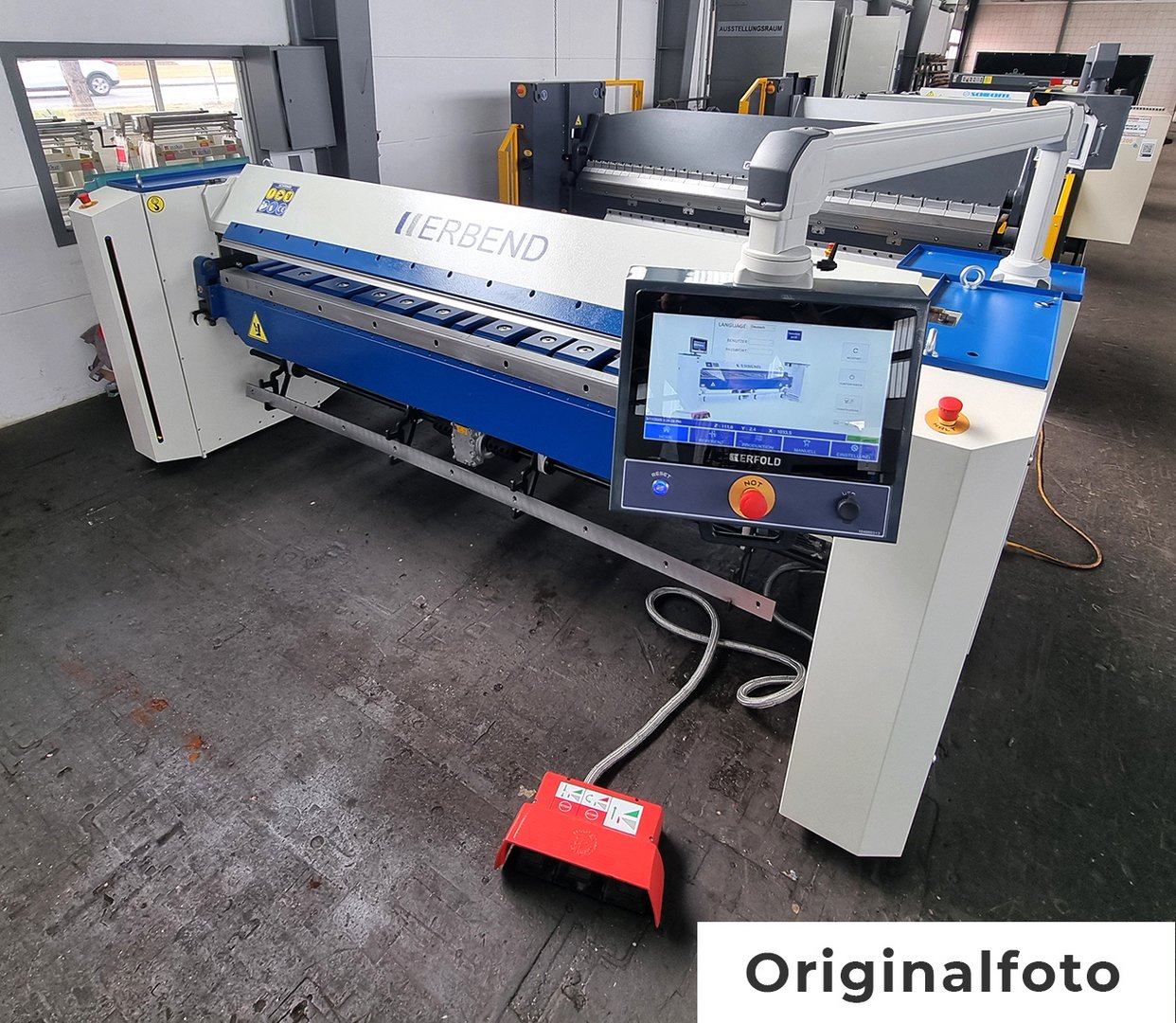

- 15,6" touchscreen controller on swivel arm
- LBL editor: tabular programming by entering the axes values

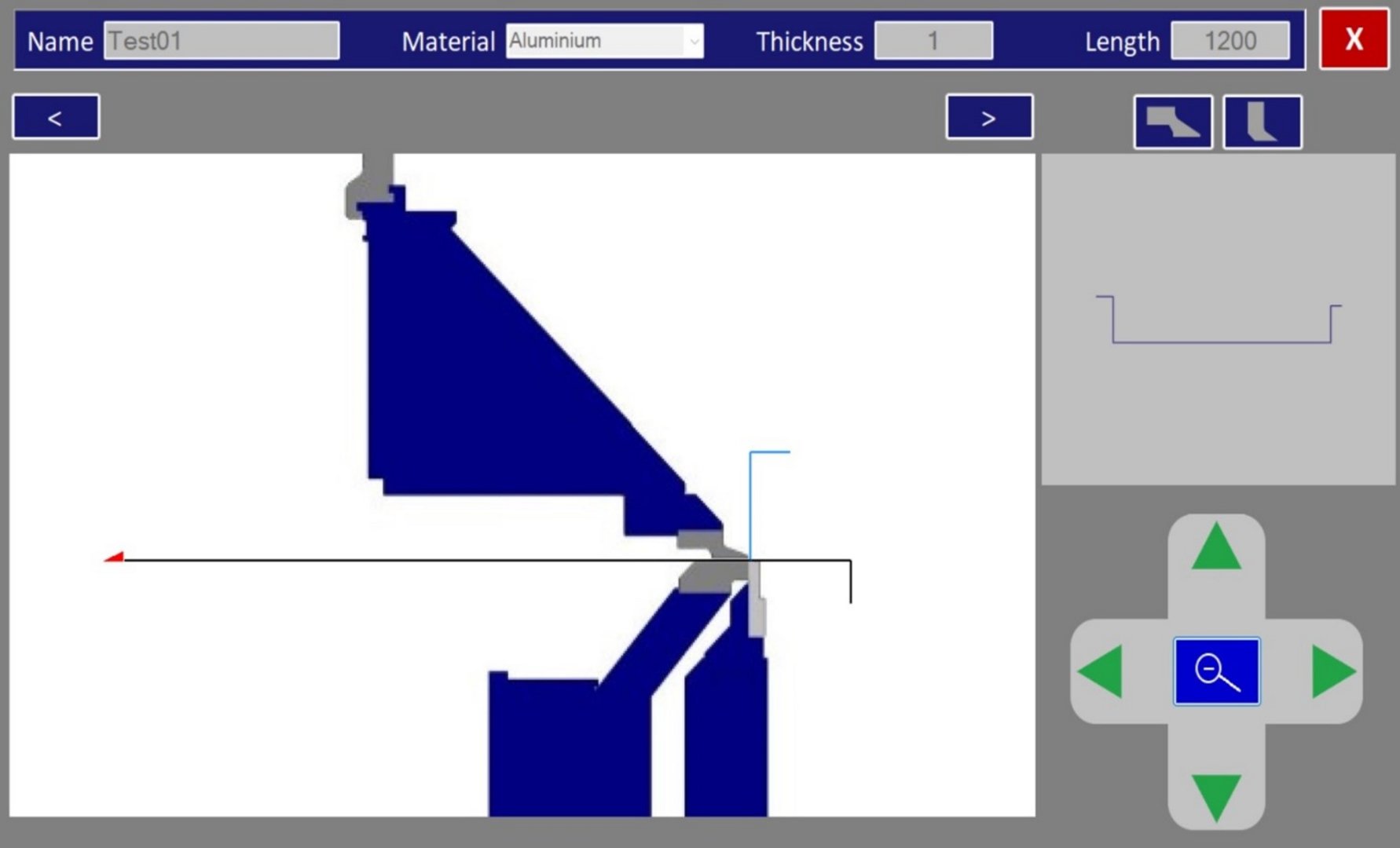

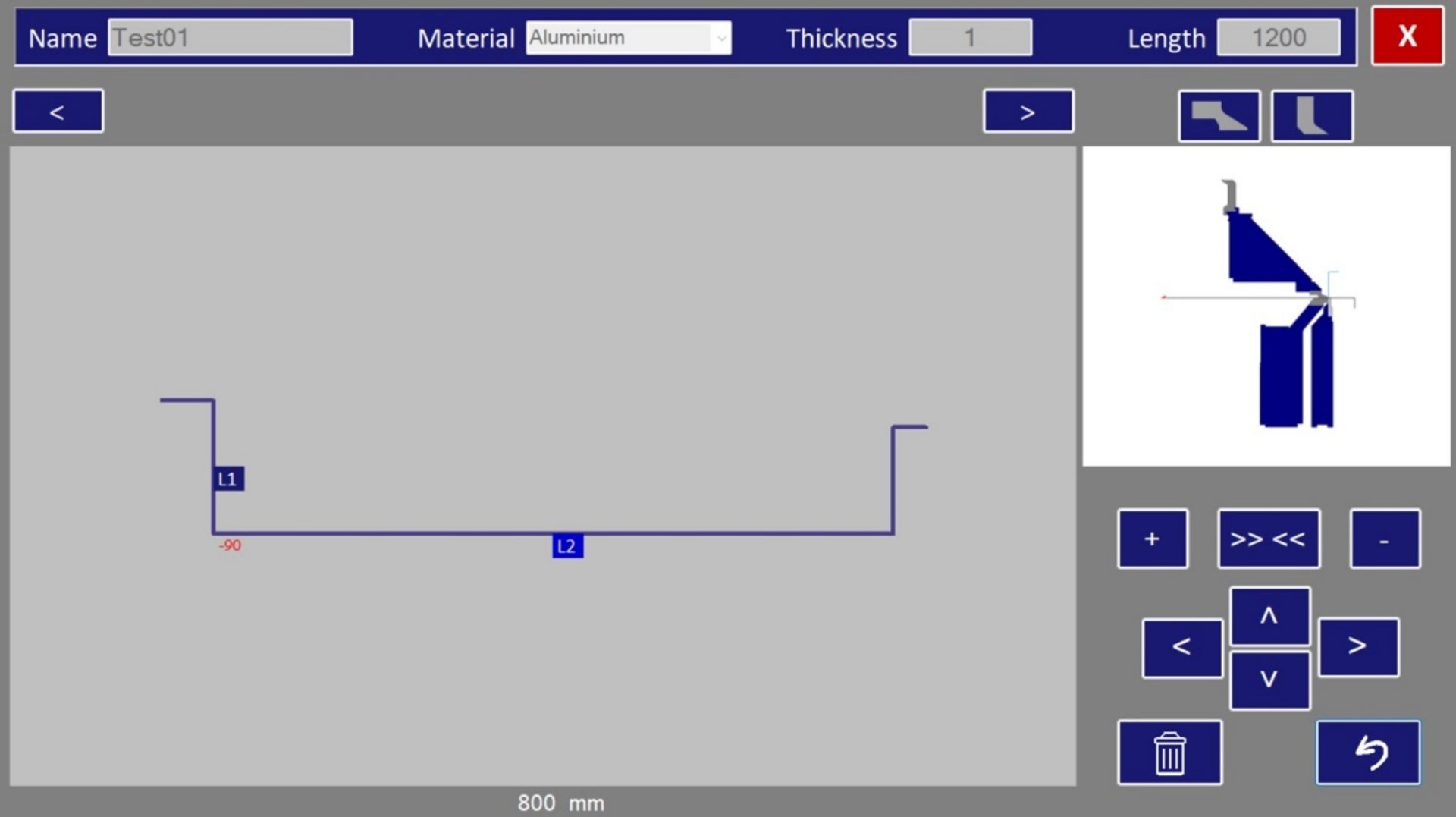

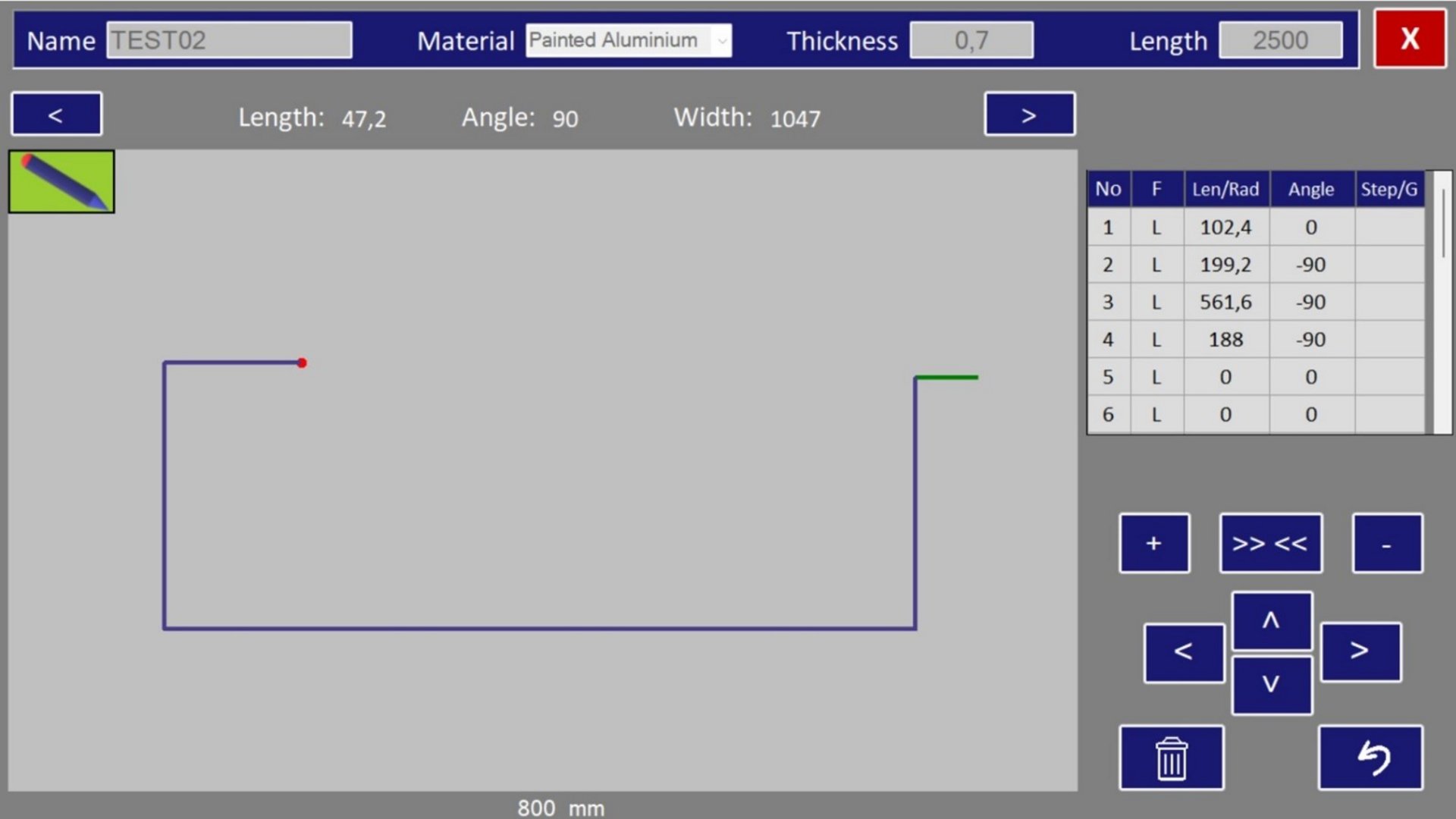

- 2D part editor: programming by drawing in graphic mode and 2D visualisation
- programming of material quality, thickness, spring back, bending correction
and creating a data base for every type of material, thickness and length
- autorisiation with password
- 128GB HDD allows almost unlimited data storage
- detailled alarm, tool and paramter page

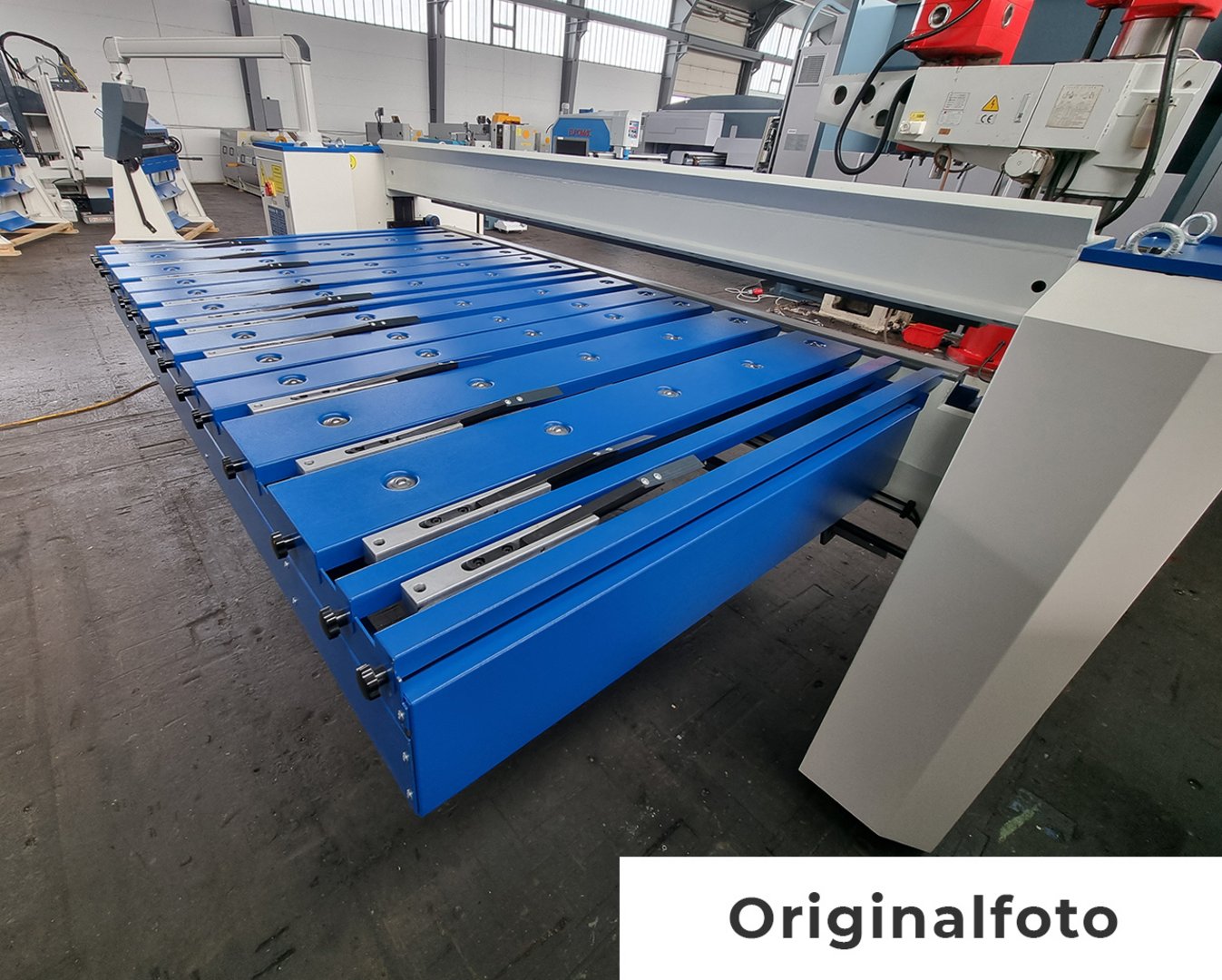

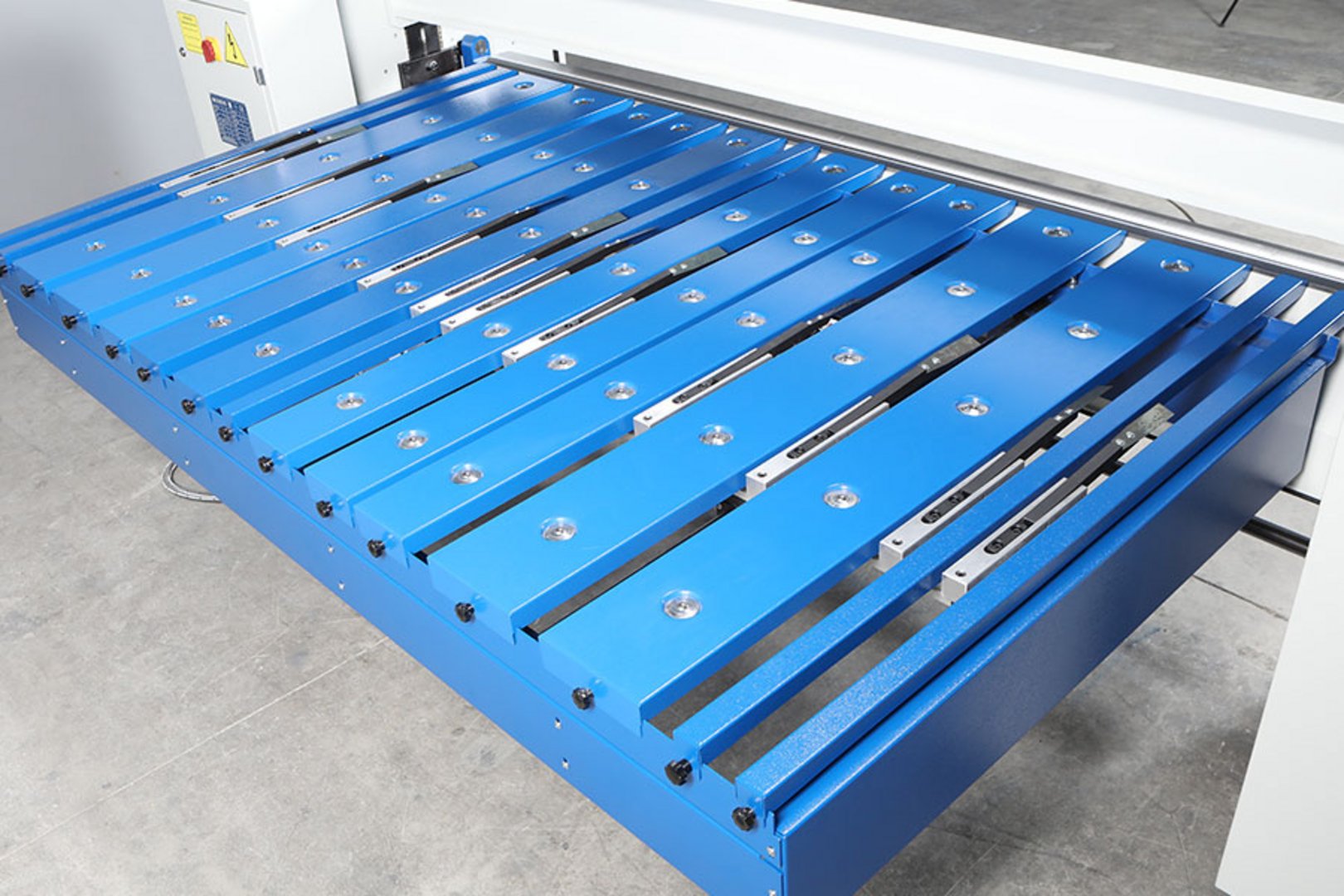

back gauge 1000 mm with servo drive, pull back sliders to create space for down flanges at the back of the bottom tool, ball casters

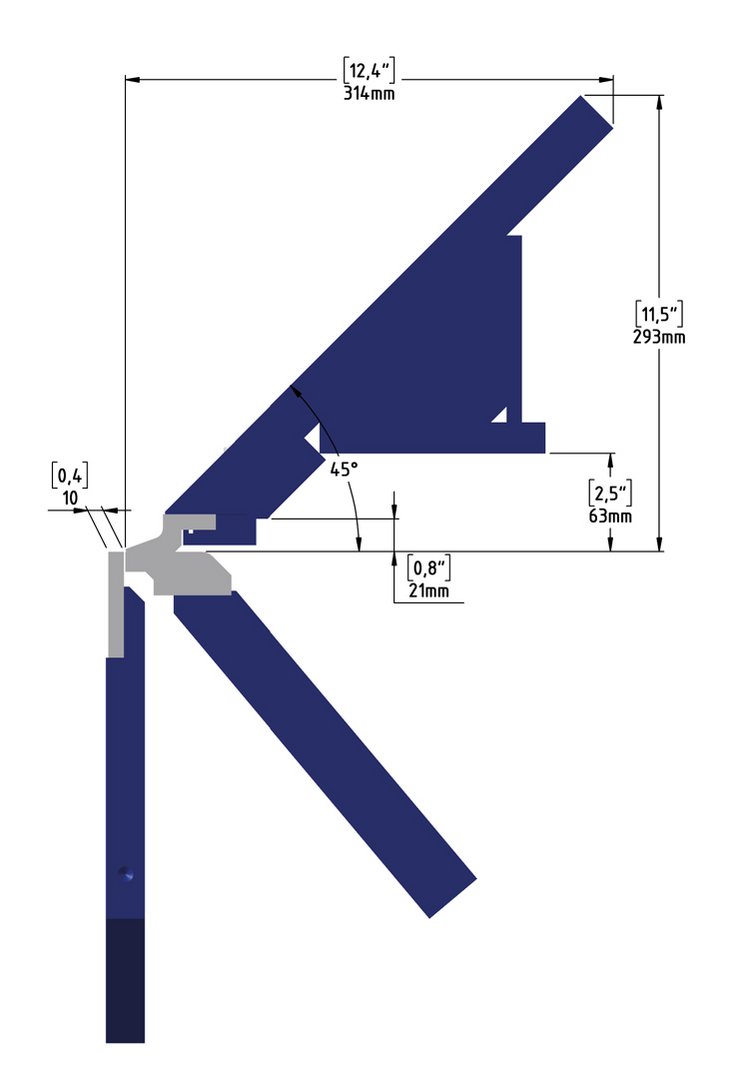

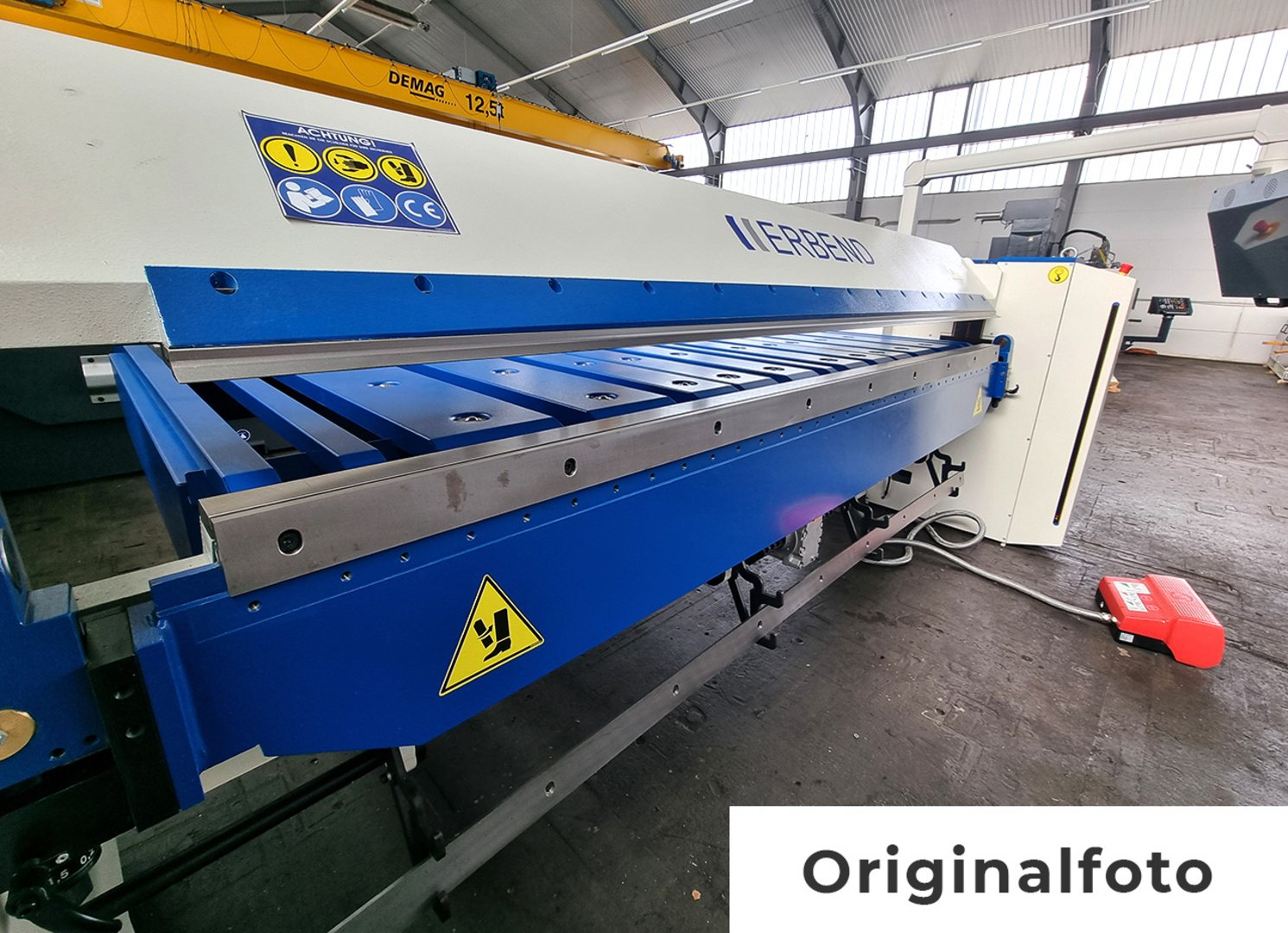

upper tool in one pice, 20°

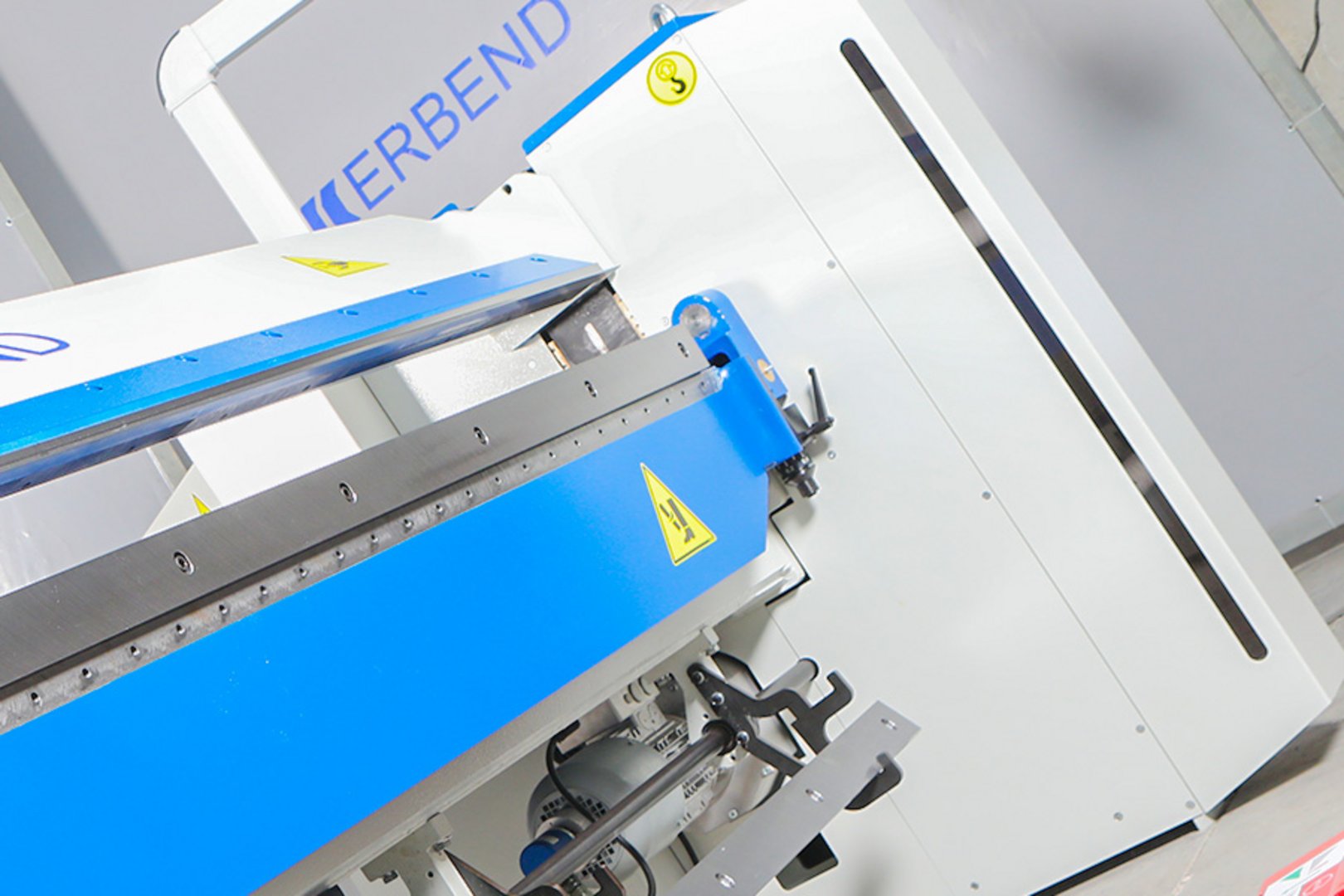

manual height adjustment of bending beam
foot pedal with 3 switches
ligtht barrier on the front side
Here the tutorial videos about programming:
https://youtube.com/playlist?list=PL8Z5ysej4HzrlNFEblSXPhHrsknDwkrMR&si=lEODzI3gbABEKu5g
Further information
Brochures
Product video

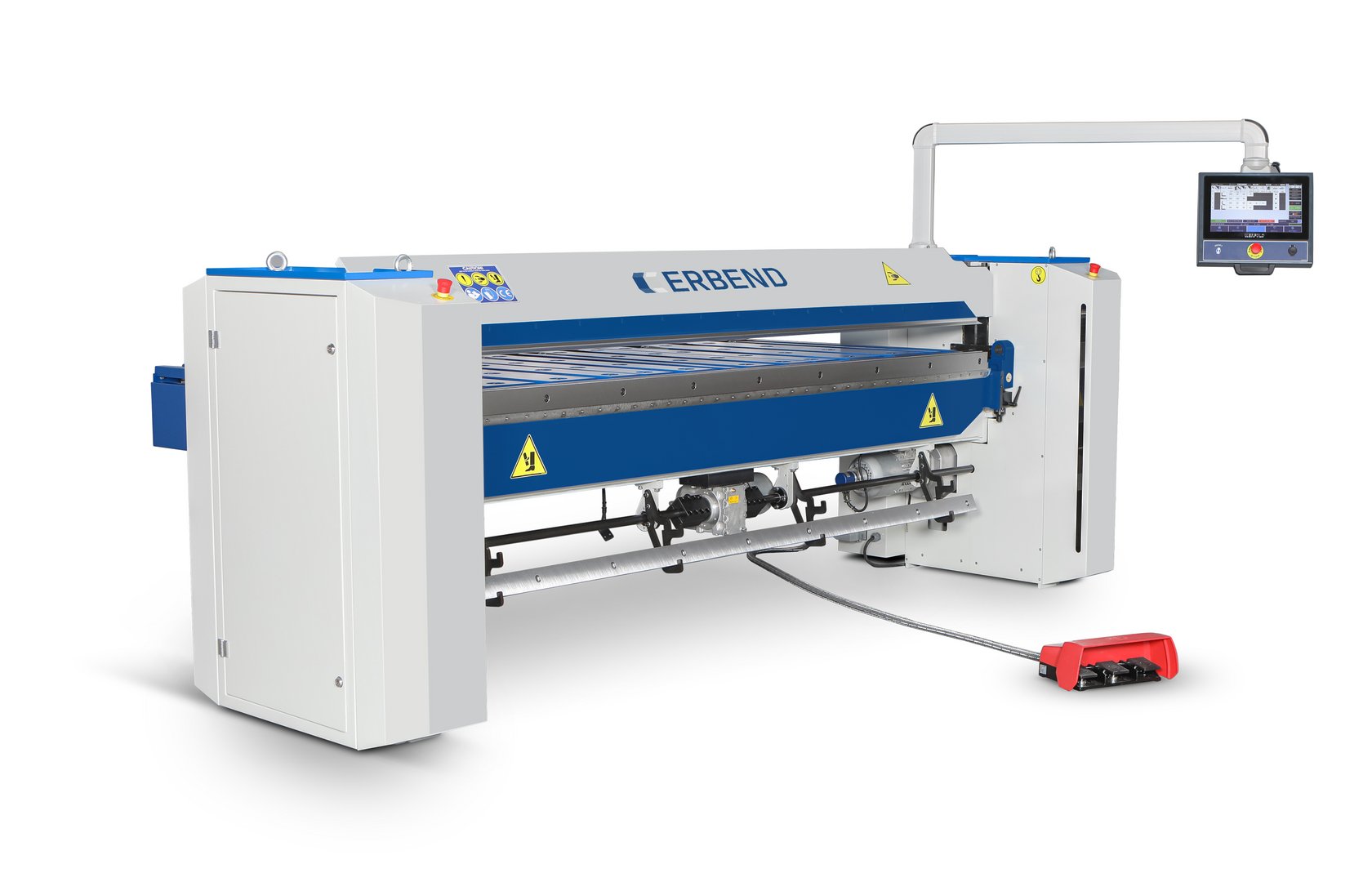

Motorized folding machine MFG 2515
