General characteristics
| Bending length | 2035 mm |
| Sheet thickness (420 N/mm²) | 6.5 mm |
| Antrieb | Hydraulic |
| Max. bending angle | 135 ° |
Dimensions and weight
| Length | 3300 mm |
| Width | 1550 mm |
| Height | 1900 mm |
| Weight | 3710 kg |
Description
hydraulic driven

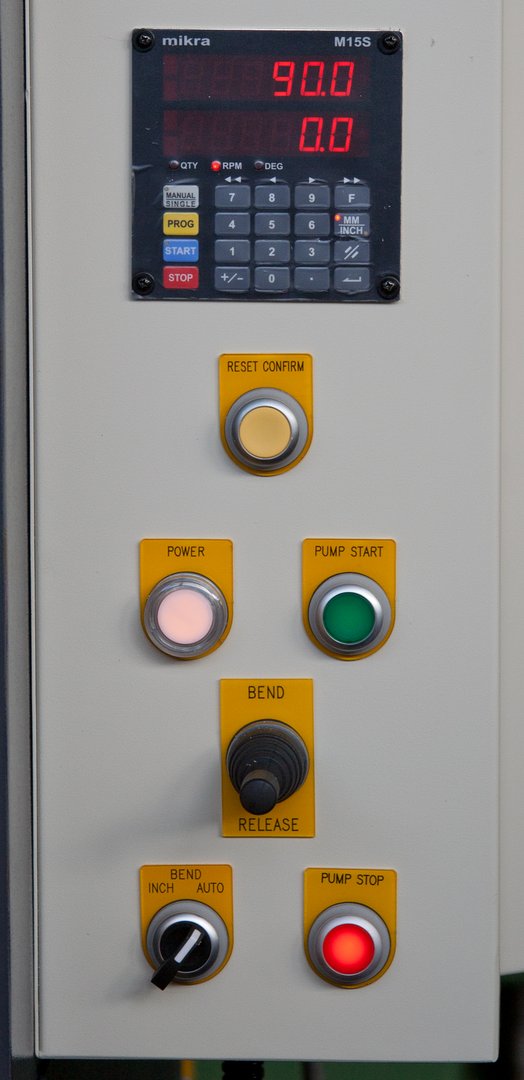

NC control for bending angle

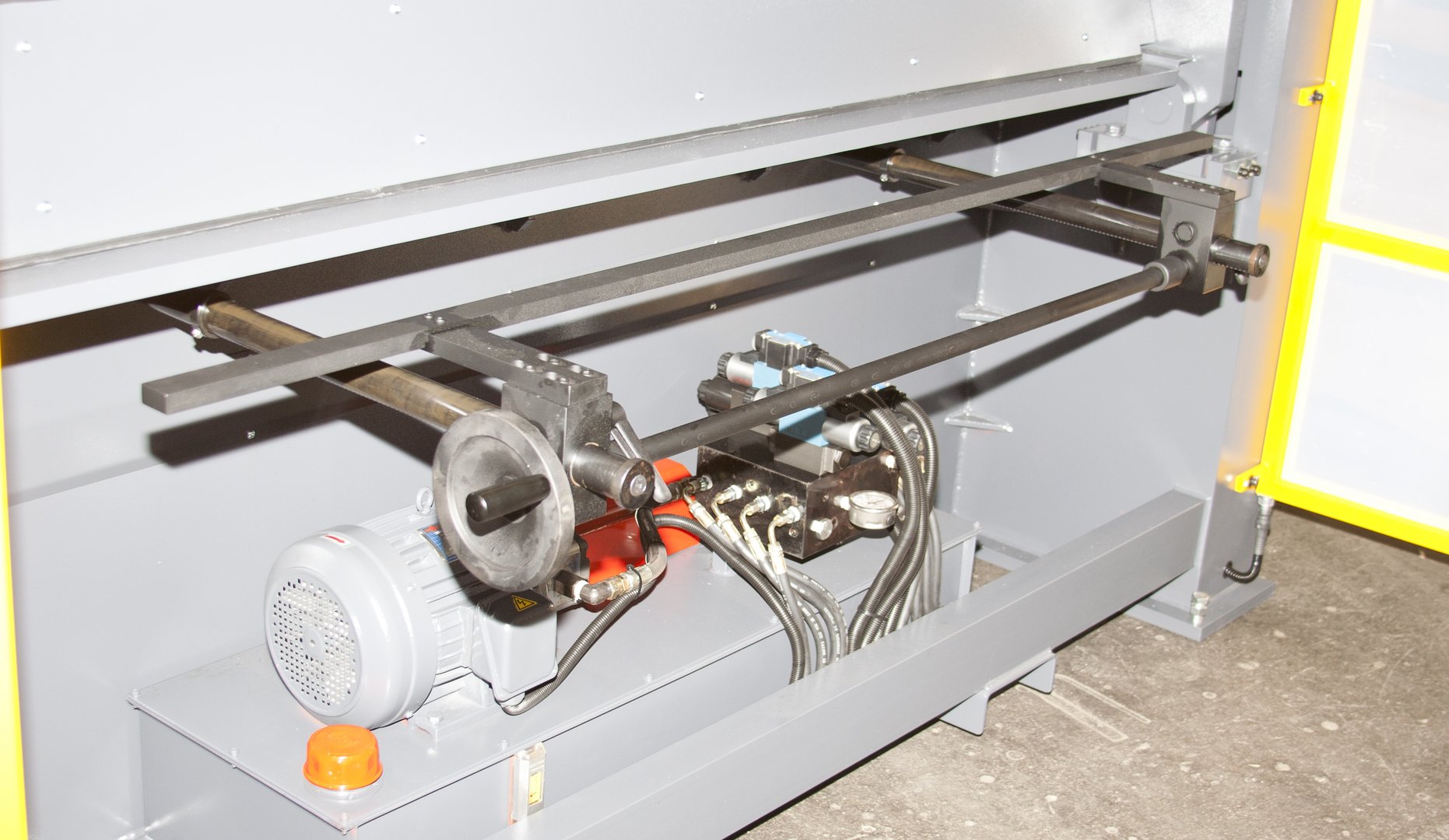

manual back gauge 600 mm
sharp rail 45° (in one piece)
front angle beam 75 mm
mechanical stop adjustment of upper beam
clamping force adjustment of upper beam
according to CE rules
Alternatively:
version AMH-K, with sectioned sharp rail 45° € 43.100,--
option:
2 axes NC control with 7" touchscreen incl. motorized back gauge 800 mm € 11.400,--

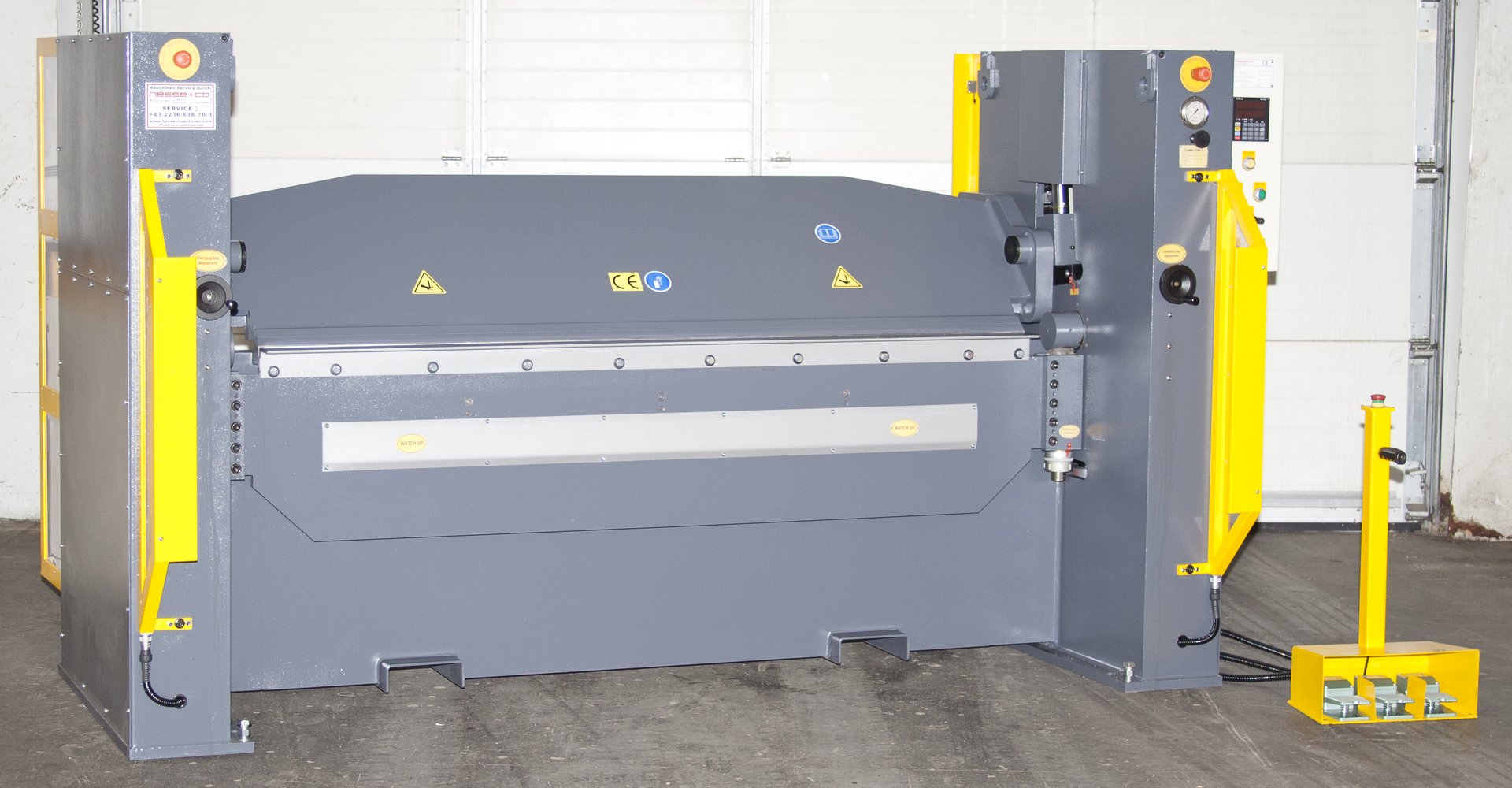

(sample photos)
