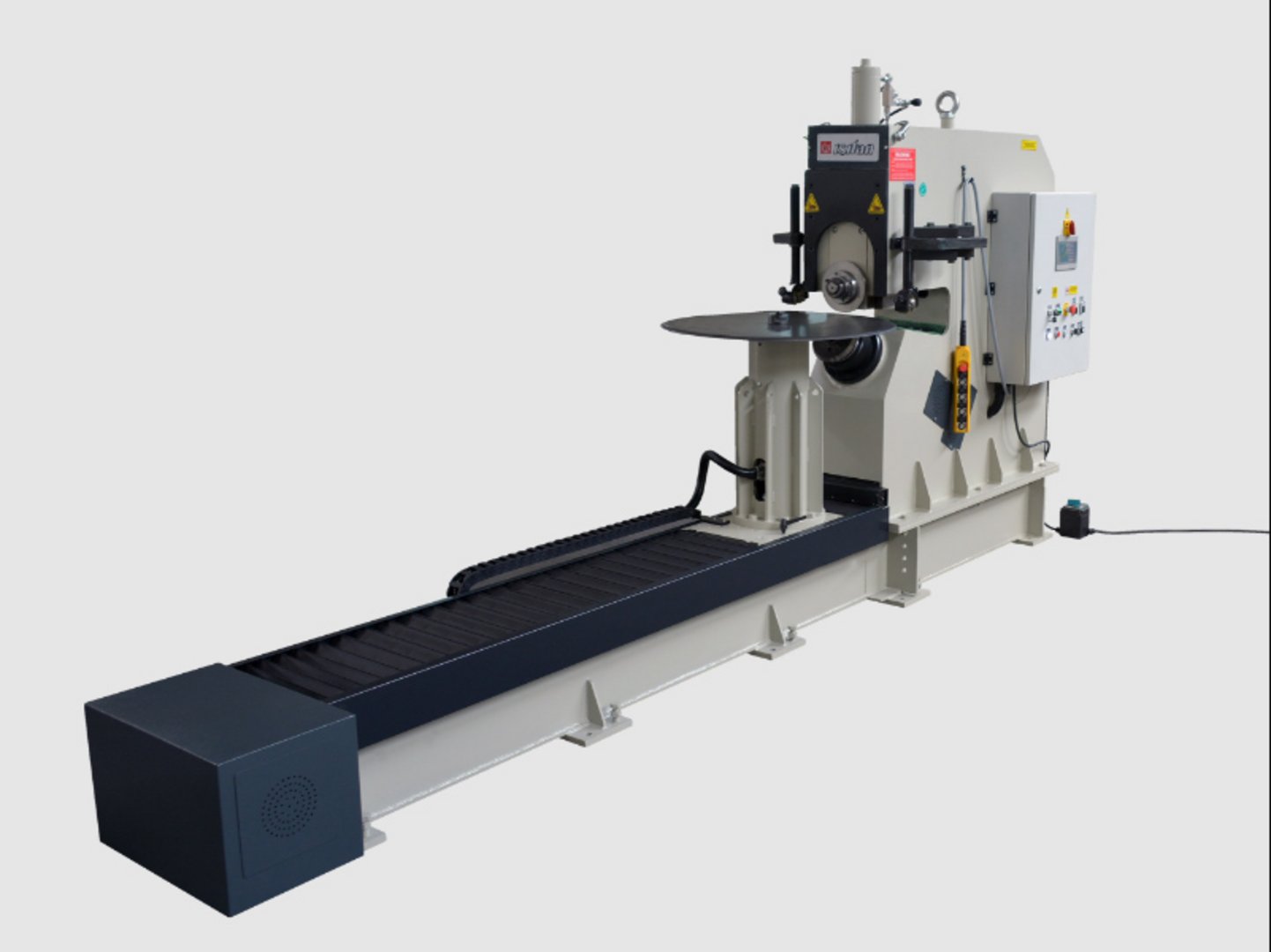

Flanging machine HESSE by SAHINLER SDK 6
| Model | SDK 6 |
| Brand | HESSE by SAHINLER |
| Condition | new |
| Max. sheet thickness - mild steel | 6 mm |
| Max. blank diameter | 4000 mm |
| Origin | Türkiye |
General characteristics
| Max. sheet thickness - mild steel | 6 mm |
| Max. thickness - stainless steel | 4 mm |
| Max. flanging radius | 70 mm |
| Max. blank diameter | 4000 mm |
| Min. blank diameter | 550 mm |
| Motor | 8.75 kW |
Dimensions and weight
| Length | 4250 mm |
| Width | 720 mm |
| Height | 2000 mm |
| Weight | 2015 kg |
Description
Easy operation with mobile control panel with push buttons
Built according to EC Safety Directives and has CE Mark

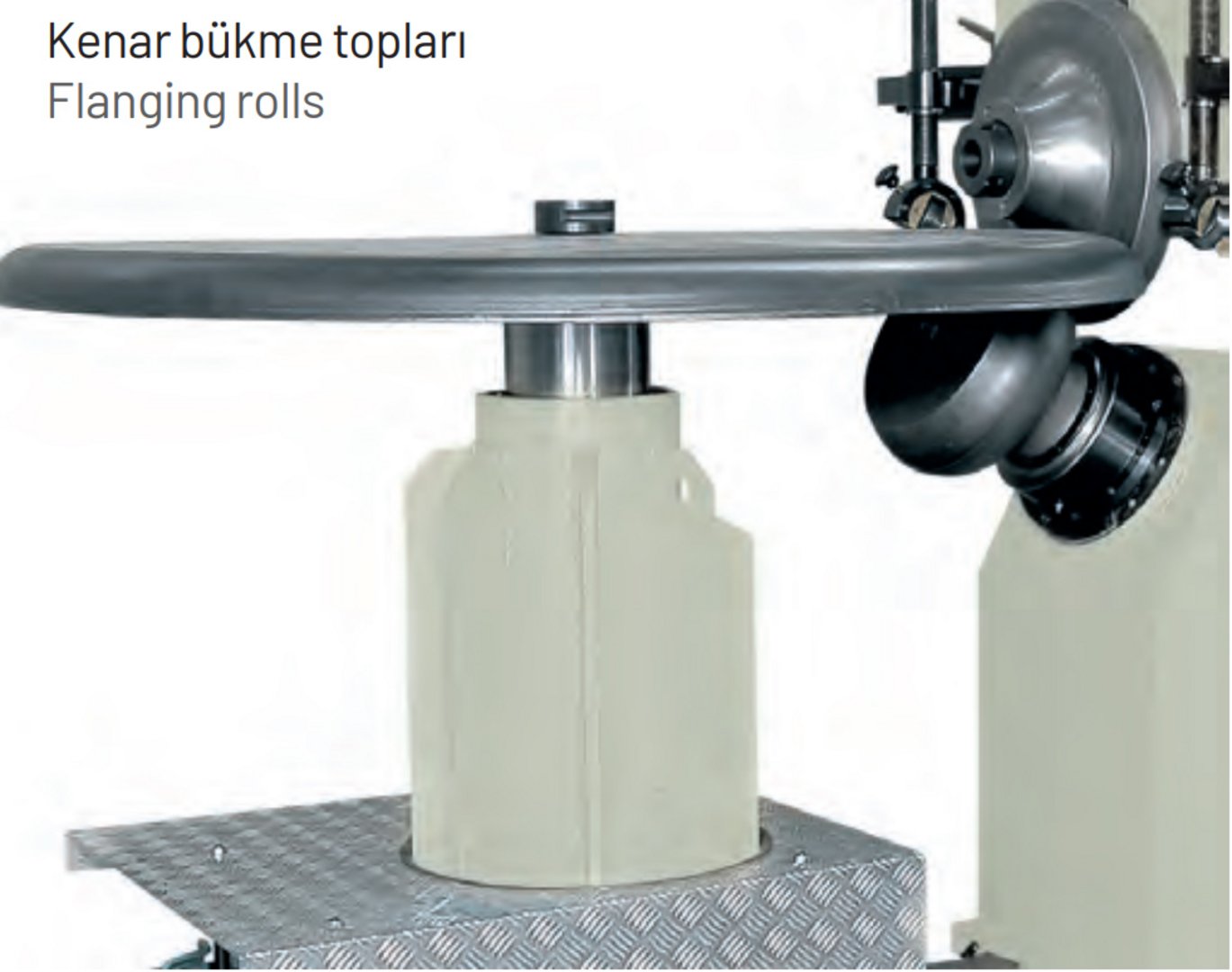

One set of flanging rolls included. Radius can be selected.

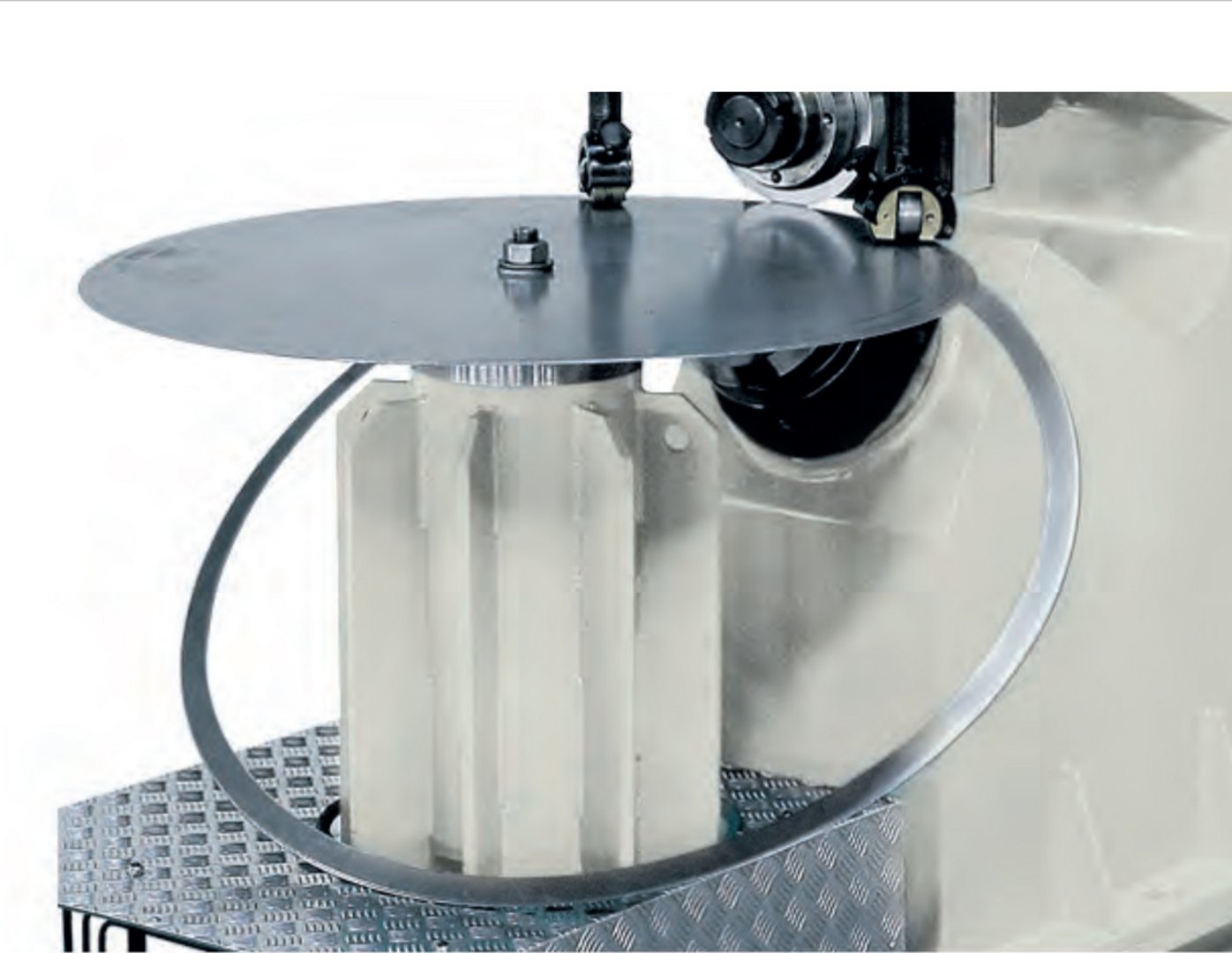

One set of cutting blades included
Min. cutting diameter: 600 mm (with adapter for small diameter 400 mm)
Min. flanging diameter: 550 mm (with adapter for small diameter 350 mm)
Rotating speed 70 rpm with adjustable max. torque

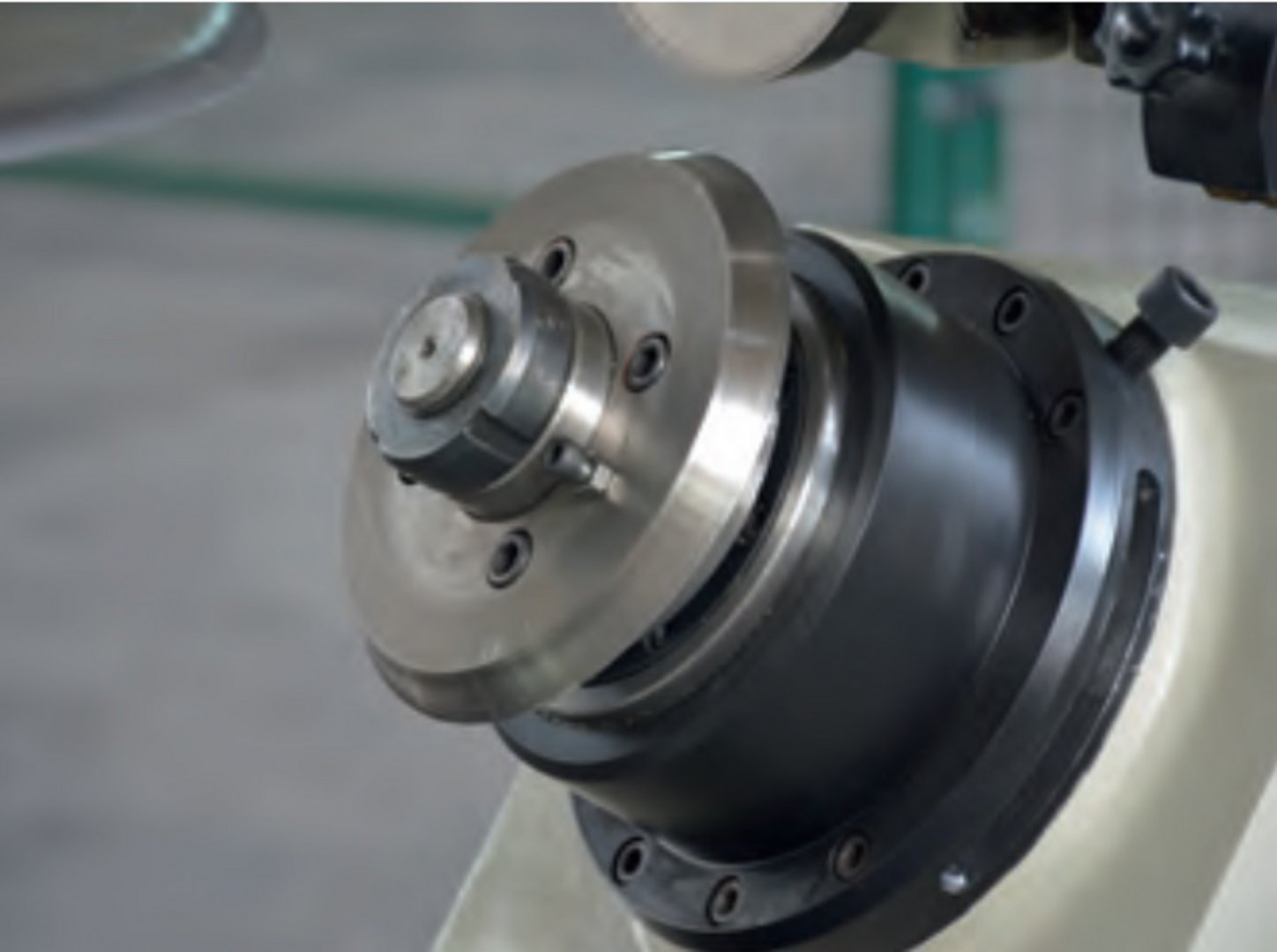

Top and bottom flanging rolls powered in rotation with planetary reducers
Hydraulically adjustable bottom head for both, flat and crowned dish flanging
Both cutting and flanging operation on the same head
Users Manual
Optional devices as fix or variable angle japanese hat attachement, rolls for stainless steel or high speed, small diameter attachement... on request
