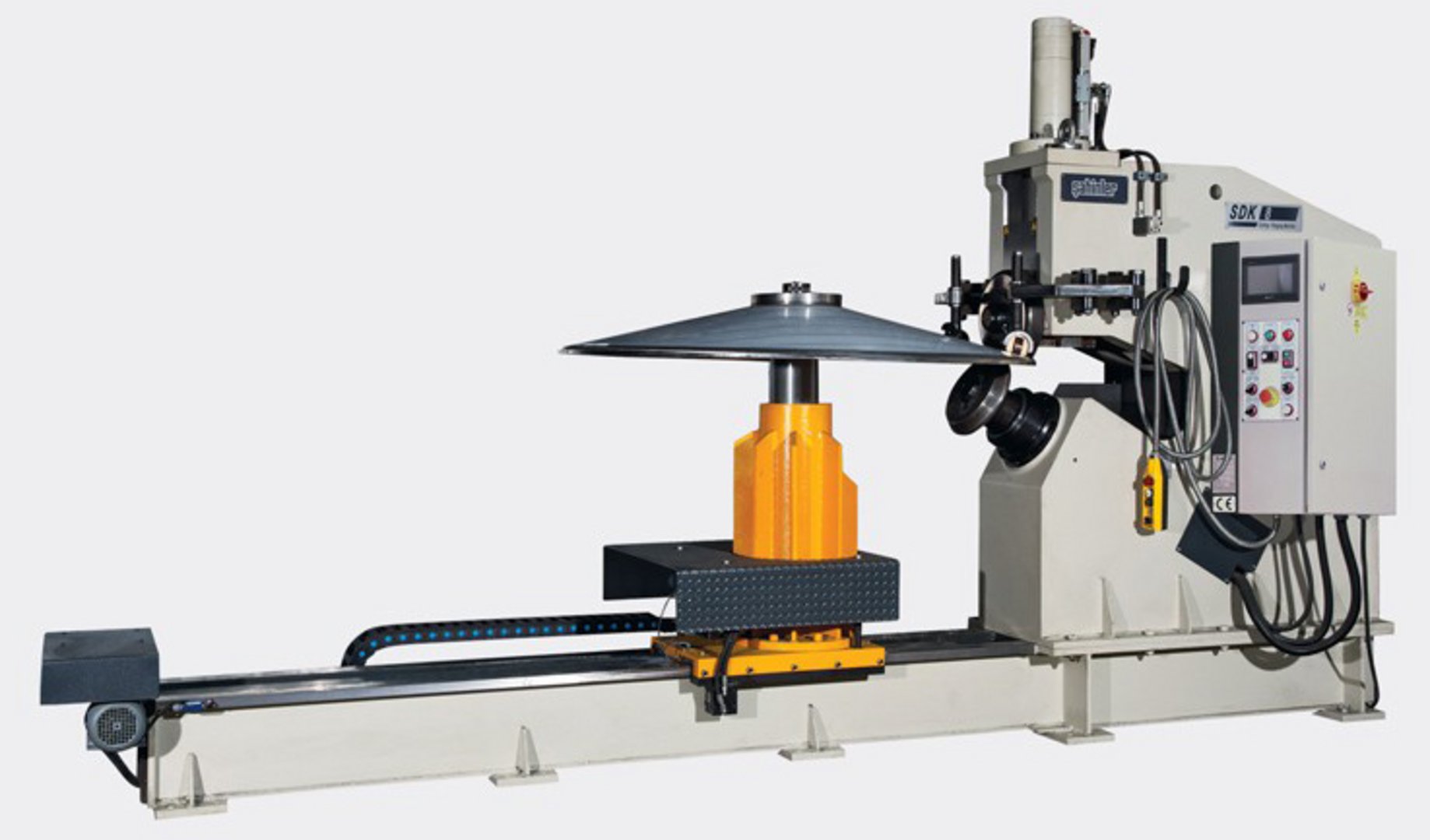

Flanging machine HESSE by SAHINLER SDK 8
| Model | SDK 8 |
| Brand | HESSE by SAHINLER |
| Condition | new |
| Max. sheet thickness - mild steel | 8 mm |
| Max. blank diameter | 4500 mm |
| Origin | Türkiye |
General characteristics
| Max. sheet thickness - mild steel | 8 mm |
| Max. thickness - stainless steel | 5 mm |
| Max. flanging radius | 80 mm |
| Min. flanging radius | 10 |
| Max. blank diameter | 4500 mm |
| Min. blank diameter | 720 mm |
| Max. flanging height | 150 (R 100) / 190 (R 25) mm |
| rotating speed | 0,35 - 0,68 m/sek. |
| Motor | 11 kW |
Dimensions and weight
| Length | 4900 mm |
| Width | 1700 mm |
| Height | 2700 mm |
| Weight | 4550 kg |
Description
incl. flanging rolls for mild steel (R25)
incl. cutting blade
top and lower roll driven by hydromotor and plantary gear box
possible to flange both, flat and crowned bottoms
hydraulically adjustable bottom height
cutting and flanging on the same head
lateral support rolls
operator panel with touch screen
Optional devices as fix or variable angle japanese hat attachement, rolls for stainless steel or high speed, small diameter attachement... on request
Further information
Brochures
Product video
Flanging machine SDK 8
