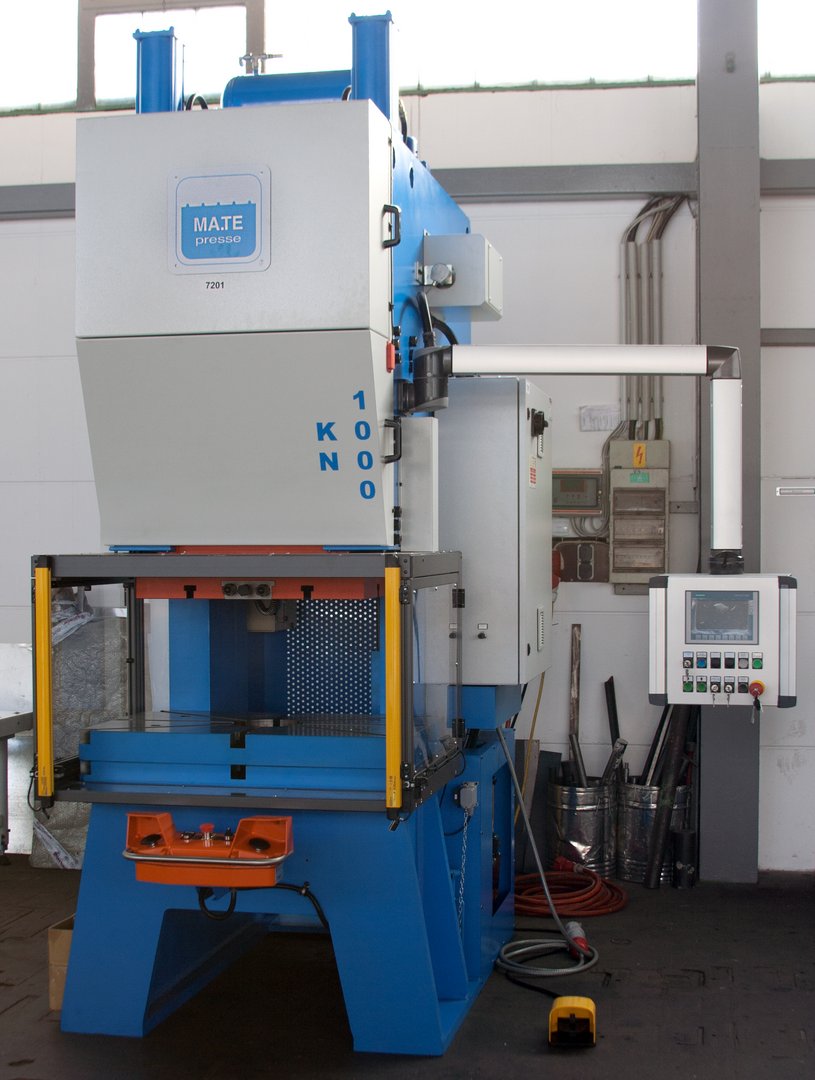

General characteristics
| pressing capacity | 100 to |
| Tonnage rating point | 5 mm |
| Table length | 1000 mm |
| Table width | 630 mm |
| Hole in table | 180 mm |
| Stroke | 15 - 140 mm |
| Strokes | 45 - 70 1/min |
| Ram guides | 8 |
| Ram adjustment | 90 mm |
| Throat depth | 320 mm |
| Distance between columns | 570 mm |
| Motor | 11 kW |
Dimensions and weight
| Length | 1320 mm |
| Width | 2200 mm |
| Height | 3080 mm |
| Weight | 10000 kg |
Description

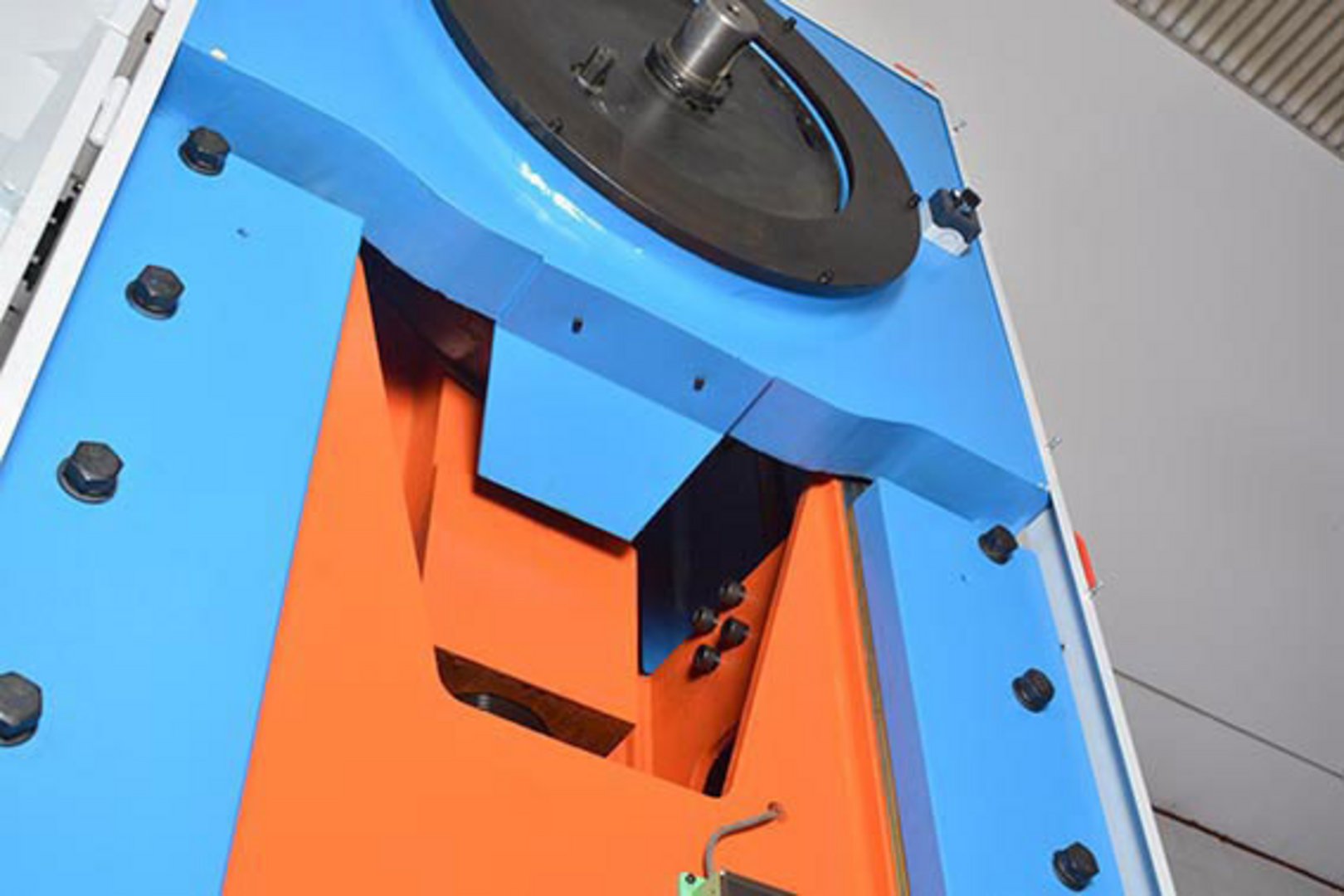

8-fold ram guide

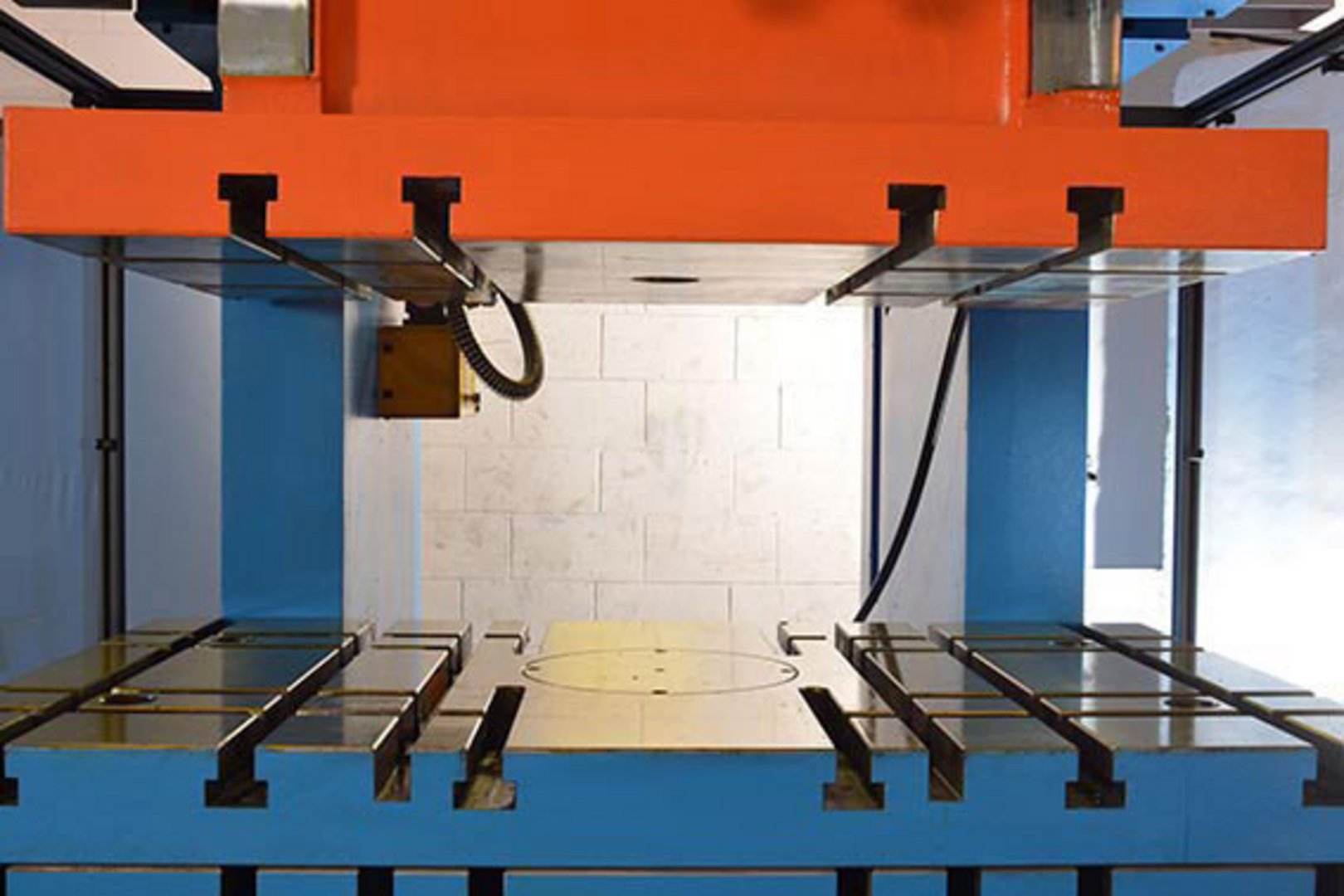

fixed table
semi-automatic stroke adjustment

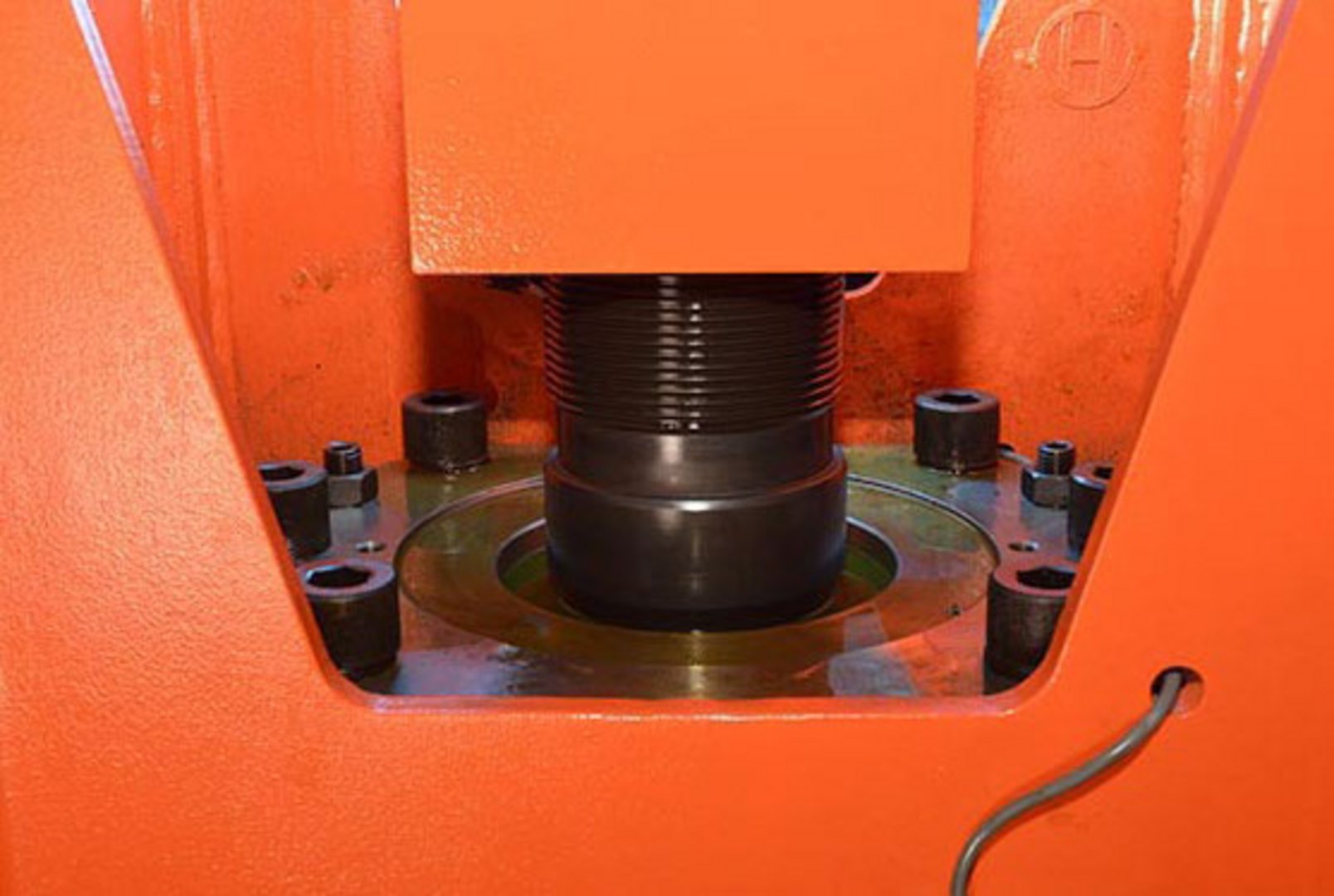

motorized ram adjustment
Variable speed motor
hydraulic overload protection
dynamic braking
platen
automatic circulation lubrication
safety light guard Keyence
user manual in GERMAN or ENGLISH
Automation and control of press parameters by PLC, alarms and informations displayed on human machine interface touch screen.
Standard monitoring:
- Press speed view and adjustment
- programmable piece counter and maintenance piece counter
- die space adjustment with brake motor
- semi automatic or automatic stroke adjustment
- die safety control
- alarms view
- overload protector
