C-frame eccentric press HESSE by FRESAN FP 100 P
| Model | FP 100 P |
| Brand | HESSE by FRESAN |
| Condition | new |
| Year of manufacture | 2024 |
| pressing capacity | 100 to |
| Strokes | 58 1/min |
| Stock number | 7296 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 100 to |
| Tonnage rating point | 4.5 mm |
| Table length | 700 mm |
| Table width | 1000 mm |
| Hole in table | 210 mm |
| Stroke | 1 - 132 mm |
| Strokes | 58 1/min |
| Ram guides | 6 |
| Ram adjustment | 90 mm |
| Ram hole | 60 mm |
| Throat depth | 300 mm |
| Daylight | 445 mm |
| Motor | 7.5 kW |
Dimensions and weight
| Length | 1650 mm |
| Width | 1545 mm |
| Height | 3011 mm |
| Weight | 7000 kg |
Description
Welded steel construction body frame
Crankshaft made of AISI 4140 (42CrMo4) alloy steel, CNC grinded for max. precision
SnBz-12 quality bronze to bearings, grinded for min surface resistance
Ram supported from 6 sides
Pneumatic counter-balancing of the ram
7" touchscreen
Gears in oil bath
Pneumatic clutch-brake combination
PLC control for safety
Photocell light barriers
Motorized slide adjustable
Mechanical overload fuse
Two hand and foot pedal control
Adjustable stroke (inverter)
automatic central lubrication
Machine and equipment in conformity with CE-regulations

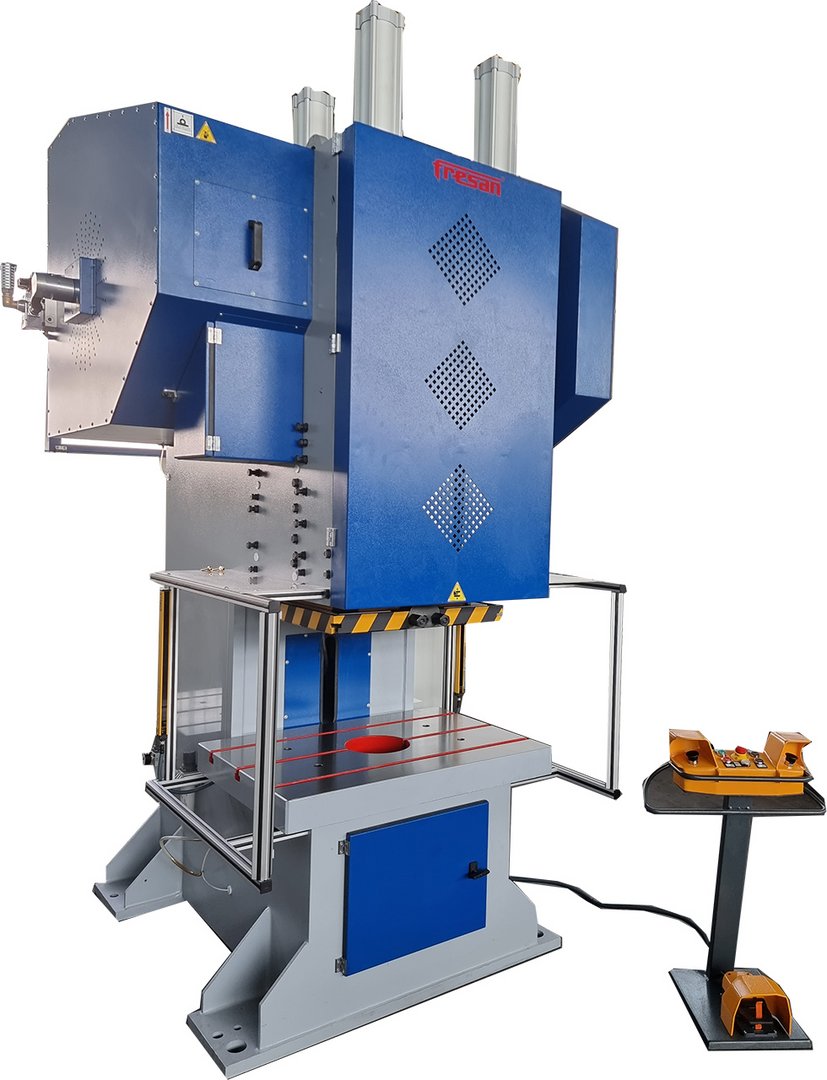

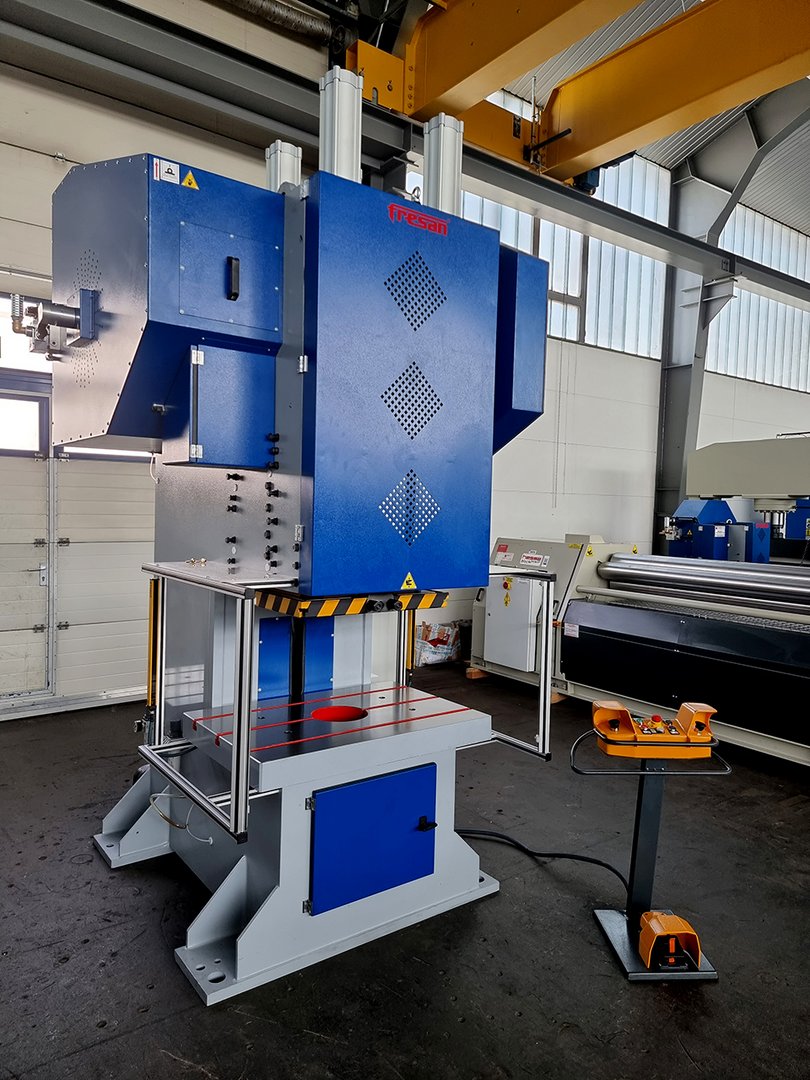

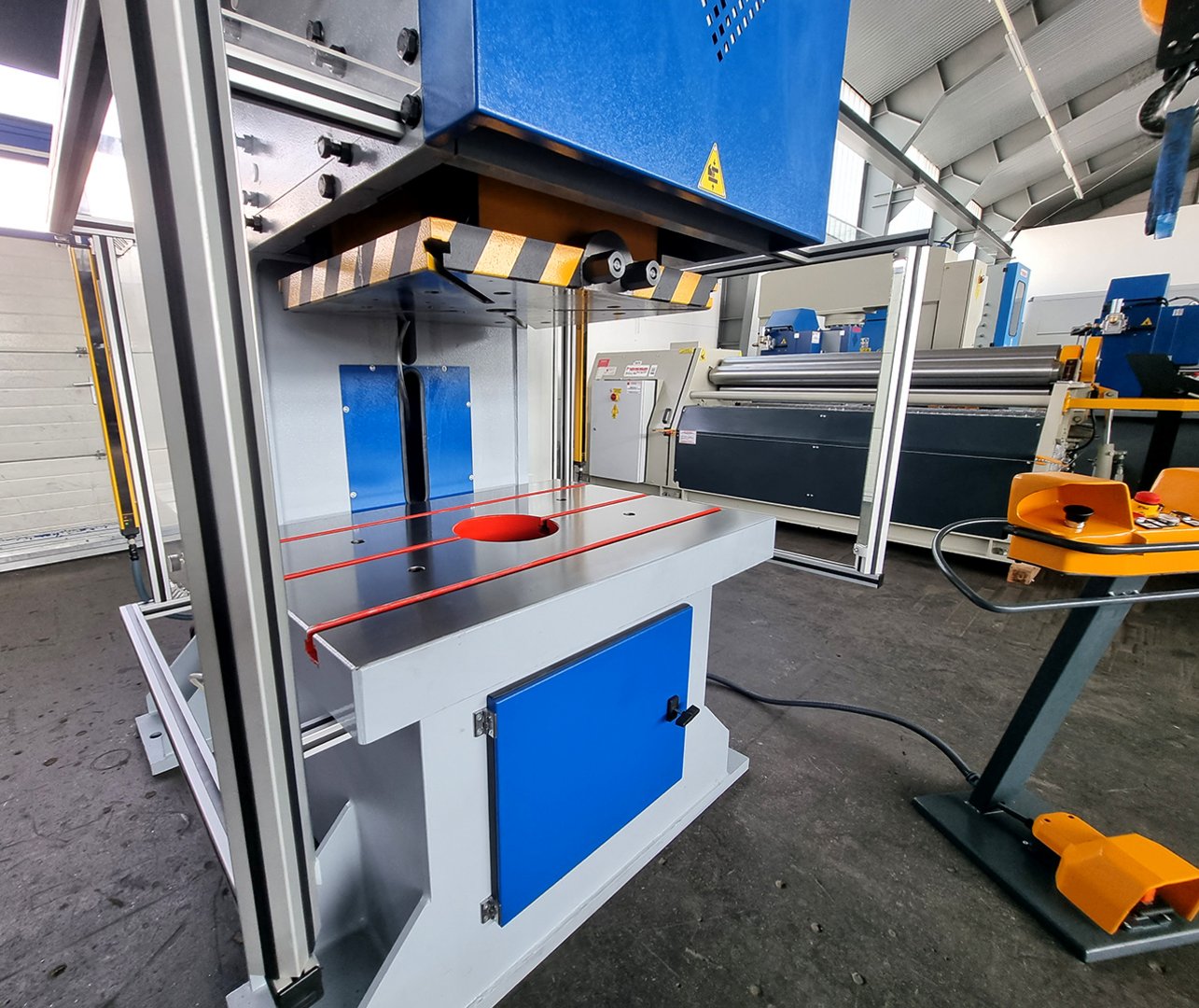

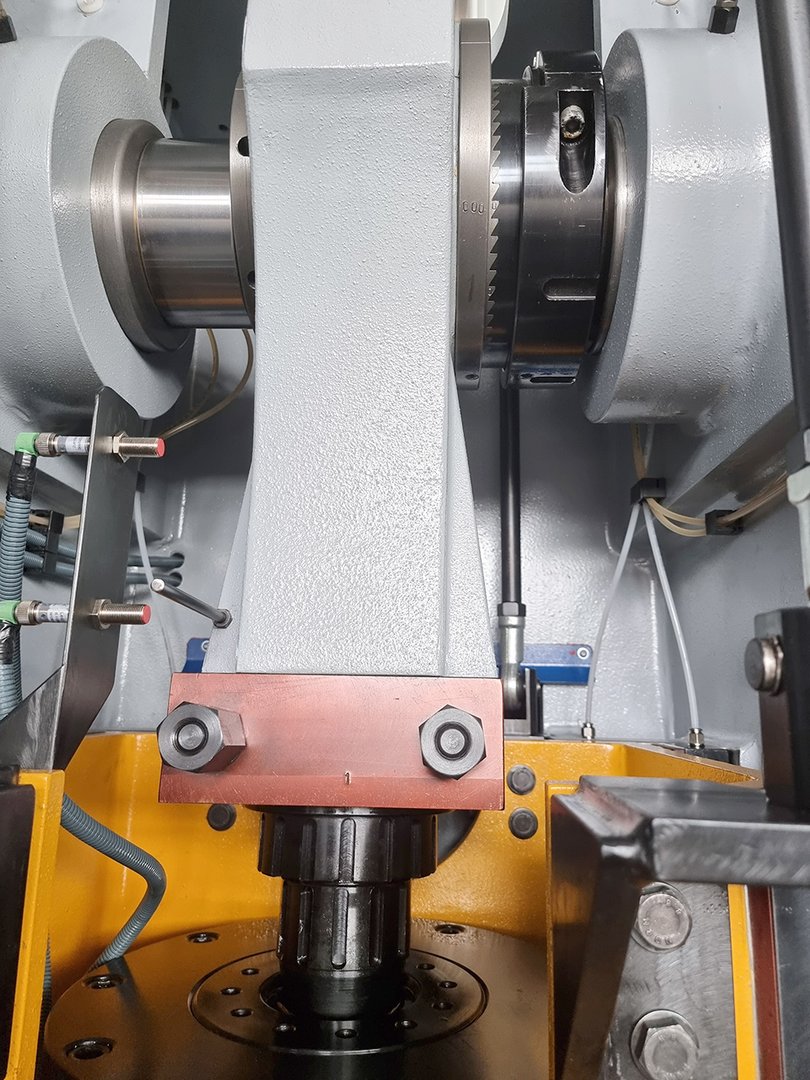

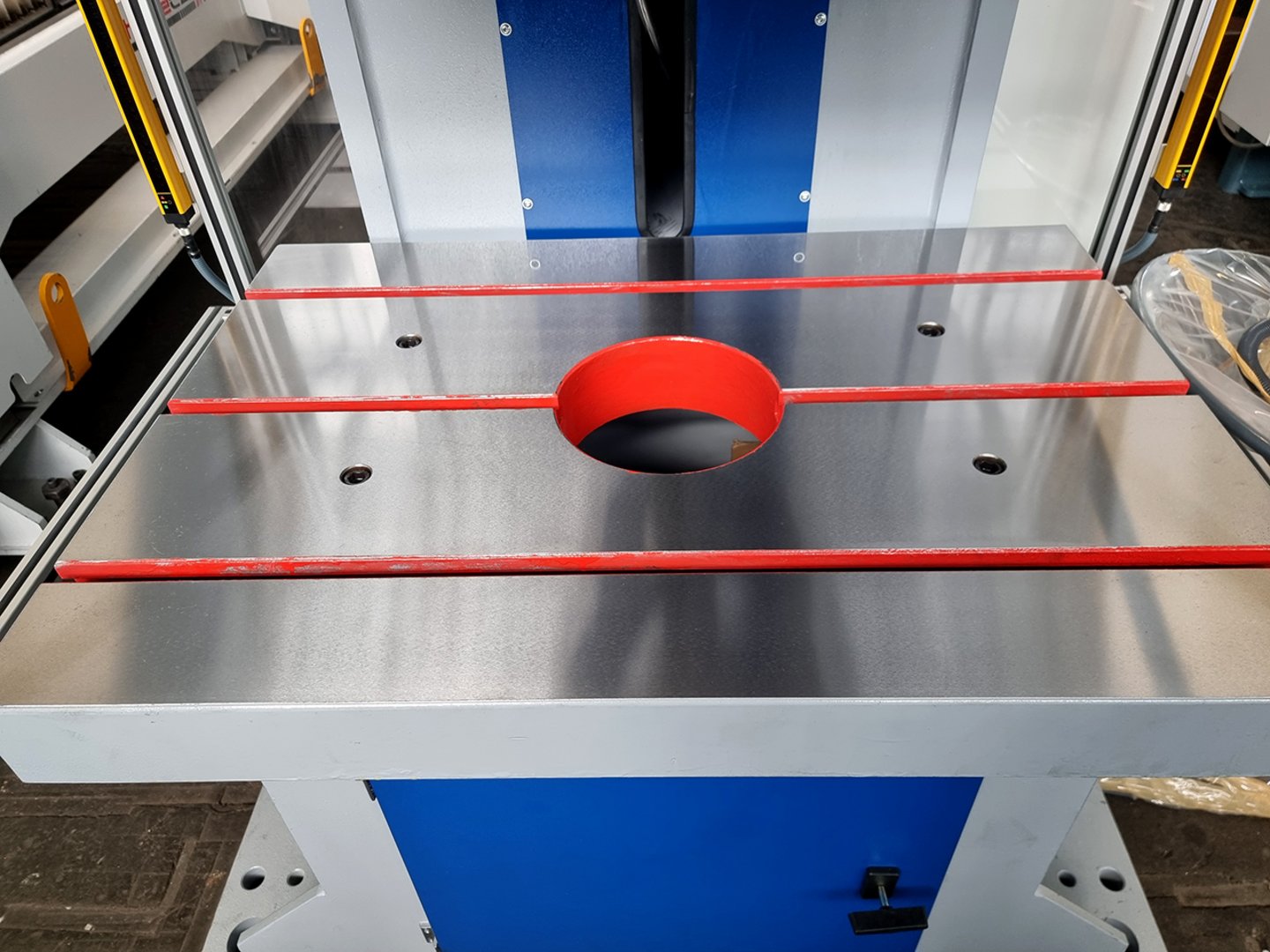

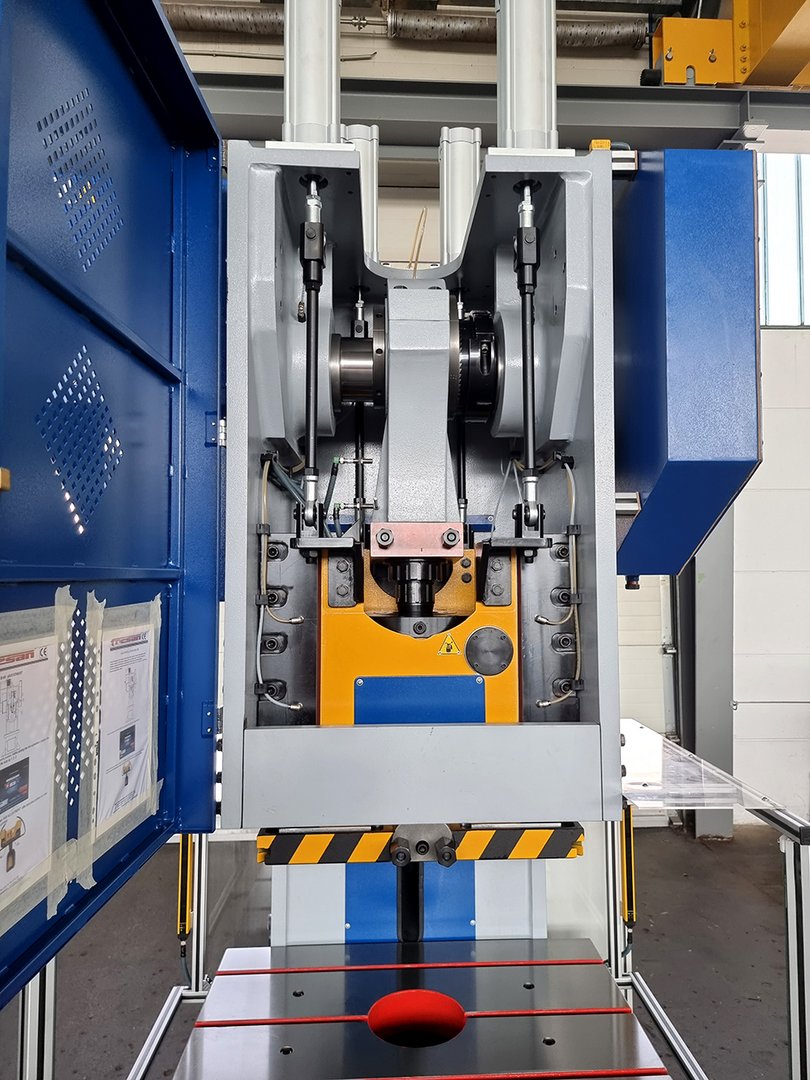

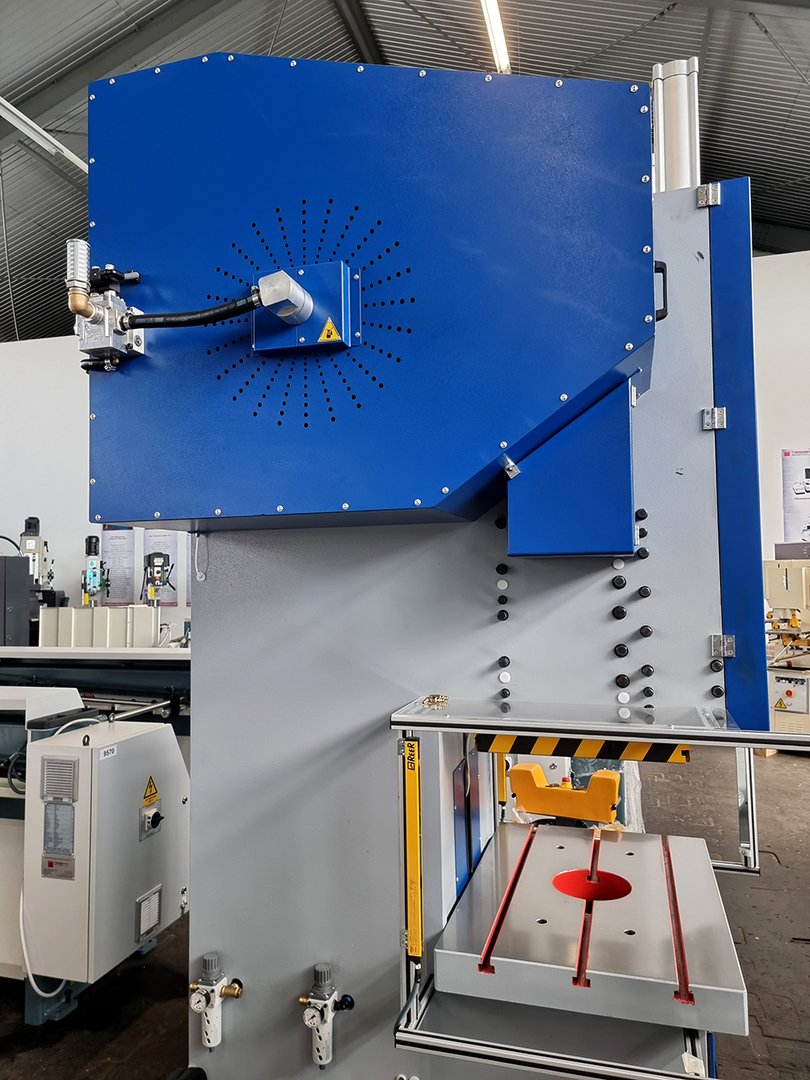

(sample photos)
Options:
| vibration pads | € 192,00 |
| bolster plate | € 2.580,00 |
Further information
Brochures
Product video
C-frame eccentric press FP 100 P
