General characteristics
| Drilling capacy mild steel | 42 mm |
| Spindle cone | MK 4 |
| Distance spindle - column | 280 – 1.100 mm |
| Revs | 44 – 1.500 (12) r.p.m. |
| Tapping capacity | Stahl: M 25; Guss: M 38 |
| Distance table - spindle underside | 470 – 1.270 mm |
| automatic feed | 0,05 – 0,15 (3) mm/min |
| Spindle motor | 2.2 kW |
| Column diameter | 260 mm |
| Quill travel | 280 mm |
| Table | 1.725 x 715 x 180 mm |
| Box table dimensions | 635 x 520 x 415 mm |
| max. height | 2530 mm |
Dimensions and weight
| Length | 1880 mm |
| Width | 870 mm |
| Height | 2210 mm |
| Weight | 1800 kg |
Description
left/right rotation
automatic feed
drilling depth limit
manual headstock adjustment with mechanical clamping
electric height adjustment of extension arm and mechanical clamping
mechanical clamping of swivel movement of extension arm

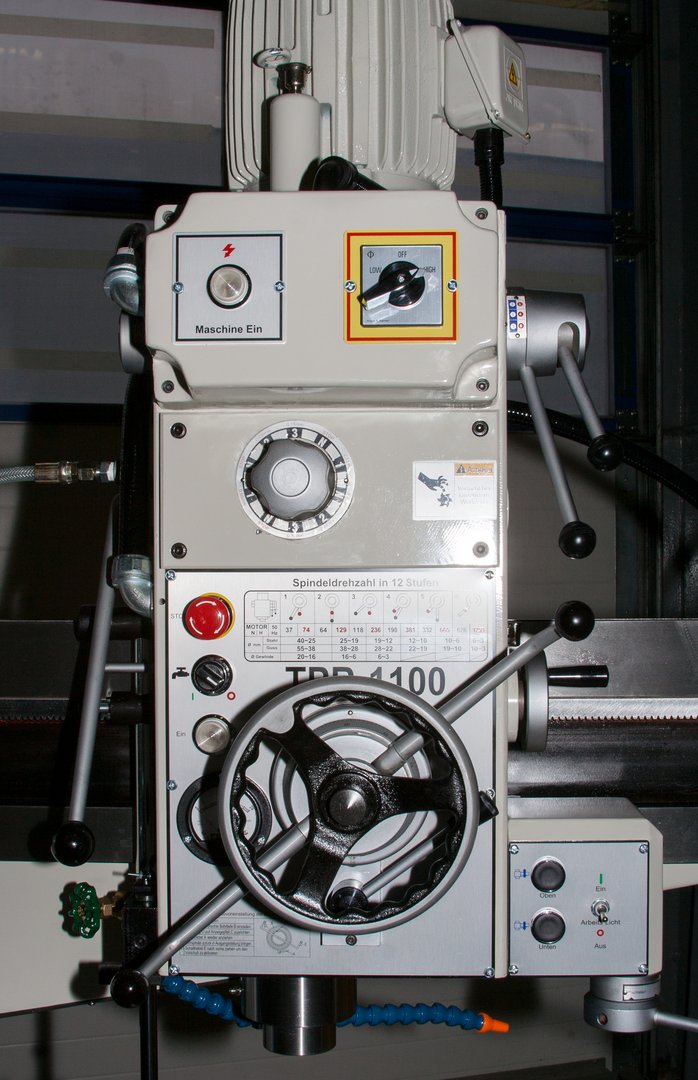

central operation panel on the front side
power load readout for drilling spindle
hand wheel for spindle fine feed
coolant equipment
machine lamp

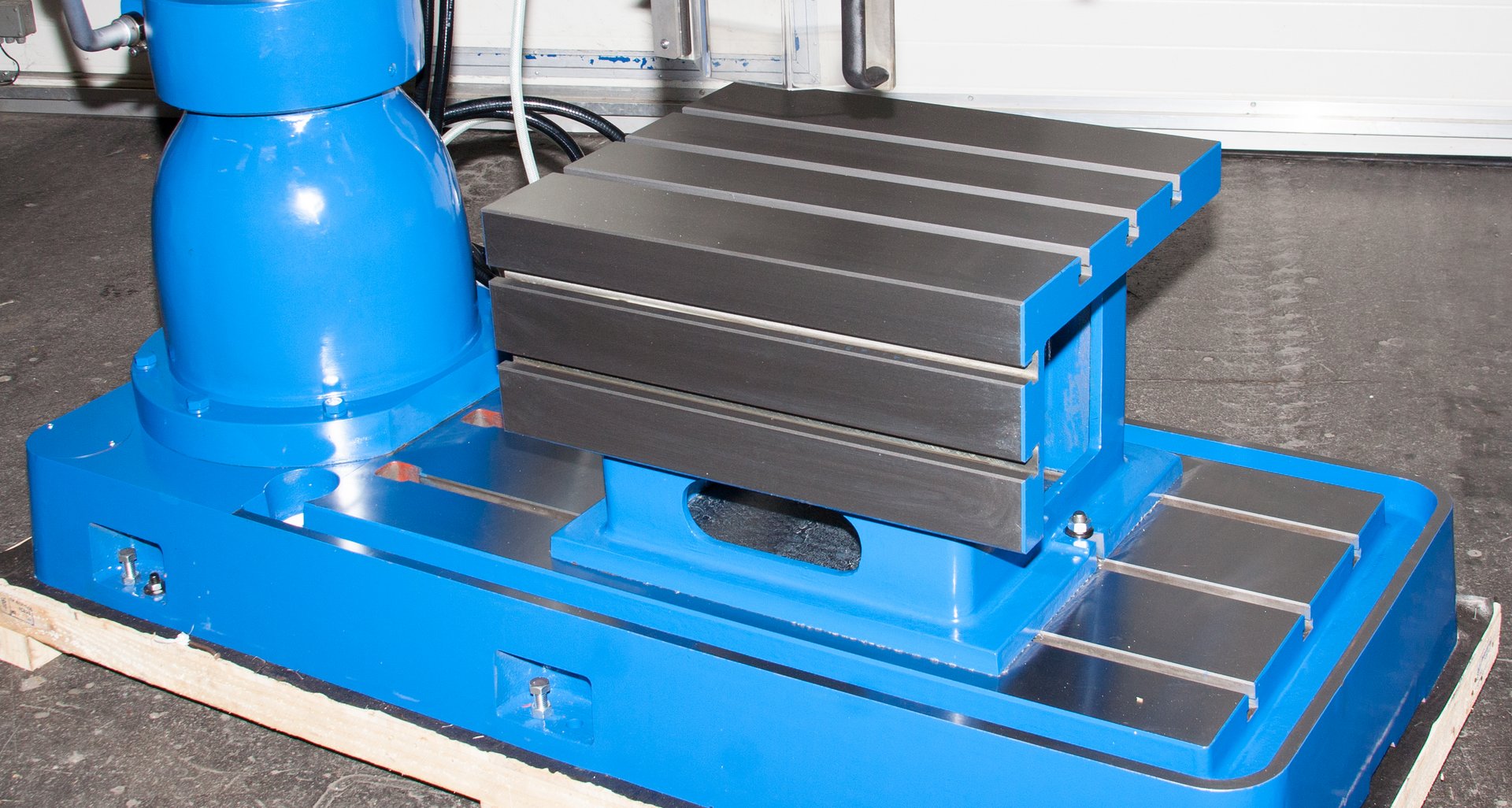

box table
machine and equipment according to the CE-regulations
operating manual in GERMAN and ENGLISH
