General characteristics
| Drilling capacy mild steel | 65 mm |
| Spindle cone | MK 5 |
| Distance spindle - column | 440 – 1.580 mm |
| Revs | 40 – 1.920 (12) r.p.m. |
| Tapping capacity | Steel/Cast: M50/M60 |
| Distance table - spindle underside | 380 – 1.600 mm |
| automatic feed | 0,07 – 0,96 (6) mm/min |
| Spindle motor | 5.5 kW |
| Column diameter | 432 mm |
| Quill travel | 370 mm |
| Table | 2.480 x 1.050 x 210 mm |
| Elvating motor | 1 kW |
| Box table dimensions | 700 x 500 x 400 mm |
| max. height | 3170 mm |
Dimensions and weight
| Length | 2850 mm |
| Width | 1400 mm |
| Height | 2940 mm |
| Weight | 4600 kg |
Description
left/right rotation
automatic feed
drilling depth limit
manual headstock adjustment with hydraulic clamping
electric height adjustment of extension arm and hydraulic clamping
hydraulic clamping of swivel movement of extension arm
central operation panel on the front side
power load readout for drilling spindle
hand wheel for spindle fine feed
coolant equipment
machine lamp
box table
machine and equipment according to the CE-regulations
operating manual in GERMAN and ENGLISH

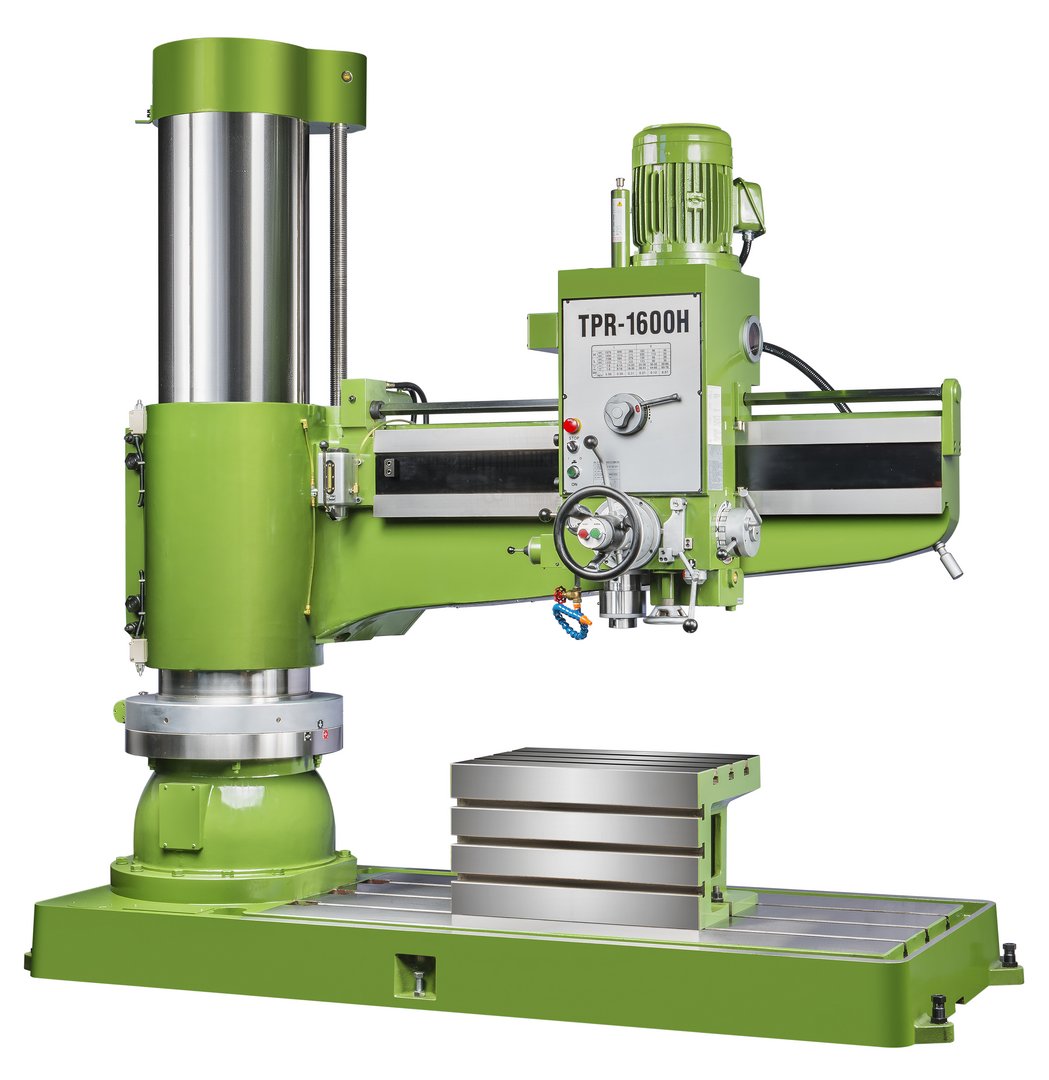

(sample photo)
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
