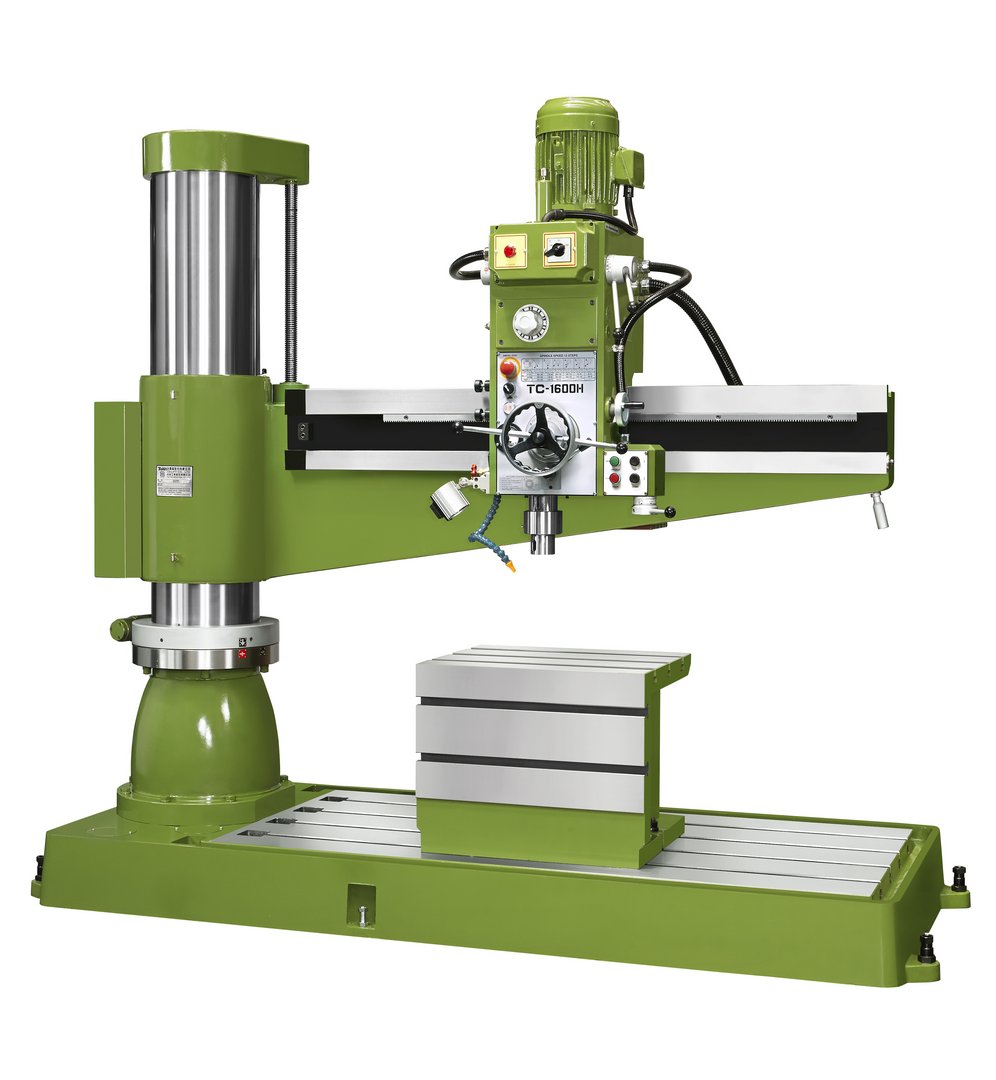

General characteristics
| Drilling capacy mild steel | 50 mm |
| Spindle cone | MK 5 |
| Distance spindle - column | 350 – 1.600 mm |
| Revs | 56 – 1.450 (12) r.p.m. |
| Tapping capacity | Steel/Cast: M40/M50 |
| Distance table - spindle underside | 465 – 1.420 mm |
| automatic feed | 0,06 – 0,2 (3) mm/min |
| Spindle motor | 3.7 kW |
| Column diameter | 320 mm |
| Quill travel | 270 mm |
| Table | 2.550 x 970 x 200 mm |
| Elvating motor | 1 kW |
| Box table dimensions | 630 x 500 x 500 mm |
| max. height | 2760 mm |
Dimensions and weight
| Length | 2670 mm |
| Width | 1120 mm |
| Height | 2410 mm |
| Weight | 3300 kg |
Description
left/right rotation
automatic feed
drilling depth limit
manual headstock adjustment with hydraulic clamping
electric height adjustment of extension arm and hydraulic clamping
hydraulic clamping of swivel movement of extension arm
central operation panel on the front side
power load readout for drilling spindle
hand wheel for spindle fine feed
coolant equipment
machine lamp
box table
machine and equipment according to the CE-regulations
operating manual in GERMAN and ENGLISH
