General characteristics
| Drilling capacy mild steel | 50 mm |
| Spindle cone | MK 5 |
| Distance spindle - column | 360 – 1.250 mm |
| Revs | 44 – 1.206 (12) r.p.m. |
| Tapping capacity | Steel/Cast: M40/M50 |
| Distance table - spindle underside | 441 – 1.345 mm |
| automatic feed | 0,06 – 0,2 (3) mm/min |
| Spindle motor | 3.7 kW |
| Column diameter | 300 mm |
| Quill travel | 270 mm |
| Table | 1.785 x 785 x 190 mm |
| Box table dimensions | 635 x 520 x 420 mm |
| max. height | 2645 mm |
Dimensions and weight
| Length | 2060 mm |
| Width | 995 mm |
| Height | 2240 mm |
| Weight | 2300 kg |
Description
left/right rotation
automatic feed
drilling depth limit
manual headstock adjustment with hydraulic clamping

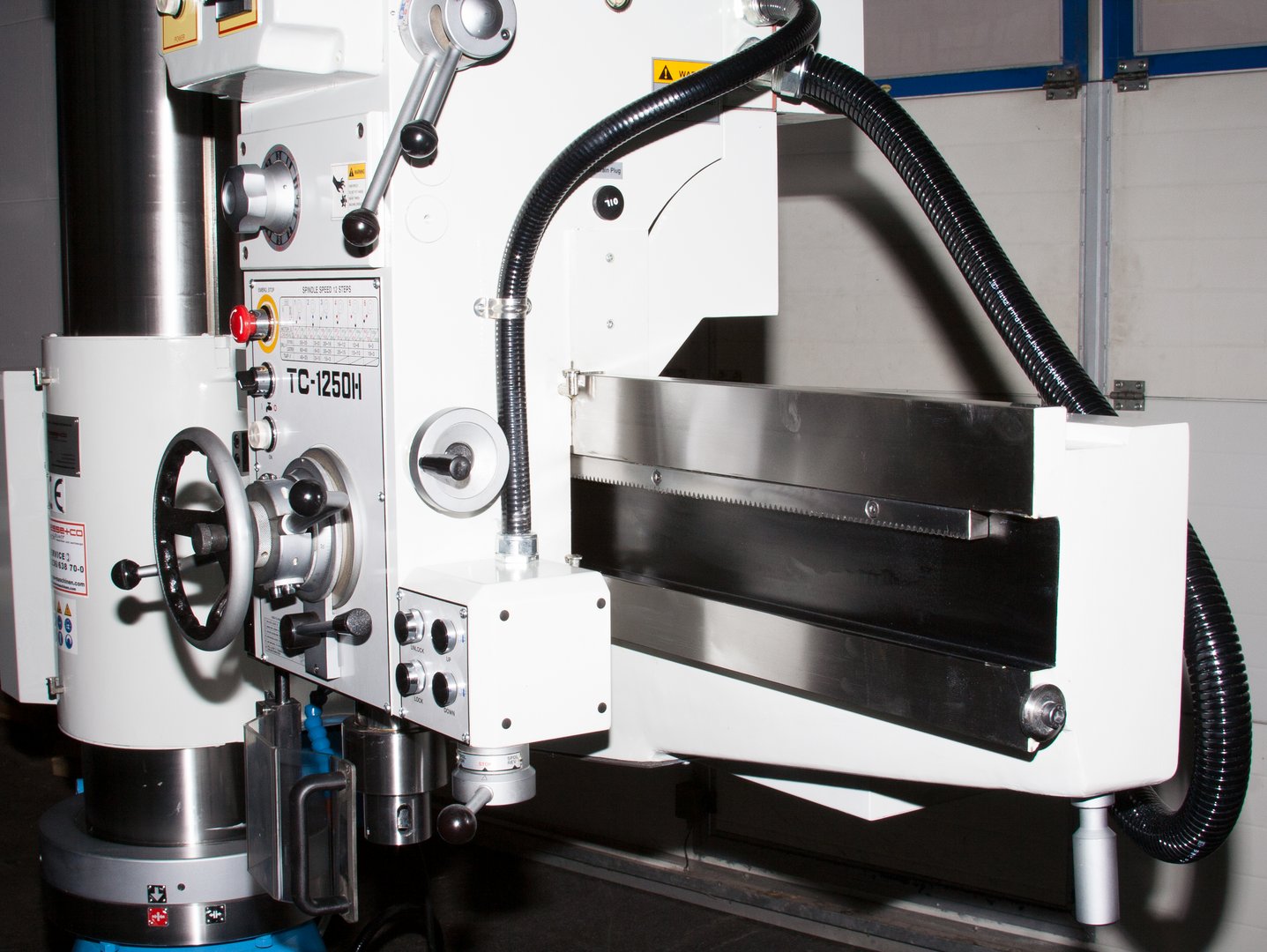

electric height adjustment of extension arm and hydraulic clamping
hydraulic clamping of swivel movement of extension arm

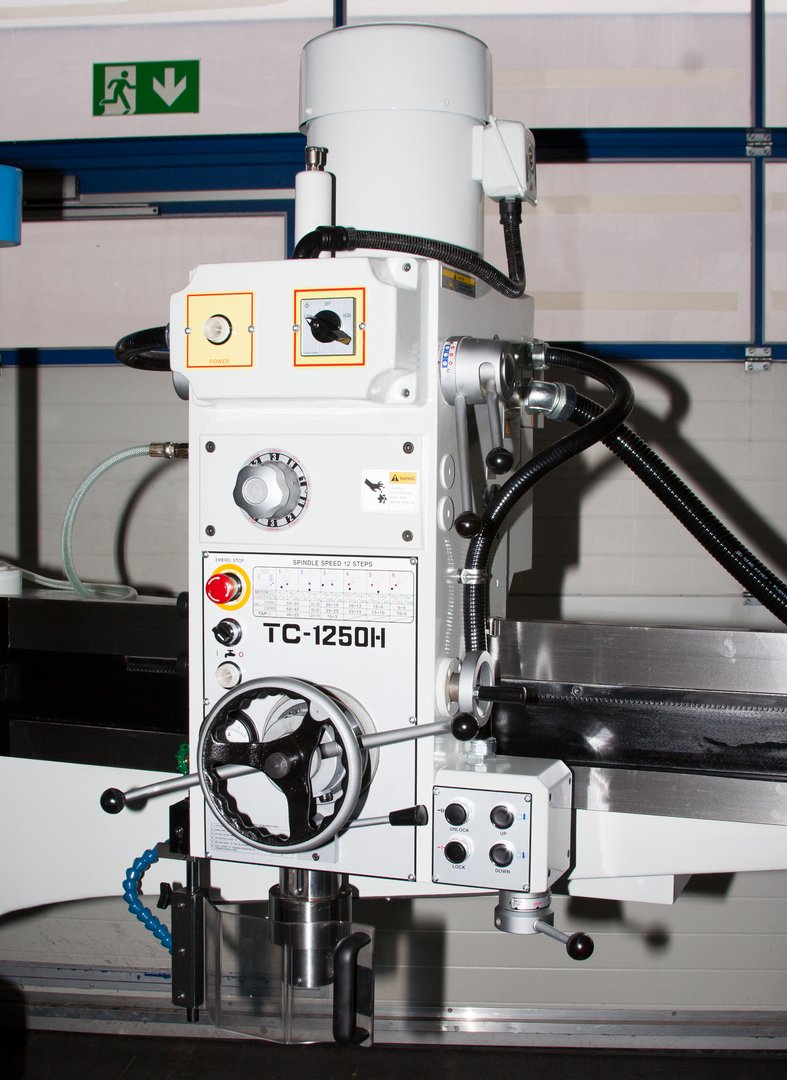

central operation panel on the front side
power load readout for drilling spindle

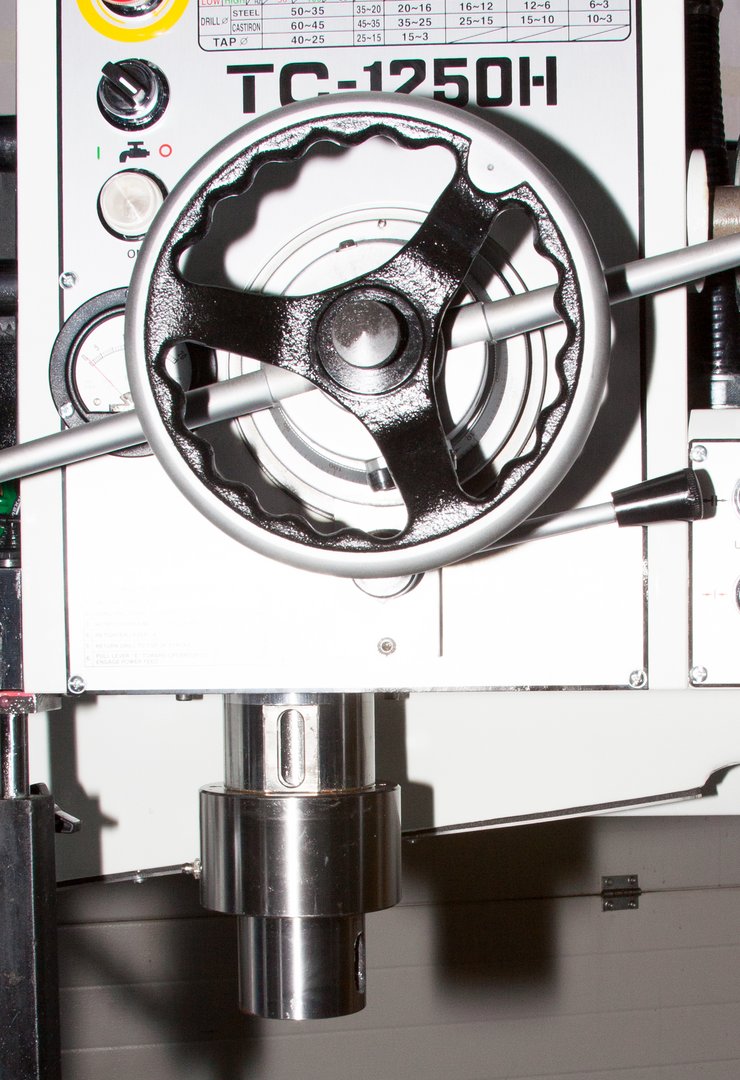

hand wheel for spindle fine feed
coolant equipment
machine lamp

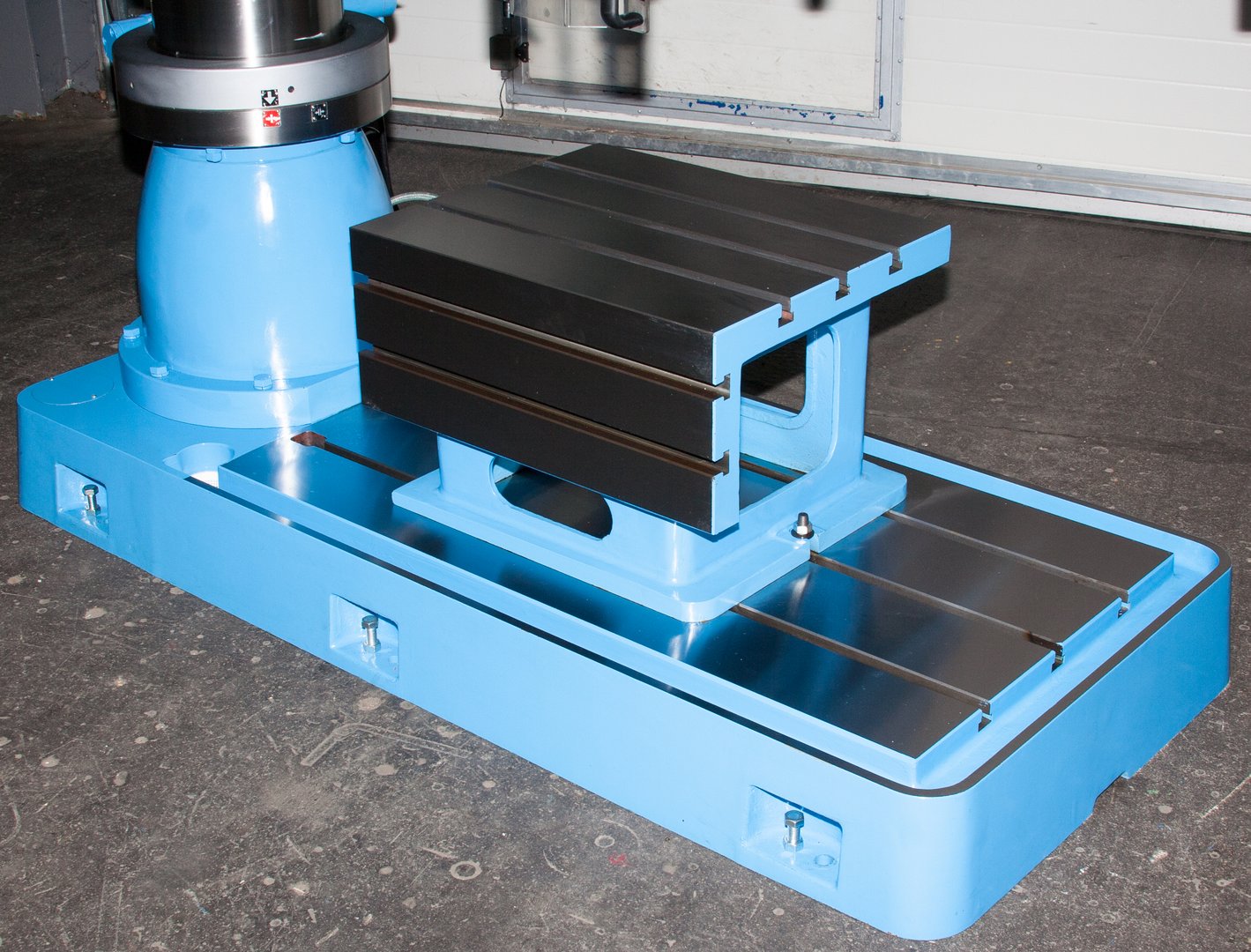

box table
machine and equipment according to the CE-regulations
operating manual in GERMAN and ENGLISH
Further information
Brochures
Product video

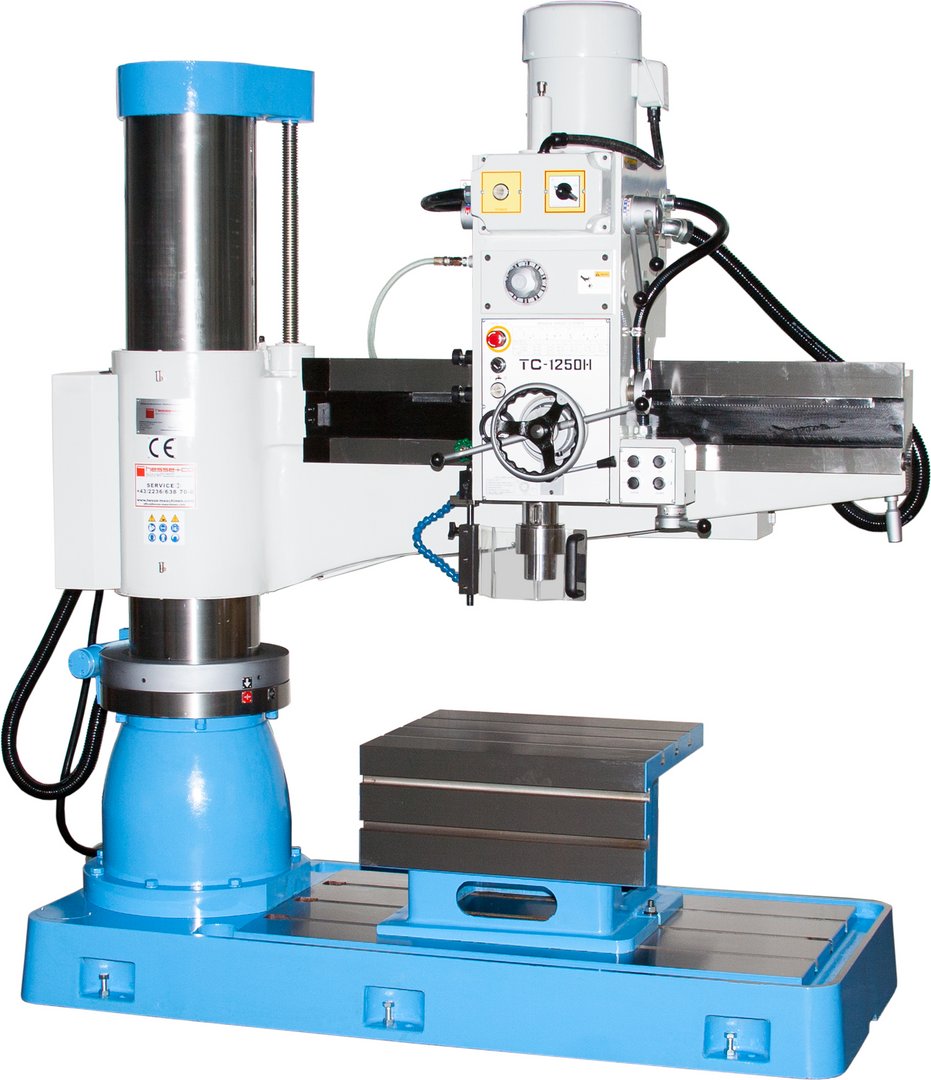

Radial drilling machine TC-1250H
