General characteristics
| Drilling capacy mild steel | 35 mm |
| Spindle cone | MK 4 |
| Distance spindle - column | 390 mm |
| Revs | 94- 2.225 (16) 50 Hz 113 - 2.670 (16) 60 Hz r.p.m. |
| Tapping capacity | M35 |
| Quill travel | 180 mm |
| Distance spindle - table | 190 - 650 mm |
| Distance spindle-base | 1310 mm |
| Column diameter | 125 mm |
| Table | 400 x 420 mm |
| automatic feed | 0,10 - 0,18 - 0,24 (3) mm/min |
| Motor speed | 750 - 1.500 rpm |
Dimensions and weight
| Length | 1660 mm |
| Width | 1510 mm |
| Height | 2600 mm |
| Weight | 910 kg |
Description

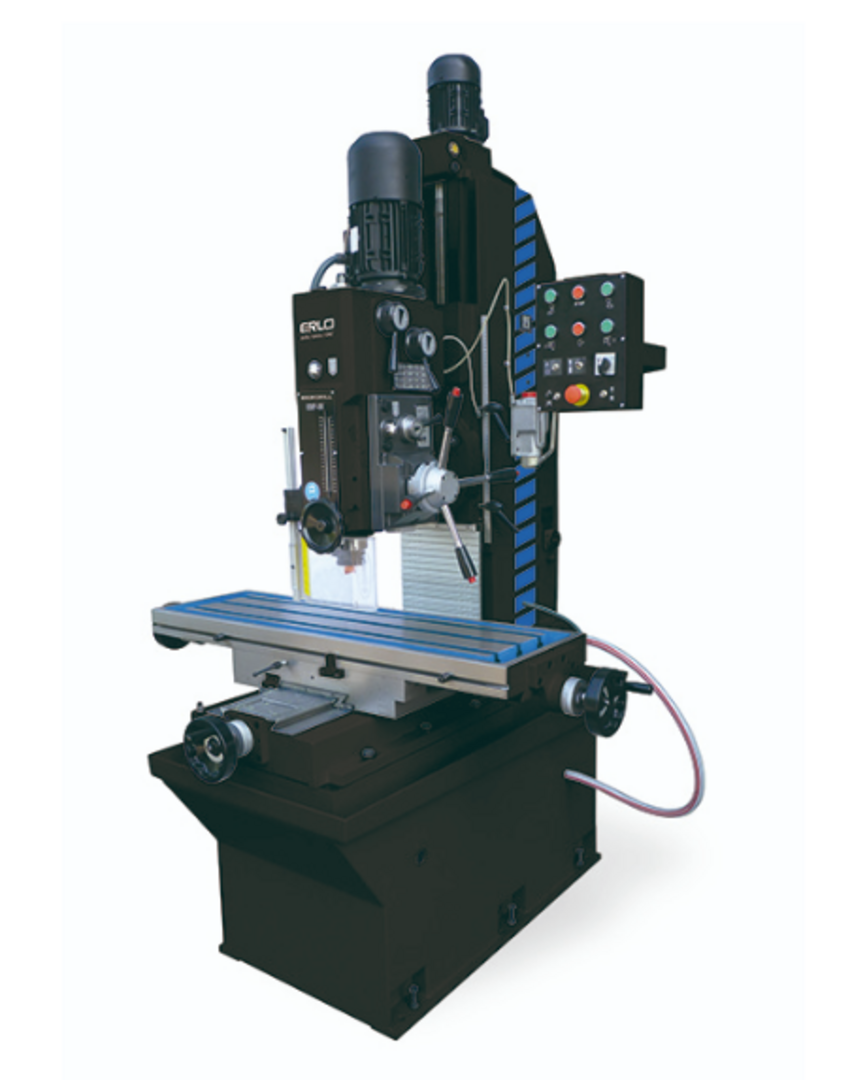

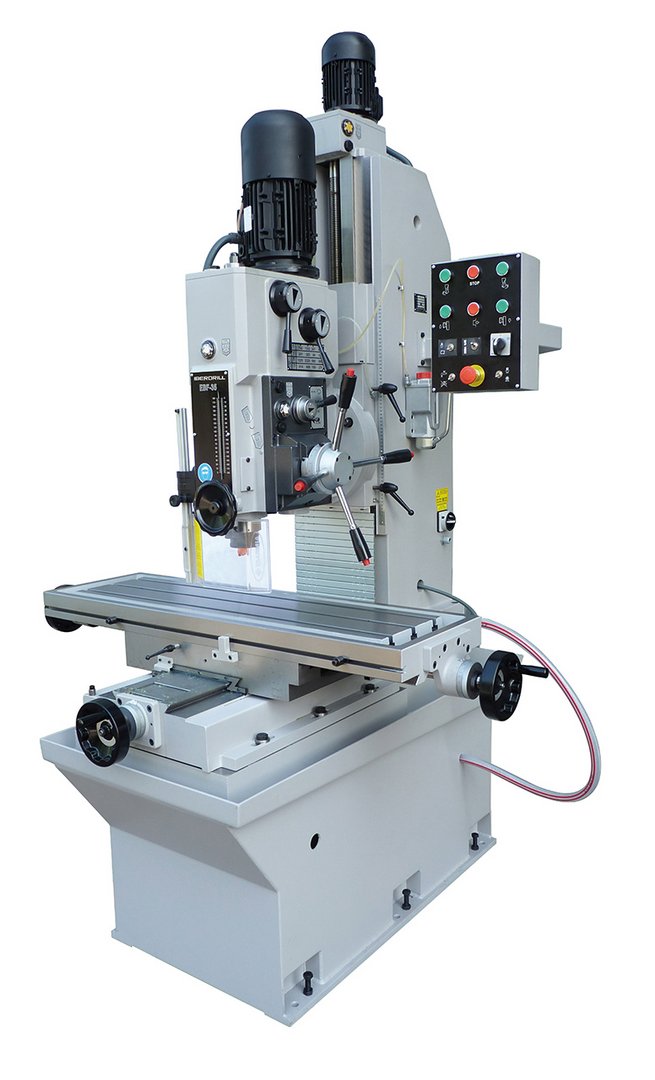

ERLO (MADE IN SPAIN)
for demanding workshop use
drilling and milling machine
automatic feed
precision electromagnetic clutches
geared drive
cross table
fixed base and displaceable headstock
control panel
cooling equipment with electric motor pump
hand wheel for fine tuning
clamping device for tools
adjustable stop
drill guard
Optional equipment:
Digital read out for drilling depth
Tapping device
Motorized longitudinal and/or transverse feed
Digital read out for table axes and/or drill head height adjustment
