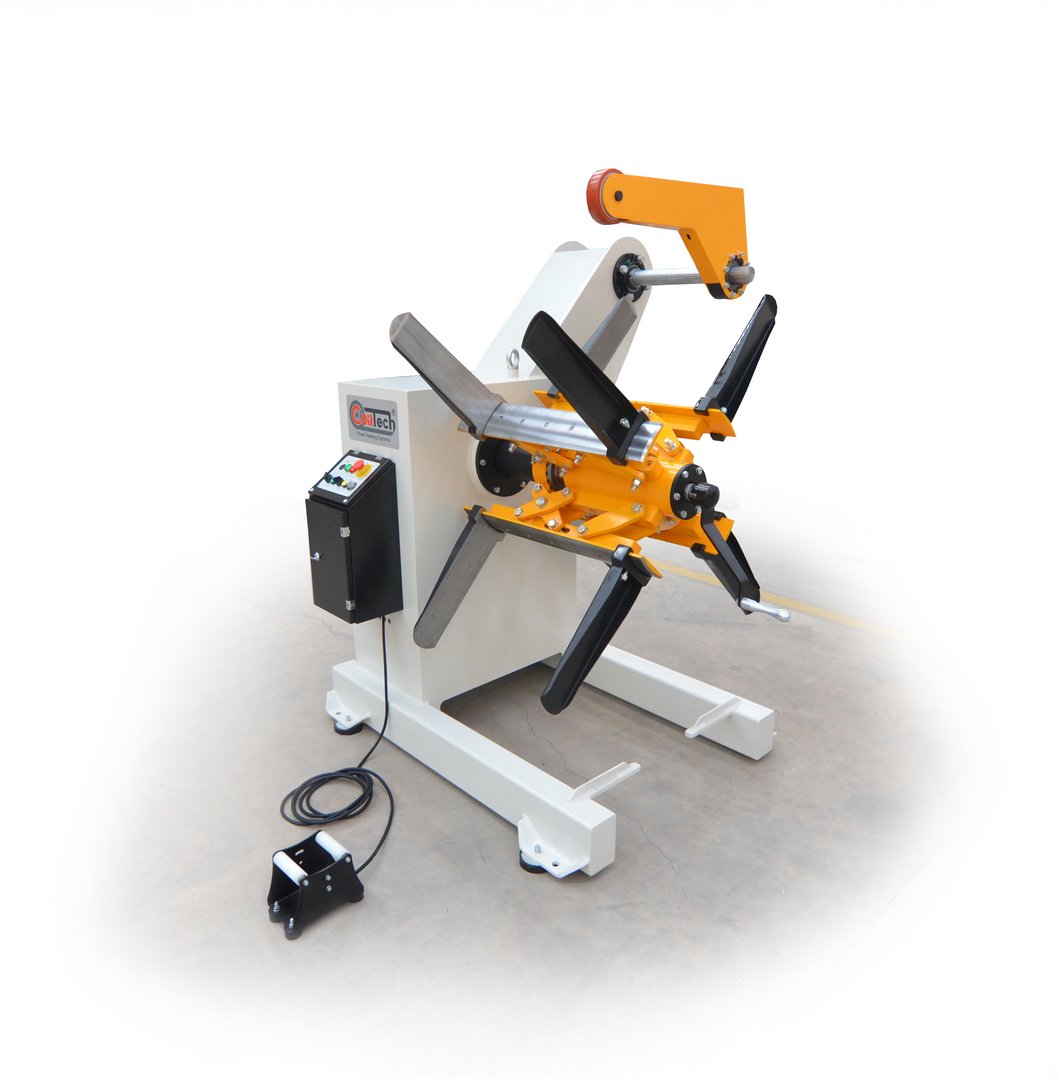

Decoiler HESSE by COILTECH CMC S 2500 600 M D1300
| Model | CMC S 2500 600 M D1300 |
| Brand | HESSE by COILTECH |
| Condition | new |
| Coil weight | 2500 kg |
| Max. coil width | 600 mm |
| Origin | Türkiye |
General characteristics
| Coil weight | 2500 kg |
| Coil outer diameter | 1300 mm |
| Min. coil inner diameter | 450 mm |
| Max. Coil inner diameter | 550 |
| Max. coil width | 600 mm |
| Min. Coil width | 50 |
| Min. coil width for version with pneumatic downholder | 80 mm |
Dimensions and weight
Description
motorized drive
mechanical adjustable coil mandrel with 4 jaws
speed control for decoiling speed aswell as acceleration- and deceleration times
photoelectric proximity ensor SICK for sag control
Option:
Pneumatic downholder (CMC P3 2500 600 M D1300) € 2.100,--
Because the application areas are always very specific for each customer and require intense counseling, we kindly ask for your inquiry in order to make you an individual offer!
Further information
Brochures
Product video
Decoiler CMC S 2500 600 M D1300
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
