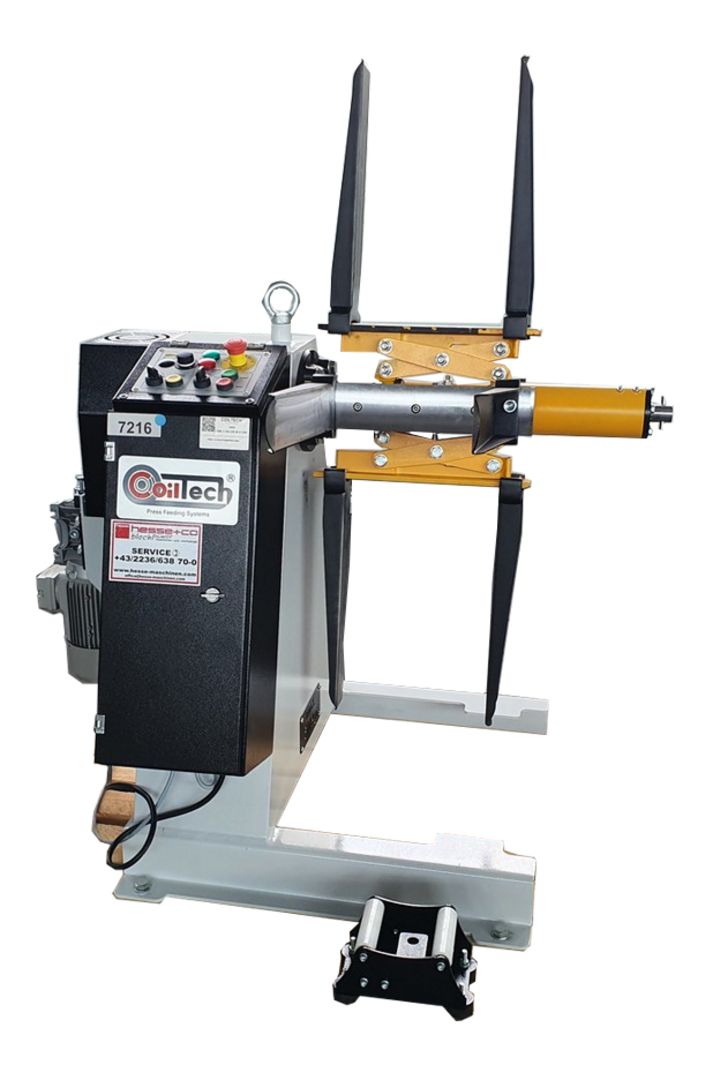

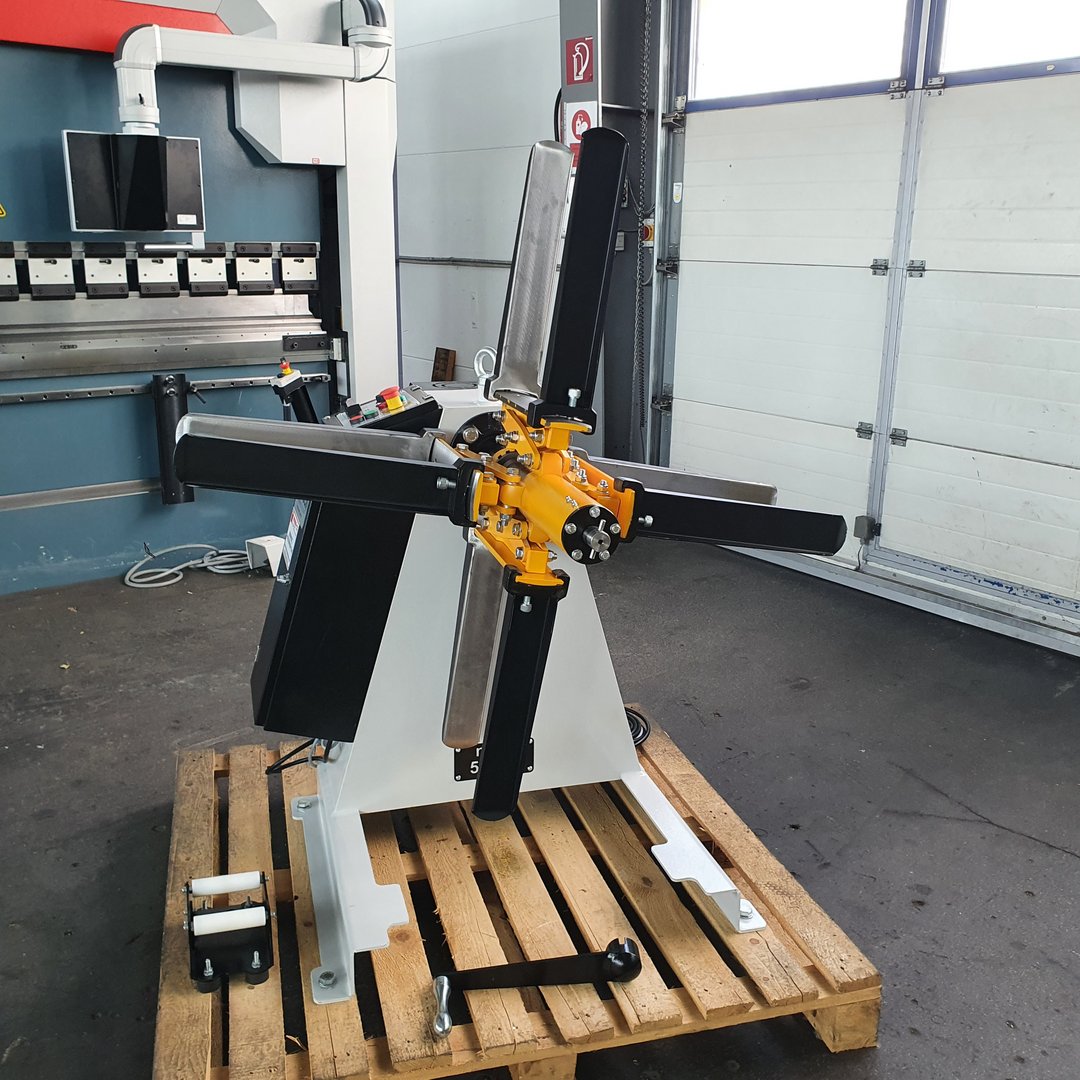

Decoiler HESSE by COILTECH CMC S 500 300 M D1200
| Model | CMC S 500 300 M D1200 |
| Brand | HESSE by COILTECH |
| Condition | new |
| Coil weight | 500 kg |
| Max. coil width | 300 mm |
| Origin | Türkiye |
General characteristics
| Coil weight | 500 kg |
| Coil outer diameter | 1200 mm |
| Min. coil inner diameter | 470 mm |
| Max. Coil inner diameter | 520 |
| Max. coil width | 300 mm |
| Min. Coil width | 50 |
| Min. coil width for version with pneumatic downholder | 80 mm |
| Motor | 0.55 kW |
Dimensions and weight
| Length | 1400 mm |
| Width | 1200 mm |
| Height | 1550 mm |
| Weight | 190 kg |
Description
motorized drive

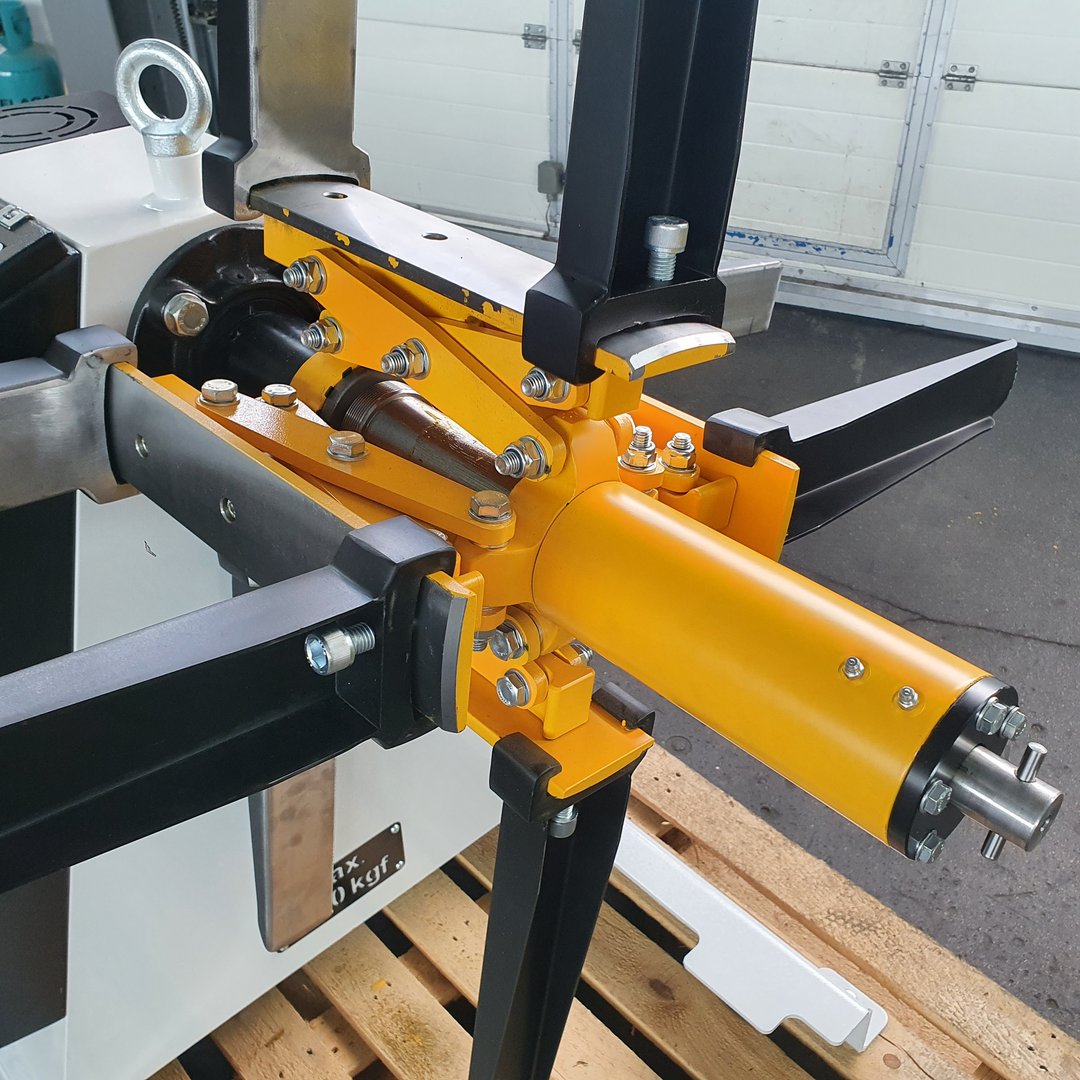

mechanical adjustable coil mandrel with 4 jaws

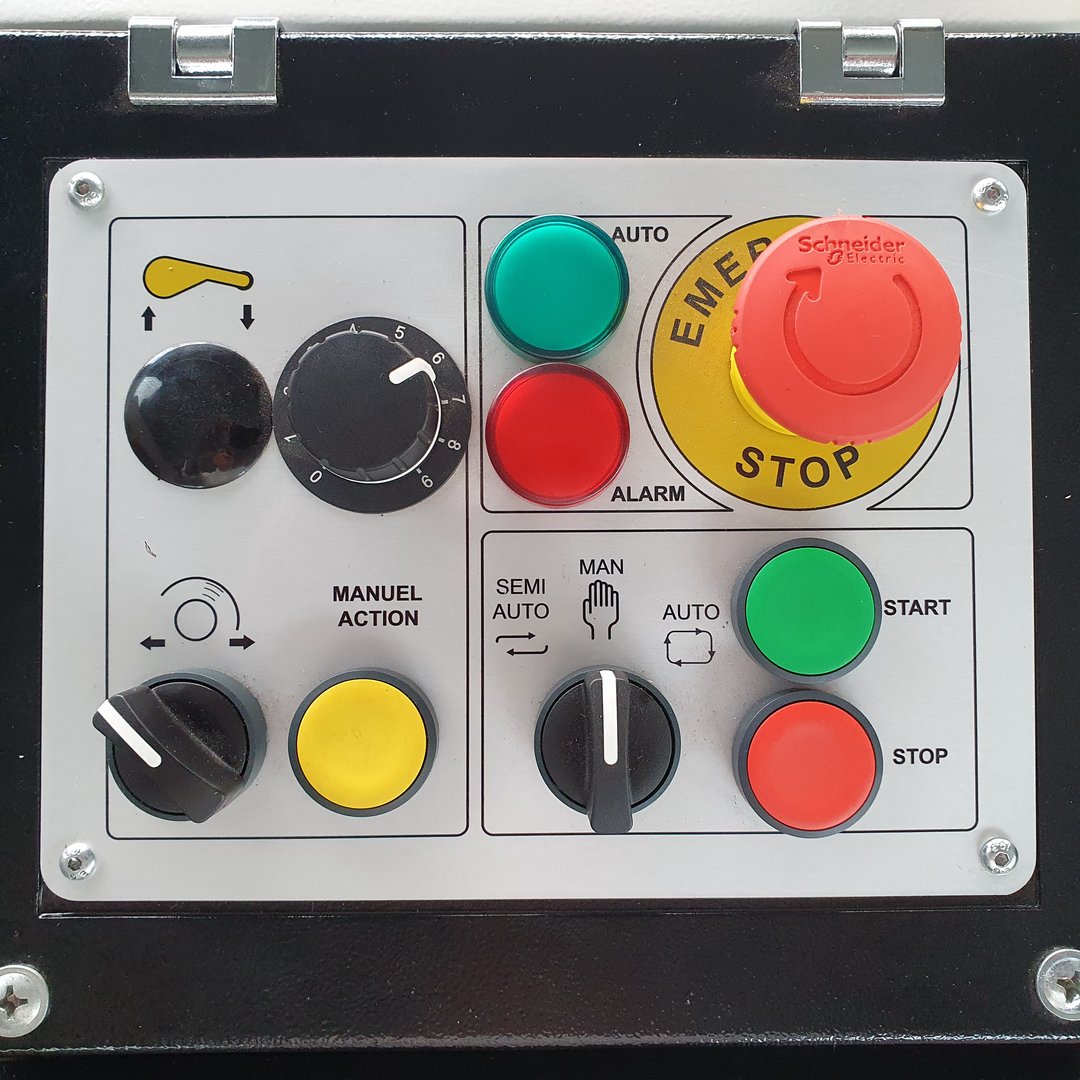

speed control for decoiling speed aswell as acceleration- and deceleration times
photoelectric proximity ensor SICK for sag control
