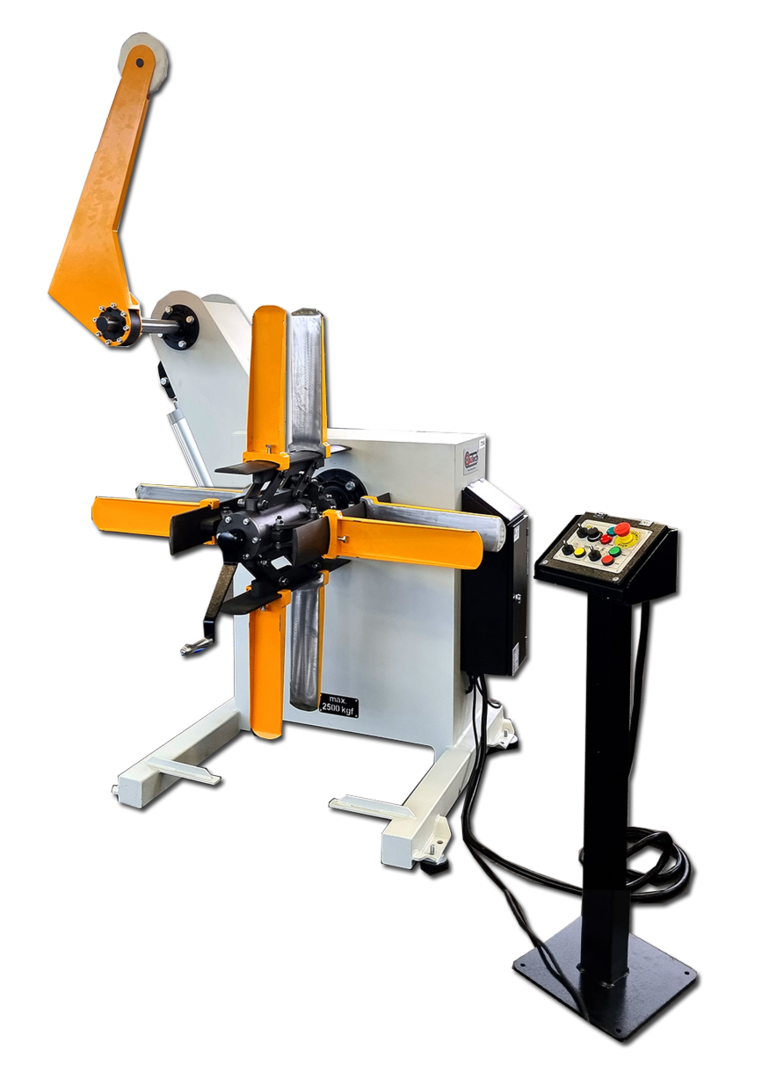

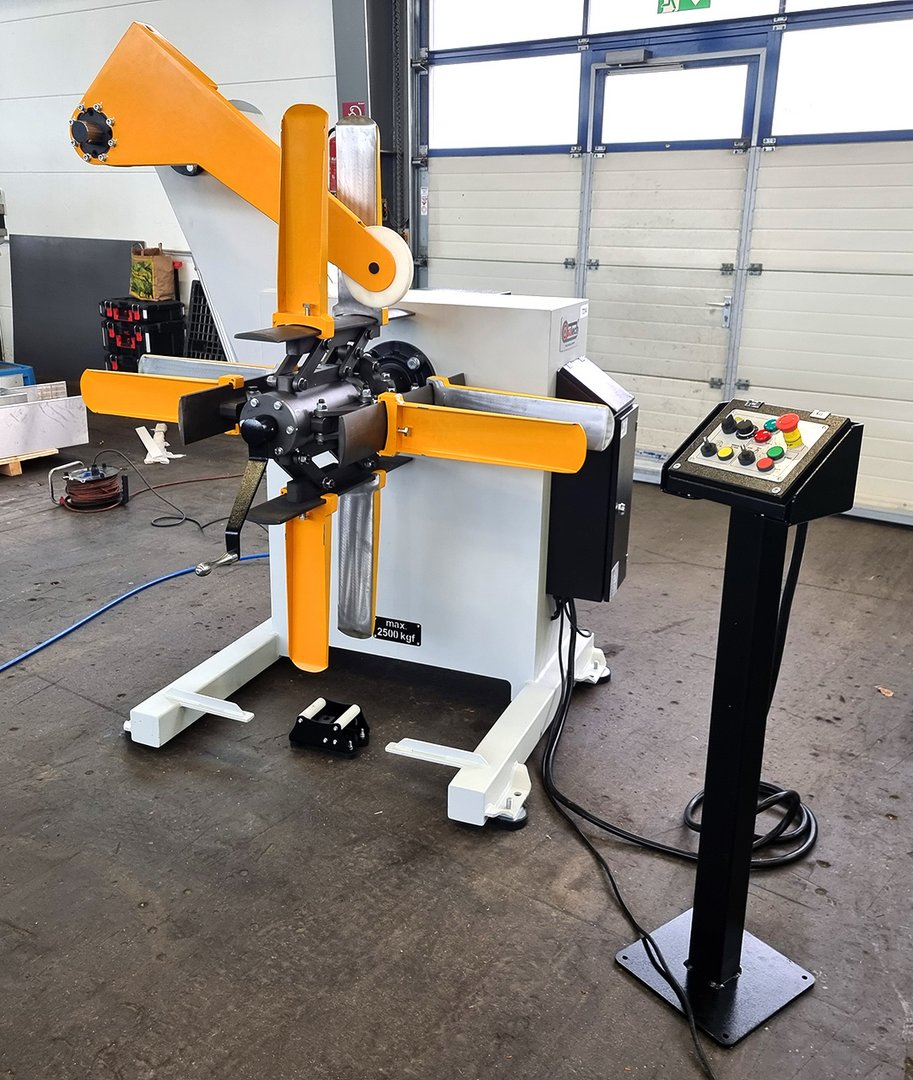

Decoiler HESSE by COILTECH CMC P3 2500 600 M D1300
| Model | CMC P3 2500 600 M D1300 |
| Brand | HESSE by COILTECH |
| Condition | new |
| Year of manufacture | 2024 |
| Coil weight | 2500 kg |
| Max. coil width | 600 mm |
| Stock number | 7314 |
| Origin | Türkiye |
General characteristics
| Coil weight | 2500 kg |
| Coil outer diameter | 1300 mm |
| Min. coil inner diameter | 450 mm |
| Max. Coil inner diameter | 550 |
| Max. coil width | 600 mm |
| Min. coil width for version with pneumatic downholder | 80 mm |
Dimensions and weight
| Length | 1600 mm |
| Width | 1550 mm |
| Height | 2000 mm |
| Weight | 580 kg |
Description
motorized drive

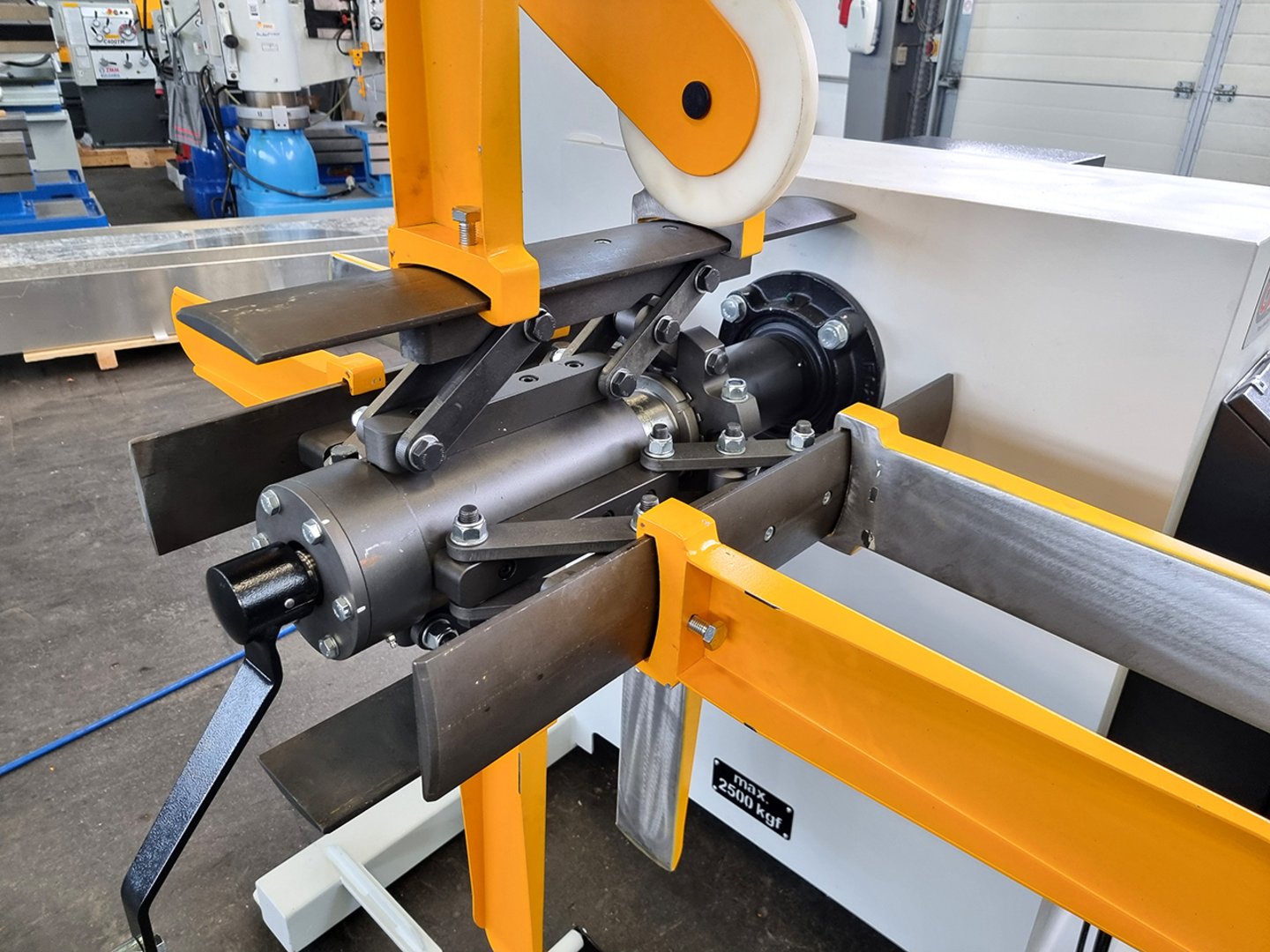

mechanical adjustable coil mandrel with 4 jaws

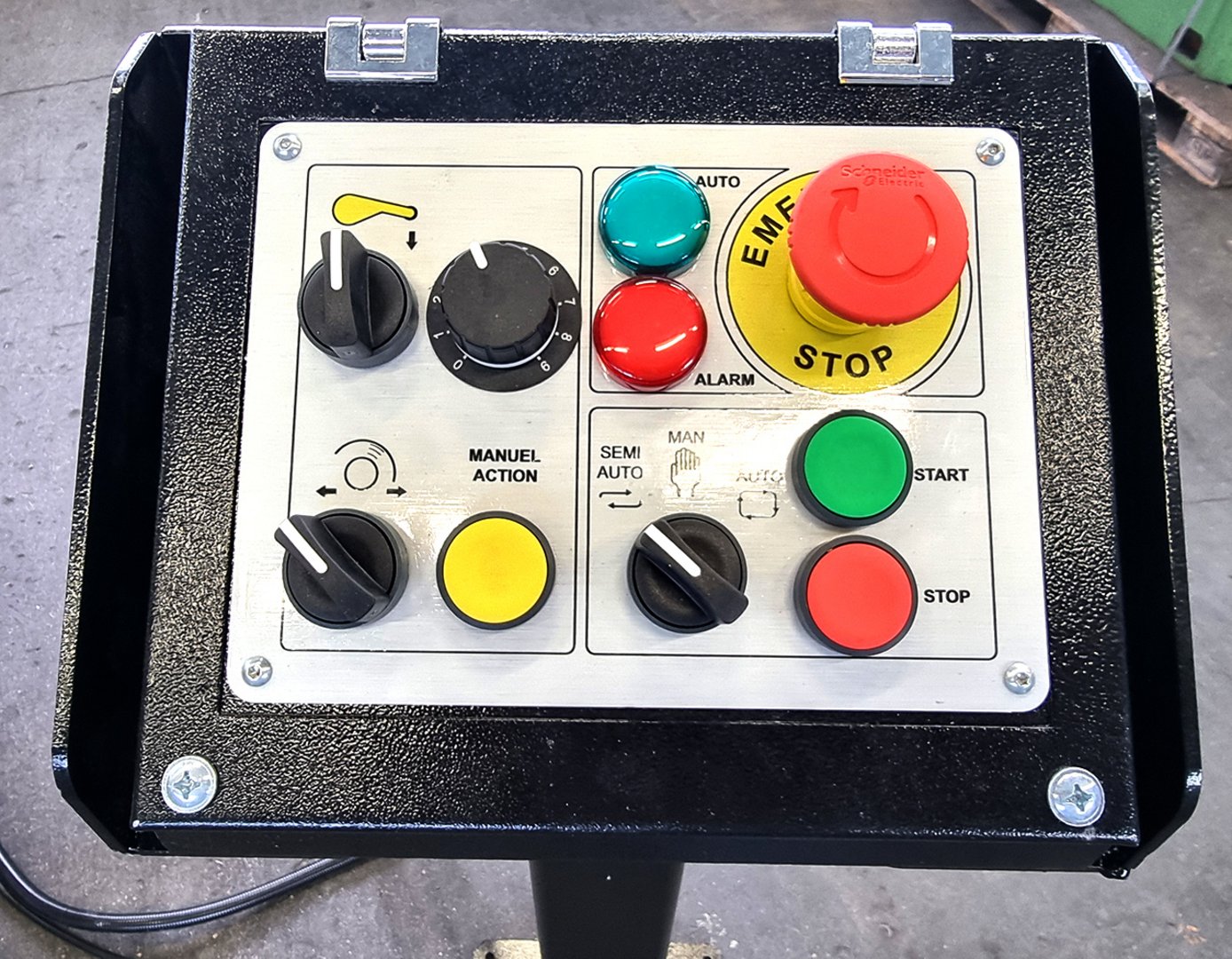

speed control for decoiling speed aswell as acceleration- and deceleration times
photoelectric proximity ensor SICK for sag control

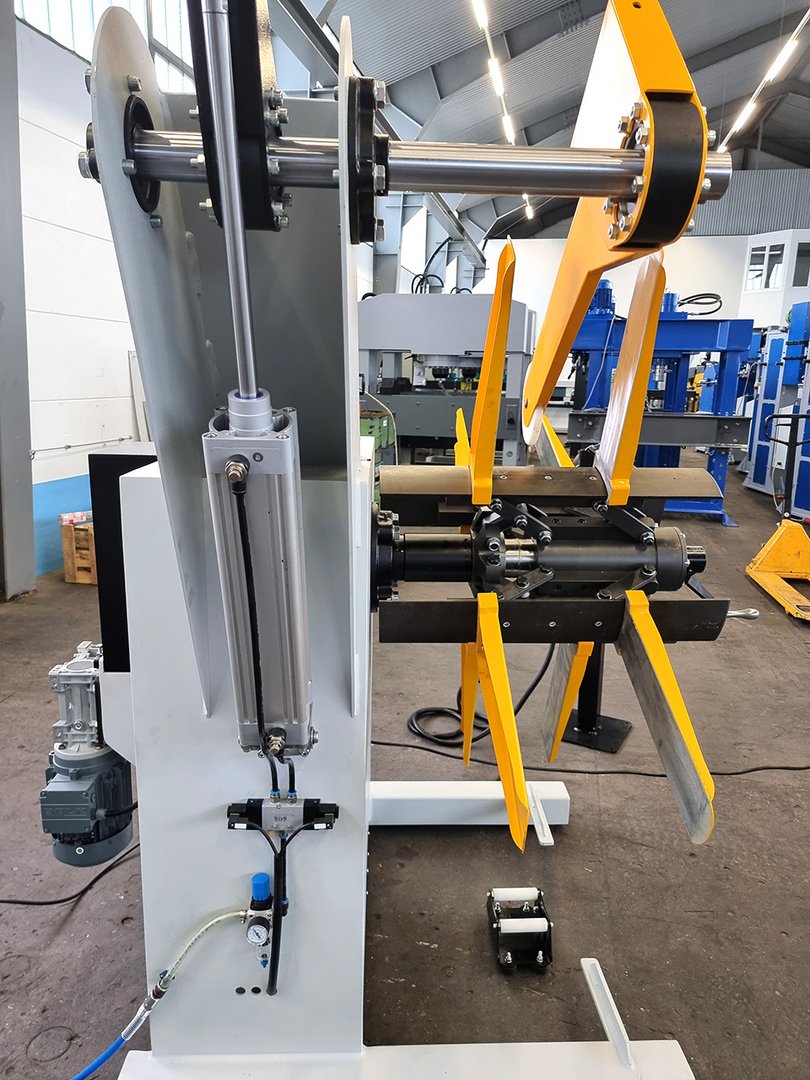

Pneumatic downholder
Further information
Brochures
Product video
Decoiler CMC P3 2500 600 M D1300
