General characteristics
| Working width | 650 |
| Sheet thickness range - mild steel | 0,5 - 170 mm |
| Grinding belt dimensions | 670 x 2200 mm |
| Suction capacity | 4000 m³/h |
| Connection for dust collector diam. | 120 mm |
| Air connection | 6 bar |
| Noise level | 83 dB |
| Motor | 22 kW |
Dimensions and weight
| Length | 2600 mm |
| Width | 1350 mm |
| Height | 2100 mm |
| Weight | 1125 kg |

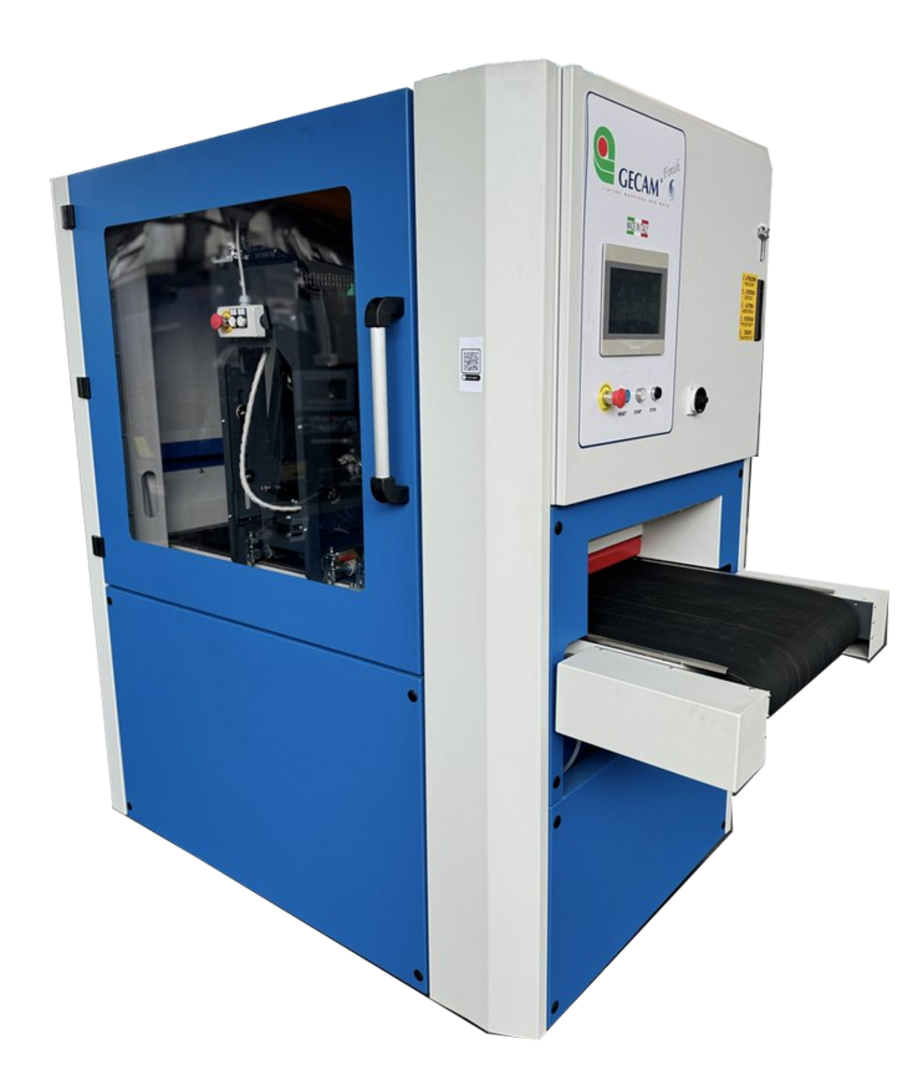

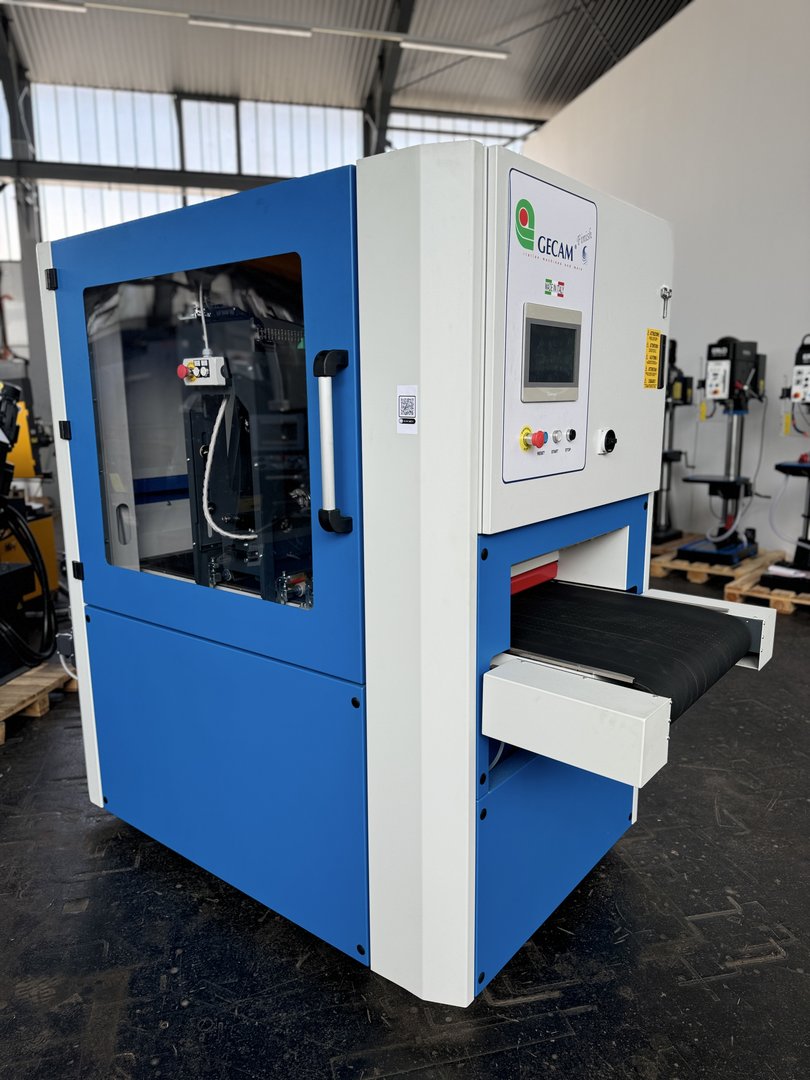

Description
with 2 Working Stations: 1 x Grinding belt und 1 x Brush unit on top
Machine made of stress-free welded steel construction for stable and rigid structure.
Work table with motorised height adjustment via 4 synchronised spindles.
Independent drive motors for each work group.
Hoods for extraction inside the machine, one per station.

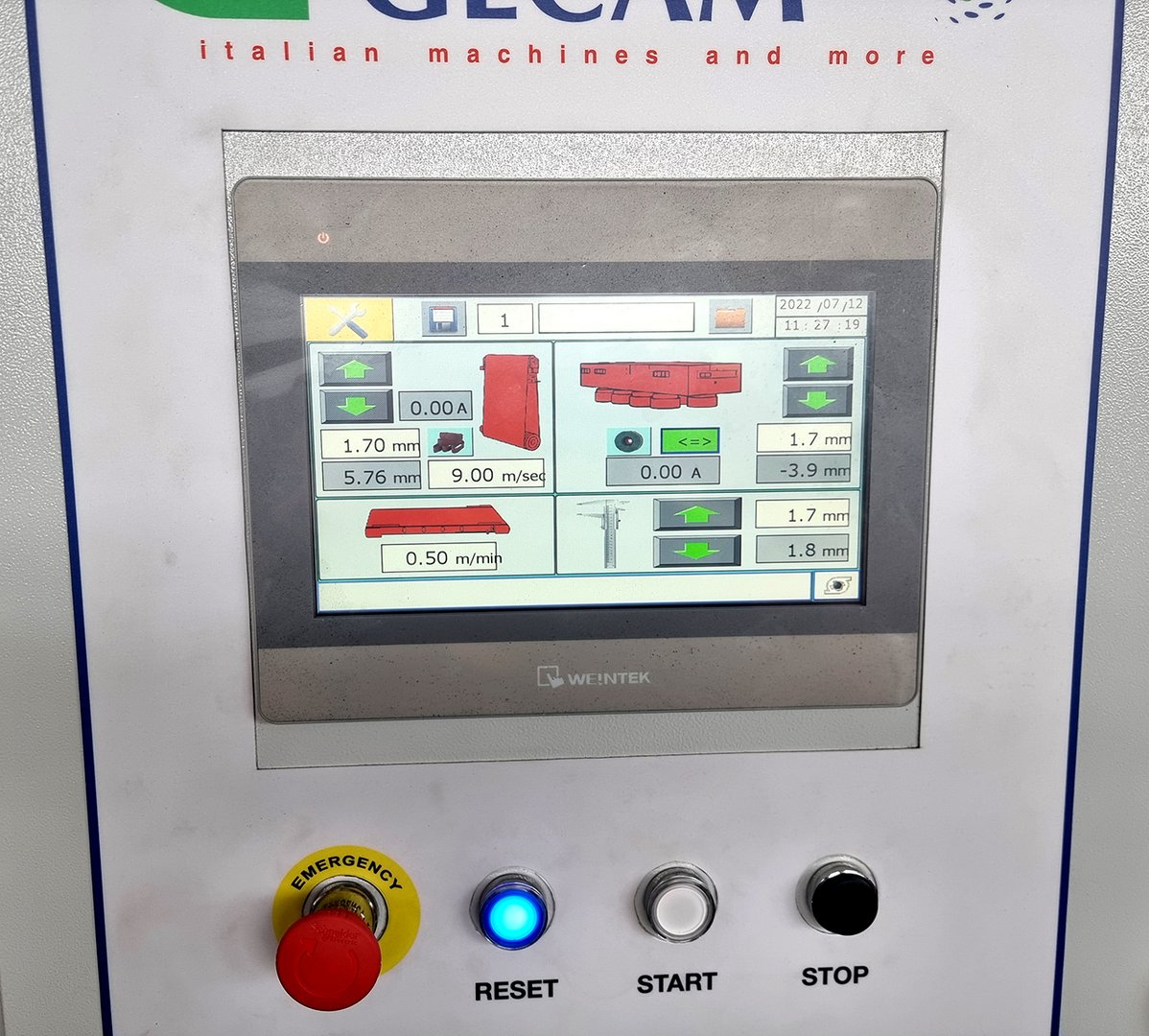

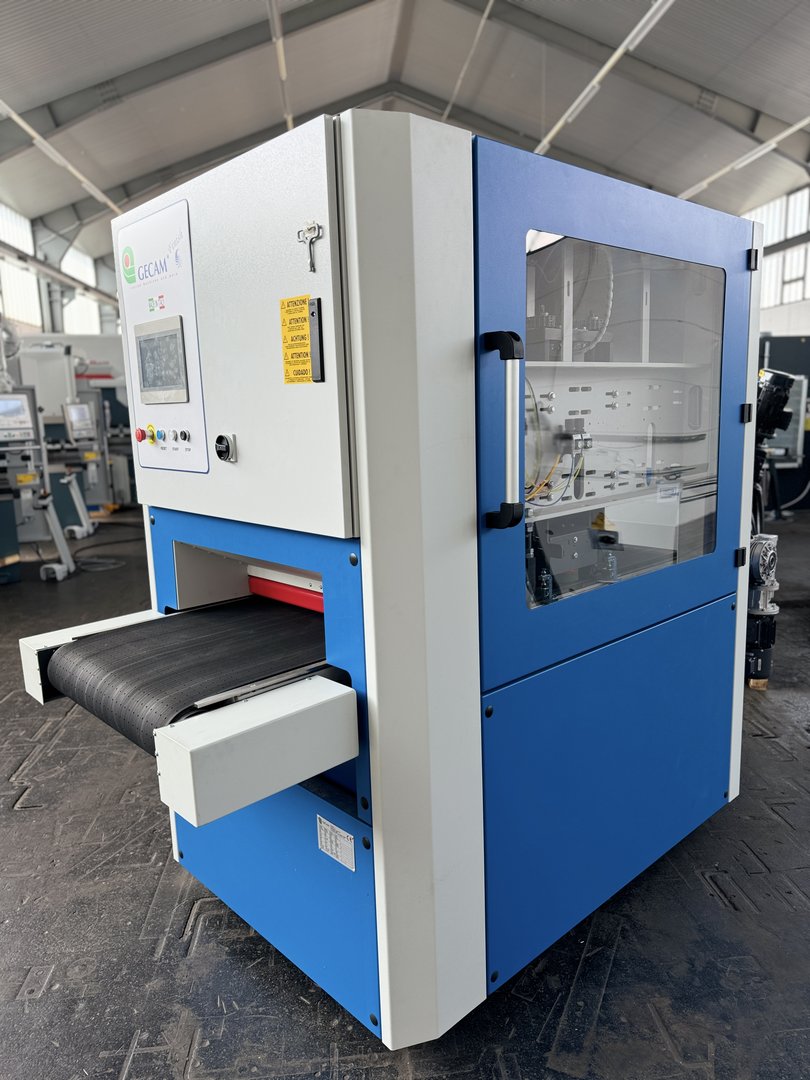

Touch screen for
- Automatic star-delta connection of the main motors
- Analogue ammeter for each group
- Digital display for sheet thickness with decimal point tolerance
- Material thickness adjustment (+/- 0.1 mm)
- Machine condition monitoring with alarm messages

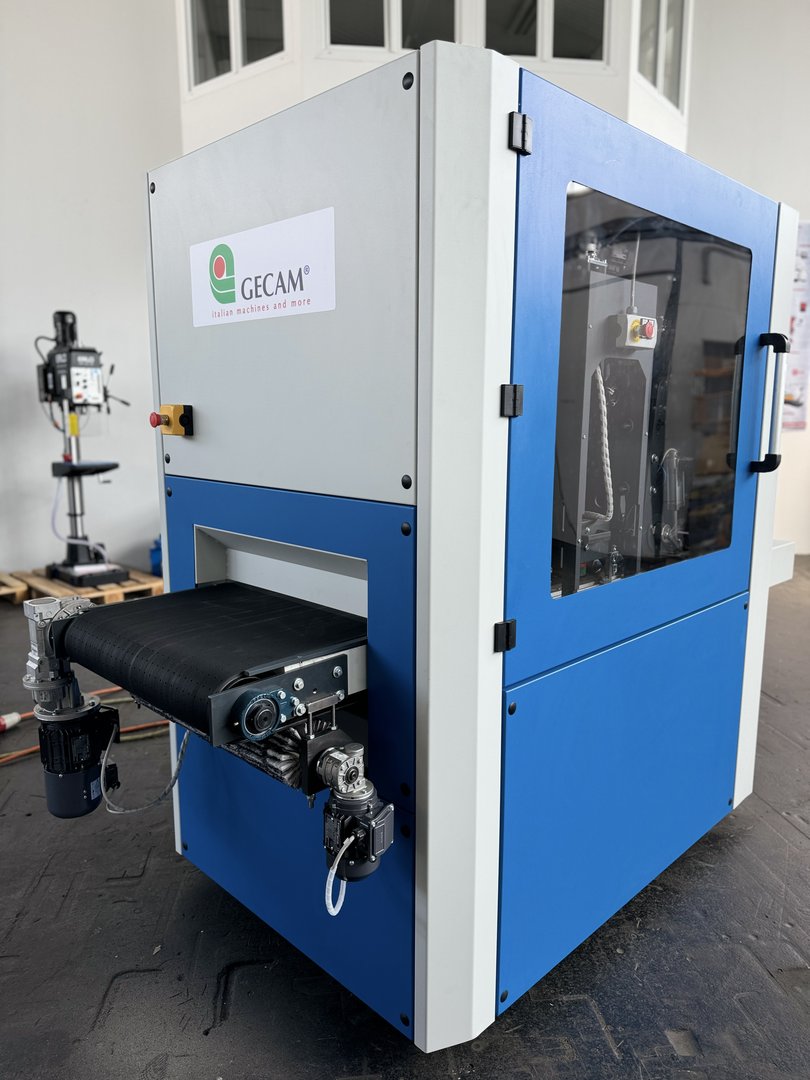

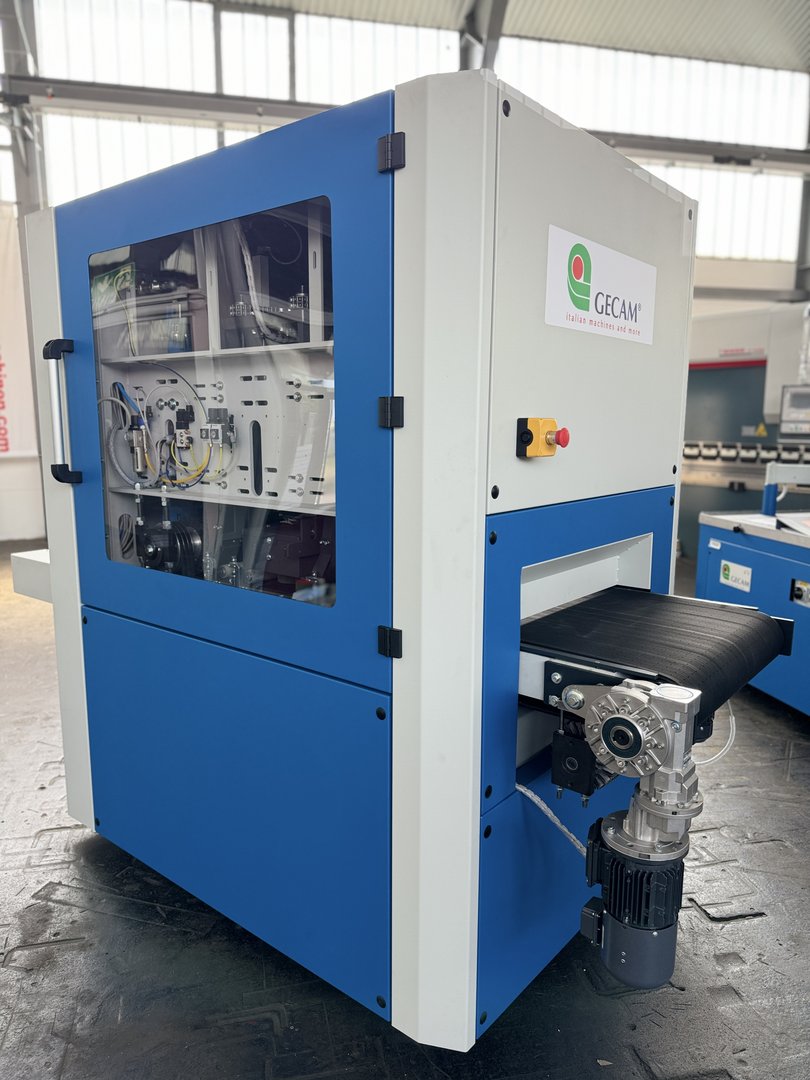

FEEDING SYSTEM
Robust steel structure, wear-resistant surface.
Vacuum conveyor belt on request
Variable feed speed via frequency converter 0.6 to 6.5 m/min.
Rubber conveyor belt, oil and temperature resistant
Automatic conveyor belt centring
Lateral guides to prevent the belt from lifting off.
Rubber pressure rollers in front and behind each station, oil and temperature resistant
Idle rollers at the front and rear table
Incl. optional Tampico Brush system for conveyor belt cleaning Ø 150 mm

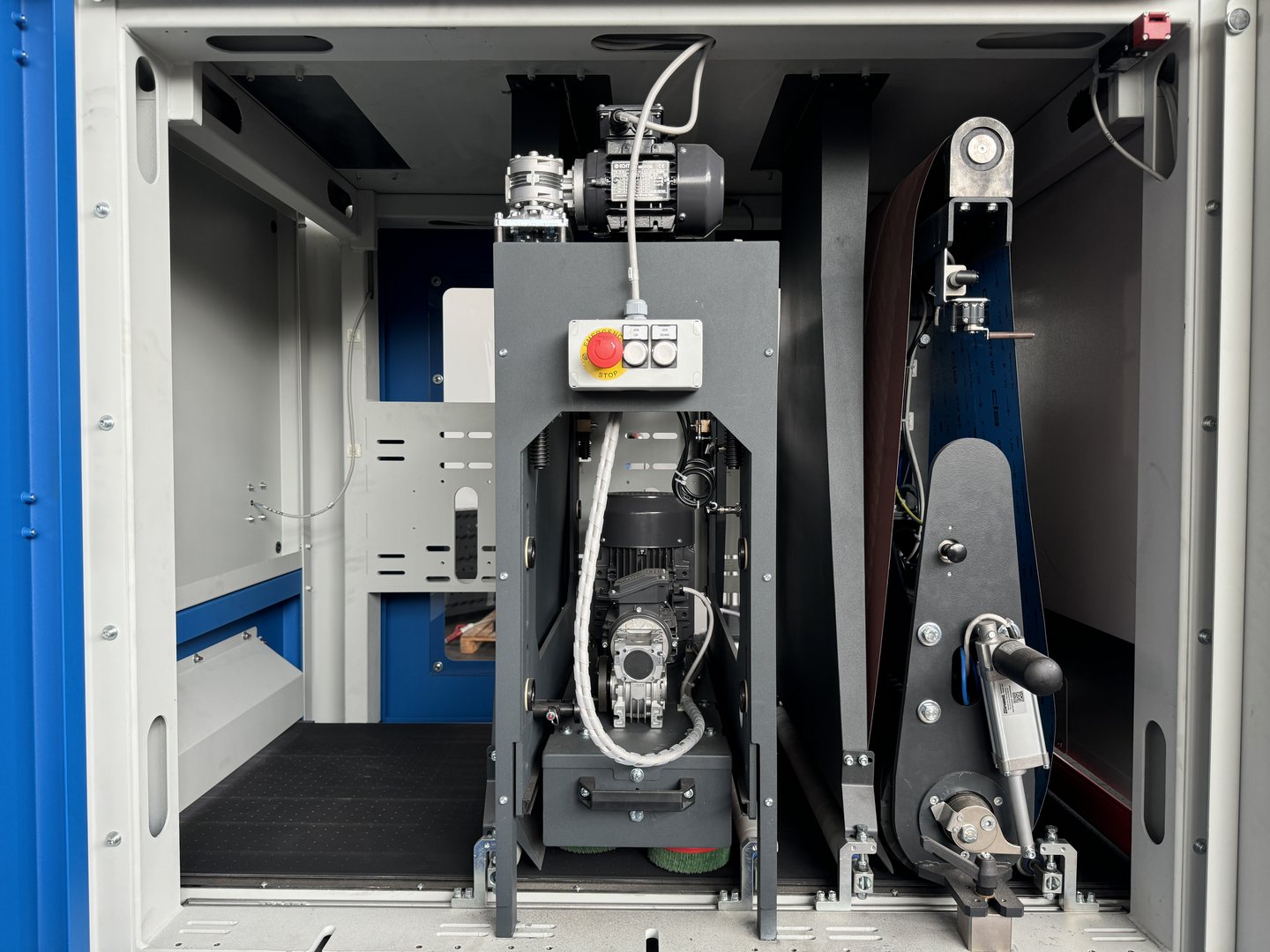

1 . WORKING GROUP - R
Balanced contact roller Anti-oil and anti-heat Nitrile rubber coating
Adjustable via eccentric shaft for working position and compensation of abrasive belt wear
Pneumatic cylinder for automatic feed to working position and for lifting in case of emergency stop.
Abrasive belts and/or Scotch Brite can be used.
Motorised adjustment and electronic control of contact roll height.
Variable speed motor with automatic brake in case of emergency.
Pneumatic tensioning system for the abrasive belt.
Sanding belt centring system, with electronic photocell.
Oscillation adjustment in width and time.
| Diameter of contact roller | mm | 125 |
| Hardness of the rubber wheels | Shore | 55 |
| Stroke of the contact roller adjustment up-down "Grain adjustment | mm | 8 |
| Positioning accuracy of the contact roller adjustment | mm | +/- 0,02 |
| Positioning speed of the contact roller adjustment | m/sek | 10 |
| Grinding belt speed | m/sek | 3-18 |
| Motor power | kW | 7,5 |
2. WORKING GROUP - X
2 rows of vertical brushes, 4 rotating clockwise and 4 counterclockwise.
Transverse movement of the entire group (oscillating)
Quick change holder for brushes
| Brush diameter | mm | 115 |
| Number of brushes | No | 8 |
| Oscillation stroke | mm | 15 |
| Rotation motor power | kW | 2,2 |
| Revs | 1/min | 1000 |
| Oscillation motor power | kW | 0,4 |
| Grinding brush speed | m/sec | 10,0 |
Optional accessories:
B Group - External barrel brush Ø 150 mm
| with Scotch Brite Brush | € | 5150,00 |
| with Wire Brush 0,3 mm | € | 6060,00 |
R Group - Grinding belt
| Motor 11 kW | € | 740,00 |
X Group - Cup brushes
| Motor with variable speed 5,5 kW 350/1100 | incl. |
Options:
| Return to Sender System (Grinding part is discharged to the front again) | € | 1770,00 |
| Conveyor belt with vacuum system - 3,0 kW | € | 5150,00 |
| Additional PVC coated rollers on infeed and outfeed side | € | 1510,00 |
| Air pressure system for cleaning the conveyor belt | € | 1290,00 |
| Tampico Brush System for parts cleaning 0,55kW Ø 150 mm | € | 4670,00 |
| Tampico Brush system for conveyor belt cleaning Ø 150 mm | € | 3200,00 |
| magnetic conveying system - 2 groups, 200 x 200 mm | € | 12020,00 |
| Demagnetiser | € | 4.940,00 |
The machine must be used with an extraction device. We recommend an extraction system with 4,000 m³/h.
