General characteristics
| Working width | 1300 |
| Sheet thickness range - mild steel | 150 mm |
| Brush diameter | 150 mm |
| Vacuum area | 250x350 mm |
| Table height | 945 mm |
| Motor | 0.75 kW |
Dimensions and weight
| Length | 1400 mm |
| Width | 1000 mm |
| Height | 1450 mm |
| Weight | 300 kg |
Description
Demo machine / mint condition
Net price (price for new machine € 13.600,00)

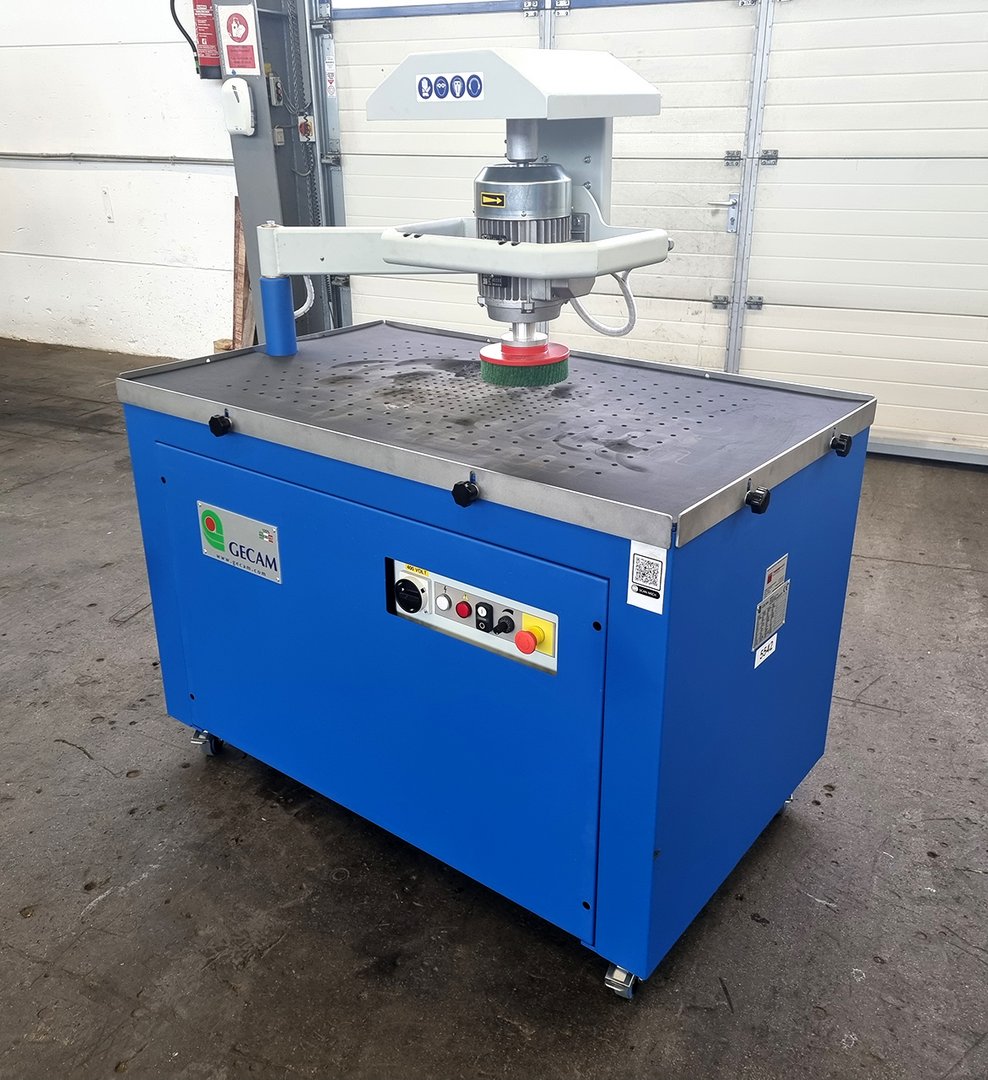

Easy T is a manually operated deburring machine suitable for various metalworking processes such as grinding, deburring, edge rounding and polishing for various types of materials - stainless steel, steel, copper, brass and aluminum.

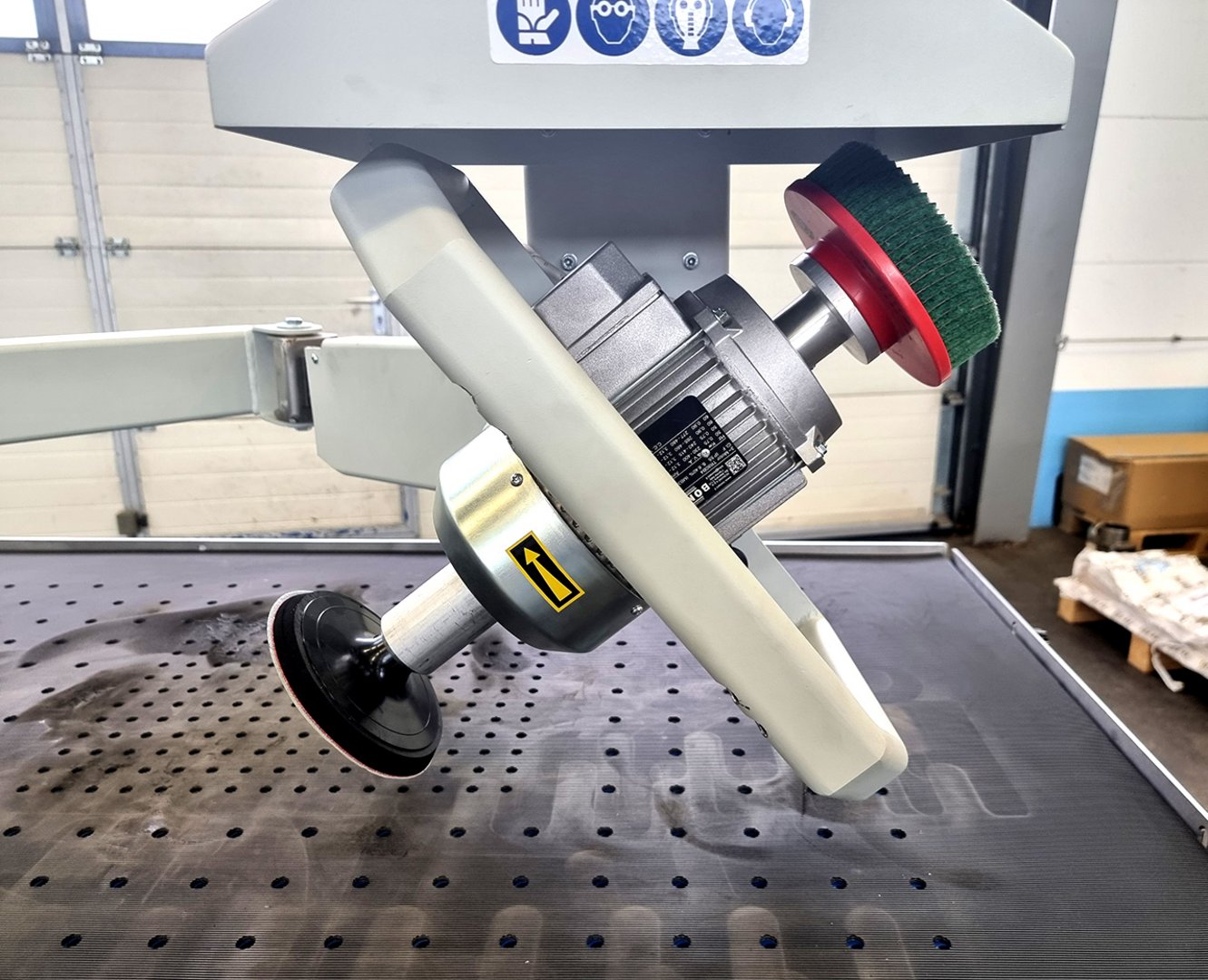

The grinding head with two rotating tools (grinding wheel or brush) is mounted on a swivel arm.
The Easy T is equipped with a freely adjustable speed and a vacuum system, so that workpieces are fixed on the table. It is a cost effective and effective solution for conventional grinding and deburring. All edges of the workpiece are machined from all angles and directions. The grinding head can be swiveled through 180 ° and enables a quick change of the grinding tool.
Properties:
- The grinding pressure is applied manually.
- When deburring from above, the workpieces are pressed onto the high-grip lid.
- Fast processing, low costs

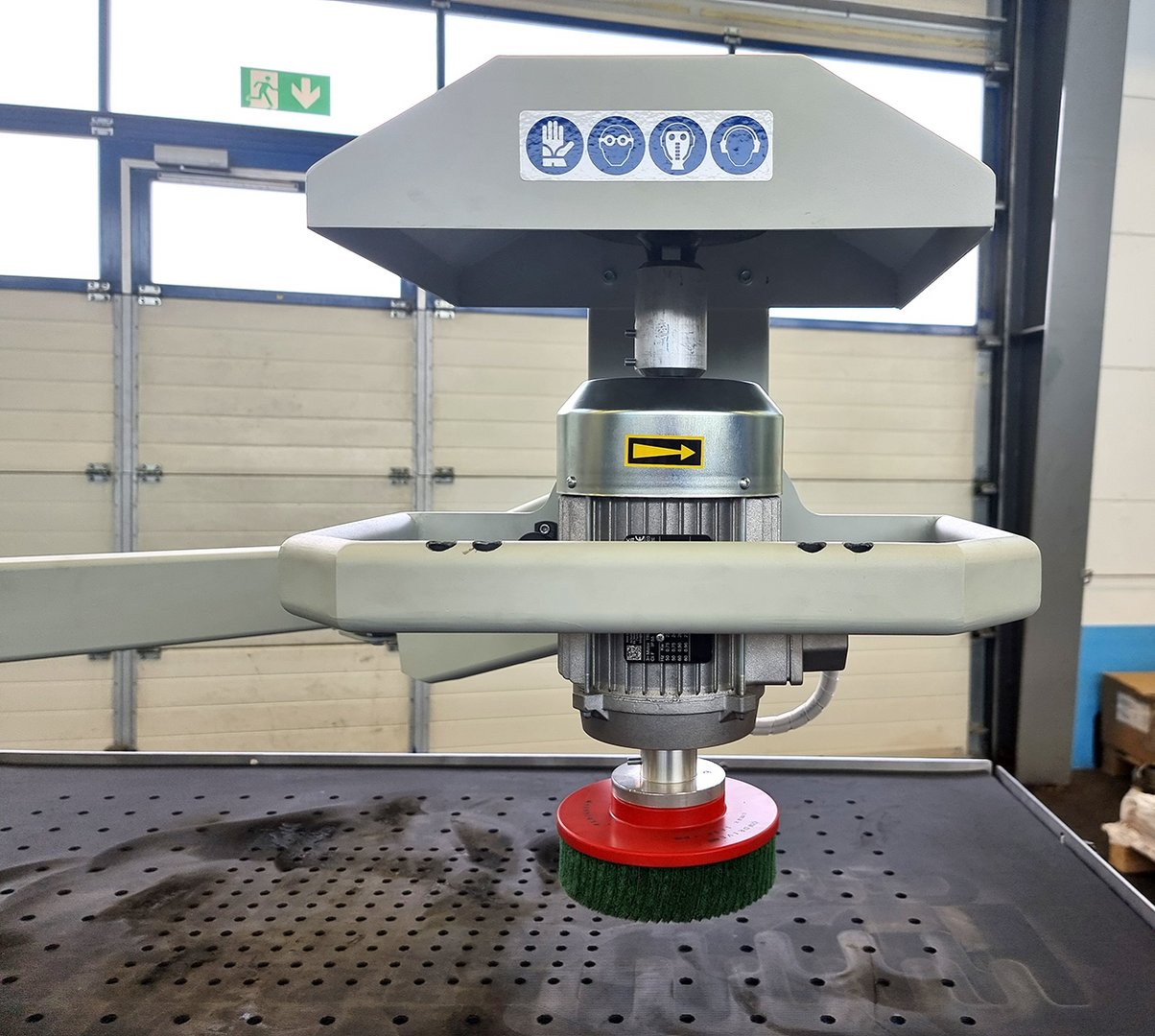

The brush ensures the rounding of the edges of the workpiece. The standard brushes have a diameter of 150 mm. To deburr the product, use a support pad with a grinding disc. Depending on the height and hardness of the burr, you can set the grinding wheel at a slight angle to allow more pressure on the burr.
Further information
Brochures
Product video
Deburring and edgerounding machine Easy T
