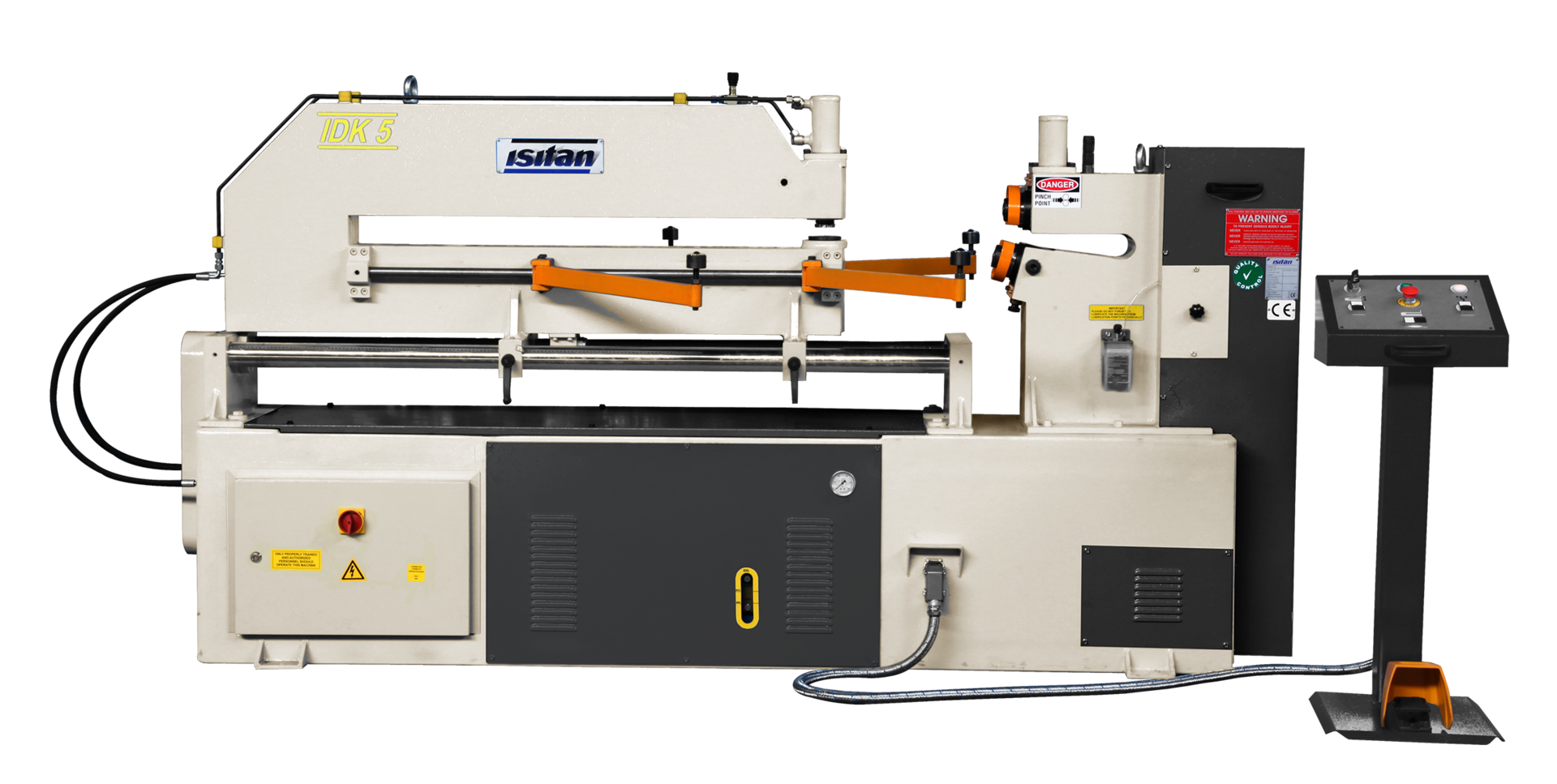

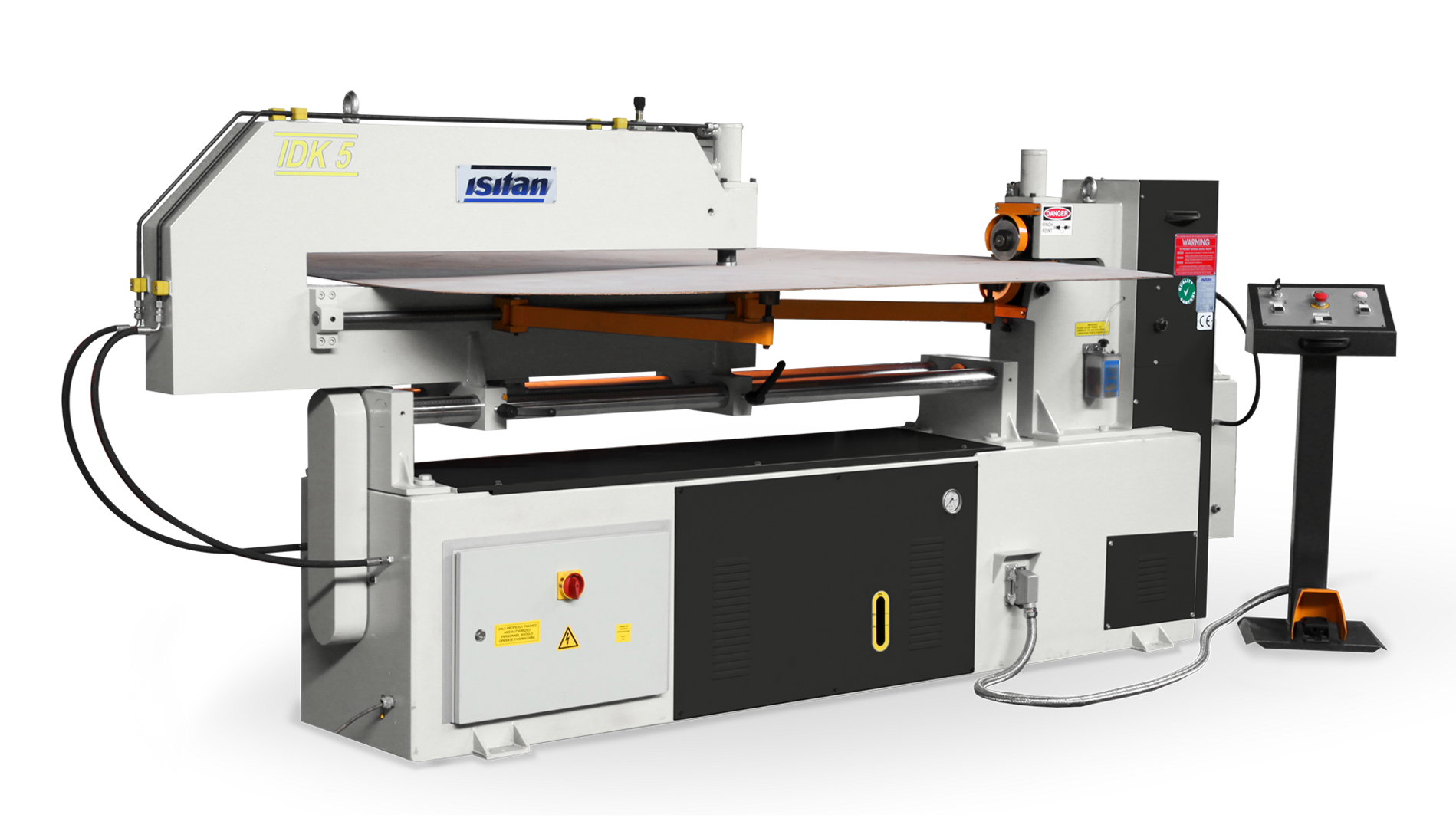

Circular shear HESSE by ISITAN IDK-5
| Model | IDK-5 |
| Brand | HESSE by ISITAN |
| Max. thickness - mild steel | 5 mm |
| min / max diameter | 250 / 2000 mm |
| Origin | Türkiye |
General characteristics
| Max. thickness - mild steel | 5 mm |
| Throat depth | 1200 mm |
| Motor | 2,2+0,75 kW |
| Speed | 4 m/min |
| min / max diameter | 250 / 2000 mm |
| gap on blade side | 300 mm |
Dimensions and weight
| Length | 3000 mm |
| Width | 750 mm |
| Height | 1400 mm |
| Weight | 1350 kg |
Description
Mobile control panel
Hydraulic clamp on center
Gearbox motor with brake
Motorized sheet centering system

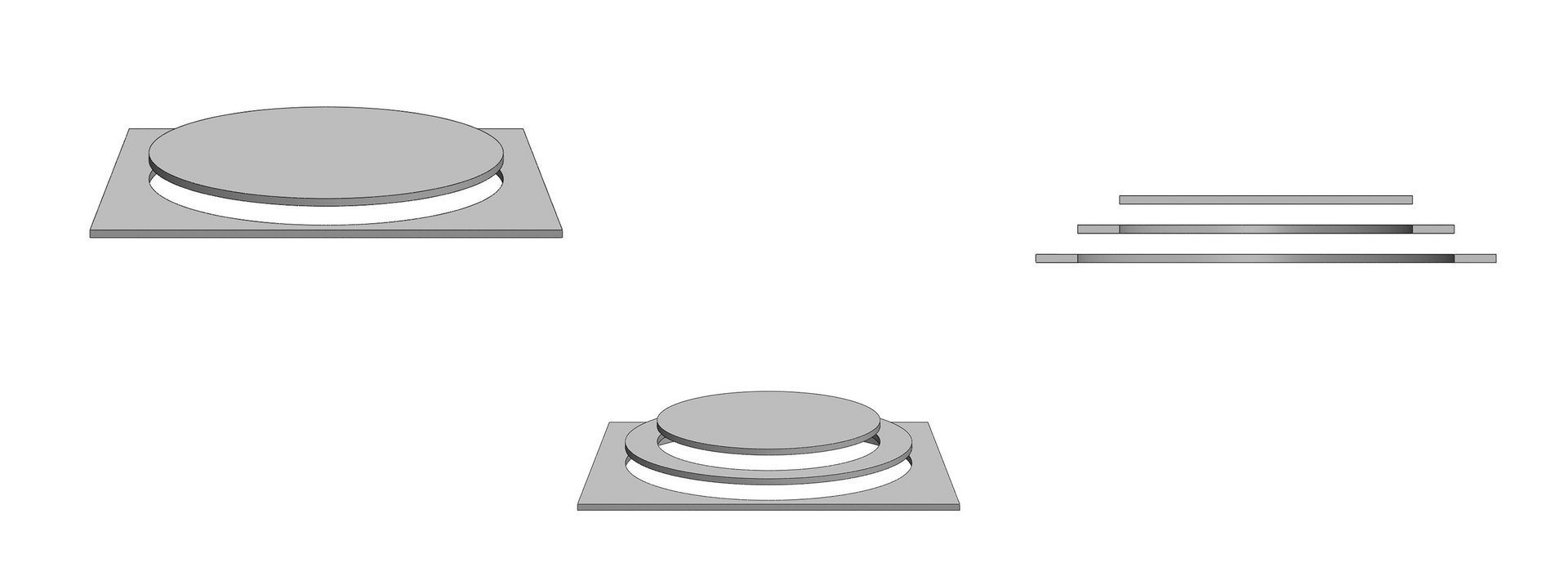

Inside cutting system
According to EC safety regulations
Operating manual
Optional equipment:
| 1 spare blade set | € | 1.200,00 |
| Flanging attachment with 1 set rolls | € | 2.000,00 |
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
