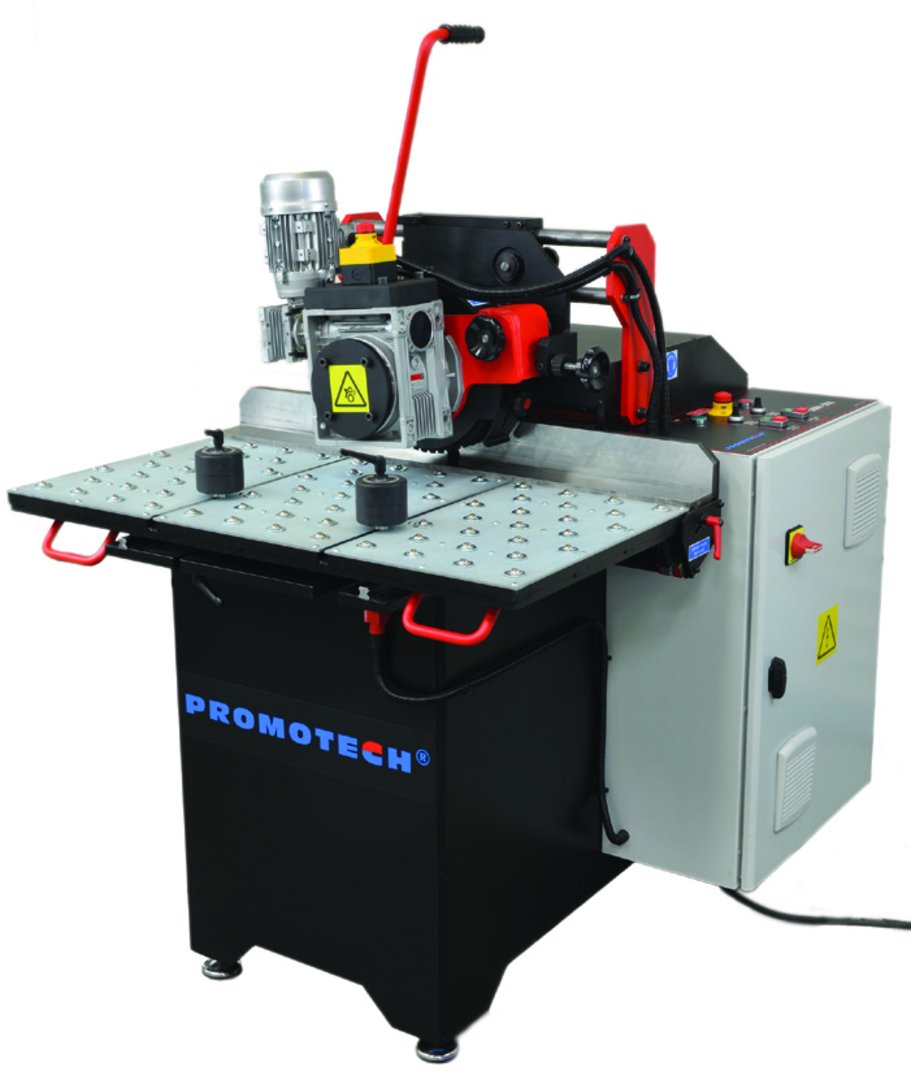

Beveling machine PROMOTECH SBM-500
| Model | SBM-500 |
| Brand | PROMOTECH |
| Condition | new |
| Max. bevel width | 30 mm |
| Origin | Poland |
General characteristics
| Suitable for plates | 1 |
| Suitable for tubes | 1 |
| Max. bevel width | 30 mm |
| Bevel angle | 60 ° |
| Spindle speed (load-free) | 500-2920 rpm |
| Bevel of tube outer edge | 50 - 150 m/min |
| Feed speed | 3 mm/min |
| Work piece height | 100 mm |
| Motor | 7.5 kW |
Dimensions and weight
| Length | 200 mm |
| Width | 100 mm |
| Weight | 850 kg |
Description
continuous adjustment of spindle speed and feed rate make it suitable for different types of steel and aluminum
high speed rotary milling head equipped with 10 inserts
cutting inserts for various materials
3D contact wheel control for proper workpiece alignment
ergonomic ball roller bench
swarf drawer
basic set:
SBM-500 stationary bevelling machine
set of tools
user manual in ENGLISH
Further information
Brochures
Product video
Beveling machine SBM-500
