General characteristics
| Suitable for plates | 1 |
| Suitable for tubes | 1 |
| Max. bevel width | 14 mm |
| Bevel angle | 30 ° |
| Spindle speed (load-free) | 9 rpm |
| Plate thickness | 6 - 40 mm |
| Min. plate width | 55 mm |
| Min. tube inner diameter | 100 mm |
| Feed speed | 2600 mm/min |
| Motor | 2.2 kW |
Dimensions and weight
| Length | 589 mm |
| Width | 541 mm |
| Height | 320 mm |
| Weight | 65 kg |
Description
bevelling machine designed to mill plates and pipes made of carbon steel, alloy steel, stainless steel or aluminum alloys
bevelling of lower edge in inverted position
standard shearing cutter for processing stainless/alloyed steel
reversible spindle against stuck milling tool
standard set
ABM-14 beveller
milling cutter for stainless steel
cutter extraction tool
tube bevelling shaft
tube bevelling washer
flat wrenches: 12 - 13 mm, 18 - 19 mm, 24 - 26 mm
hex wrenches: 5 / 6 mm
user manual
Further information
Brochures
Product video

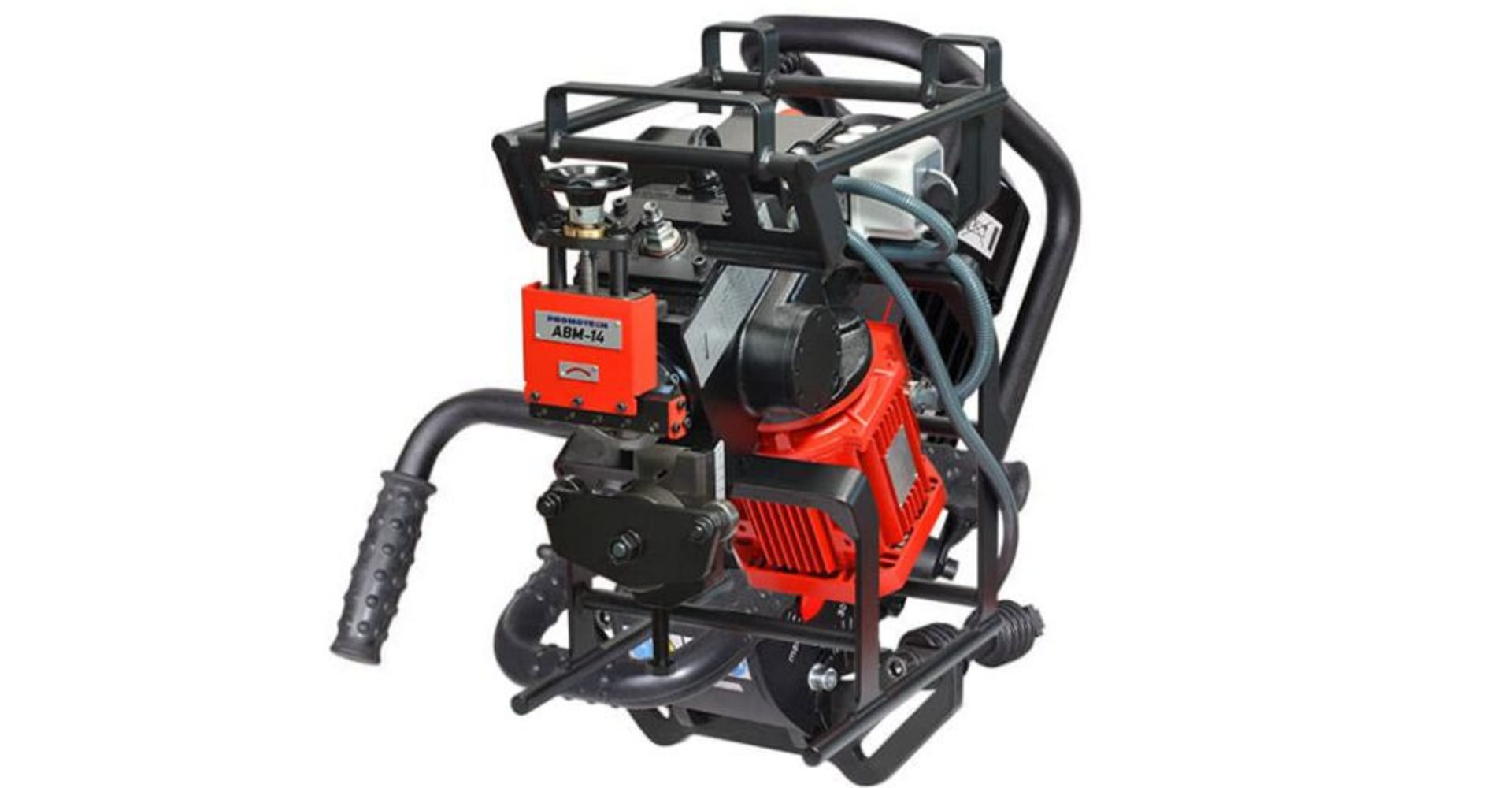

Beveling machine ABM-14
