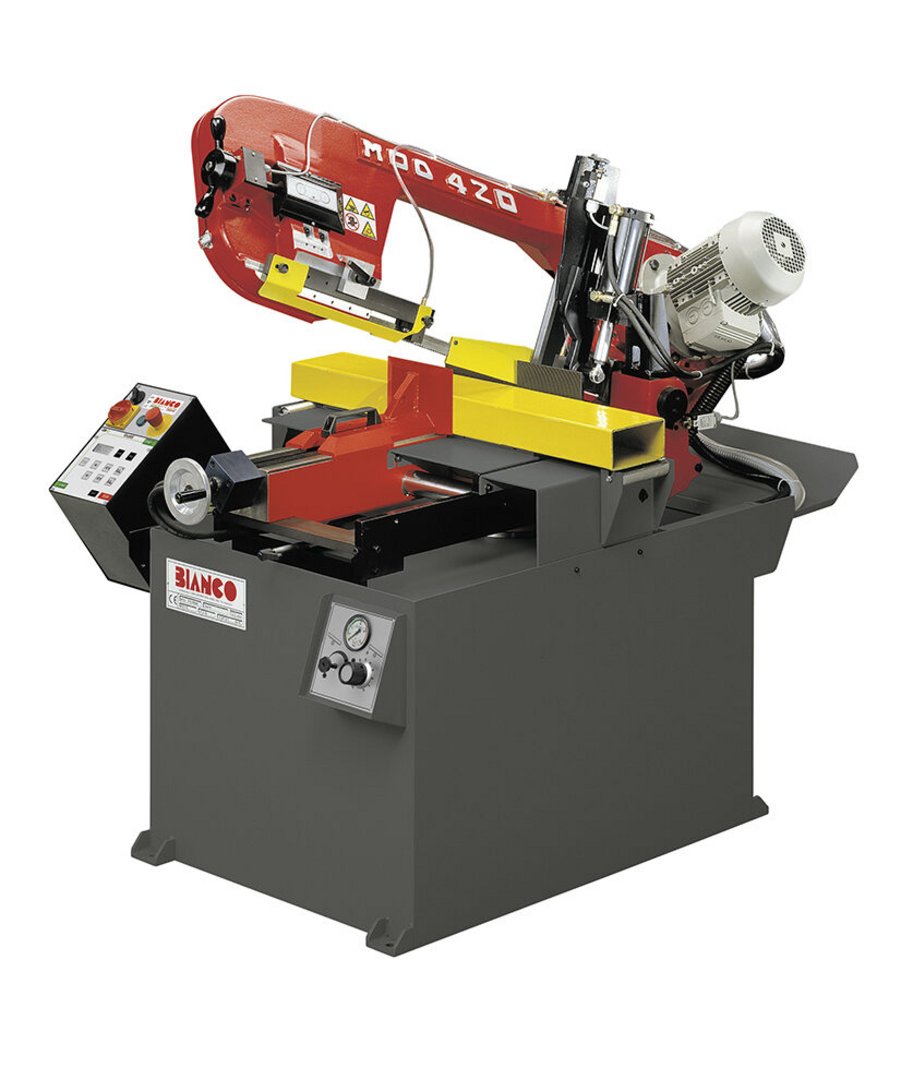

General characteristics
| Saw frame | Pivot frame |
| Band dimensions | 3270x27x0,9 mm |
| Band speed | 35/70 m/min |
| Cutting capacity 0° round | 280 mm |
| Cutting capacity 0° square | 240 mm |
| Cutting capacity 0° flat | 420x200 mm |
| Cutting capacity 45° | rund 260 mm, quadrat 240 mm, rechteck 260 x 200 mm |
| Cutting capacity 60° | rund 170 mm, quadrat 160 mm, rechteck 160 x 160 mm |
| Cutting capacity - 45° | rund 200 mm, quadrat 180 mm, rechteck 250 x 100 mm |
| Working height | 830 mm |
Dimensions and weight
| Length | 1600 mm |
| Width | 1600 mm |
| Height | 1800 mm |
| Weight | 488 kg |
Description
hydraulic vice
saw beam moves up and down by hydraulic cylinder
fast descent
automatic fast up/down conrolled by feeler pin
adjustable pressure according to section and type of material
double safety buton for cycle start
2 speeds
coolant equipment
CUTTING CYCLE
Vice locking; Quick bow pull-down hydraulically operated; Blade rotation and cooling liquid start-up;
Working pull-down; end of the cutting cycle; Stop of blade rotation and supply of cooling liquid;
Quick bow lift-up; Stop of bow upwards movement; vice unlocking if selected.
