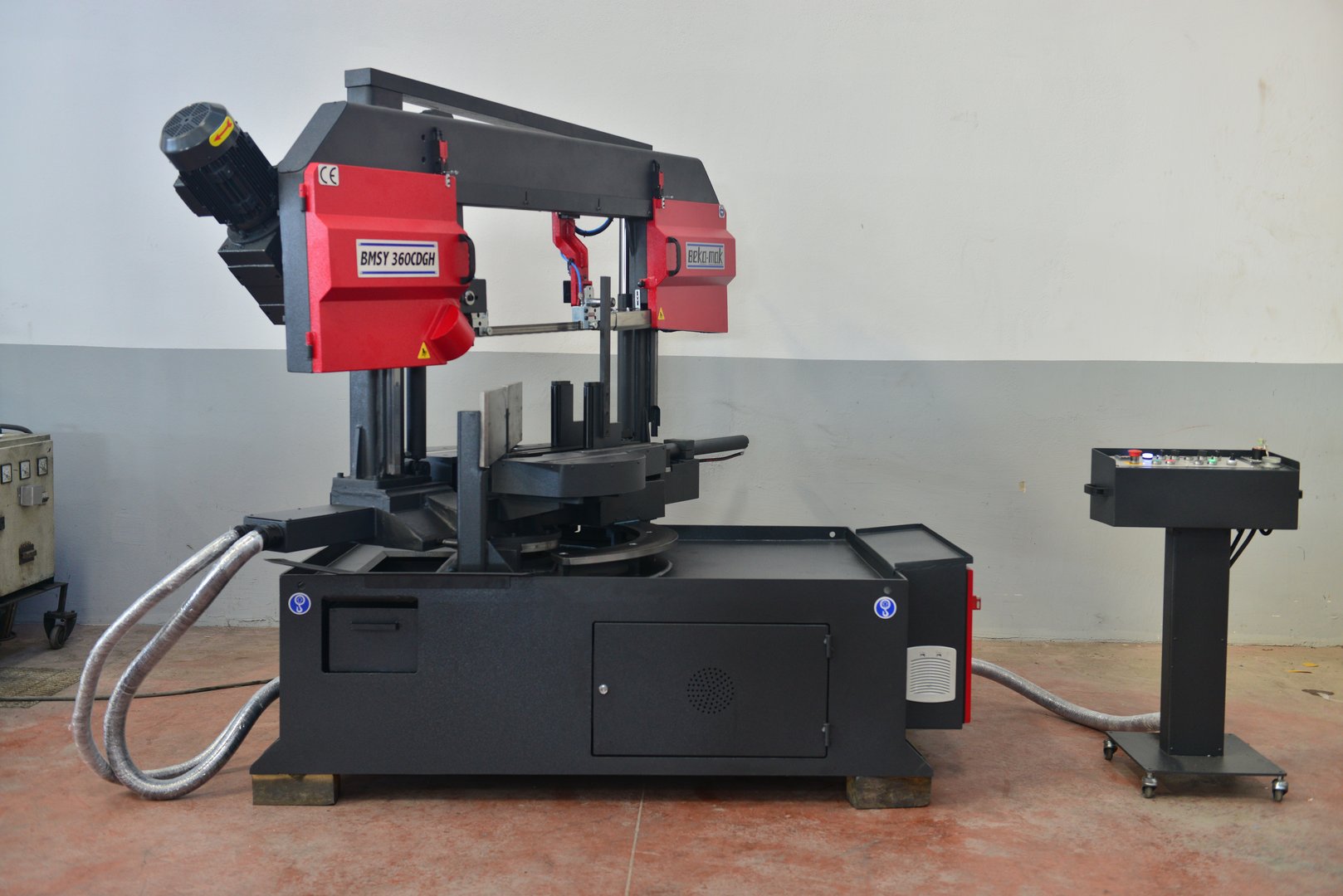

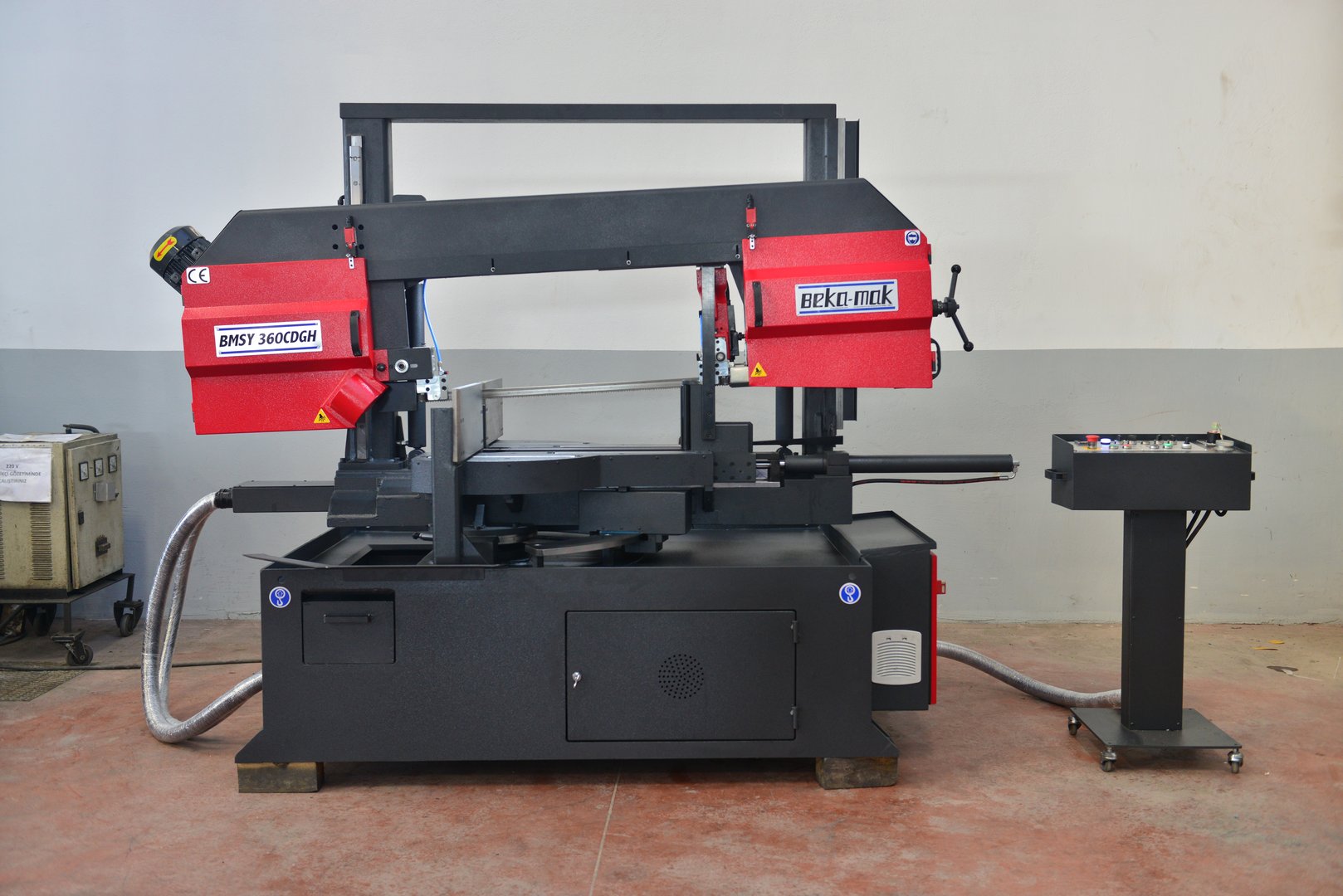

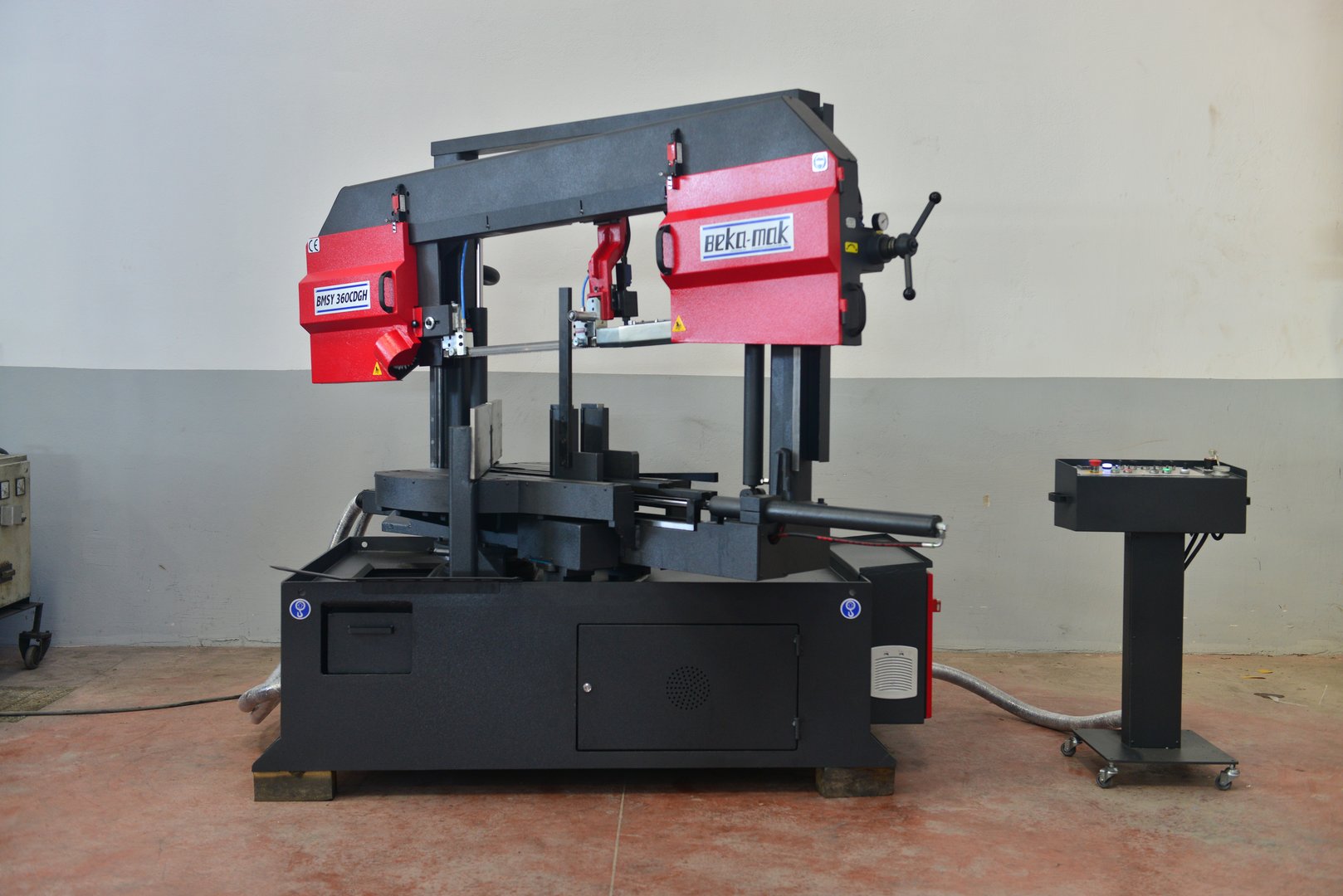

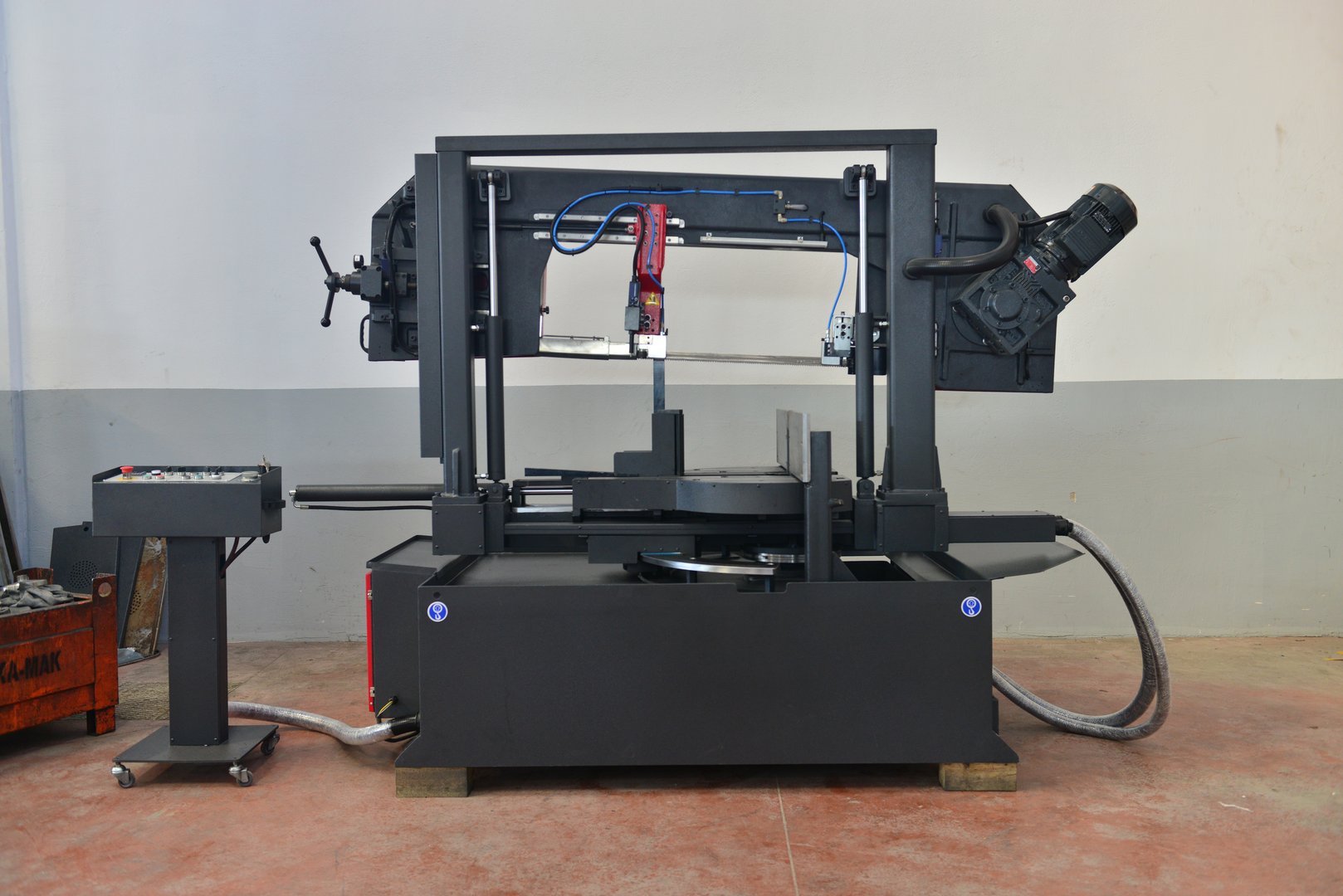

Semiautomatic band saw HESSE by BEKA-MAK BMSY 360 CDGH
| Model | BMSY 360 CDGH |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 360 mm |
| Cutting capacity 0° square | 360 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 5000x34x1,1 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 360 mm |
| Cutting capacity 0° square | 360 mm |
| Cutting capacity 0° flat | 640x360 mm |
| Cutting capacity 45° | rechteck 390 x 360 mm |
| Cutting capacity 60° | rechteck 250 x 360 mm |
| Cutting capacity - 45° | rechteck 390 x 360 mm |
| Working height | 800 mm |
| Hydraulic motor | 1.1 kW |
| Motor | 3 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 3000 mm |
| Width | 1850 mm |
| Height | 2000 mm |
| Weight | 1950 kg |
Description
hydraulic vice
digital readout for scale of bending angle
hydraulic clamping of sawing arm
turning of sawing arm by hand
continuously variable down speed of sawing arm
automatic sawing frame lifting after cutting
sensitive cutting pressure adjustment subject to material condition
hydromechanic tape tension readout by manometer

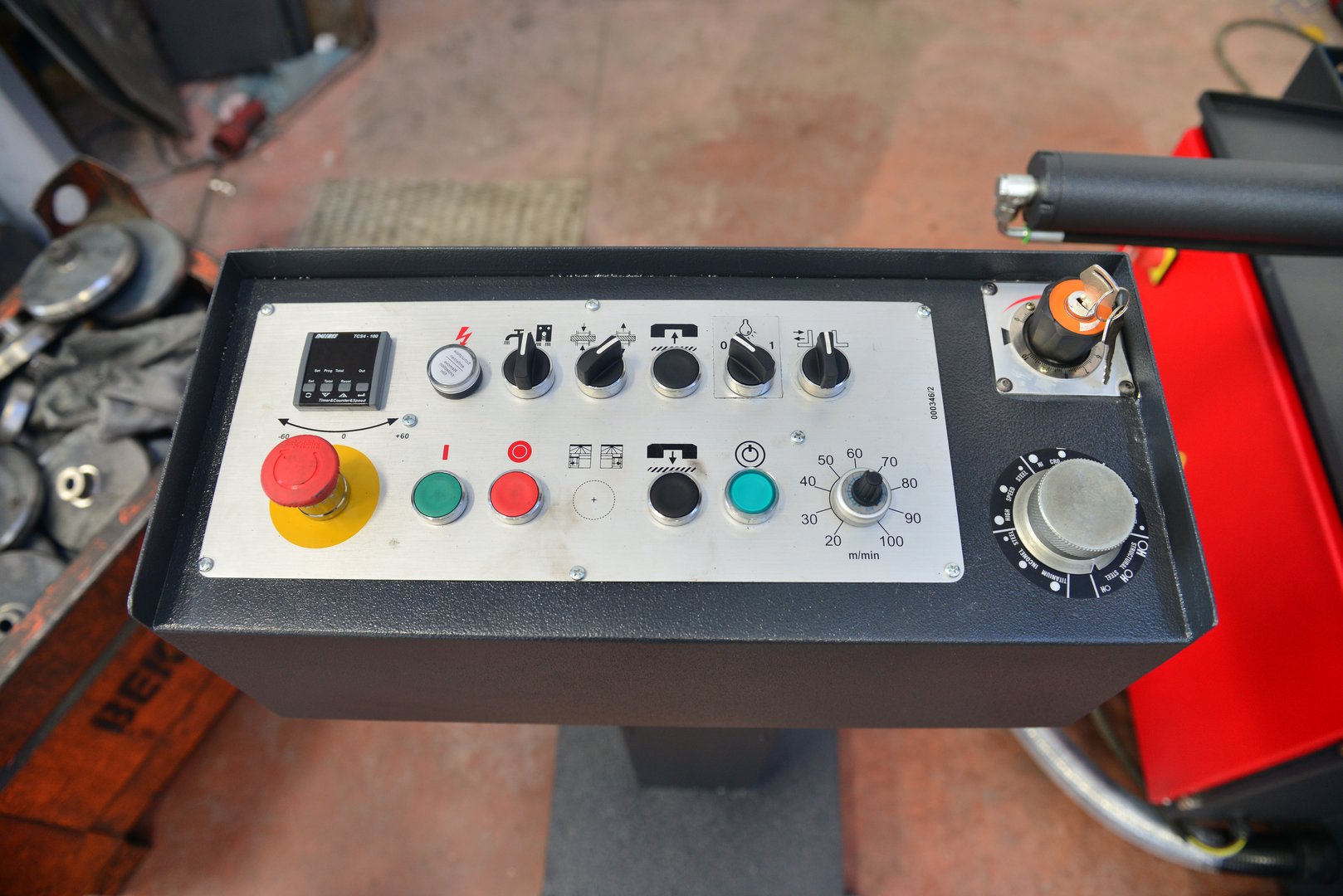

mobile control panel
angular geared conical heavy duty gear unit
driven chip brush
tape guiding by hard metal sheet plates and rolls
automatic tape break lock
coolant equipment
hydraulic uplift of sawing frame
user manual in GERMAN or ENGLISH
(sample photo - roller table see photo - optional available, additional price)
