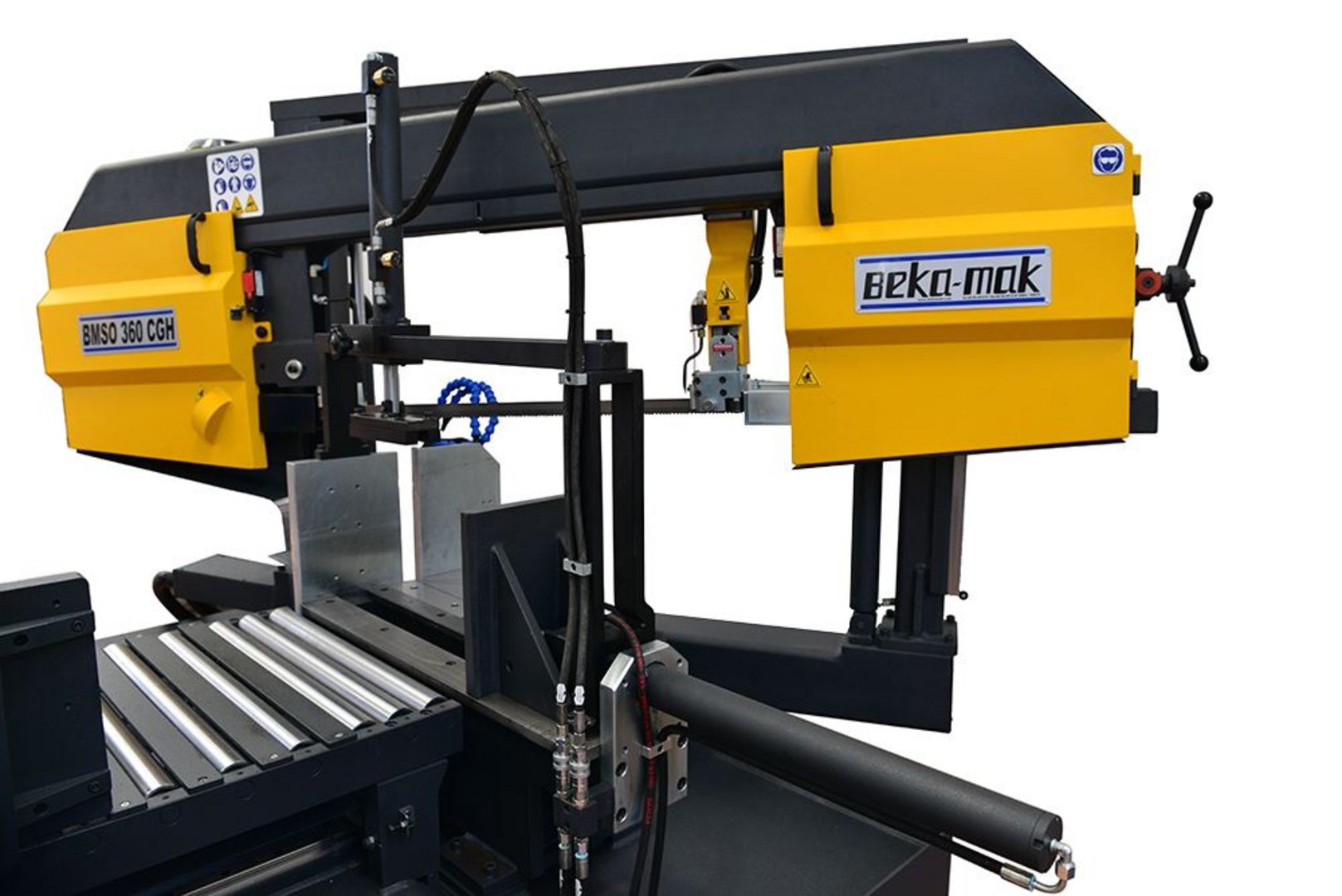

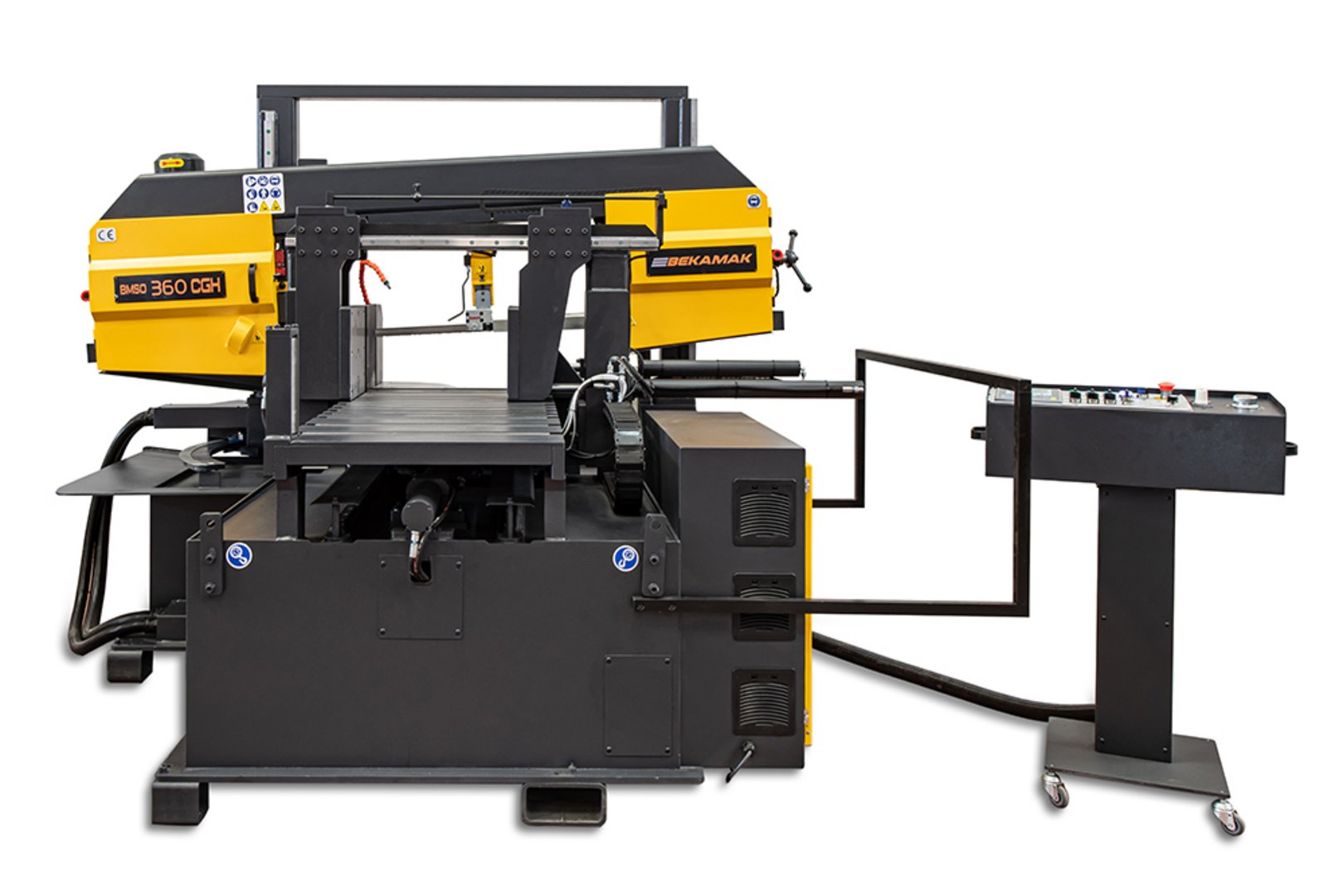

Fully automatic band saw HESSE by BEKA-MAK BMSO 360 CGH NC
| Model | BMSO 360 CGH NC |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 360 mm |
| Cutting capacity 0° square | 360 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 5200x34x1,1 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 360 mm |
| Cutting capacity 0° square | 360 mm |
| Cutting capacity 0° flat | 610x360 mm |
| Cutting capacity 30° | rund 360 mm, quadrat 360 mm, rechteck 570 x 360 mm |
| Cutting capacity 45° | rund 360 mm, quadrat 360 mm, rechteck 450 x 360 mm |
| Cutting capacity 60° | rund 325 mm, quadrat 290 mm, rechteck 280 x 360 mm |
| Working height | 735 mm |

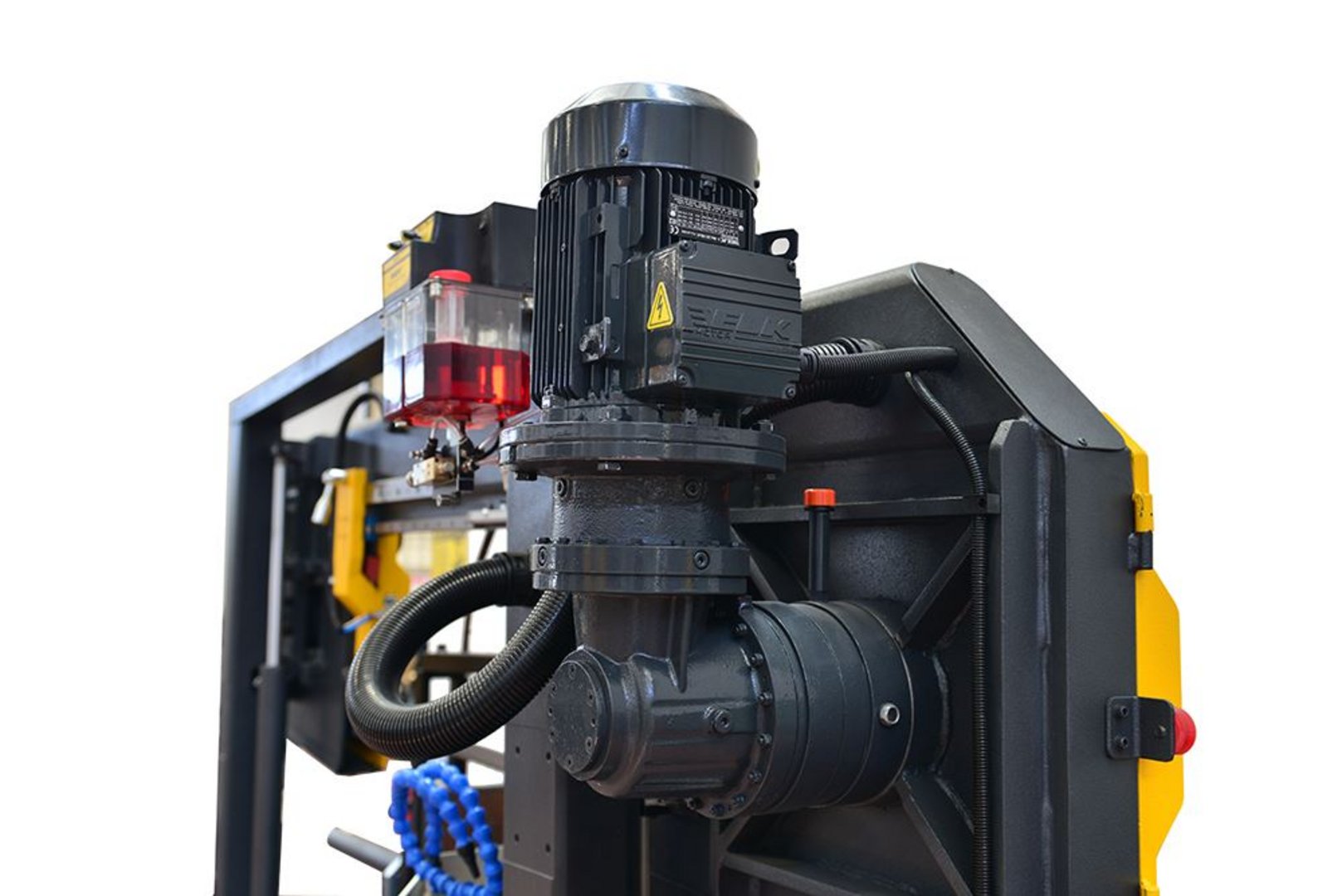

| Hydraulic motor | 1.5 kW |
| Motor | 3 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 2850 mm |
| Width | 2250 mm |
| Height | 1870 mm |
| Weight | 2400 kg |
Description
NC control
double column band saw on linear guidelines
3° cutting angle
blade brush

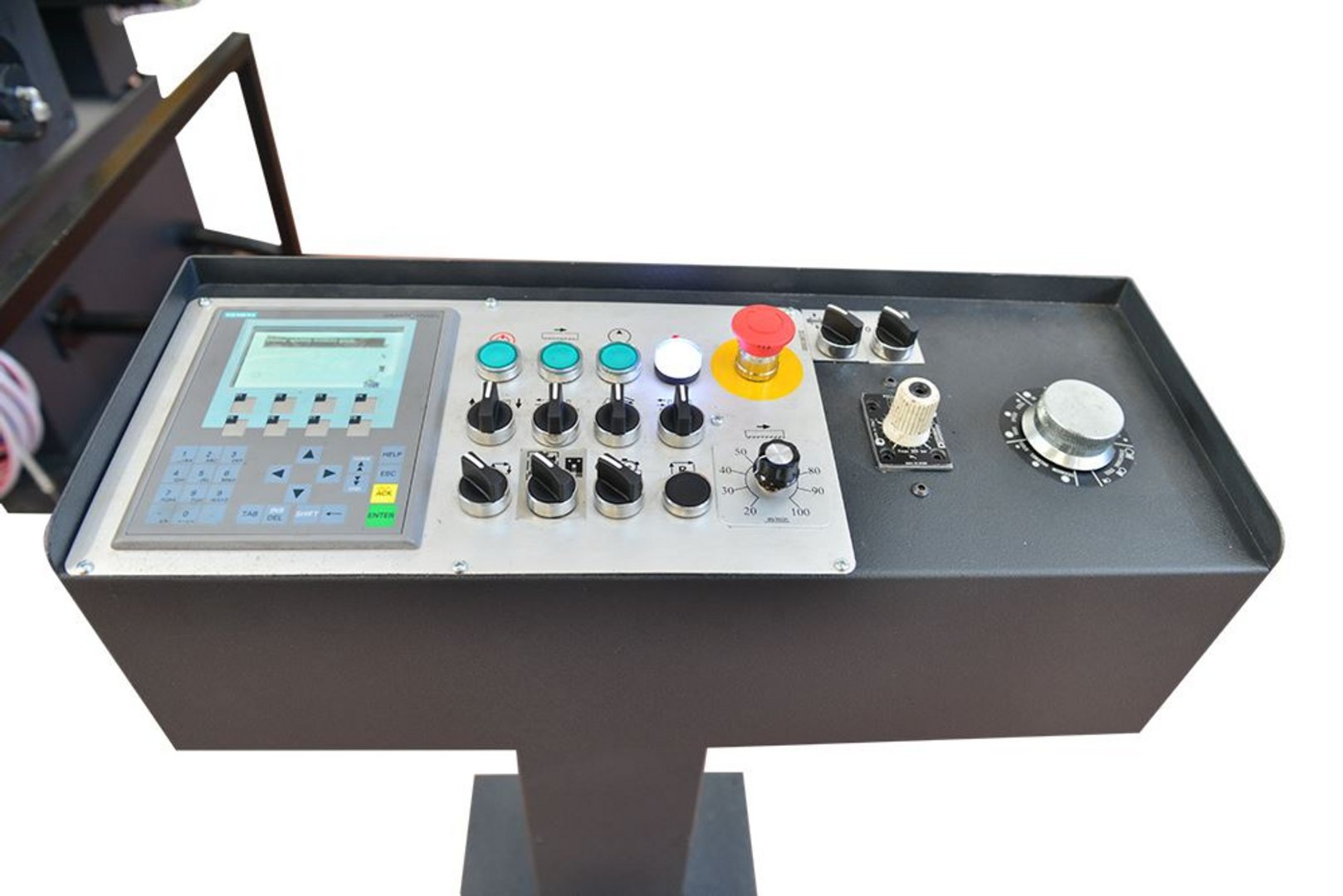

control panel
hydraulic feeding vice
hydraulic vice
hydromechanical blade tensioning
inverter
optical height adjustment

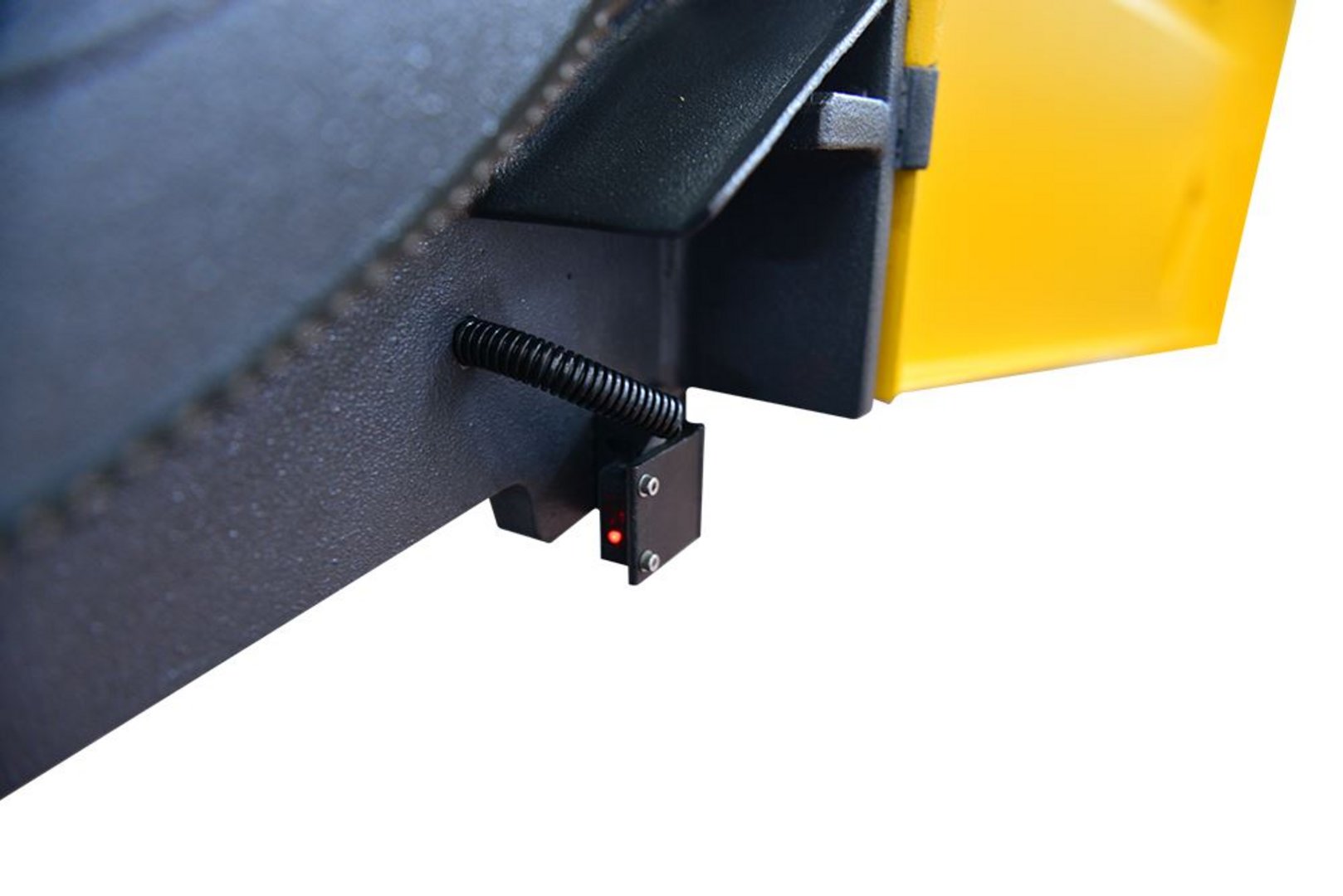

proximity switch for sensing blade slippage
material limit shaft
pressure adjustment
coolant pump
saw blade
security switch
user manual in GERMAN or ENGLISH
options:
hydraulic top clamping
micro coolant equipment
laser cutting line
alternative:
model BMSO 360 CGS NC (with servo instead of hyraulic feed) € 50.900,--
Further information
Brochures
Product video
Fully automatic band saw BMSO 360 CGH NC
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
