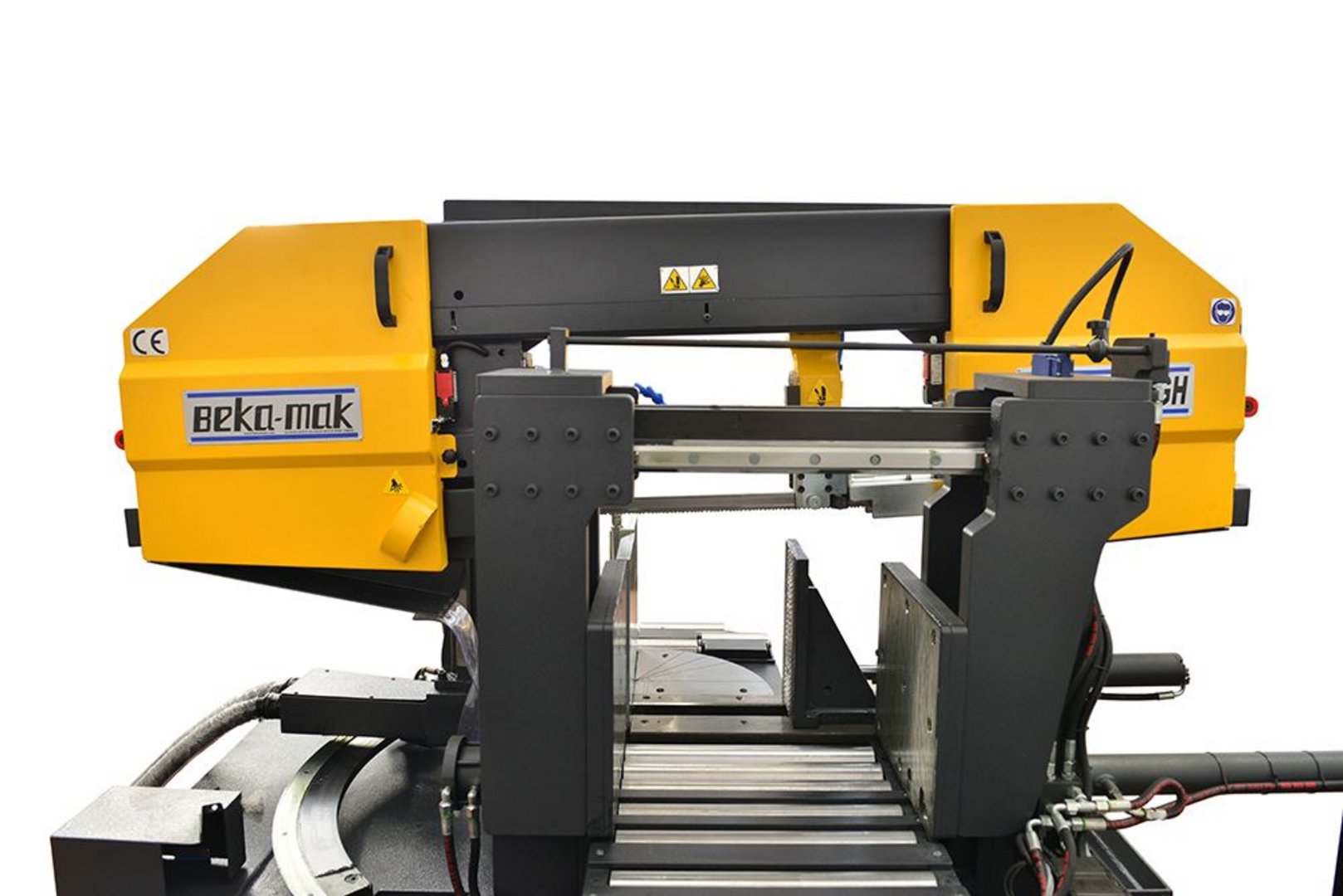

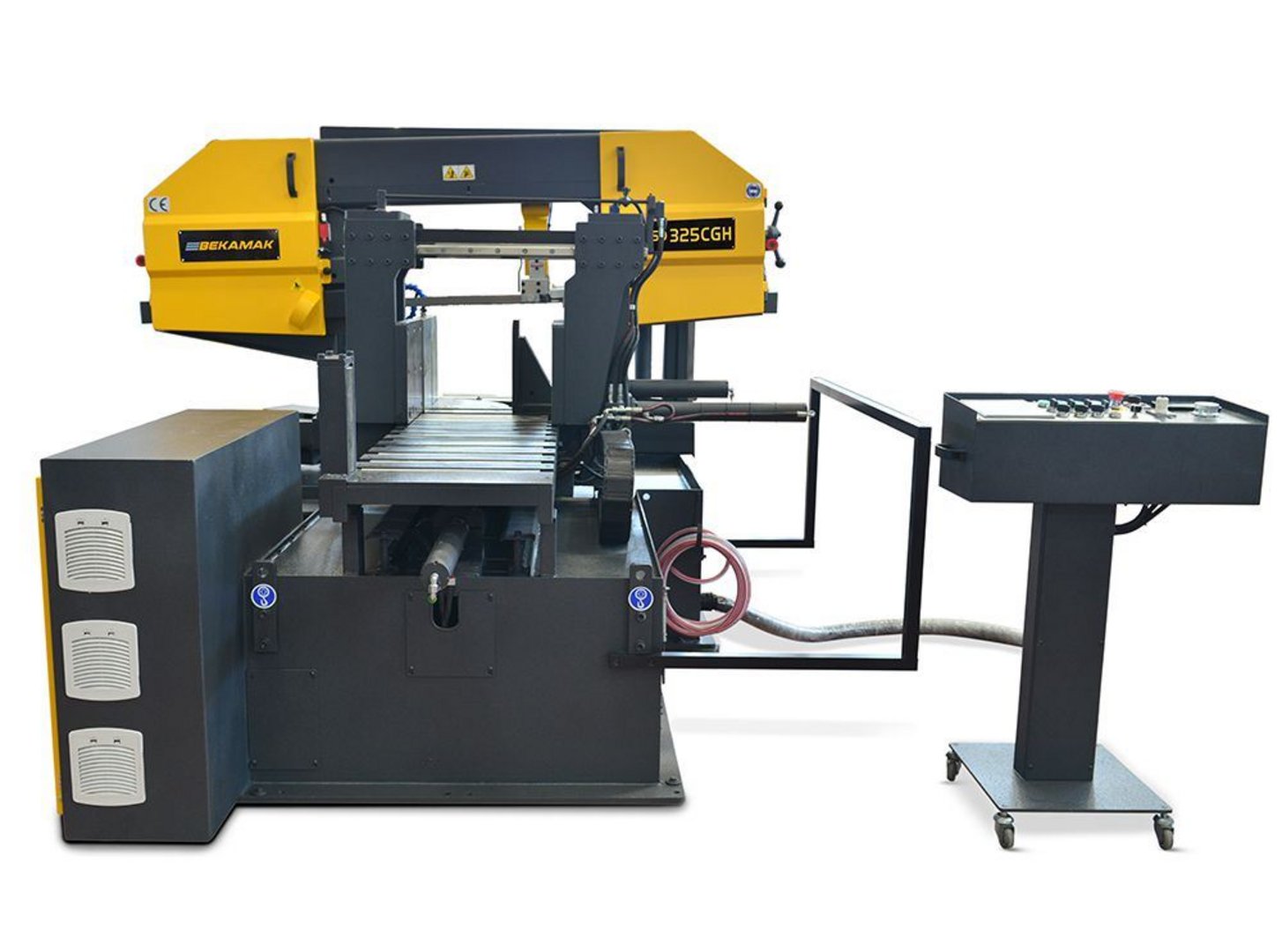

Fully automatic band saw HESSE by BEKA-MAK BMSO 325 CGH NC
| Model | BMSO 325 CGH NC |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 325 mm |
| Cutting capacity 0° square | 325 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 4380x34x1,1 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 325 mm |
| Cutting capacity 0° square | 325 mm |
| Cutting capacity 0° flat | 400x315 mm |
| Cutting capacity 30° | rund 325 mm, quadrat 315 mm, rechteck 380 x 315 mm |
| Cutting capacity 45° | rund 300 mm, quadrat 300 mm, rechteck 300 x 315 mm |
| Cutting capacity 60° | rund 190 mm, quadrat 190 mm, rechteck 160 x 325 mm |
| Working height | 655 mm |
| Hydraulic motor | 1.1 kW |
| Motor | 2.2 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 2130 mm |
| Width | 2150 mm |
| Height | 1650 mm |
| Weight | 1860 kg |
Description
NC control
double column band saw on linear guidelines
3° cutting angle
blade brush
control panel
hydraulic feeding vice
hydraulic vice
hydromechanical blade tensioning
inverter
optical height adjustment

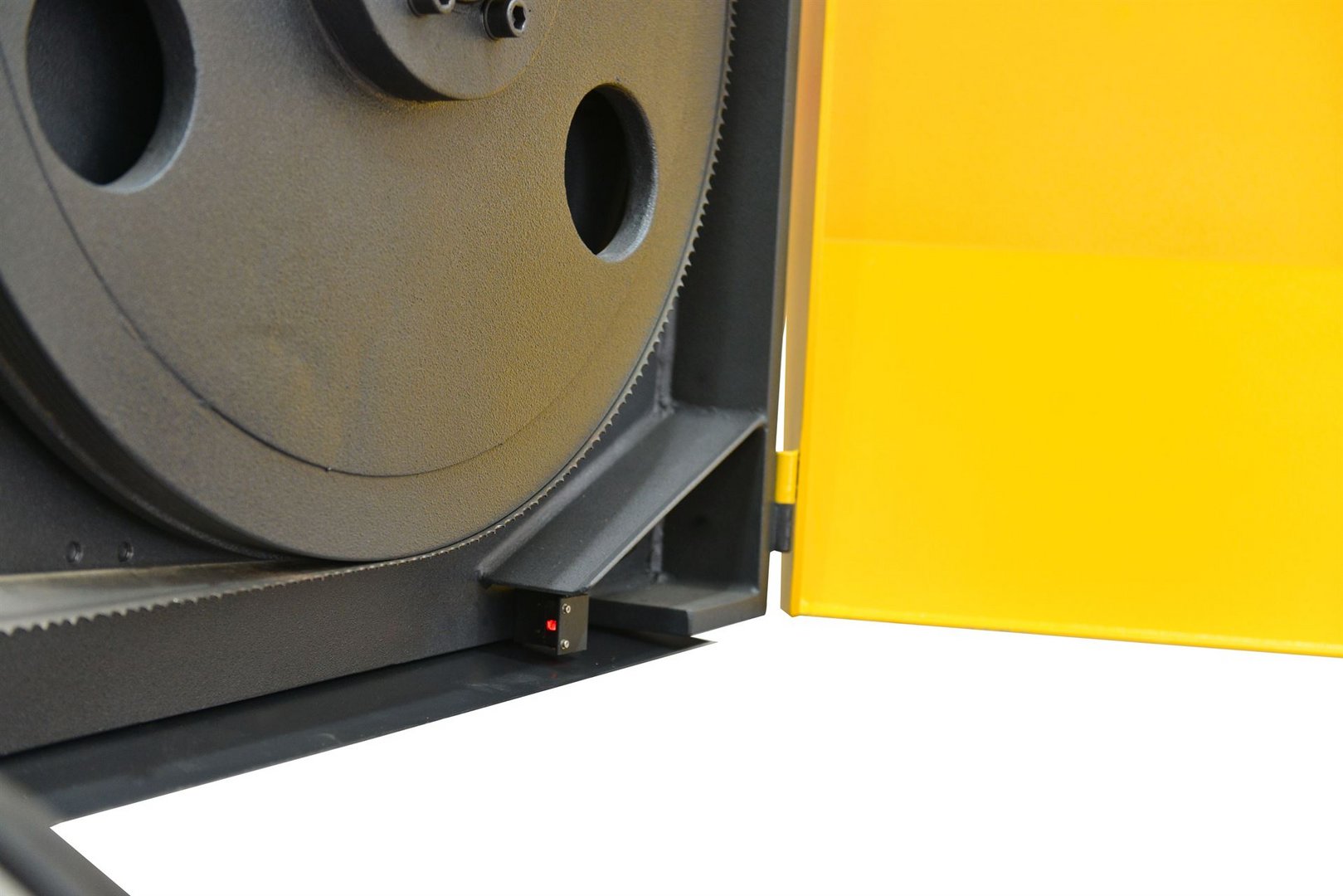

proximity switch for sensing blade slippage
material limit shaft
pressure adjustment
coolant pump
saw blade
security switch
user manual in GERMAN or ENGLISH
options:
hydraulic top clamping
micro coolant equipment
laser cutting line
alternative:
model BMSO 325 CGS NC (with servo instead of hyraulic feed) € 38.900,--
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
