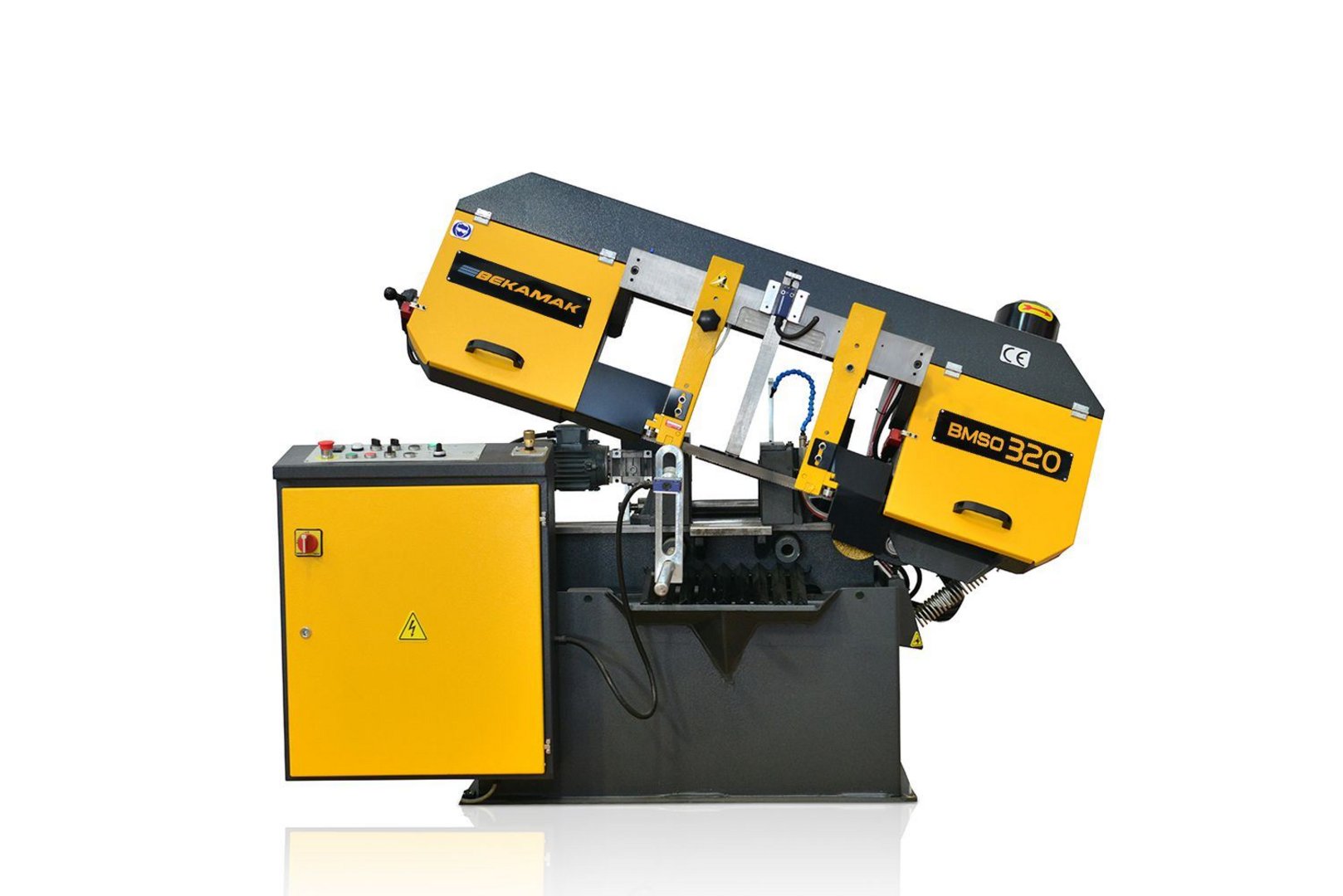

Fully automatic band saw HESSE by BEKA-MAK BMSO 320
| Model | BMSO 320 |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 320 mm |
| Cutting capacity 0° square | 300 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Pivot frame |
| Band dimensions | 3660x27x0,9 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 320 mm |
| Cutting capacity 0° square | 300 mm |
| Cutting capacity 0° flat | 320x300 mm |
| Working height | 640 mm |
| Hydraulic motor | 0.37 kW |
| Motor | 2.2 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 1900 mm |
| Width | 850 mm |
| Height | 1300 mm |
| Weight | 770 kg |
Description
Roller material feed with manual adjustable length stop with limit switch
blade brush

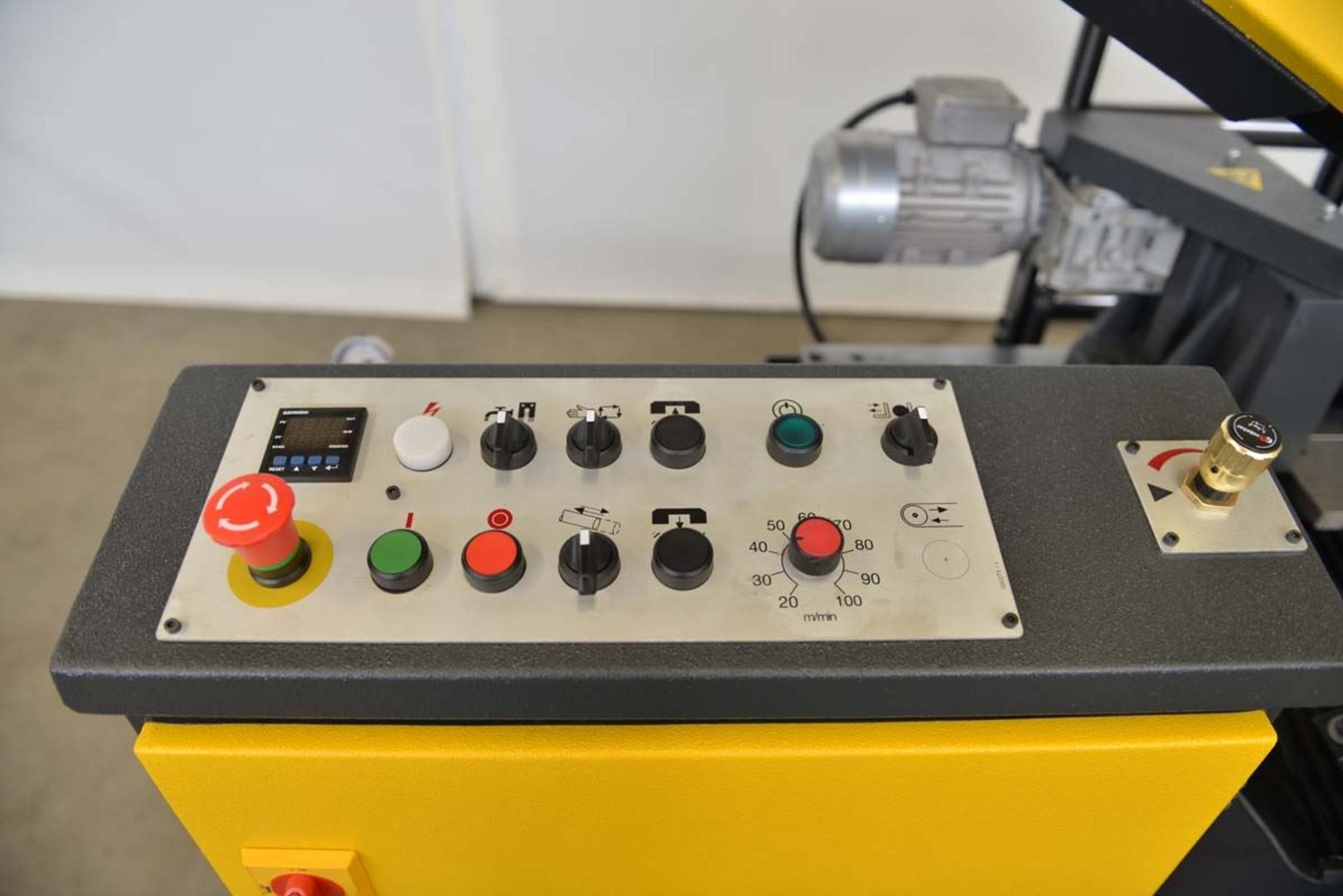

control panel

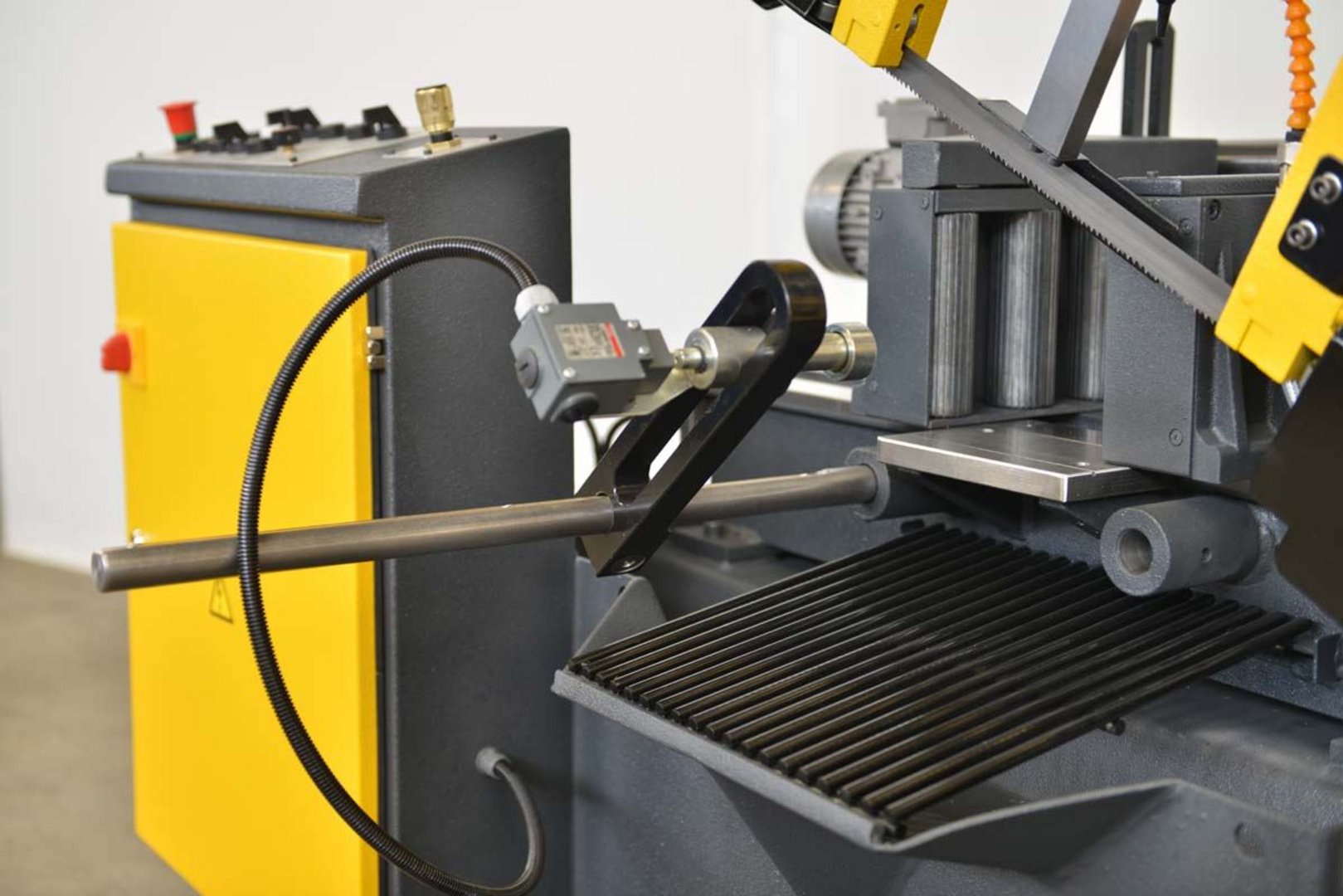

height adjustment bar with limit switch

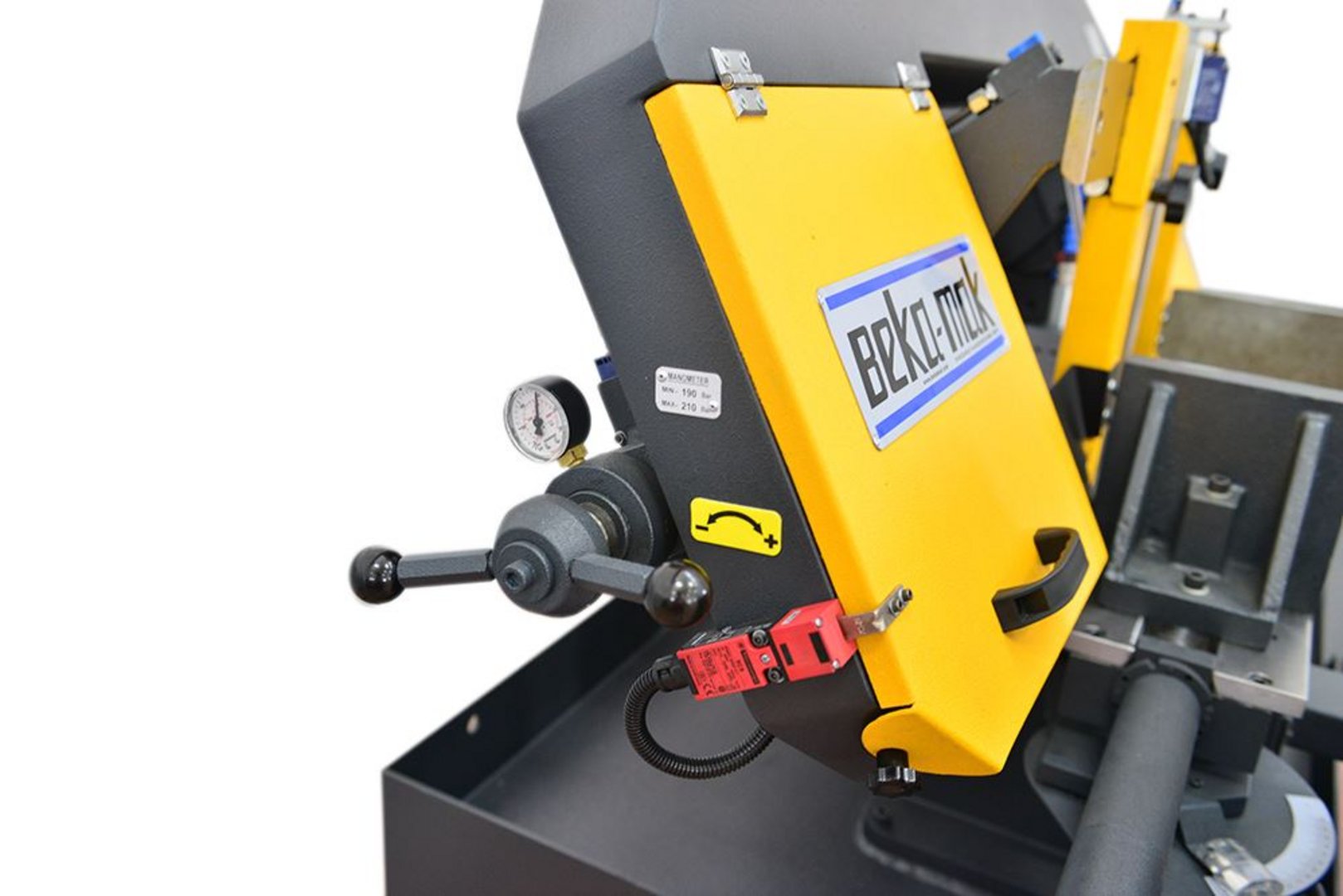

hydromechanical blade tension
inverter

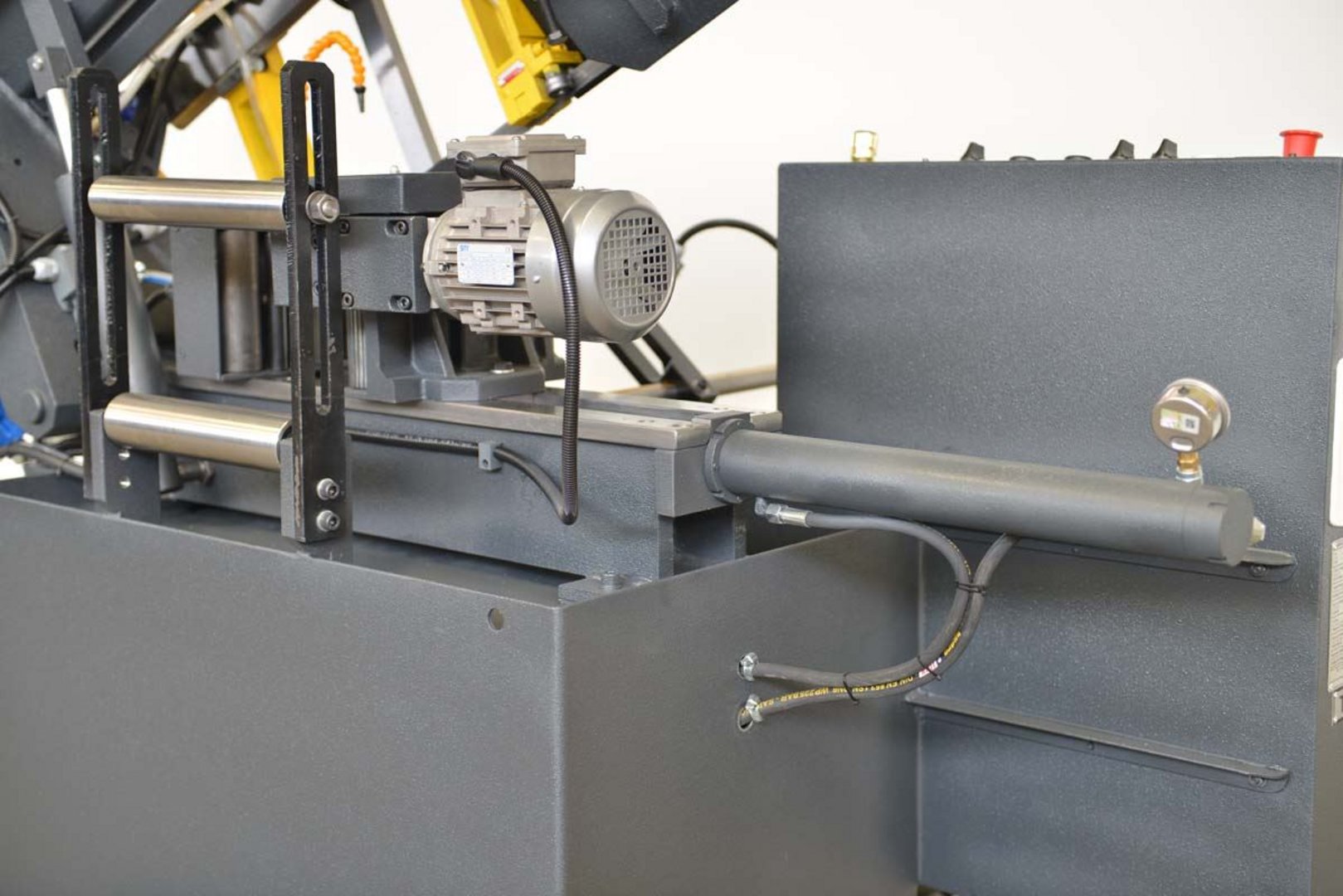

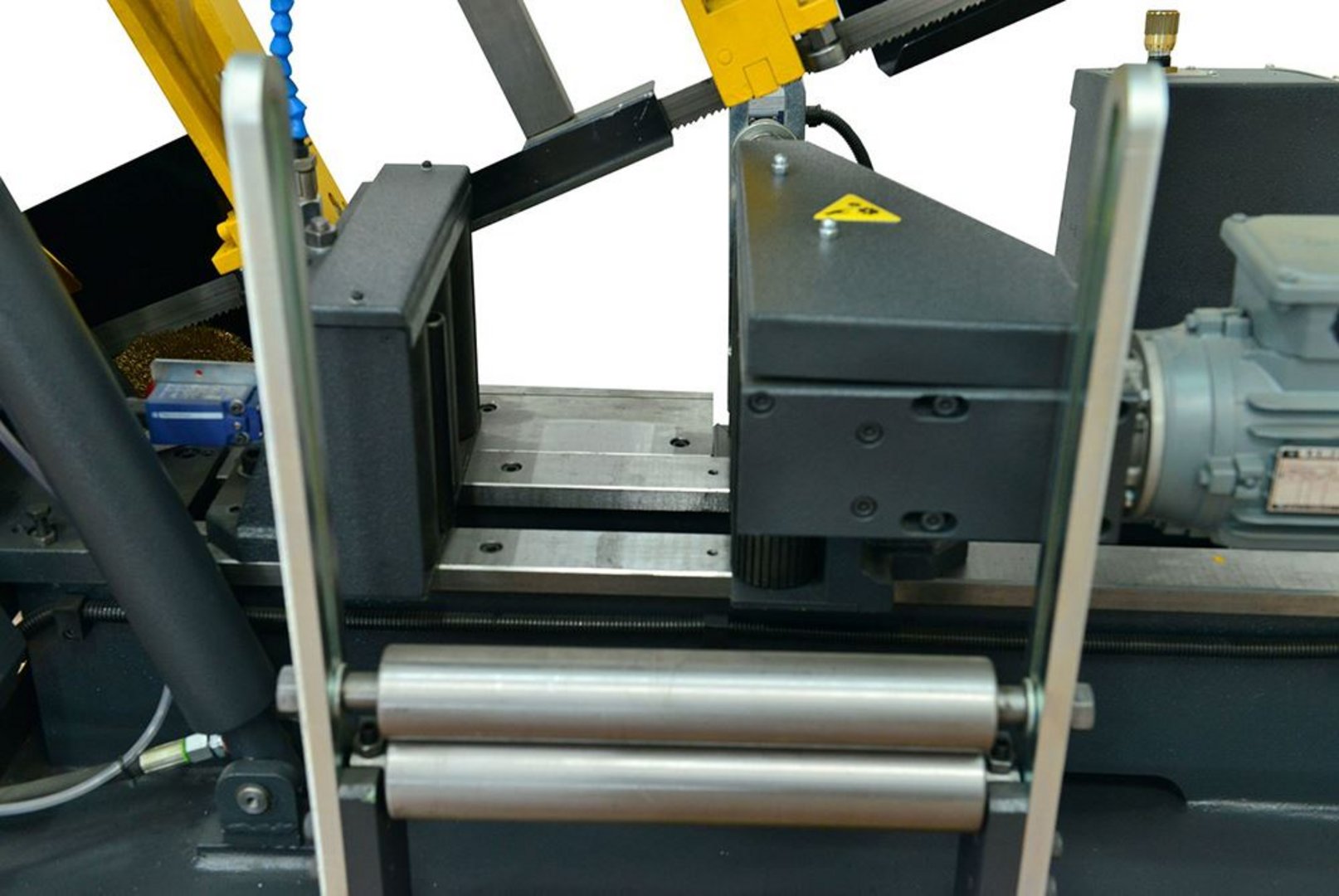

hydraulic vice
coolant pump
saw blade

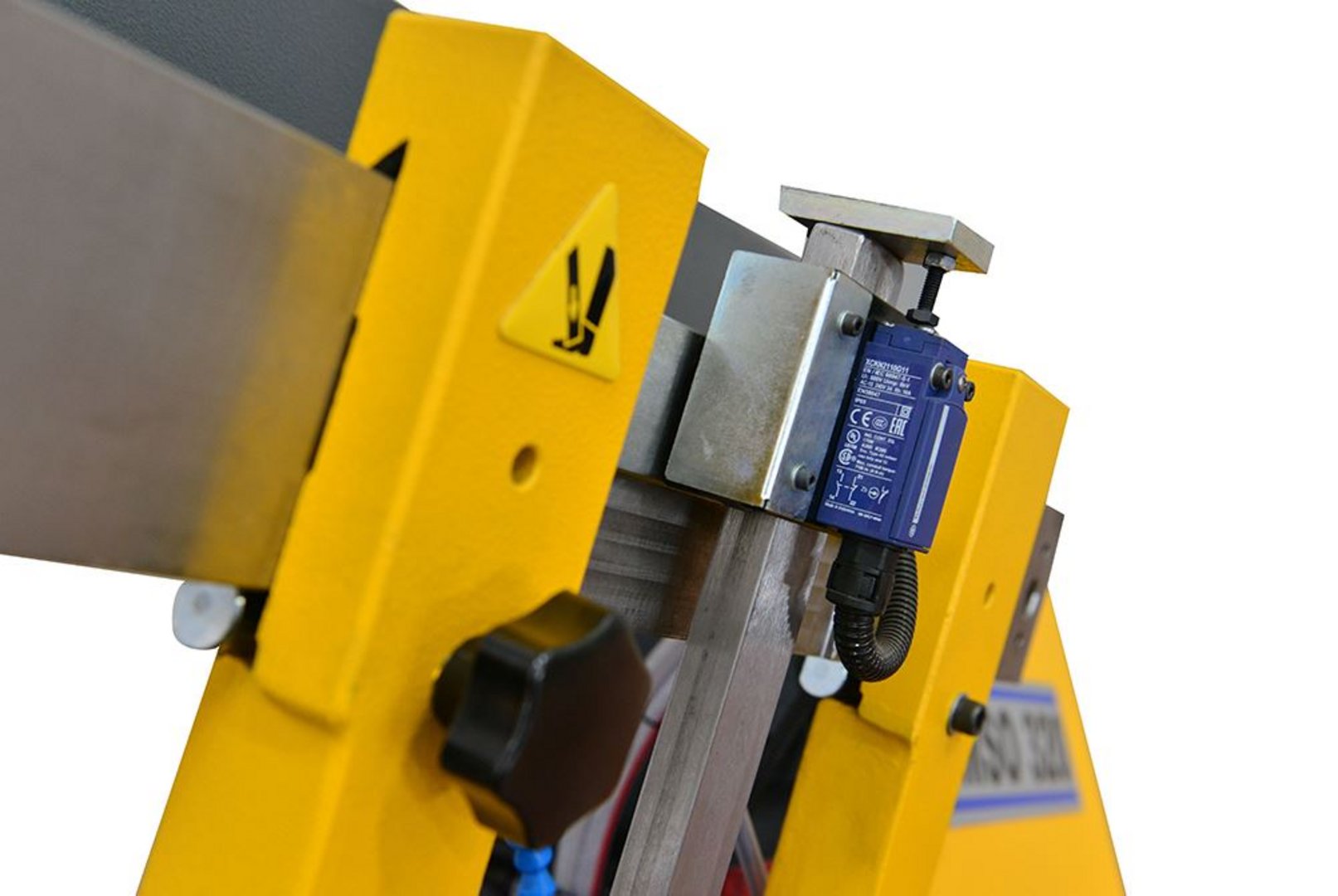

security switch
1,2 meter roller table
users manual in GERMAN or ENGLISCH
