General characteristics
| Saw frame | Pivot frame |
| Band dimensions | 2450x27x0,9 mm |
| Band speed | 35/70 m/min |
| Cutting capacity 0° round | 220 mm |
| Cutting capacity 0° square | 220 mm |
| Cutting capacity 0° flat | 260x140 mm |
| Cutting capacity 45° | rund 160 mm, quadrat 155 mm, rechteck 160 x 140 mm |
| Cutting capacity 60° | rund 95 mm, quadrat 95 mm, rechteck 95 x 95 mm |
| Working height | 965 mm |
Dimensions and weight
| Length | 1200 mm |
| Width | 1100 mm |
| Height | 1860 mm |
| Weight | 240 kg |

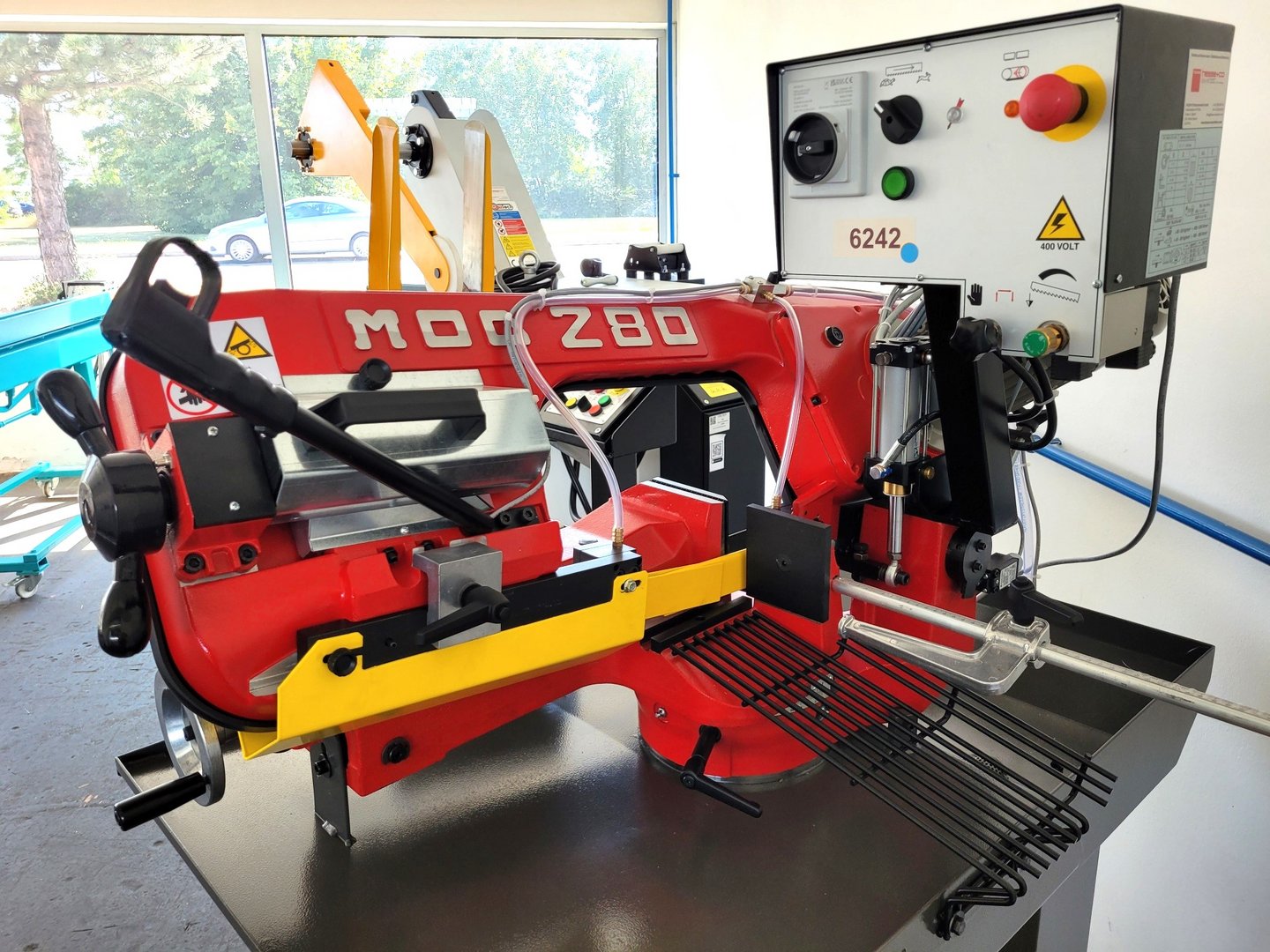

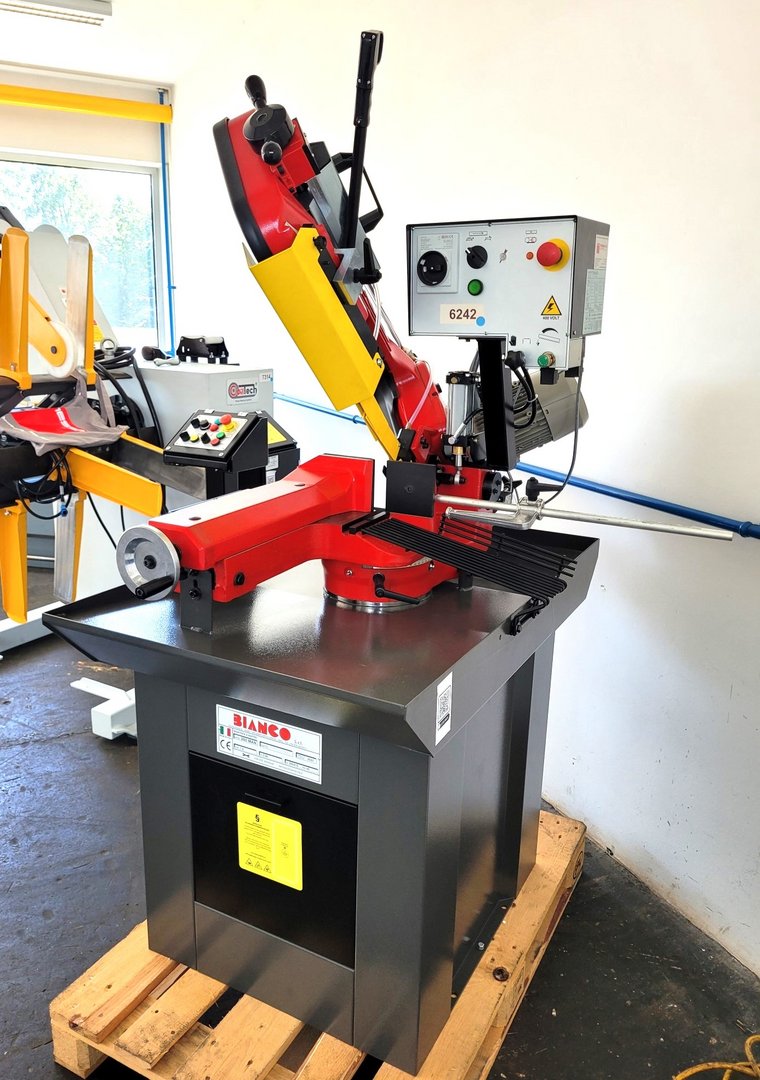

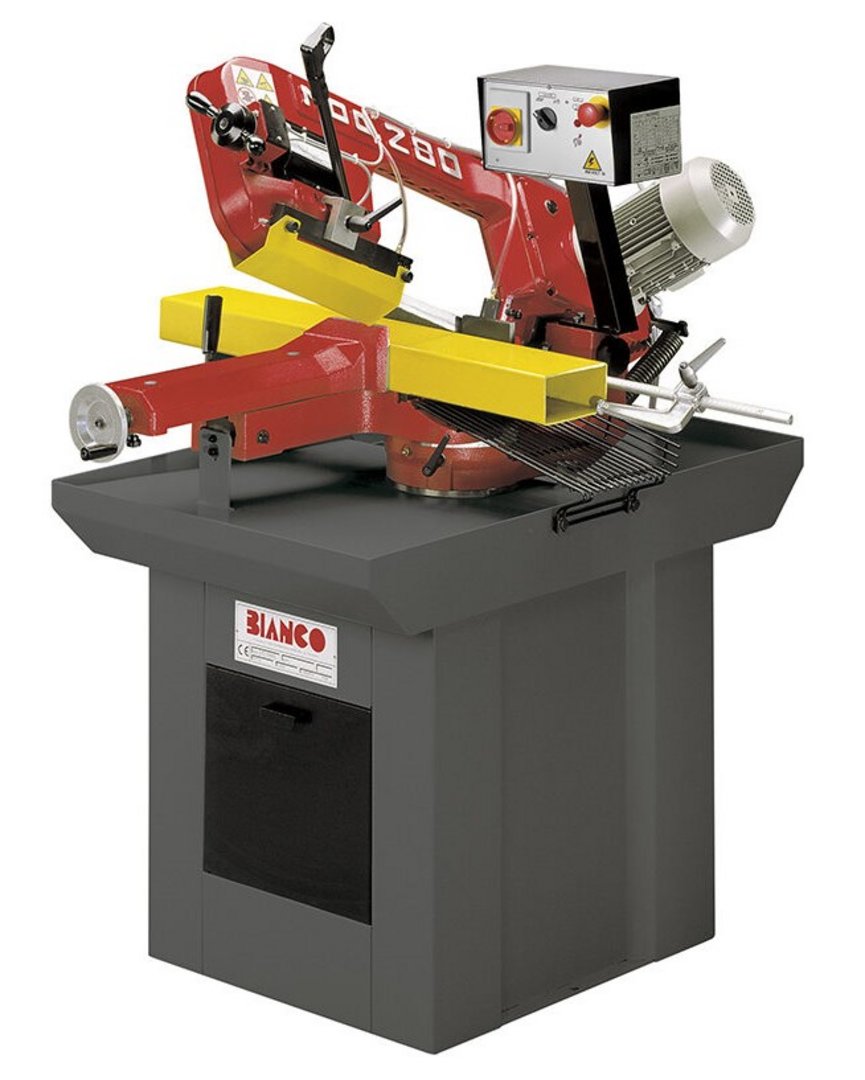

Description
demo machine / mint condition
net price (price for new machine € 6.730,00)

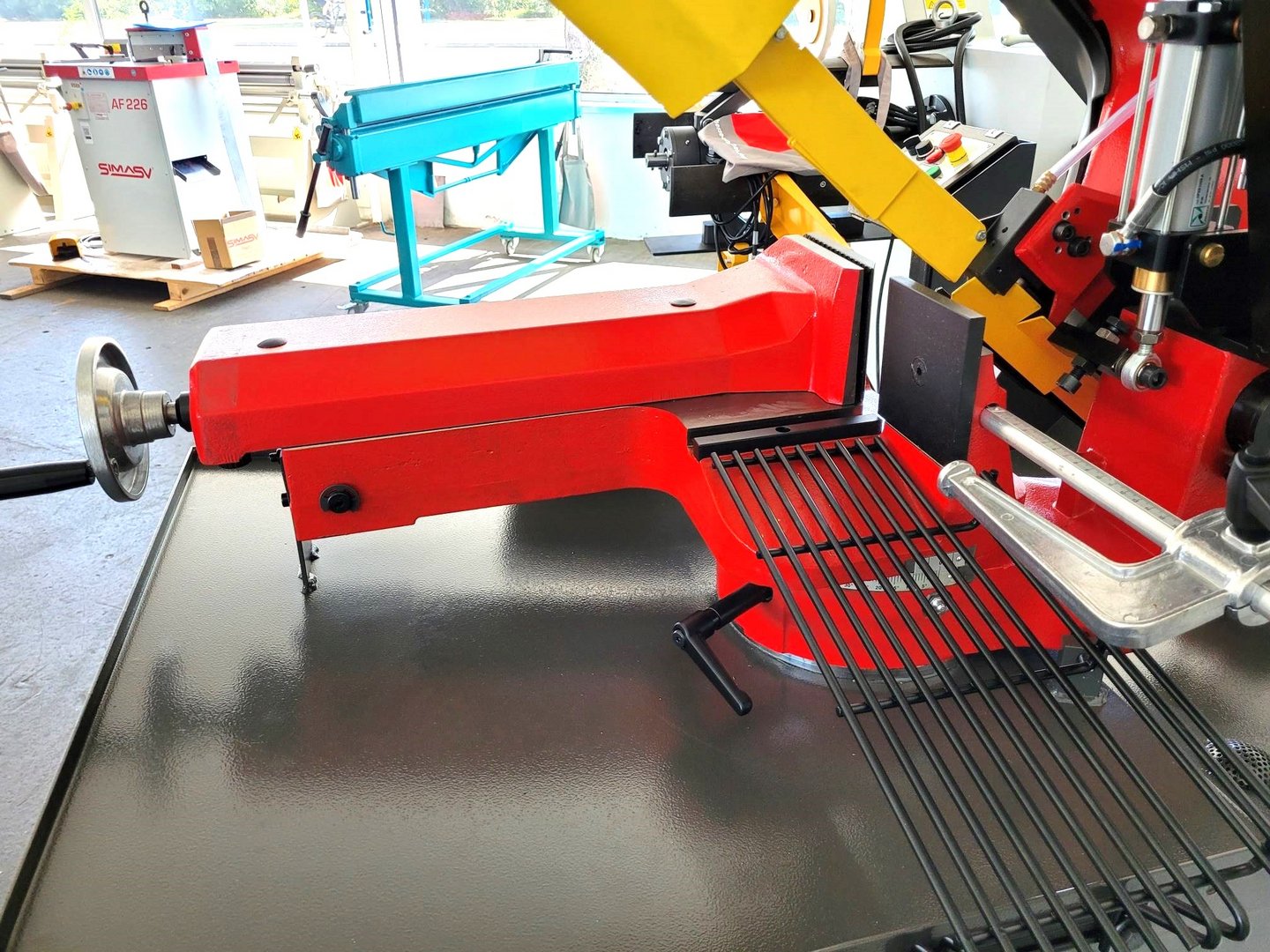

manual vice with lever for quick clamping
gravity downfeed with adjustable damper
2 speeds
coolant equipment
Options:
Roller tables and band saw blades on request
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
