General characteristics
| Saw frame | Pivot frame |
| Band dimensions | 2480 x 0,9 x 27 mm |
| Band speed | 45 / 90 m/min |
| Cutting capacity 0° round | 225 mm |
| Cutting capacity 0° flat | 180 x 245 mm |
| Cutting capacity 30° | rund 100 mm, 100 x 100 mm |
| Cutting capacity 45° | rund 160 mm, 160 x 160 mm |
| Working height | 935 mm |
| Motor | 1.1 kW |
Dimensions and weight
| Length | 1500 mm |
| Width | 700 mm |
| Height | 1400 mm |
| Weight | 225 kg |
Description
Downfeed with damper cylinder and manual valve
Coolant equipment

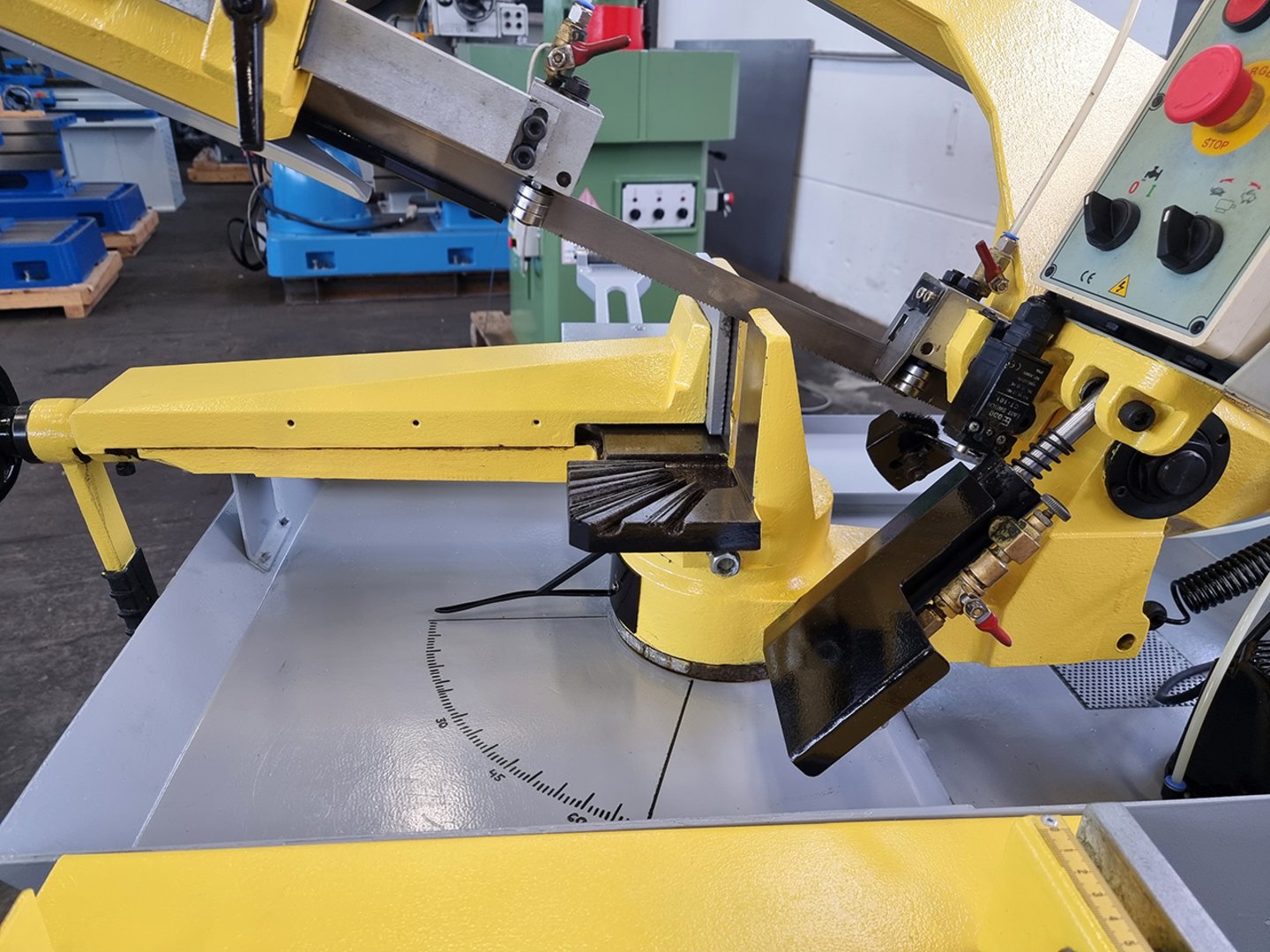

Vice with fast clamping lever

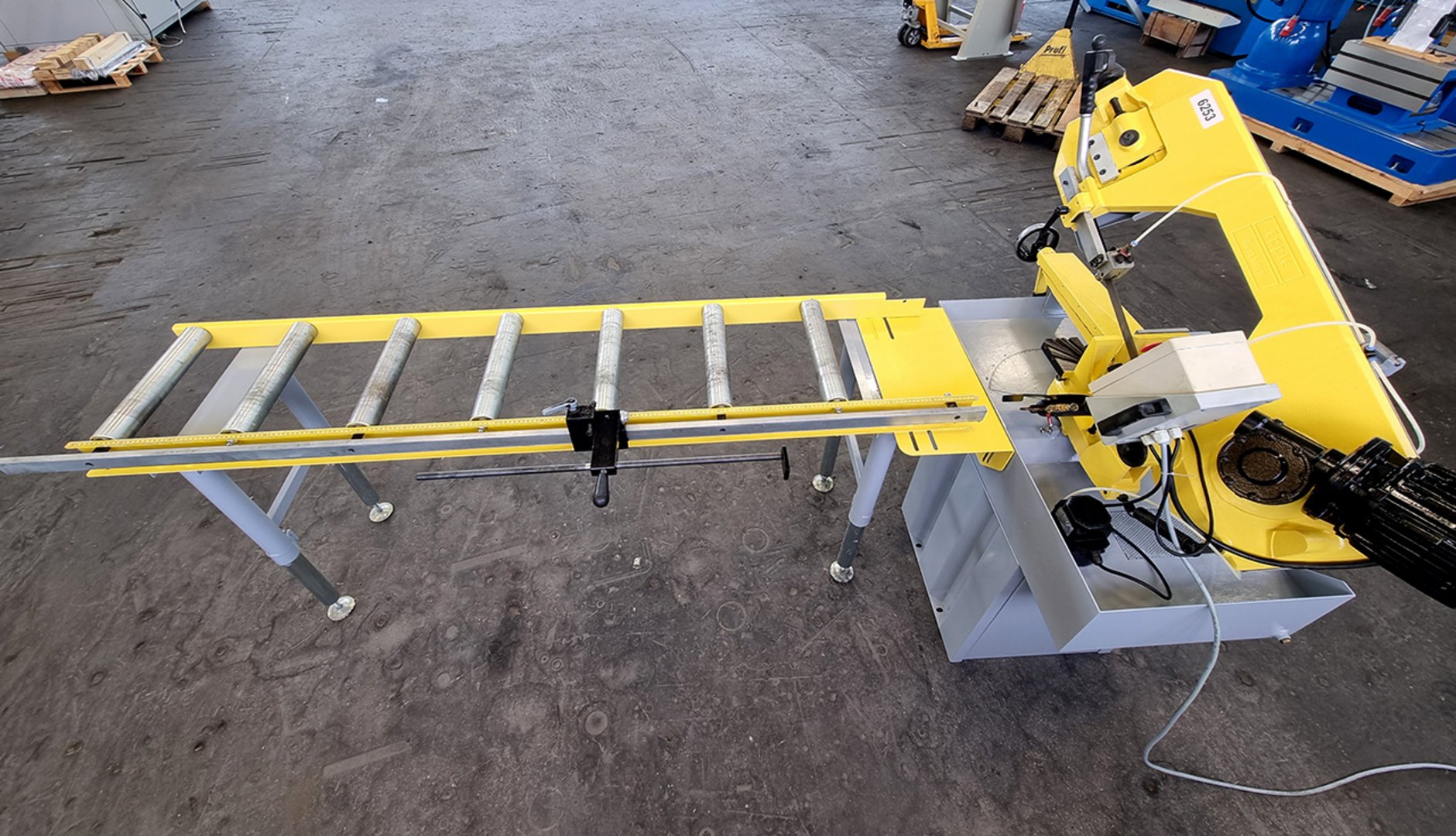

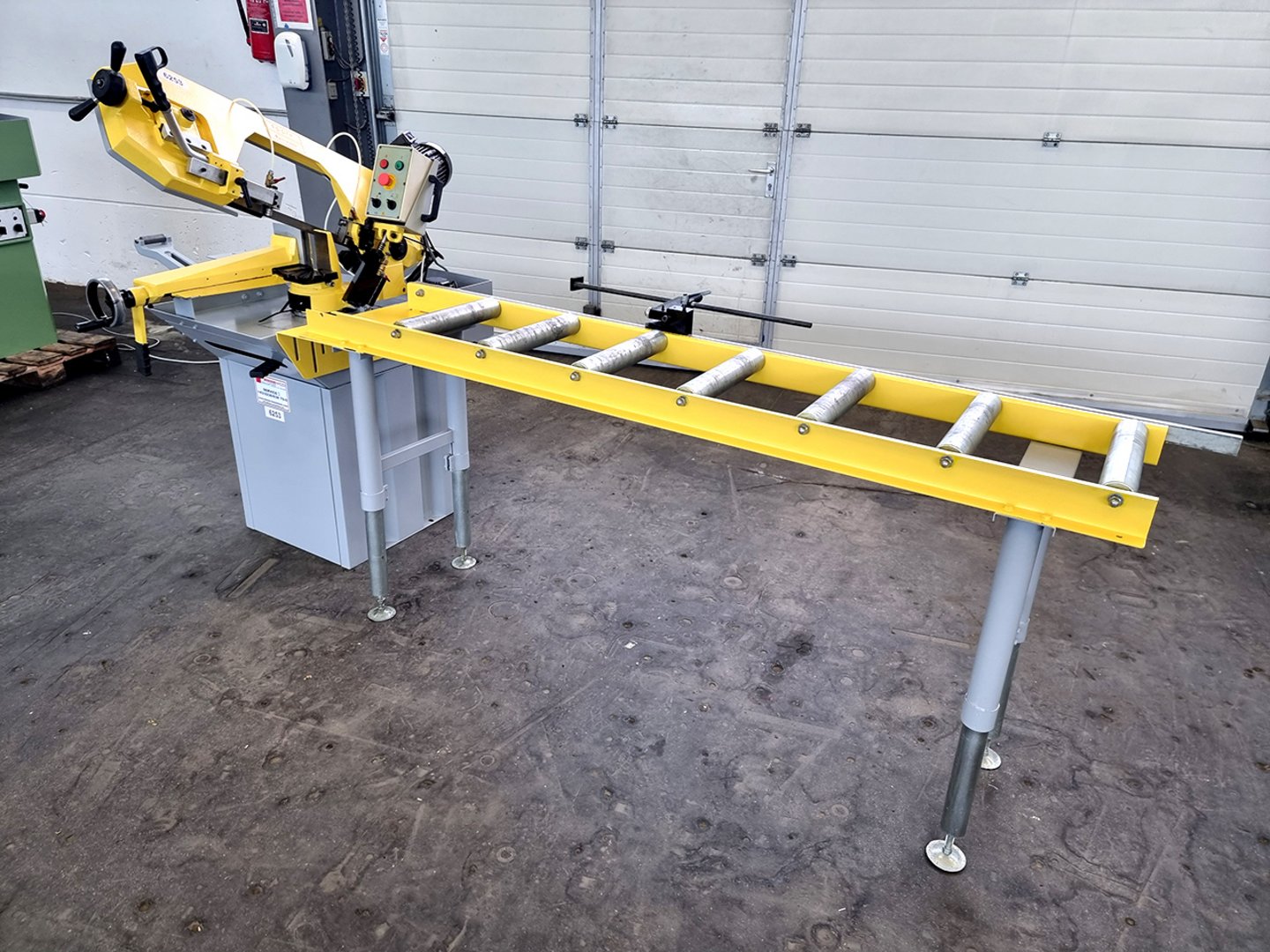

Roller table 2000 mm with manual gauge
3 pcs. spare bands
Operating manual with EC conformity declaration
Options:
Further roller tables and band saw blades on request
