General characteristics
| Working area | 1500 x 1000 mm |
| Hole diameter | 16 mm mm |
Dimensions and weight
Description
This model forms the basis of the entire system. It can be extended on all five sides as required.
Our tables are characterised by the high degree of hardness with our Cr75M+ hard chrome plating, the very high degree of accuracy of +/- 0.05 mm on the entire table surface and the tolerances of the hole diameters of the entire hole pattern.
3D standard welding and clamping table,
1500 x 1000 x 100 mm with Cr75M+ hard chrome plating
Table system: 16 mm
Material thickness: 12 mm
Including table substructure and standard table legs
- S355J2+N with Cr75M+ hard chrome plating
- Hole: 16 mm, material thickness: 12 mm
- Including coated table substructure
- Side panel 100 mm with 2-row hole pattern and 25 mm hole spacing

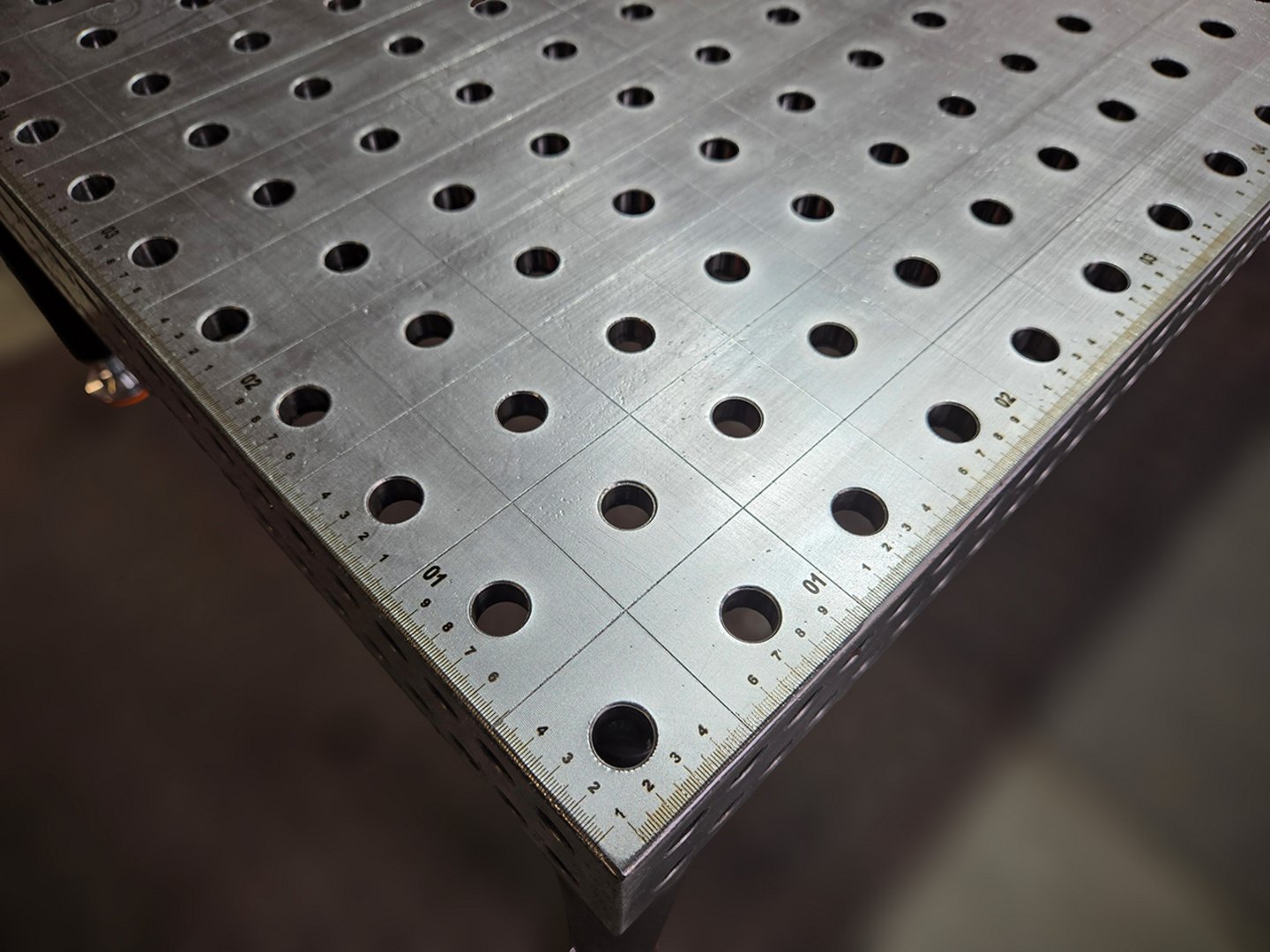

- Table top with 2-sided fine scaling and 50 x 50 mm grid line
- Rounded edges and holes
- Solid standard table legs with load capacity 1 tonne per leg; 500 kg per leg for castor model
Further information
Product video
3D Welding table HIS16V31510
